Product description The SDI Presence Detector with GPI from Link Electronics monitors two serial component digital signals and automatically switches to a backup auxiliary source in the event of a signal failure. This module also features "audio follow video" functionality, which is switched internally with a captive-screw terminal sub-module. This unit supports both Composite and Component video signals.
This unit's input receiver device monitors the incoming signal level and produces a DC voltage proportional to the amount of gain and equalization necessary to recover and reshape the signal. If automatic gain/EQ voltage exceeds the threshold voltage, this device will switch to auxiliary input.

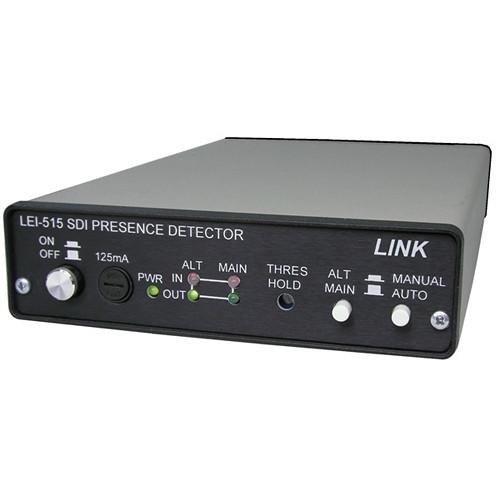

Adjustment features give this unit the ability to select auxiliary input before data errors are visible in the primary input. Front panel switches allow you to override the automatic changeover functions and choose either video source. Dual front-panel LEDs indicate the presence or absence of video input signals. Switching is accomplished with an active 2:1 multiplexer and a 75Ω matched-impedance relay allows the input signal to pass through even if power is lost. - Detection & Backup
- This unit allows you to monitor (2) serial component digital signals and automatically switch to a backup auxiliary source in instances of signal failure.
- Multi-Format Support
- This unit supports both Composite and Component video signals.
- Manual Override
- Choose to override this unit's automatic features and choose the video source as needed.
- LED Indicators
- Dual front-panel LEDs indicate the presence or absence of video input signals.
UPC: 705641990115 In the Box Link Electronics SDI Presence Detector with GPI 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics SDI Presence Detector with GPI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-515B/GPI Specs | Video Input | Composite: 143Mb/s, SMPTE 259M-A
Component: 270Mb/s, SMPTE 259-C
Impedance: 75Ω
Return Loss: >15dB
Signal Level: 800mV+/-1%
CMR: 30Vp-p, up to 60Hz

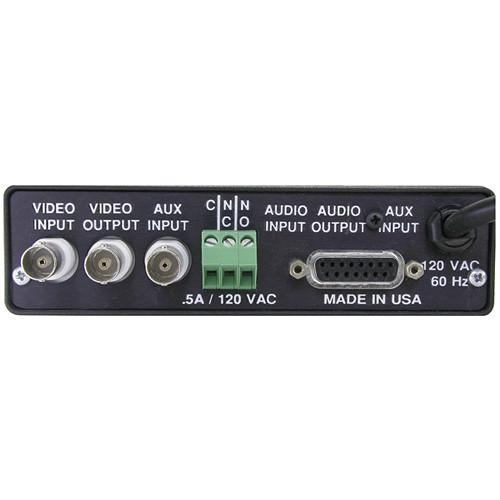

Connectors: BNC | | Audio | Type: Four (4) Form C Contacts
Connectors: Sub D Connector with Screw Terminals
Configuration: Analog & Stereo, balanced, single ended or AES/EBU Digital
Analog Aux. to Primary Cross Talk: > 100 dB
Analog Left to Right Channel: >95 dB | | Indicators | Input Alternate Digital Video: Green/Red LED
Input Main Digital Video: Green/Red LED
Output Alternate or Main: Green LED | | Dry Contact Switch | Configuration: SPDT, Form C
Power Rating: 0.5A/120VAC
Terminal Type: Captive Screw Terminals | | Operating Requirements | Temperature: 32 - 122° (0° to 50°C); ambient
Humidity: 0 to 90% non-condensing | | Power | Input: 120/240 VAC
Power: 0.3 watts | | Dimensions (WxDxH) | 5.5 x 9.3 x 1" (140 x 236 x 25mm) | | Weight | 2.4 lbs (1.1 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
