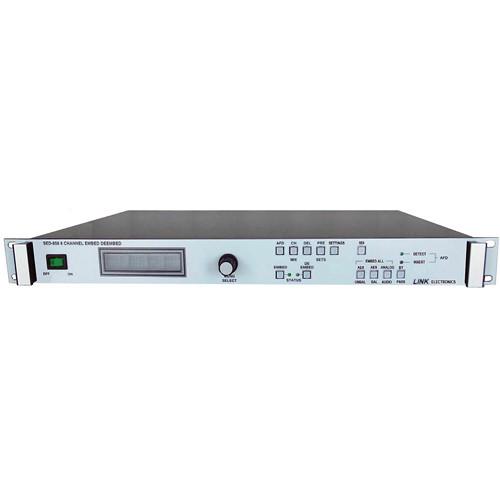

User Manual for Link Electronics SED-858 HD SD SDI Embedder De-embedder Click to enlarge the picture
Contents of the user manual for the Link Electronics SED-858 HD SD SDI
- Product category: Embedders & De-Embedders Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Embedders & De-Embedders
|
User manual for the Link Electronics SED-858 HD SD SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics SED-858 HD SD SDI Embedder/De-embedder is a 1 RU that multiplexes or de-multiplexes up to 8 audio channels into a single video stream. These input audio channels include AES balanced and unbalanced or analog signals and the speeds of the output signals can be 1.485 GBps HD or 270 MBps SD. The device is compatible with progressive segmented frame video. With 24-bit AES audio processing, the SED-858 HD SD SDI Embedder/De-embedder performs simultaneous division or integration of the audio channels in the ancillary region of the HD-SDI or SD-SDI output signal. The analog inputs are received in pairs and converted into 4 AES streams that can be delayed up to 1 sec. Embedded audio can be deleted, replaced, or transmitted, while channels of the matching group will be replaced, hence the first unit can embed 8 channels to group 1 and 2, and the second unit can embed the next 8 channels to group 3 and 4. AFD (Active Format Description) data that carries information about the display characteristics of a signal can be monitored, inserted, deleted, or auto inserted. You can customize the AFD setting and the line number for insertion of the AFD data. It can auto detect HD-SDI and SD-SDI signals with full channel selection per HD or SD signal. Equipped with a built-in analog audio amplifier, it offers full control over the volume. Non-audio ancillary data types in the input video can be displayed by their DID/SDID codes, and up to 4 types selected by the user can be removed from the output video. The 8 channel embed re-mixer provides mixing control over single channels. The setup features can be controlled by a rotary encoder and displayed on a VFD, while LED buttons indicate the unit's status. Four preset configurations are stored in flash memory. With two 25-pin male and one 25-pin female, the breakout cable provides AES and analog audio I/O. - Multiplexes or de-multiplexes up to 8 audio channels into a single video stream
- Input audio channels include AES balanced / unbalanced or analog signals and the speeds of the output signals can be 1.485 GBps HD or 270 MBps SD
- Compatible with progressive segmented frame video
- Embedded audio can be deleted, replaced, or transmitted, while channels of the matching group will be replaced
- Allows that the first unit can embed 8 channels to group 1 and 2, and the second unit can embed the next 8 channels to group 3 and 4
- AFD (Active Format Description) data that carries information about display characteristics of a signal can be monitored, inserted, deleted, or auto inserted
- You can customize the AFD setting and the line number for insertion of AFD data
- Can auto detect HD-SDI and SD-SDI signals with full channel selection per HD or SD signal
- Equipped with a built-in analog audio amplifier, it offers full control over the volume
- Non-audio ancillary data types present in the input video can be displayed by their DID/SDID codes, and up to 4 of them, selected by the user, can be removed from the output video
- 8 channel embed re-mixer provides mixing control over single channels
- Setup features can be controlled by a rotary encoder and displayed on a VFD
- LED buttons indicate the status of the unit
- Flash memory comes with 4 preset configurations
- Breakout cable consists of two 25-pin male and one 25-pin female and provides AES and analog audio I/O
In the Box Link Electronics SED-858 HD SD SDI Embedder/De-embedder 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics SED-858 HD SD SDI Embedder De-embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics SED-858 Specs | | | SDI | SDI Video: 270Mb/s and 1.485Gb/s | | AES | Balanced: 8 Channel (4 AES3-1992) 25 Pin D-Sub, Requires Cable Adapter Assy. for XLR Inputs
Level: 1V Minimum, 110 Ω
Unbalanced: 8 Channels, 4 AES3-ID 75 Ω BNC
Level: 800mV to 1.2V
Sample Rates: 48 KHz | | Analog | Balanced: 8 Channel 25 Pin D-Sub Connectors, Requires Cable Adapter Assy. for XLR Inputs
Impedance: 110 Ω
Connector: 25 Pin D-Sub, Requires Adapter Cable Assembly for XLR
Common Mode Rejection Ratio: >55db
Signal-to-Noise Ratio: >60db | | Drive Rotation Speed | | | AES | Balanced: 8 Channel (4 AES3-1992) 25 Pin D-Sub, Requires Cable Adapter Assy. for XLR Outputs
Level: 4.2 volts p-p typical at 110 Ω
Unbalanced: 4 AES3-ID 75 Ω BNC
Level: 1V p-p typical at 75 Ω
Sample Rate: 48 KHz
Coupling: DC
Jitter: <0.01UI | | Analog | Balanced: 8 Channel 25 Pin D-Sub Connectors, Requires Cable Adapter Assy. for XLR Outputs
Impedance: 600 Ω
Connector: 25 Pin D-Sub, Requires Adapter Cable Assembly for XLR | | Front Panel Controls | 3 embed all options: Lit Momentary Push Button
6 menu selects: Lit Momentary Push Button
Bypass: Lit Momentary Push Button
Readout of timing adjustments: VFD Display
Data Select: Rotary Encoder | | Power Consumption | 3W | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Humidity | 10 to 90% non-condensing | | Dimensions (HxWxL) | 1.8 x 19 x 10" (46 x 483 x 254mm) | | Weight | 3 lbs (1.4kg) | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 20.8 x 19.7 x 6.1" |
