User Manual for Link Electronics SMPTE 310 Serial Digital Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Link Electronics SMPTE 310 Serial Digital
- Product category: Distribution Amplifiers (DA's) Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Distribution Amplifiers (DA's)
|
User manual for the Link Electronics SMPTE 310 Serial Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

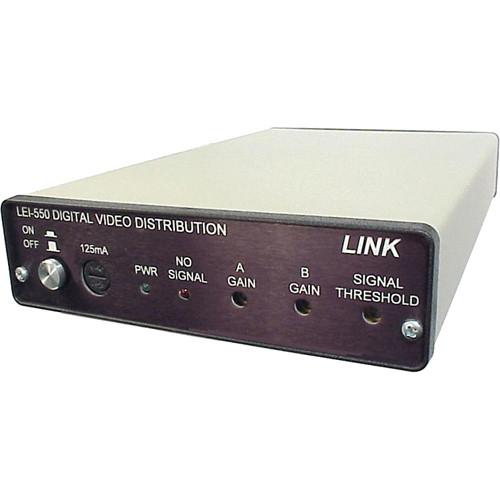

Product description The Link Electronics SMPTE 310 Serial Digital Distribution Amplifier restores the incoming signal to its proper amplitude. The signal is reshaped with automatic equalization, re-sliced, and DC restored. This amplifier offers 6 outputs on the rear panel.A fault LED on the front panel of the amplifier indicates that the input signal level is below a pre-set threshold. A power LED indicates that the amplifier is running at a proper voltage.The SMPTE 310 Serial Digital Distribution Amplifier accepts composite 143 Mb/s, 177 Mb/s, component 270 Mb/s, 16:9 aspect ratio 360 Mb/s standards, SMPTE 310, and ASI. The signal is transparent to the incoming signal data rate. You can adjust the output level from the front panel. This compact amplifier is suitable for portable operation or fixed studio use. UPC: 705641990122 In the Box Link Electronics SMPTE 310 Serial Digital Distribution Amplifier Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics SMPTE 310 Serial Digital Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-550/310 Specs | | | Standard | SMPTE 259M-C, ASI, SMPTE 310 | | Impedance | 75 Ω | | Return Loss | >20 dB | | Signal Level | 800 mV ± 10%, adjustable | | CMR | 30 Vpp, up to 60 Hz | | Connector | BNC | | | | Number of Outputs | 6 | | Standard | SMPTE 259M-C, ASI, SMPTE 310 | | Connector | BNC | | Impedance | 75 Ω | | Return Loss | >15 dB | | Signal Level | 800 to 1,000 mV | | DC Offset | ± 0.5 V | | Rise / Fall time | 1 nS ± 250 ps | | Equalization | Automatic up to >30 dB | | Overshoot | <10% of amplitude | | Delay | 10 nS | | | | Power | Green LED | | Signal | No Signal: Red LED | | | | Temperature | 32 to 122°F (0 to 50°C) ambient | | Humidity | 10 to 90% non-condensing | | Power | 2.5 W | | | | Dimensions (H x W x D) | 1.00 x 5.50 x 9.25" (2.54 x 13.97 x 23.50 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
