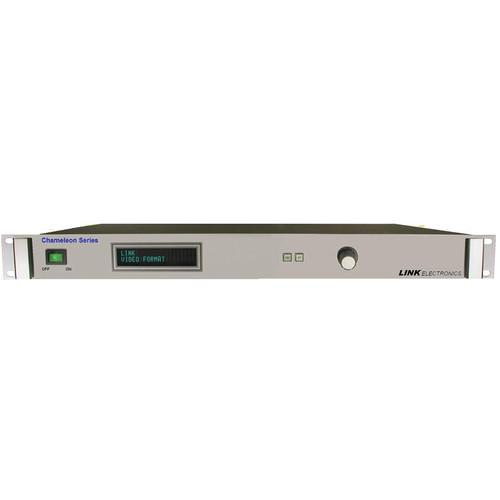

User Manual for Link Electronics SPA-435 Chameleon Series DigiPhase SDI Phase Analyzer Click to enlarge the picture
Contents of the user manual for the Link Electronics SPA-435 Chameleon Series DigiPhase
- Product category: Test Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Test Equipment
|
User manual for the Link Electronics SPA-435 Chameleon Series DigiPhase contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics SPA-435 Chameleon Series DigiPhase SDI Phase Analyzer is a device for checking the timing of SDI compared to an analog reference. Timing, particularly the vertical phase, can cause glitches in the video when switching from one source to another. This device can be used to accurately determine the timing of the HD and SD SDI sources.It automatically detects the SDI input format and the format of the reference input. It compares the input SDI timing to the input reference and displays the timing difference. The timing display for vertical is in lines and the timing display for horizontal is in pixels. The timing display will always be on the front panel and the user can choose via menu option or GPI remote to have the timing overlaid into the SDI output.Its reference format can be NTSC, PAL, 720P, 1080I, and 1080P, while the SDI format can be NTSC, PAL, (SMPTE 259 M) 720P, 1080I, and 1080P (SMPTE 292 M). The LED’s in the 2 front panel buttons will indicate if the inputs are locked (green) or not locked (red). The reference and SDI format do not have to match, but if they are not gen-locked to each other the horizontal and vertical timing counters will just keep scrolling.This Phase Analyzer features simple user interfaces with enter and escape buttons, while a rotary knob is used for menu navigation. The 20X2 Vacuum Fluorescent Display shows the vertical and horizontal phase. - Tri-level or analog black reference input
- Timing display on video and front panel
- GPI remote for video display
- Field upgrade serial, USB, or Ethernet
UPC: 705641990221 In the Box Link Electronics SPA-435 Chameleon Series DigiPhase SDI Phase Analyzer Limited 10-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics SPA-435 Chameleon Series DigiPhase SDI Phase Analyzer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics SPA-435 Specs | | | Reference | 2 x BNC 75 Ω, looping | | Type | Tri-level (HD) or Bi-level (SD) | | Level | 0.6 Vp-p (HD) or 1 Vp-p (SD) +/- 3 dB @ 75 Ω | | Configuration | Single ended | | | | Format | 270 Mb/s, 1.48 Gb/s | | SMPTE | Standards: 259, 292, and 424 M | | Connectors | 1 x BNC 75 Ω with 1 x BNC 75 Ω active loop-thru | | DC Offset | 0.5 V maximum | | Signal Level | 800 mv ± 10% | | | | Connector | 2 x BNC, 75 Ω | | Format | Follows SDI input, with optional timing displayed on it | | Signal Level | 800 mVp-p ± 10% | | DC Offset | ± 100 mV | | Propagation Delay | HD: 2.373 μS
SD: 6.296 μS | | | | Timing | Timing and Menu Readout: VFD display | | Escape | Momentary switch with LED | | Enter | Momentary switch with LED | | Menu Navigation | Rotary knob | | | | Input Power | External +5 VDC power supply | | Compliance | Designed to meet UL approval | | | | Temperature | 32 to 122°F (0 to 50°C) ambient | | Humidity | 10 to 90% non-condensing | | | | Dimensions (H x W x D) | 1.75 x 19.00 x 9.00" (4.45 x 48.26 x 22.86 cm) | | Weight | 4.75 lb (2.15 kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
