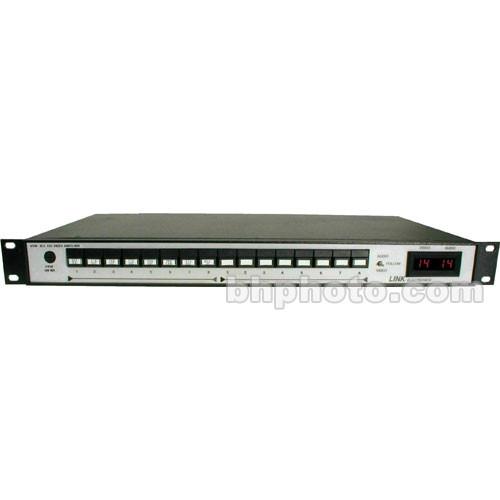

User Manual for Link Electronics VSW-822 Dual Vertical Interval 8x1 Matrix Switcher - Composite Video, RS-232 422 485, Rackmountable Click to enlarge the picture
Contents of the user manual for the Link Electronics VSW-822 Dual Vertical Interval
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics VSW-822 Dual Vertical Interval contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics VSW-822 is a dual eight input, one output, composite video switcher. It offers vertical interval switching, front panel touch switches and an LED display of routing structure. It can be controlled remotely and configures with audio switchers of the same design. - Dual Configuration
- This device is two 8x1 composite video switchers in one housing; it has the ability to route in a few other configurations as well.
- Vertical Interval
- When input sources are referenced to the same signal glitch free transitions are accomplished.
- Remote Switching
- Remote switching is accomplished via RS-232, RS-422 and RS-485 control interfaces.
- LED Display
- Routing structure is contiuously displayed on front panel.
- Rackmountable
- Fits into standard studio rack space without extraneous equipment.
In the Box Link Electronics VSW-822 Dual Vertical Interval 8x1 Matrix Switcher - Composite Video, RS-232/422/485, Rackmountable Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics VSW-822 Dual Vertical Interval 8x1 Matrix Switcher - Composite Video, RS-232 422 485, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics VSW-822 Specs | Input | Composite video x16, two banks of 8, 1 Vpp @ 75 ohms, on BNC connectors
Serial Control, on a D-Sub connector
Remote, on an RJ-11 connector | | Output | Composite video x2, Separate Destinations, 1 Vpp @ 75 ohms, on BNC connectors | | Switch Type | Vertical Interval
Front Panel Touch Buttons
Remote via RS-232 and RS-485 | | Video Bandwidth | 30 MHz | | Differential Gain | 0.1% | | Differential Phase | 0.1° | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Control | Front Panel Touch Switches
Remote via RS-232 RS-422 RS-485 | | Power Source | Universal 120 to 264 VAC, 50/60 Hz | | Dimensions (WxDxH) | 19 x 8.7 x 1.75"
48.26 x 22 x 4.45cm | | Weight | 6.5 lbs
2.9 kg |
