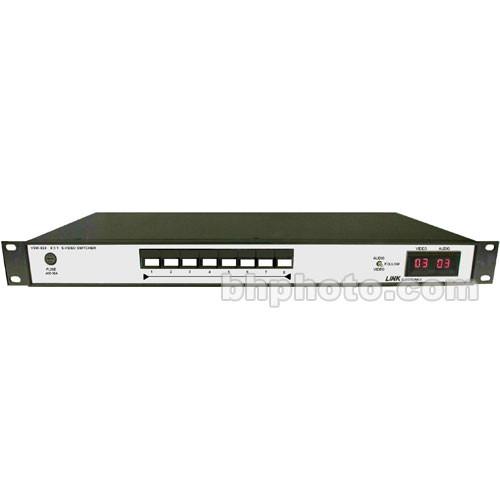

Product description The Link Electronics VSW-824 is an eight input, one output vertical interval switcher for Y/C video signals. Vertical interval switching ensures that there is glitch free transitions for sources that share a common reference sync. This device also has the ability to match with an audio router and be operated from a remote source. - Vertical Interval Switching
- They provide glitch-free switching between genlocked sources at the vertical interval.
- Audio Follow
- This unit will control a matched audio switcher (PAF-823) for audio follow or break away audio
- LED Readout
- An LED readout displays the audio and video routing selection.
- Remote Operation
- It has a built-in RS-232 interface with for remote operation using a computer.
- Rackmountable
- The VSW-824 fits into standard studio rack spaces.
In the Box Link Electronics VSW-824 Vertical Interval Switcher 8x1 - Y/C S-Video, RS-232, Rackmountable Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics VSW-824 Vertical Interval Switcher 8x1 - Y C S-Video, RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics VSW-824 Specs | Input | Y/C S-video x8, 1 Vpp @ 75 ohms, on 4-Pin connectors
Serial Remote, RS-232/422/485, on a 9-Pin connector
Other Remote, on an RJ-11 connector | | Output | Y/C S-video, 1 Vpp @ 75 ohms, on a 4-Pin connector | | Switch Type | Vertical Interval
Front Panel Touch Switches
Remote operation using RS-232 and a PC | | Video Bandwidth | 30 MHz | | Differential Gain | 0.1% | | Differential Phase | 0.1° | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Control | Front Panel Switches
RS-232 | | Power Source | 115 VAC 60 Hz
230 VAC 50 Hz | | Dimensions (WxDxH) | 19 x 8.7 x 1.75"
48.26 x 22 x 4.45cm | | Weight | 6.5 lbs
2.9 kg |
