Linksys EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit

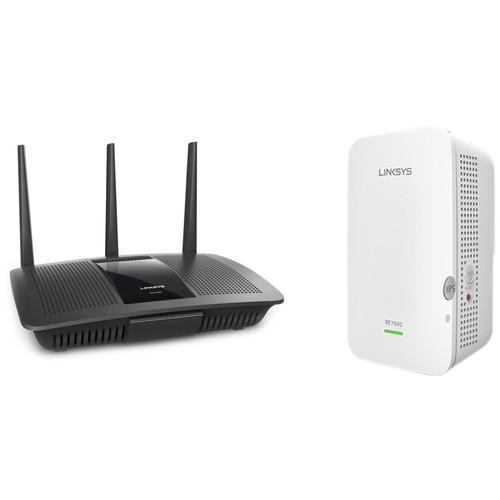

User Manual for Linksys EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router Kit with MAX STREAM Dual-Band Range Extender

• Product category: Wireless Routers Linksys
• Brand: Linksys
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Linksys Wireless Routers

Product description

• Linksys EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router With the EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router from Linksys you can set up and configure your wireless network in no time using the Linksys Smart Wi-Fi application or through a web browser. Simply plug in the router and connect it to your modem, sign up for a Linksys Smart Wi-Fi account, and begin configuring your network settings such as wireless encryption, operating modes, drive management, and more.

  The EA7500 comes equipped with three dual-band detachable antennas and operates on both the 2.4 GHz and 5 GHz frequencies. With support for the 802.11ac networking standard users can take advantage of a maximum data transfer rate of up to 1900 Mbps. The wireless signal emitted by this router is beamed directly to connected devices thanks to built-in beamforming technology providing a stronger, more reliable signal. Users also benefit from MU-MIMO (multiple user - multiple input multiple output) technology designed to handle multiple data streams simultaneously to ensure tasks such as online gaming and streaming multimedia content operate lag free.

  If a wired connection is what you need, the EA7500 has you covered as it comes equipped with four Gigabit Ethernet ports. In addition to Gigabit Ethernet connectivity, you can also take advantage of a single USB 2.0 and USB 3.0 port designed to support external storage drives formatted FAT, NTFS, and HFS+. Once a drive is connected users throughout the network can access content stored on that drive.
  802.11ac MU-MIMO
  • The MAX-STREAM AC1900 Multi User-MIMO Router offers two dedicated Wi-Fi bands that deliver combined speeds of up to 1.9 Gbps. Users can manually assign high-bandwidth Wi-Fi activities such as 4K video streaming and online gaming to the high-speed 5 GHz band, while assigning older Wi-Fi devices and activities to the 2.4 GHz band.
  MU-MIMO Technology
  • MU-MIMO (Multi-User, Multiple-Input, Multiple-Output) technology ensures uninterrupted simultaneous Wi-Fi connections to devices such as HD streaming media players, 4K TVs, tablets, and game consoles. Multiple devices receive high-speed Wi-Fi at the same time and same speed. Your family can access the Internet at the same time without experiencing lag or buffering--at up to 2x the speed of a non-MU-MIMO router.
  Lag-Free Online Gaming via Powerful Processor
  • Take advantage of fast-paced Wi-Fi activities such as online multiplayer gaming with the MAX-STREAM AC1900. Powered by a 1.4 GHz dual-core processor, it is capable of handling three simultaneous data streams, delivering improved Wi-Fi performance and faster Wi-Fi speeds to more devices.
  High-Speed Wired Connectivity with Gigabit Ethernet Ports
  • Connect more devices and share files at speeds 10x faster than Fast Ethernet with four Gigabit Ethernet ports. Connect a storage device and quickly transfer files or share devices such as printers across your Wi-Fi network using the USB 2.0 and USB 3.0 ports.
  Improved Wi-Fi Speed and Range with Beamforming
  • Direct Wi-Fi signals to each of your mobile devices to increase signal strength and coverage with the MAX-STREAM Wi-Fi router using Beamforming technology. Play video games, listen to music, check emails, shop online, stream HD movies, and more, without having to worry about dropped signals.
  Linksys Smart Wi-Fi
  • Linksys Smart Wi-Fi lets you access your network anytime, anywhere. Using your browser or the Smart Wi-Fi mobile app, you can:
    • Prioritize devices or websites for video streaming and online gaming
    • Control inappropriate or distracting content
    • Monitor network activity and speed
    • Turn Wi-Fi access on or off for any connected device
    • Create a separate, password-protected guest network
  UPC: 745883704262
• Linksys MAX STREAM AC1900 Dual-Band Range Extender Quickly extend the reach of your existing Wi-Fi network with the MAX STREAM AC1900 Dual-Band Range Extender from Linksys. Simply press the Push Button Connect feature on the RE7000 to automatically sync it to your router or set it up on your smartphone, tablet, or laptop. Use the Spot Finder feature for optimal placement to connect the Internet on either the 2.4 GHz or 5 GHz frequency. The less congested 5 GHz frequency is perfect for bandwidth intensive tasks such as transferring large files, streaming HD content, online gaming and more.The MAX STREAM also supports the 802.11ac networking standard with data transfer rates of up to 750 Mbps and a range of up to 10,000 sq. ft. Once configured, built-in beamforming technology directs the wireless signal to each device for a more reliable Wi-Fi connection. Along with wireless connectivity, this range extender comes equipped with a single Gigabit Ethernet port for a reliable, wired connection option.
  Eliminate Dead Zones
  • Easily expand your home Wi-Fi to enjoy uninterrupted streaming, smooth online gaming, and more. The MAX STREAM extends your existing Wi-Fi range up to 10,000 sq. ft, so you can enjoy a stronger Wi-Fi signal-even outdoors.
  Universal Compatibility
  • The MAX STREAM is compatible with all Wi-Fi routers, including your existing unit or those from service providers. There's no need to modify your router's settings when installing the extender – you won't have to touch your router at all.
  Easy Setup Options for Optimal Placement
  • • Simply press the Push Button Connect feature on the AC1900 MAX-STREAM to automatically sync it to your router
    • Simple setup from a smartphone, tablet, or laptop
    • Find the optimal location for the range extender using Spot Finder Technology
    • Spot Finder helps ensure your Linksys range extender is in the right spot
    • If placed too far from an existing router, a range extender may not expand Wi-Fi; or, Wi-Fi may be spotty
  Dual-Band Wi-Fi
  • Stream movies, play games online, and browse the Web without interruptions thanks to quick data transfer speeds of up to N300 + AC1733 Mbps. The range extender features dual bands and can also focus the Wi-Fi signal directly to your connected devices for optimal performance, thanks to Beamforming Technology. Additionally, Crossband Technology maximizes the simultaneous use of both bands for high-speed data transfer and uninterrupted streaming and gaming.
  Gigabit Ethernet Connectivity
  • Connect a wired device such as a gaming console, Blu-ray player, Smart TV, or streaming player to your Wi-Fi network. The extender's Gigabit Ethernet port provides data transfer speeds 10x faster than a Fast Ethernet port.
  UPC: 745883710904

• EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router berbutrsutafexuruzyffvsxw
• 3 x Antennas
• Ethernet Cable
• Power Adapter
• CD-ROM with Documentation
• Limited 1-Year Warranty

• MAX STREAM AC1900 Dual-Band Range Extender

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Linksys EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router

  Wireless Frequency Bands	2.4 GHz, 5 GHz
  Number of Antennas	3
  WLAN Mode	802.11ac
  Antenna Placement	External

  Ports	1 x Ethernet (RJ45) (Uplink) 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 1 x 5 Gb/s USB Type-A 2 x 480 Mb/s USB Type-A

  Throughput	2.4 GHz: 600 Mb/s 5 GHz: 1300 Mb/s

  Wireless Security	WEP, WPA, WPA2

  Processor	1.4 GHz Dual-Core
  Supported File Systems	HFS+, NTFS, FAT

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC at 3.5 A

  Dimensions	10.12 x 7.24 x 2.2" / 257 x 184 x 56 mm
  Weight	20.74 oz / 558 g

  Box Dimensions (LxWxH)	13.6 x 10.0 x 3.2"

• Linksys MAX STREAM AC1900 Dual-Band Range Extender

  Wi-Fi Technology	AC1900+ MU-MIMO
  Network Standards	802.11b/g/a/n/ac
  Wi-Fi Speed	N300 + AC1733
  Wi-Fi Bands	Simultaneous Dual-band: 2.4 & 5 Ghz
  Wi-Fi Range	10,000 sq. ft
  Ports	1 x Gigabit Ethernet
  Browser Support	Latest versions of Google Chrome, Firefox, and Safari Internet Explorer version 8 and newer.
  Dimensions	5 x 3.2 x 1.8" (126 x 81 x 46 mm)
  Weight	9 oz (255 g)

  Box Dimensions (LxWxH)	10.1 x 10.1 x 3.1"
