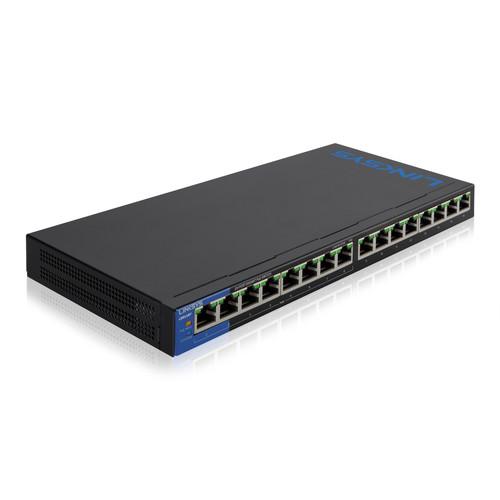

User Manual for Linksys LGS116P 16-Port Unmanaged PoE Switch Click to enlarge the picture
Contents of the user manual for the Linksys LGS116P 16-Port Unmanaged PoE Switch
- Product category: Network Switches, Bridges & Hubs Linksys
- Brand: Linksys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linksys Network Switches, Bridges & Hubs
|
User manual for the Linksys LGS116P 16-Port Unmanaged PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linksys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linksys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linksys product will considerably shorten its lifespan!
|
Product description With 8 Power over Ethernet enabled ports, the LGS116P 16-Port Unmanaged PoE Switch from Linksys helps to eliminate the need to run an additional power supply to your network components. The first eight of the sixteen Gigabit Ethernet ports are dedicated PoE ports with a power budget of up to 80 W. In addition to the Gigabit Ethernet ports, this switch features a 32 Gbps bandwidth, 8K MAC address table, enhanced full line rate and forwarding rate of up to 1.488 Mpps for the 1000M port. Linksys also provides cable connected detection and sleep mode features to help conserve power when the switch is idle. - Gigabit Performance
- This unmanaged PoE switch offers Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
- Power Where You Need It
- PoE support lets you deploy network systems such as wireless access, IP telephony, or video surveillance solutions more quickly and at a lower cost, without having to install separate power supplies for individual devices.
- Plug-and-Play Convenience
- Linksys unmanaged switches offer a quick and easy solution to extend your office network with plug-and-play installation.
- Quality of Service (QoS) Traffic Prioritization
- QoS traffic prioritization gives precedence to particular devices or activities to ensure mission-critical data throughput is maintained regardless of network congestion. Auto-sensing ports automatically optimize speed for each connected device.
UPC: 722868998342 In the Box Linksys LGS116P 16-Port Unmanaged PoE Switch Power Adapter Limited Lifetime Warranty More from Manufacturer More info from Linksys Table of Contents
|
Upload User Manual
Have you got an user manual for the Linksys LGS116P 16-Port Unmanaged PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinksys LGS116P Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2) | | | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x | | | | Forwarding Rate | 1.48 Mpps | | Switching Bandwidth | 32 Gb/s (Non-Blocking) | | | | Power Draw | 11.31 W (Active)
4.52 W (Idle) | | DC Input Power | 54 VDC at 1.66 A | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 90% | | | | Indicator Lights | Activity, Link, PoE, Speed | | Dimensions | 11 x 4.7 x 1" / 28 x 12 x 2.5 cm | | Weight | 2 lb / 1 kg | | | | Package Weight | 4.51 lb | | Box Dimensions (LxWxH) | 13.4 x 8.9 x 3.1" |
