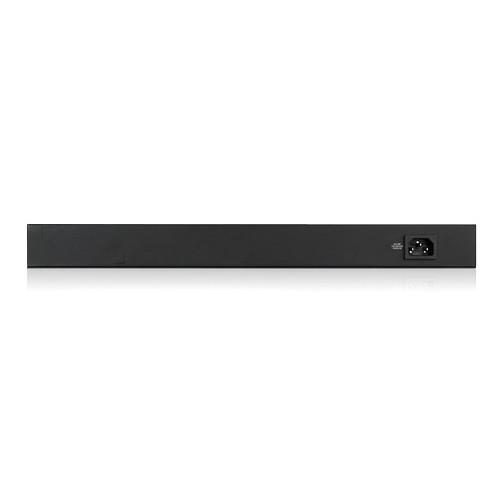

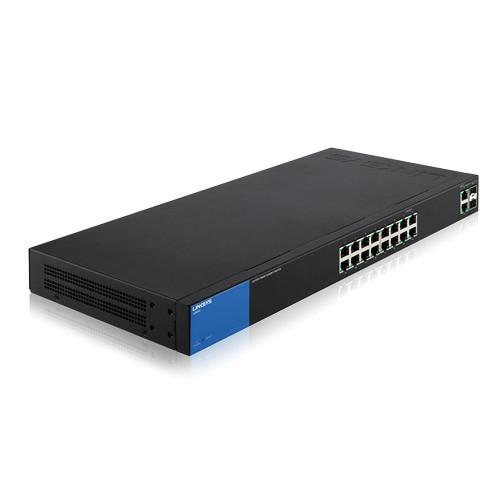

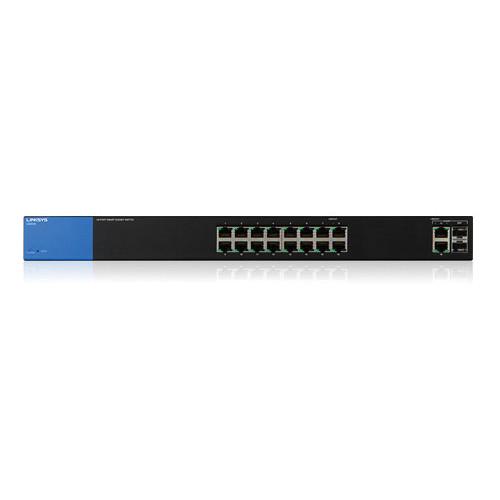

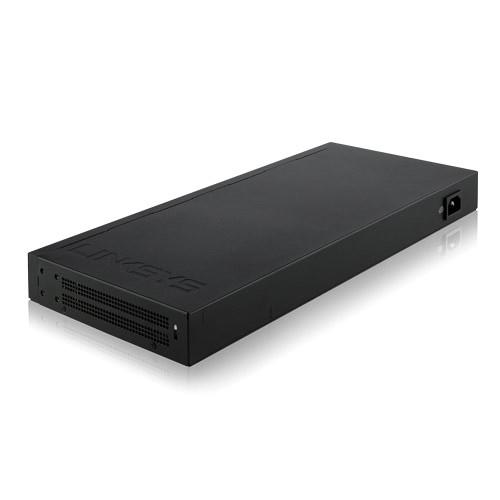

User Manual for Linksys LGS318 18-Port Smart Gigabit Switch Click to enlarge the picture
Contents of the user manual for the Linksys LGS318 18-Port Smart Gigabit Switch
- Product category: Network Switches, Bridges & Hubs Linksys
- Brand: Linksys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linksys Network Switches, Bridges & Hubs
 |
User manual for the Linksys LGS318 18-Port Smart Gigabit Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linksys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linksys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linksys product will considerably shorten its lifespan!
|
Product description With 18 Gigabit Ethernet ports, the LGS318 18-Port Smart Gigabit Switch from Linksys is a business-class switch designed to handle a heavy workload while remaining easy to configure and manage. The 18 Gigabit Ethernet ports, two of which offer SFP connectivity, allow you to connect additional routers and switches to the network for easy expansion. Integrated network security features including MAC-based port security, DHCP snooping, and IP-MAC binding help to keep the network safe from intruders and attacks. - Quality of Service (QoS)
- Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.
- Network Security
- Unauthorized access to the network and mission-critical data is a constant concern. Linksys smart switches help secure networks through port authentication and MAC-based port security, requiring clients to authenticate themselves before any data is passed. Advanced DHCP snooping and IP-MAC binding functions ensure network integrity and help prevent network attacks.
- Network Expansion
- Linksys smart switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and Storm Control features help control planned or inadvertent cable loops.
UPC: 745883634781 In the Box Linksys LGS318 18-Port Smart Gigabit Switch Limited Lifetime Warranty More from Manufacturer uzywcabdufeycebvzvsvxfyrzysbssaxuytq More info from Linksys Table of Contents
|
Upload User Manual
Have you got an user manual for the Linksys LGS318 18-Port Smart Gigabit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinksys LGS318 Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Supported Protocols | Auto-VoIP
Head-of-Line (HOL) Blocking
IGMP Snooping
Link Aggregation
Port Mirroring | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 8K | | VLAN Groups | 128 | | VLAN IDs | 4096 | | | | Security Features | DHCP Snooping
RADIUS Authentication | | SNMP Support | 1, 2c | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q/p, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 26.79 Mpps | | Switching Bandwidth | 36 Gb/s | | Priority Queues | 4 | | | | Power Draw | 13.55 W (Active) | | Current | 1 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 90% | | | | Indicator Lights | Link/Activity, System | | Dimensions | 17.3 x 7.9 x 1.7" / 44 x 20 x 4.4 cm | | Weight | 5 lb / 2 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 19.8 x 11.8 x 3.7" |
