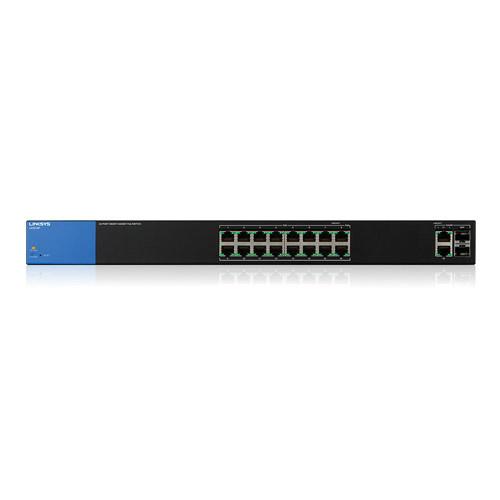

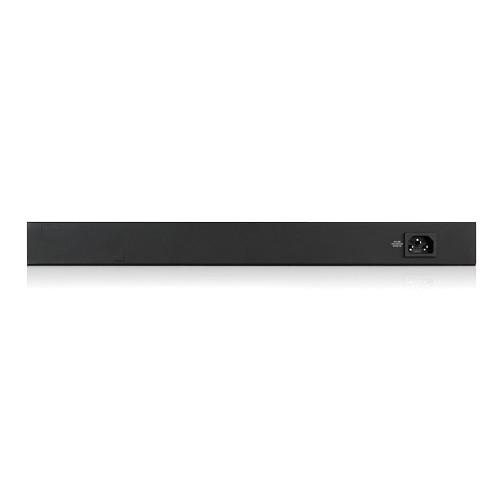

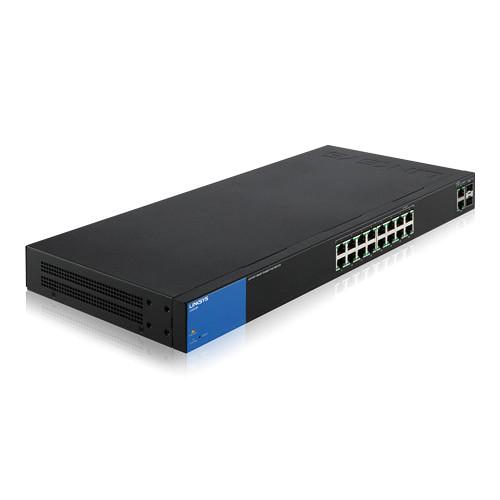

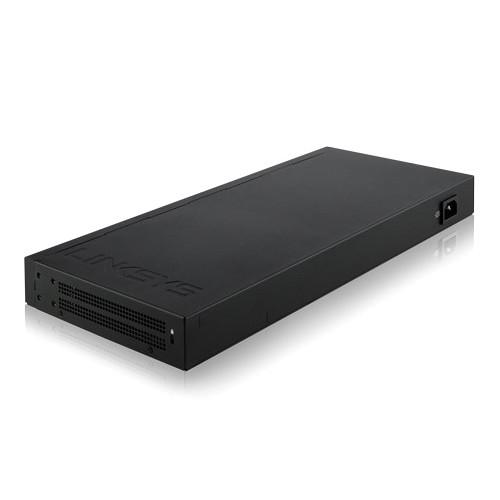

User Manual for Linksys LGS318P 18-Port Smart Gigabit PoE Switch Click to enlarge the picture
Contents of the user manual for the Linksys LGS318P 18-Port Smart Gigabit PoE
- Product category: Network Switches, Bridges & Hubs Linksys
- Brand: Linksys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linksys Network Switches, Bridges & Hubs
 |
User manual for the Linksys LGS318P 18-Port Smart Gigabit PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linksys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linksys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linksys product will considerably shorten its lifespan!
|
Product description With 16 Power over Ethernet enabled ports, the LGS318P 18-Port Smart Gigabit PoE+ Gigabit Switch from Linksys helps to eliminate the need to run an additional power supply to your network components. The "plus" gives you roughly double the power per port while remaining backwards compatible with the traditional 802.1af PoE networking standard. In addition to Power over Ethernet functionality, this network switch features 18 Gigabit Ethernet ports along with a forwarding rate of 26.79 Mpps, a switching capacity of 36 Gbps, an 8K MAC address table, and 9K Jumbo Frame support. - Quality of Service (QoS)
- Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.
- Power over Ethernet Plus (PoE+)
- Linksys smart switches support the latest 802.3at (PoE+) standards and provide up to double the power budget per Gigabit Ethernet port while offering 802.3af (PoE) backward-compatibility. Power over Ethernet reduces electrical wiring costs, simplifies installation, and supports network devices such as IP cameras and wireless access points in optimal indoor and outdoor locations.
- Network Security
- Unauthorized access to the network and mission-critical data is a constant concern. Linksys smart switches help secure networks through port authentication and MAC-based port security, requiring clients to authenticate themselves before any data is passed. Advanced DHCP snooping and IP-MAC binding functions ensure network integrity and help prevent network attacks.
- Network Expansion
- Linksys smart switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and Storm Control features help control planned or inadvertent cable loops.
UPC: 745883634798 In the Box Linksys LGS318P 18-Port Smart Gigabit PoE+ Switch Limited Lifetime Warranty More from Manufacturer ebfrqrvbwb More info from Linksys Table of Contents
|
Upload User Manual
Have you got an user manual for the Linksys LGS318P 18-Port Smart Gigabit PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinksys LGS318P Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Supported Protocols | Auto-VoIP
Head-of-Line (HOL) Blocking
IGMP Snooping
Link Aggregation
Port Mirroring | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 8K | | VLAN Groups | 128 | | VLAN IDs | 4096 | | | | Security Features | DHCP Snooping
RADIUS Authentication | | SNMP Support | 1, 2c | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q/p, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 26.79 Mpps | | Switching Bandwidth | 36 Gb/s | | Priority Queues | 4 | | | | Power Draw | 19.47 W (Active) | | Current | 2 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 125 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 90% | | | | Cooling System | Fan | | Indicator Lights | Link/Activity/PoE, System | | Dimensions | 17.3 x 7.9 x 1.7" / 44 x 20 x 4.4 cm | | Weight | 6 lb / 3 kg | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 19.6 x 11.8 x 3.5" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
