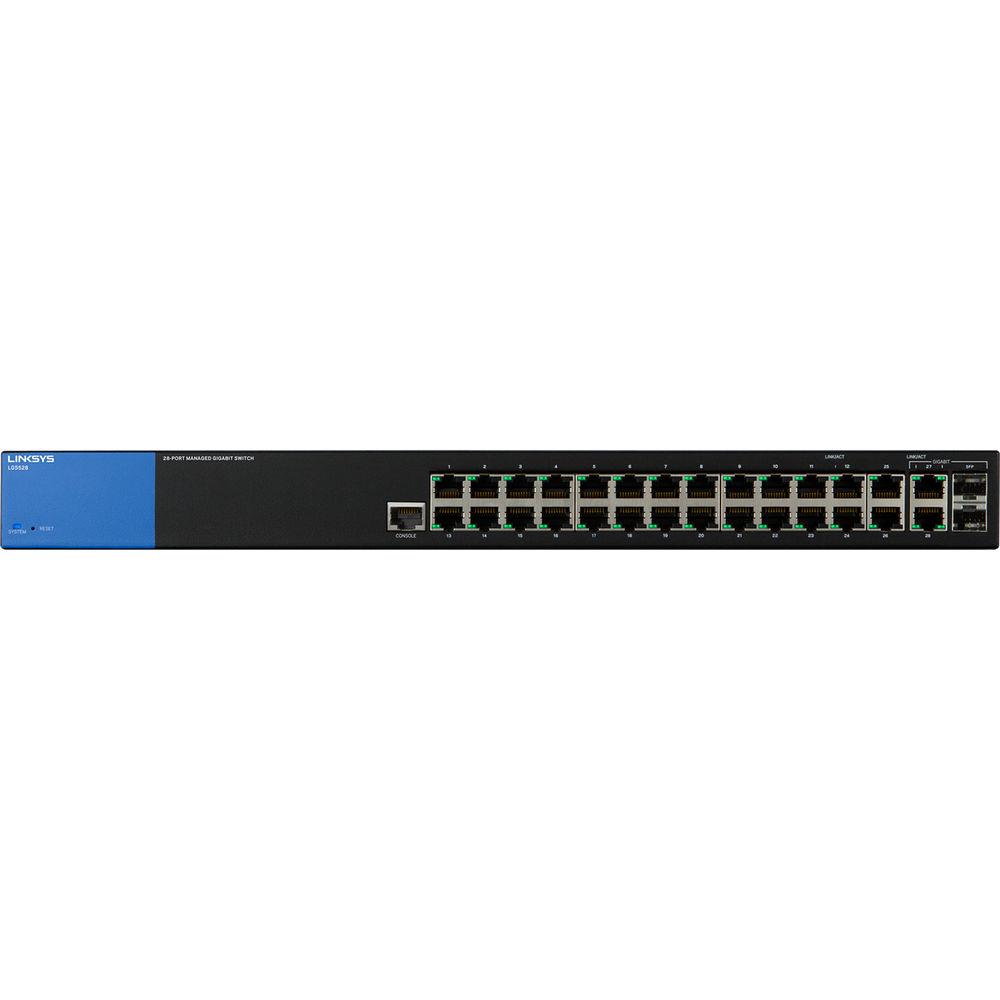

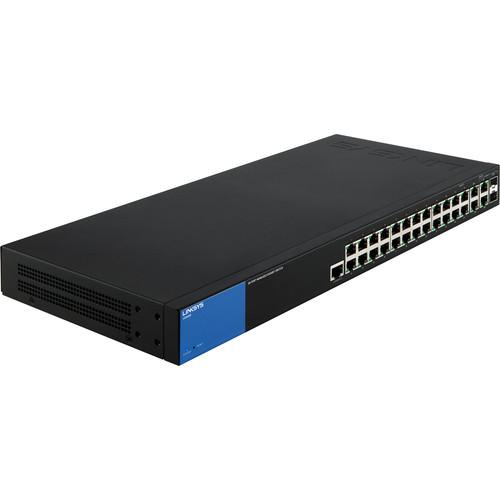

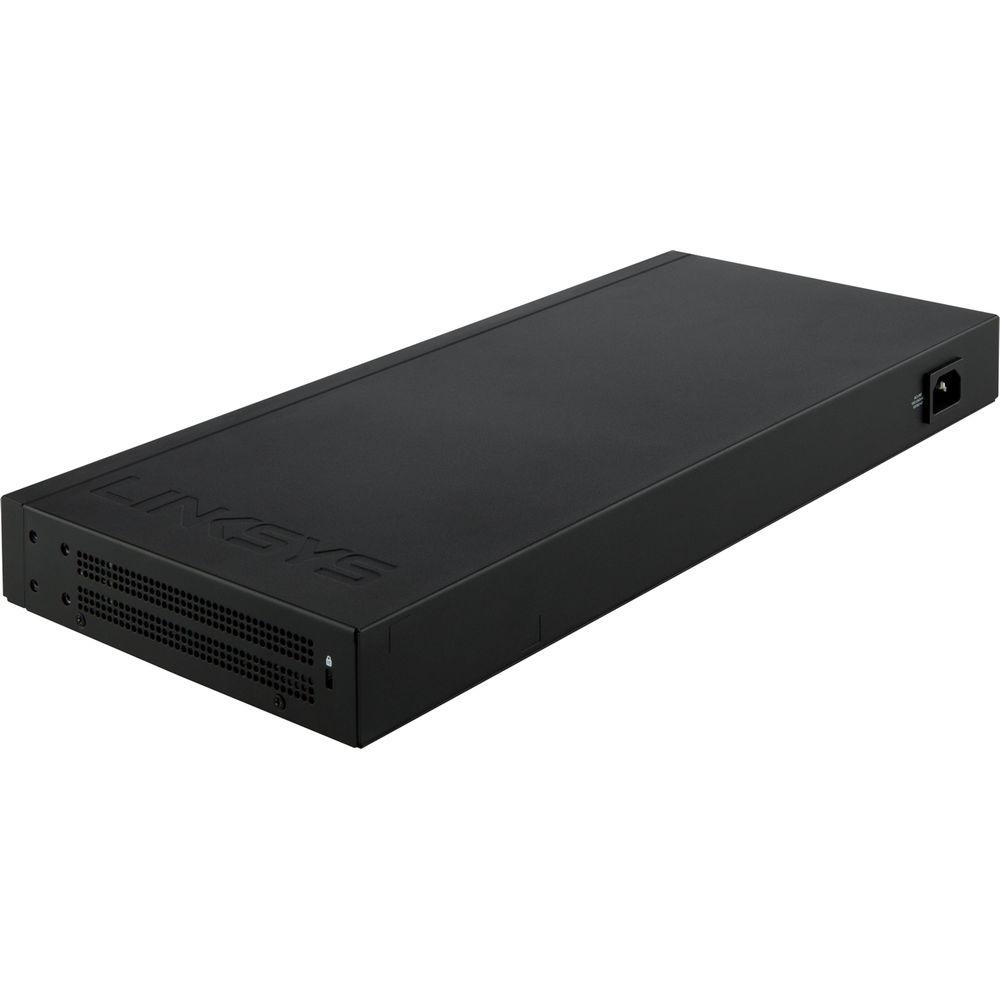

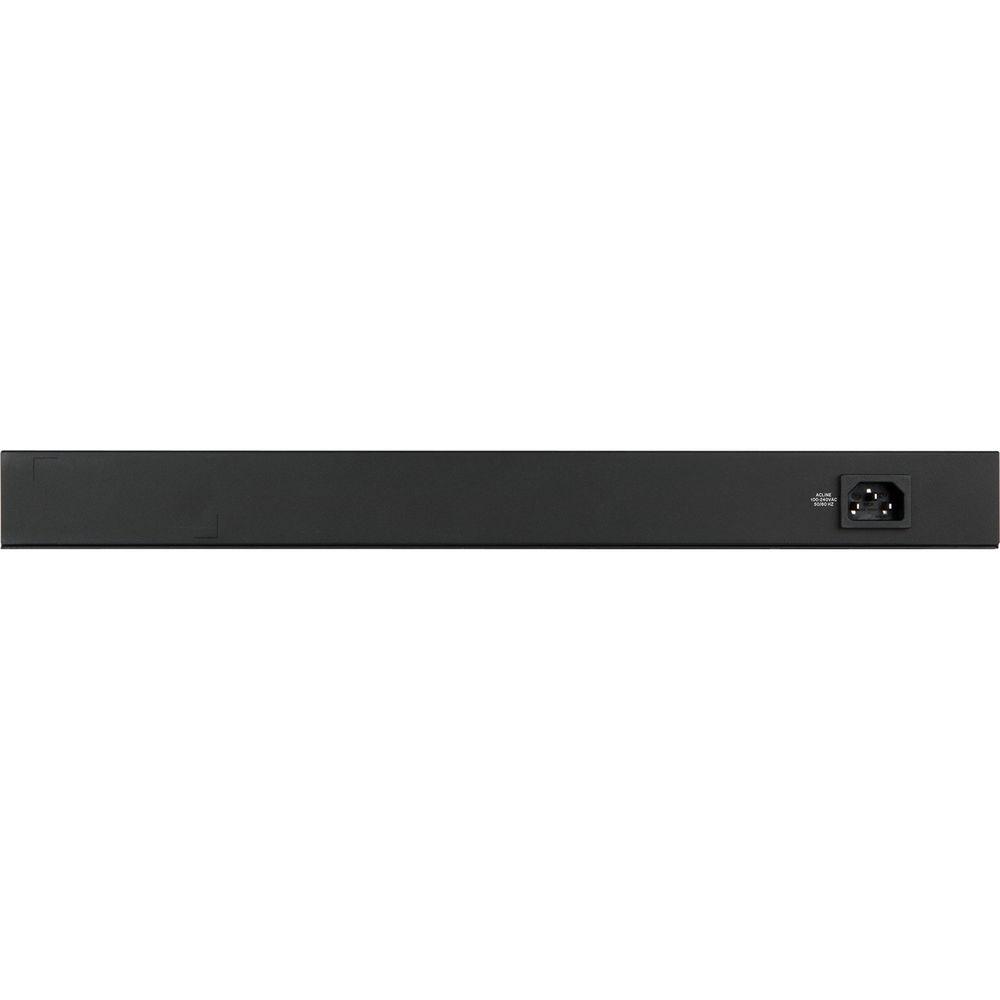

User Manual for Linksys LGS528 28-Port Managed Gigabit Ethernet Switch Click to enlarge the picture
Contents of the user manual for the Linksys LGS528 28-Port Managed Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs Linksys
- Brand: Linksys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linksys Network Switches, Bridges & Hubs
 |
User manual for the Linksys LGS528 28-Port Managed Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linksys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linksys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linksys product will considerably shorten its lifespan!
|
Product description Take advantage of Gigabit transfer rates across all ports with the LGS528 28-Port Managed Gigabit Ethernet Switch from Linksys. In addition to Gigabit Ethernet connectivity, users also benefit from dual combo mini-GBIC (SFP) ports for high speed local network links. This high-performance switch features an energy efficient design complete with support for Layer 3 static routing, IPV6, and IP telephony.
To accompany the high-speed network connections offered by the LGS528 switch, Linksys has included intuitive Quality of Service (QoS) functionality to ensure bandwidth intensive tasks have priority on the network. Security features include MAC-based port security, advanced DHCP snooping, and IP-MAC-Port binding. The network can even be expanded beyond the capabilities of this switch with support for multiple high-bandwidth trunks between switches for enhanced availability and redundancy.
Once configured, the Linksys LGS528 switch comes equipped with 28 Gigabit Ethernet ports along with dual combo RJ-45+SFP ports. A 56 Gbps switching capacity, a 16K MAC address table, and a 9K jumbo frame ensures optimal performance even when the switch is being pushed to its limit. Network administrators also benefit from dedicated LED indicators showing both system and link/activity status. - Quality of Service (QoS)
- Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth intensive graphic/video file uploads and downloads. Advanced QoS provides per flow base policer and rate limit to enforce SLA requirement.
- Network Security
- Unauthorized access to the network and mission-critical data is a constant concern. Linksys Managed Switches offer to secure networks through port authentication and MAC-based port security, requiring clients to authenticate themselves before any data is passed. Advanced DHCP snooping and IP-MAC-Port binding functions ensure network integrity and help prevent network attacks.
- Network Expansion
- Linksys Managed Switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and Storm Control features help control planned or inadvertent cable loops, so you can confidently build a mesh of switches and quickly expand your network to support your growing workforce. With additional Gigabit or 10-Gigabit uplink SFP/SFP+ fiber-optic port expansions for servers and data centers, Linksys Managed Switches provide an ideal combination of business scalability and affordability.
UPC: 745883634828 In the Box Linksys LGS528 28-Port Managed Gigabit Ethernet Switch Power Adapter Limited Lifetime Warranty More from Manufacturer bfrbfdsz More info from Linksys Table of Contents
|
Upload User Manual
Have you got an user manual for the Linksys LGS528 28-Port Managed Gigabit Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinksys LGS528 Specs | | | Ports | 26 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Layer Services Supported | Layer 3 Support | | Supported Protocols | Head-of-Line (HOL) Blocking
IGMP Snooping
IPv6
Link Aggregation
Port Mirroring | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 16K | | VLAN IDs | 4094 | | | | Security Features | DHCP Snooping
RADIUS Authentication | | SNMP Support | 1, 2c, 3 | | | | Supported IEEE Standards | 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 41.67 Mpps | | Switching Bandwidth | 56 Gb/s | | Priority Queues | 4 | | | | Power Draw | 19.4 W (Active) | | Current | 1 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 10 to 90% | | | | Indicator Lights | Link/Activity, System | | Dimensions | 17.3 x 7.9 x 1.8" / 44 x 20 x 4.5 cm | | Weight | 5 lb / 2 kg | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 19.7 x 11.8 x 3.6" |
