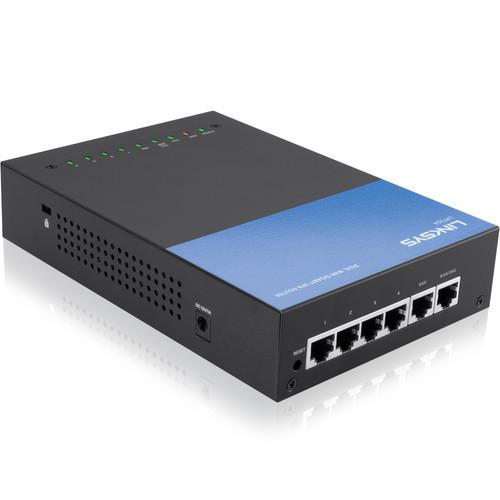

User Manual for Linksys LRT224 Dual WAN Gigabit VPN Router Click to enlarge the picture
Contents of the user manual for the Linksys LRT224 Dual WAN Gigabit VPN
- Product category: Network Routers Linksys
- Brand: Linksys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linksys Network Routers
|
User manual for the Linksys LRT224 Dual WAN Gigabit VPN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linksys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linksys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linksys product will considerably shorten its lifespan!
|
Product description Easily create an OpenVPN Server with the LRT224 Dual WAN Gigabit VPN Router from Linksys. This VPN router comes equipped with one Gigabit WAN port, one Gigabit DMZ port, and four Gigabit LAN ports. The integrated DMZ port provides an additional layer of security when setting up and configuring the VPN. With the OpenVPN running on authorized computers, smartphones, and tablets, employees have the ability to remotely access the company Intranet using two-factor authentication.
With a 900 Mbps integrated firewall administrators have the ability to closely monitor local network traffic, the business network, and all VLANs simultaneously. In addition to the firewall, administrators can also utilize IPsec functionality which authenticates and encrypts each IP packet of a communication session. With VLAN tagging network resources can be easily organized and parameters can be configured to determine how network traffic is managed. Creating and managing VLANs is simple with intuitive web based controls to virtually eliminate the need for an IT staff. - OpenVPN Server Support
- Linksys Gigabit VPN Routers allow OpenVPN clients running on employees' laptops, smartphones, and tablets to connect to the office using two-factor authentication.
- Integrated Firewall
- The LRT series supports URL filtering and access rules that allow administrators to further regulate the traffic within the business network based on the services (i.e., TCP/UDP ports) and source/destination IP addresses.
- 802.1q VLAN Tagging
- This Linksys VPN router keeps resources in different SSIDs/VLANs separated, while allowing specified traffic to traverse between VLANs with inter-VLAN routing.
- IPv6 Transition
- This Linksys VPN router supports transition technologies such as dual-stack IPv4 and IPv6 to ensure compatibility as service providers upgrade their systems.
- Intuitive Web Administrative Interface
- Easy to set up and easy to use, the intuitive admin interface allows small business owners to deploy and manage the routers without professional IT staff onsite.
- Dual-WAN Load Balancing and WAN Failover
- ${DualWANFeature}
UPC: 745883631711 In the Box Linksys LRT224 Dual WAN Gigabit VPN Router Limited Lifetime Manufacturer Warranty Brochure PDF 419.3kb More from Manufacturer More info from Linksys Table of Contents
|
Upload User Manual
Have you got an user manual for the Linksys LRT224 Dual WAN Gigabit VPN Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinksys LRT224 Specs | Dual WAN | Link failover, load balancing
Protocol & IP binding to a WAN port | | Firewall | SPI (Stateful Packet Inspection)
DoS (Denial of Service) prevention
Schedule-based access rules (50)
Web filtering (URL and keyword blocking)
Block Java, cookies, ActiveX, http proxy servers
IGMP proxy
UPnP | | Site-to-Site VPN | 50 IPsec site-to-site tunnels
Split DNS over site-to-site tunnel
VPN backup for site-to-site tunnel
DPD (Dead Peer Detection)
Keep alive
NAT-traversal | | Remote Access VPN | OpenVPN, PPTP, client-to-site IPsec
OpenVPN Mobile Client Support (iOS, Android) | | NAT | Gateway mode, router mode | | NAPT | 1-to-1 NAT (10)
Port forwarding (30)
Port triggering (30)
Port address translation (30)
DMZ host | | DMZ Port | DMZ range, DMZ subnet | | IEEE 802.1Q VLAN Tagging | 5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)
VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches | | DHCP Server | Multiple address pools (one per VLAN subnet)
MAC&IP binding
MAC filtering
DHCP relay | | DNS Server | DNS proxy, DNS local database | | Bandwidth Management | Rate control allowing limiting upstream and downstream bandwidth per service and IP
Priority scheme allowing services mapped to 3 levels of priority | | Alerts | SNMP, Syslog, E-mail | | WAN Connection Type | Dynamic IP, PPPoE, PPTP, Static IP, Transparent Bridge, MAC address clone | | DDNS | DynDNS, 3322 | | Routing | Static and dynamic routing (RIP and RIPng) | | IPv6 | DHCPv6-PD, 6to4, router advertisement | | Maintenance | Configuration, backup, and restore
Dual configurations (startup and mirror)
Firmware upgrade
Diagnostics (ping and DNS name lookup)
Reboot
Factory defaults | | Status & Statistics | WAN connection status
VPN tunnel/user status
Port status and statistics | | LEDs | System, DIAG, WAN, WAN/DMZ. VPN, LAN 1-4 | | Port Management | 10/100/1000 Mbps, Auto Negotiation, Half/Full Duplex | | Administration | Internet Explorer, Firefox, Safari
Setup wizard
Remote management over HTTPS | | Performance | IPsec VPN throughput (Mbps): 110
Maximum NAT throughput (Mbps): 900
Maximum concurrent connections: 30,000 | | Ports | 1 x 10/100/1000 RJ45 WAN port
1 x 10/100/1000 RJ45 WAN/DMZ port
1 x 10/100/1000 RJ45 DMZ port
4 x 10/100/1000 RJ45 LAN ports
OpenVPN for mobile platforms (iOS, Android)
Reset button
Kensington lock | | Power | 12 V, 1 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Non-Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 10 to 85% non-condensing | | Non-Operating Humidity | 5 to 90% non-condensing | | Regulatory Certifications | FCC Class B, CE Class B | | Dimensions | 7.5 x 5.1 x 1.6" / 191 x 130 x 40 mm | | Weight | 1.592 lb / 0.722 kg | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 11.3 x 9.6 x 3.3" |
