Product description This 216 MHz LISTEN Technologies Intelligent DSP RF Receiver is an iDSP (Intelligent Digital Signal Processing) personal listening product. Thanks to its DSP SQ noise reduction technology, users experience 20 dB less noise than similar devices without it. The green battery technology reduces costs of ownership and hassles while reducing the number of batteries in landfills. A field-replaceable lithium-ion battery is included with the unit. The integrated neck loop/lanyard with DSP loop driver improves the listening experience for T-coil users. This iDSP device is small and easy to wear, dispense, store, and maintain.

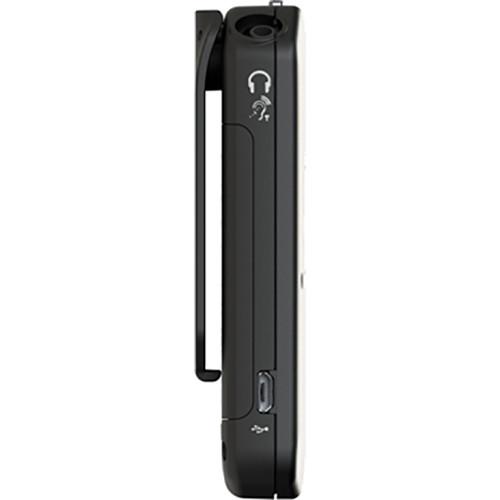

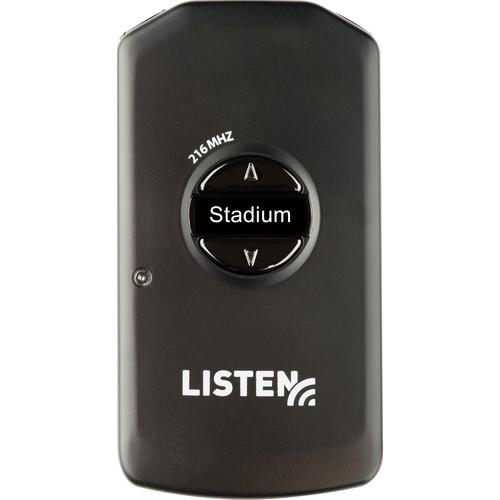

The LR-4200-216 has an OLED screen to display channel names, monitor battery status, channel status, and charge activation. You may connect the iDSP neck loop/lanyard or earphones via one of two 3.5mm output jacks, so the receiver can be shared with another user. The micro-USB connection is used with free iDSP software for charging, set up, programming, inventory management and firmware updates. This listening device is suited for places where it's difficult to hear, such as theaters, lecture halls, concert venues, and houses of worship. - DSP SQ noise-reduction technology delivers 20 dB less noise and hiss than devices without it
- Integrated neck loop/lanyard with DSP loop driver improves the listening experience for T-coil users
- Small size makes it easy to wear and for venues to dispense, store, and maintain
- Can be worn around the neck, clipped to a belt, or concealed in a pocket, making it a discreet listening device
- Green battery technology reduces cost of ownership and hassle while reducing the number of batteries in landfills
- Useful for single-channel applications
UPC: 819267022270 In the Box Listen Technologies Intelligent DSP RF Receiver (216 MHz) Field Replaceable Lithium-Ion Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Listen Technologies Intelligent DSP RF Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersListen Technologies LR-4200-216 Specs | | | Frequency Response | 50 Hz to 15 kHz (+/- 3 dB) | | Signal to Noise Ratio (SNR) | SQ Enabled 70 dB, SQ Disabled 50 dB | | System Distortion | <2% Total Harmonic Distortion (THD) at 80% Deviation | | Output | 2 x 3.5 mm Connectors, Unbalanced, 0 dBu Nominal Output Level, 16 mW Maximum, 32-Ohm Impedance | | Controls | User Controls: Power, Up/Down Volume
Programming: Via Software and USB Port | | Indicators | Display: Channel Designation, Battery Level, Unit Number, Charging Status
LEDs: Flashes When Batteries Are Low or to Indicate Charging, Solid When Fully Charged | | | | Number of Channels | 19 Wideband, 38 Narrowband | | Sensitivity | 0.6 uV Typical, 1 uV Maximum for 12 dB Sinad | | Frequency Accuracy | +/- 0.005% Stability 32 to 122°F / 0 to 50°C | | Antenna Type | Phone/Neck Loop Lanyard and Short Earphone Cable or Standard Earphone Cable | | Squelch | Programmable in 20 Steps, Automatic on Loss of RF Signal | | Frequency Range | 216.0125 to 216.9875 MHz | | | | Power Supply | Micro-USB Connector, 5 V, 500 mA | | Battery Type | Lithium Ion | | Battery Life | 8 Hours of Continuous Use | | Charging Time | Fully Charged in 2 Hours | | | | Color | Dark Gray | | Environmental | Operation Temperature: 14 to 104°F / -10 to 40°C
Storage Temperature: -4 to 122°F / -20 to 50°C
Relative Humidity: 0 to 95% Relative Humidity, Non-Condensing
| | Compliance | FCC Part 15, Part 90, Industry Canada, RoHS | | Dimensions | Unit: 3.75 x 2.00 x 0.64" / 9.6 x 5 x 1.7 cm
Unit with Belt Clip: 3.75 x 2.00 x 0.80" / 9.6 x 5.0 x 2.1 cm | | Weight | With Batteries: 2.40 oz / 68 g
Unit Weight: 1.60 oz. / 45 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.2 x 2.4 x 1.2" |
