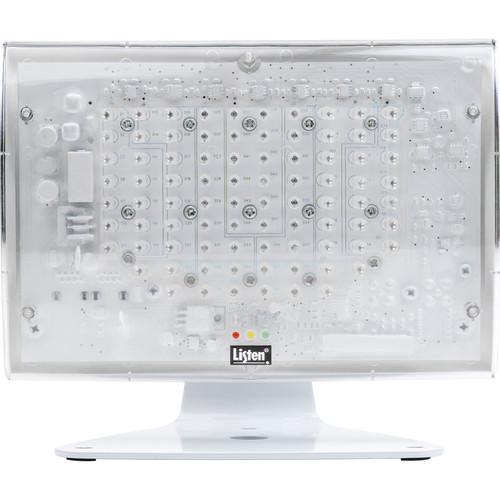

Product description The white LA-140 Stationary IR Radiator from Listen Technologies uses standard components, allowing for simple and easy installation. It is powered through CAT-5 cabling, and the RF modulated carriers are delivered through standard coaxial cabling. There are included mounting brackets for mounting the radiator to the wall or ceiling, or to a desk, mic stand, or tripod. Power can be supplied through the transmitter or through a separate power supply. Built-in delay compensation prevents signal cancellation and eliminates the need for additional cabling. The Stationary IR Radiator covers up to 10,000 ft², and features delay compensation, ensuring no drop out in the IR signal. - Covers up to 10,000 ft² / 929 m²
- Two radiators can be powered from a single transmitter or optional power supply, eliminating the need for multiple cables
- Mounting brackets included for multiple mounting options, including wall, ceiling, mic stand and tripod mounting hardware
- Units can be horizontally or vertically mounted together, doubling the power in a small footprint
- Radiator diodes are automatically turned off if no audio signal is present at the transmitter after 30 minutes, saving radiator diode life
- Delay compensation ensures there is no drop out in the IR signal
UPC: 819267020290 In the Box Listen Technologies LA-140 Stationary IR Radiator (White) Mounting Hardware Coaxial Cable (25') CAT-5 Cable (25') Quick Reference Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Listen Technologies LA-140 Stationary IR Radiator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersListen Technologies LA-140-WH Specs | Buttons or Switches | Termination switch
Delay compensation switch
Compatibility switch | | LED Indicators | 1 x Power (Red)
1 x Connection to transmitter/radiator (Yellow)
1 x Carrier and power are present, emitting IR signal (Green) | | Frequency Range | 1 to 5 MHz | | Coverage Area | Up to 10,000 ft² / 929 m² when used with receiver | | Inputs | BNC connection (-25 dBm to -5 dBm input nominal)
RJ-45 connector | | Outputs | BNC connection (-15 dBu nominal)
RJ-45 connector | | Power Supply | Input: 30 VDC (powered from transmitter via CAT-5 cable)
Output: 30 VDC (powers up to one additional radiator) | | Emitter | Power: 3 W | | Operating Temperature | -14 to 104°F / -26 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Relative Humidity | 0 to 95% RH, non condensing | | Approvals and Compliance | FCC Part 15, Industry Canada, CE RoHS | | Dimensions | 5.5 x 8.0 x 2.6" / 14.0 x 20.3 x 6.6 cm | | Weight | 2.1 lb / 1.0 kg
Loaded: 2.4 lb / 1.1 kg | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 14.2 x 10.8 x 3.0" |
