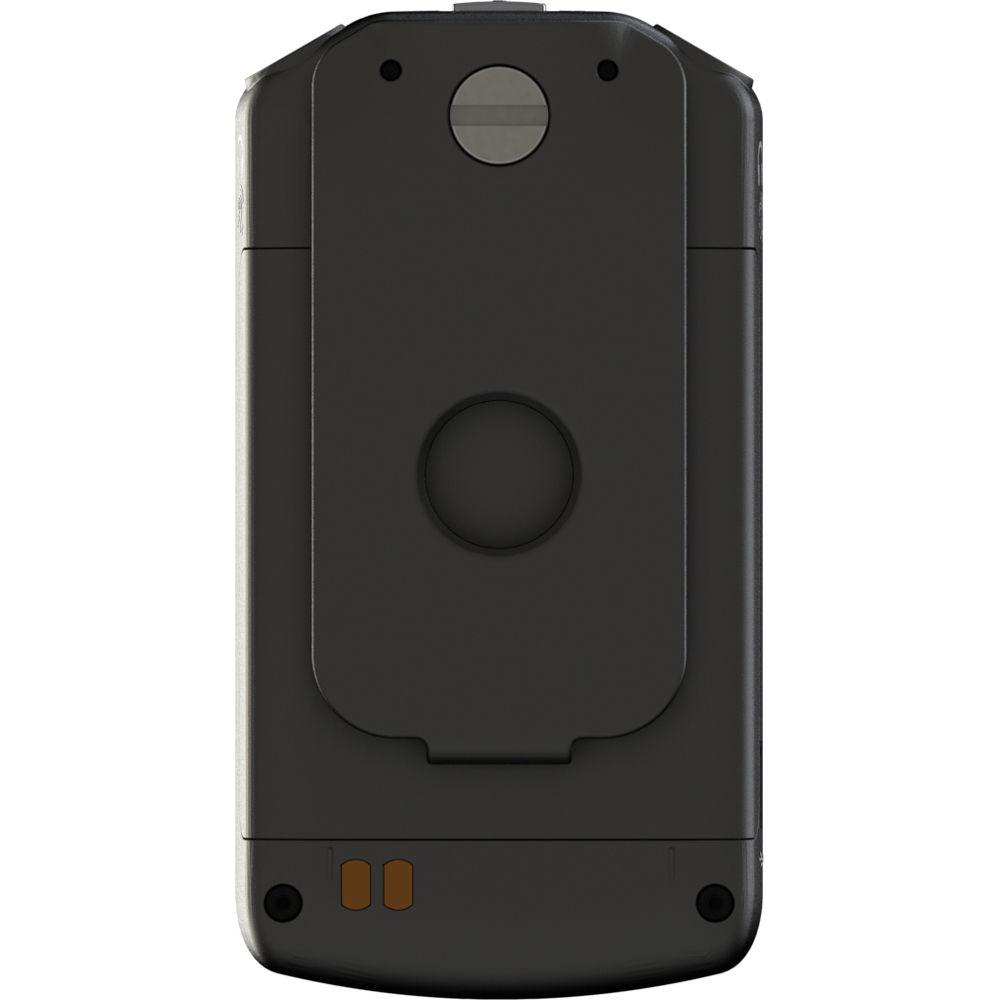

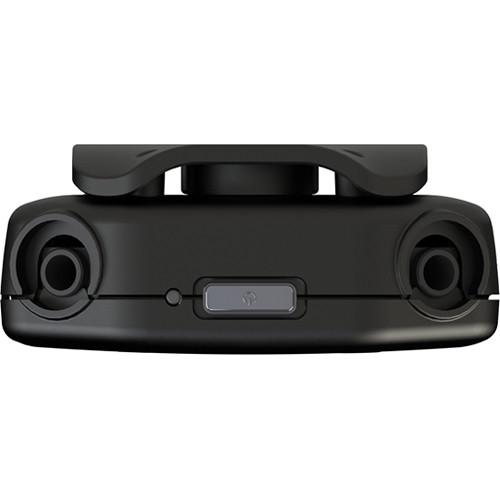

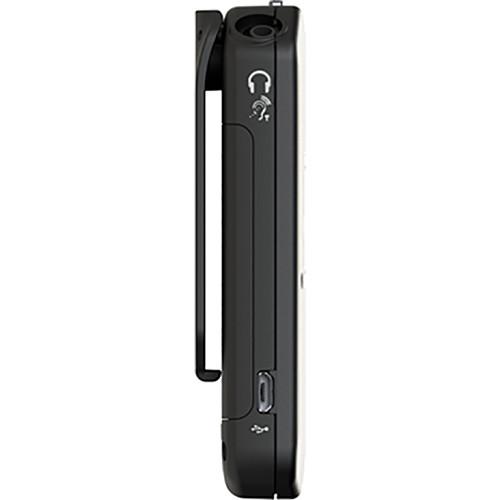

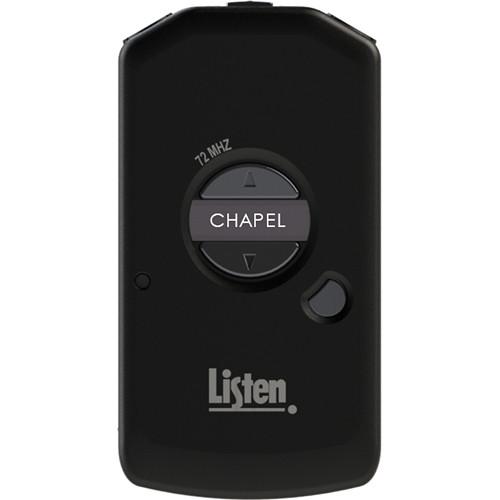

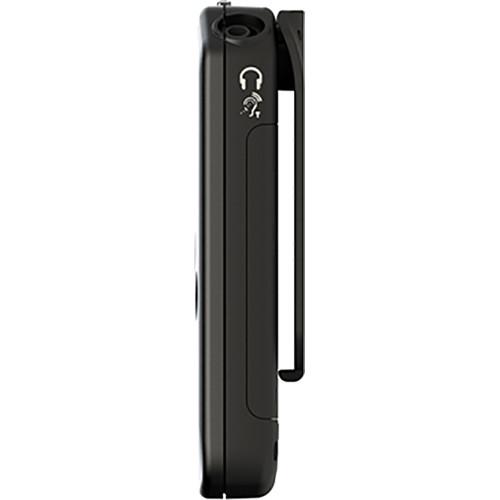

Product description This LDS Meeting House Receiver from Listen Technologies is a LR-5200-072 with customized programming that incorporates Intelligent Digital Signal Processing (iDSP). With Listen Technologies's DSP audio processing technology, users experience clear audio that is pleasing to those with or without hearing loss. Green battery technology reduces cost of ownership and hassle, reducing the number of batteries in landfills. A field-replaceable lithium-ion battery is included with the unit. The integrated neck loop/lanyard with DSP loop driver improves listening experience for T-coil users. The iDSP is a small device, making it easy to wear, dispense, store and maintain. The device has an OLED display to program channel names, monitor battery life, channel status, and charge activation. The programmable channel select button allows user to cycle through active channels as well as seek to or lock to a channel. You can connect the iDSP neck loop/lanyard or earphones via two 3.5mm output jacks (the earphones could be shared). The micro-USB connection is used for charging and for use with the iDSP software suite for programming changes, inventory management, and firmware updates. - Integrated neck loop/lanyard with DSP loop driver improves the listening experience
- Small form factor makes it easy to wear, distribute, store and maintain
- Use for multi-channel applications where the users need the ability of changing channels
In the Box Listen Technologies LDS Meeting House Receiver Lithium-Ion Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Listen Technologies LDS Meeting House Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersListen Technologies LDS-5200-072 Specs | | | Frequency Response | 50 Hz to 15 kHz (±3 dB) | | Signal to Noise Ratio | SQ enabled 80 dB, SQ disabled 60 dB | | Distortion | <2% total harmonic distortion (THD) at 80% deviation | | Connection | 2 x 3.5 mm | | Output | 16 mW maximum | | Impedance | 32 Ohms | | | | User Controls | Power, volume, listen button for end user channel selection | | Channel Selection | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel | | Programming | Via software and micro-USB port | | | | LEDs | Flashes when batteries are low or to indicate charging, solid when fully charged | | Display | Channel designation,battery level, unit number, charging status | | | | Frequency Range | 72.025 to 75.950 MHz | | No. of Channels | 17 wide band, 40 narrow band | | Sensitivity | .6uV typical, 1 uV maximum for 12 dB sinad | | Frequency Accuracy | ± .005% stability 32 to 122 ºF (0 to 50ºC) | | Antenna Type | Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable | | Squelch | Programmable in 20 steps, automatic on loss of RF signal | | | | Battery Type | Lithium-Ion: 3.7 VDC, 1200 mAh | | Charging Time | 2.5 hours | | Battery Life | 8 hours (continuous use) | | | | Dimensions | Unit: 3.75 x 2.0 x 0.64" /9.6 x 5.0 x 1.7 cm
With belt clip: 3.75 x 2.0 x 0.80" / 9.6 x 5.0 x 2.1 cm | | Color | Black | | Environmental | Operation temperature: 14 to 104ºF / -10 to 40ºC
Storage temperature: (-4 to 122°F / -20 to 50°C
Relative Humidity: 0 to 95% relative humidity, non-condensing | | Compliance | FCC Part 15, Part 90, Industry Canada, RoHS | | Weight | 1.60 oz / 45 g (without batteries), 2.40 oz / 68 g (with batteries) |
