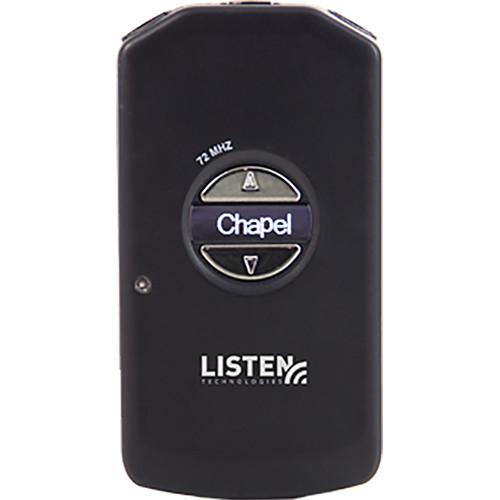

Product description This 72 MHz LDS Meeting House Receiver from Listen Technologies is an LR-4200-072 iDSP RF Receiver with customized programming that incorporates Listen Technologies' iDSP (Intelligent Digital Signal Processing). With the DSP SQTM noise-reduction technology, users experience 20 dB less noise than similar devices without it. The green battery technology dramatically reduces costs of ownership and hassles while reducing the number of batteries in landfills. A field-replaceable lithium-ion battery is included with the unit. The integrated neck loop/lanyard with DSP loop driver improves the listening experience for T-coil users. This iDSP device is small and easy to wear, dispense, store, and maintain.

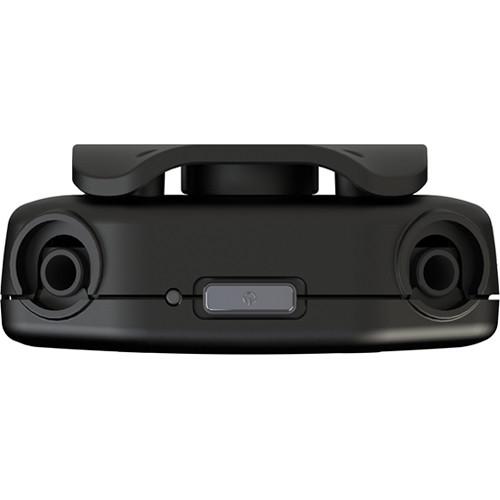

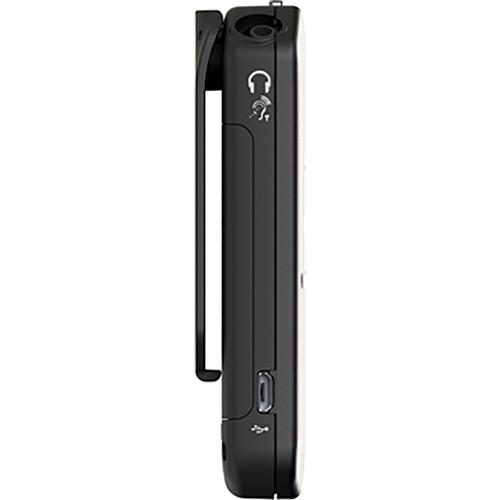

The LR-4200-072 has an OLED display to program channel names, monitor battery status, channel status, and charge activation. You may connect the iDSP neck loop/lanyard or earphones via two 3.5mm output jacks (receivers can be shared). The micro-USB connection is used with free iDSP software for charging, set up, programming, inventory management, and firmware updates. This listening device is suitable for use in meeting house chapels with single-channel environments. -
- Integrated neck loop/lanyard with DSP loop driver improves the listening experience for T-coil users
- Small-size makes it easy to wear and for venues to dispense, store, and maintain

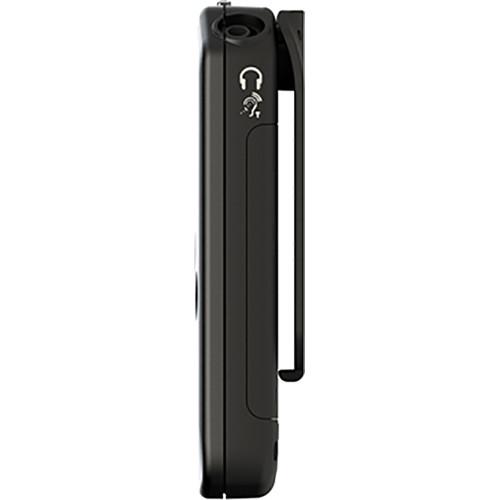

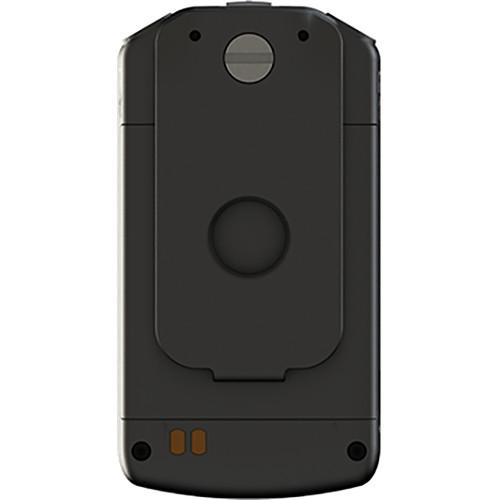

- Can be worn around the neck, with the belt clip, or concealed in a pocket, making it a discreet listening device
- Green battery technology reduces cost of ownership and hassle while reducing the number of batteries landfills
- Use for single-channel applications
In the Box Listen Technologies LDS Meeting House Receiver (72 MHz) Non-Proprietary, Field Replaceable Lithium-Ion Battery Quick Reference Card Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Listen Technologies LDS Meeting House Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersListen Technologies LDS-4200-072 Specs | | | Frequency Response | 50 Hz to 15 kHz (+/- 3 dB) | | Signal to Noise Ratio (SNR) | SQ enabled 80 dB, SQ disabled 60 dB | | System Distortion | <2% total harmonic distortion (THD) at 80% deviation | | Output | 2x 3.5 mm connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, 32 ohm impedance | | Controls | User Controls: Power, up/down volume
Programming: Via software and USB port | | Indicators | Display: Channel designation, battery level, unit number, charging status
LEDs: Flashes when batteries are low or to indicate charging, solid when fully charged | | | | Number of Channels | 17 wideband, 40 narrowband | | Sensitivity | 0.6 uV typical, 1 uV maximum for 12 dB sinad | | Frequency Accuracy | +/- 0.005% stability 32 to 122ºF / 0 to 50ºC | | Antenna Type | Phone/neck loop lanyard and short earphone cable or standard earphone cable | | Squelch | Programmable in 20 steps, automatic on loss of RF signal | | Frequency Range | 72.0250 to 75.9500 MHz | | | | Battery Type | Lithium-ion 3.7 VDC, 1200 mAh | | Battery Life | 8 hours of continuous use | | Charging Time | Fully charged in 2.5 hours | | | | Environmental | Operation Temperature: 14 to 104°F / -10 to 40°C
Storage Temperature: -4 to 122°F / -20 to 50°C
Relative Humidity: 0 to 95% relative humidity, non-condensing
| | Compliance | FCC Part 15, Part 90, Industry Canada, RoHS | | Dimensions | Unit: 3.75 x 2.00 x 0.64" / 9.6 x 5 x 1.7 cm
Unit with Belt Clip: 3.75 x 2.00 x 0.80" / 9.6 x 5.0 x 2.1 cm | | Weight | With Batteries: 2.40 oz (68 g)
Unit Weight: 1.60 oz. (45 g) |
