Product description

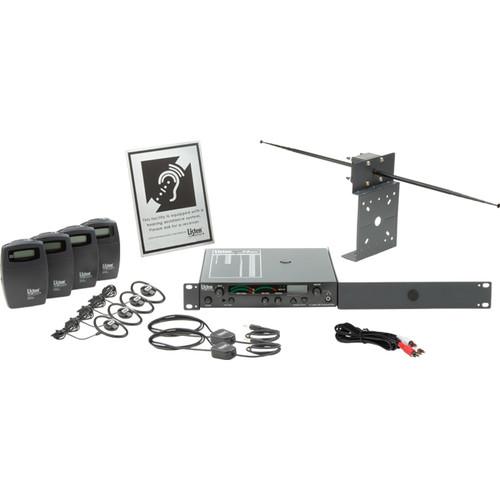

• Stationary RF Transmitter (72 MHz) Operating at 72 MHz, the Stationary RF Transmitter from Listen Technologies can be used in a variety of applications, broadcasting signal from your particular audio system to a belt-pack or stationary receiver. With its 80 dB signal-to-noise ratio, it provides intelligible audio across 57 selectable channels, all digitally tuned so that your transmissions won't drift. Up to eight channels can be used simultaneously on the 72 MHz frequency with multiple transmitters.

  The transmitter's Look & Listen LCD displays channel, lock, programming, and RF power, while balanced and unbalanced inputs allow you to connect with a variety of audio sources. The transmitter is rack-mountable and features auto-processing to make the audio clearer for audible transmission. To make the unit easier to set up and install, a VU level meter and test tone generator are included.
  • Audio quality of 80 dB signal-to-noise ratio (SNR)
  • 57 selectable channels
  • 100% digital: digitally-tuned so the transmission won't drift
  • Up to eight simultaneous channels on 72 MHz with multiple transmitters
  • Channel, lock, and programming information
  • Balanced/unbalanced inputs interface with any audio source on the market
  • Designed for installation: rack-mountable with optional remote antennas makes installation easy and service reliable
  • Auto Processor conditions the audio for voice or music prior to transmission
  • VU level meter and test tone - simply makes the installation easier to set up
  UPC: 819267023246
• LA-122 Univeral Antenna Kit (72 and 216 MHz) The LA-122 Univeral Antenna Kit from Listen Technologies contains antennas for both 72 MHz and 216 MHz, as well as monopole and dipole antenna options. The included mounting hardware enables you to attach the antenna to walls, on electrical boxes, on a horizontal surface, and inside a wall or ceiling. The kit also contains components allowing you to configure several versions of an antenna, and 25' of coaxial cable with BNC connectors.
  • Includes both 72 MHz and 216 MHz antennas
  • Monopole and dipole antenna options included
  • Rigid and flexible radials are included
  • All hardware for mounting on a wall, on electrical boxes, on a horizontal surface (flat and inverse), inside a wall or ceiling is included
  UPC: 819267020146
• LA-326 Universal Rack Mounting Kit The LA-326 Universal Rack Mounting Kit from Listen Technologies is compatible with the company's LT-800 Stationary Transmitter, LT-803 3-Channel Stationary Transmitter, LT-82 Stationary IR Transmitter, and LR-100 Stationary Receiver/Amplifier. It allows for both single and dual mounting, and includes hardware for a large variety of configurations. UPC: 819267021075
• Portable Display RF Receiver (72 MHz) The Portable Display RF Receiver from Listen Technologies is a 72 MHz receiver. It can receive up to 57 channels and has a digital display (LCD) to monitor channel selection, battery level, and signal strength. An LED on top of the receiver indicates if the unit is on, when batteries are low, or if the unit is locked on a channel. It has channel SEEK capability and is compatible with mono or stereo earphones.
  • 80 dB signal-to-noise ratio (SNR)
  • Listen receivers are digitally-tuned so the transmission won't drift
  • Look & Listen LCD shows channel, battery status, signal strength, and programming information
  • Built in SmartCharge won't allow batteries to overcharge
  • Drop in charging contacts for any of Listen's many charging cases or a charging plug on the side of the unit
  UPC: 819267022188
• LA-164 Ear Speaker The LA-164 Ear Speaker from Listen Technologies is designed to fit easily over your ear. It's constructed of hard plastic, making it easy to clean. The earpiece can be used at venues where it can be continuously cleaned and re-used, or with hearing aids.
  • Easily cleaned
  • Single ear clip does not mess up hair
  • Strong volume output
  • The receiver's antenna is built into the headphone cord
  UPC: 819267020368
• LA-166 Neck Loop The LA-166 Neck Loop from Listen Technologies is designed as a wireless connection for hearing aids equipped with a "T" coil. Simply hook the loop into the wireless receiver and slip it around your neck. The "T" coil will pick up the sound and amplify the transmitted sound into your ear.
  • Use with any hearing aid equipped with a "T" coil
  • Use with any Listen Technologies' receivers
  • The receiver's antenna is built into the headphone cord
  UPC: 819267020382
• LA-361 High Capacity AA Alkaline Batteries (Pack of 2) The pack of two LA-361 High Capacity AA Alkaline Batteries from Listen Technologies provides 1.5V of power and offers double the life-span of standard alkaline batteries.
  • Twice the life of standard batteries
  • Standard size AA batteries
  • Package of 2
• LA-304 Assistive Listening Notification Signage Kit The LA-304 Assistive Listening Notification Signage Kit from Listen Technologies provides venues with signage identifying the availability of assistive listening devices. It can be easily displayed in a window using the included static cling window sticker.
  • Informs people that assistive listening devices are available
  • Allows you to place a hard placard or static cling for the window
  UPC: 819267020825

• LA-207 Power Supply for LT-800

• Line Cord

• Limited Lifetime Warranty

• Grounding Base

• Mounting Bracket

• Wall/Electrical Box Mounting Plate

• Shorting Plate

• Antenna Module

• Coaxial Cable (25')

• 2 x Telescoping Antenna (72 MHz)

• 2 x Telescoping Antenna (216 MHz)

• 2 x Flexible Antenna (72 MHz)

• 2 x Flexible Antenna (216 MHz)

• 2 x Hex Kep Nuts

• 2 x Fiber Washers

• 4 x Machine Screws (#8-32x3/4")

• 4 x Tapping Screws (#8-1/2")

• 4 x Dry Anchors

• Limited 90-Day Warranty

• Left Side Bracket

• Right Side Long Bracket

• Right Side Short Bracket

• Dual Mount Center Bracket

• Quick Reference Card

• 10 x Machine Screws

• Limited 90-Day Warranty

• Limited Lifetime Warranty

• Limited 1-Year Warranty

• Limited 90-Day Warranty

• Limited 90-Day Warranty

• Hard Plaque

• Static Cling Window Sticker

• Limited 90-Day Warranty

Also Includes

• 6.6' Dual-RCA to Dual-RCA Cable
• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Stationary RF Transmitter (72 MHz)

  Frequency Response	50 Hz to 15 kHz (+/- 3 dB)
  Signal to Noise Ratio (SNR)	SQ enabled 80 dB, SQ disabled 60 dB
  System Distortion	<2% total harmonic distortion (THD) at 80% deviation
  Input	Input 1: 1 x female XLR or 1/4" combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1 kOhms (line/mic), phantom power 12 VDC - on rear panel Input 2: 2 x phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100 kOhms - on rear panel
  Output	Audio: input 1 and input 2, mixed output (on rear panel), 2 x phono connectors, unbalanced, -10 dBu nominal output level, +19 dBu maximum, impedance 10 ohms Headphone: 1 x 3.5 mm stereo connector, unbalanced, adjustable output level, +7 dBu maximum, impedance 10 Ohms
  Audio Processing	Compression can be turned on or off, slope internally adjustable from 1:1 to 4:1, default 2:1
  Contour	Cuts and boosts frequencies above 5 kHz
  Controls	User Controls: Power, up/down volume Programming: Via software and USB port

  Controls	User Controls: Front Panel: Power, test tone on/off, channel up/down, input levels, mix level, contour, monitor volume control Rear Panel: Input 1 Level, (line, mic, mic+phantom power), input 2 level (-10 / +10 dBu), RF power level (low, mid, high) Internal Adjustments: Compression ratio for audio processor Programming: SQ on/off, process on/off, channel lock
  Indicators	Audio Input Status LEDs: Indicate input 1, input 2, and mix audio levels; 10 segment LEDs; 8 green, 2 red Processing: Indicated by a green LED when on (front panel) RF Power: Indicated on the LCD (low, mid, high) LCD: Channel designation, lock status, RF power level, programming (front panel) Test Tone: Red LED illuminates when test tone is enabled

  Frequency Range	72.0250 to 75.9500 MHz
  Number of Channels	17 wideband, 40 narrowband
  Frequency Accuracy	+/- 0.005% stability 32 to 122ºF / 0 to 50ºC
  Transmitter	Simultaneous transmitters: 8 Transmitter Stability: 50 PPM Transmission Range: Up to 1000' / 305 m
  Output Power	80,000 uV at 3 m
  Antenna Type	Various antennas available BNC connectors

  Power Supply	In-line power supply (part number LA-207)
  Power Supply Input	100 to 240 V AC, 50 to 60 Hz, 0.4 A
  Power Supply Output	12 VDC, 1.3 A, 15.6 W
  Power Supply Connector	Barrel type: 0.02" / 5.0 mm OD 0.01" / 2.5 mm ID

  Color	Dark gray with white silk screening
  Environmental	Operation temperature: 14 to 104°F / -10 to 40°C Storage temperature: -4 to 122°F / -20 to 50°C Relative humidity: 0 to 95% relative humidity, non-condensing
  Compliance	UL, CE, GS, TÜV, RoHS
  Dimensions	1.75 x 8.5 x 9.13" / 4.5 x 21.5 x 23.0 cm
  Weight	With power supply: 3.5 lb / 1.6 kg Unit weight: 2.60 lb / 1.2 kg

  Box Dimensions (LxWxH)	13.5 x 9.5 x 3.0"

• LA-122 Univeral Antenna Kit (72 and 216 MHz)

  Antenna Type	Monopole and Dipole
  Number of Channels	72 MHz: 57 (17 wide band, 40 narrow band) 216 MHz: 57 (19 wide band, 38 narrow band)
  Frequency Range	72 MHz: 72.025 to 75.975 MHz 216 MHz: 216.0125 to 216.9875 MHz
  Connection	BNC
  Mounting	Wall mount, single electrical box, ceiling electrical box, horizontal surface mount, ceiling/inverse mounting, flexible mounting in-wall or in-ceiling, and mast or conduit mount
  Dipole Vertical Length	72 MHz: 80.0" / 203.2 cm 216 MHz: 27.0" / 68.6 cm
  Dimensions	Bracket: 4.5 x 7.0 x 2.5" / 11.4 x 17.8 x 6.4 cm Grounding Base: 8.0 x 8.0 x 2.0" / 20.3 x 20.3 x 5.1 cm Mounting Plate: 4.5 x 4.6" / 11.4 x 11.6 cm
  Weight	4.4 lb / 2.0 kg

  Box Dimensions (LxWxH)	13.5 x 9.6 x 3.0"

• LA-326 Universal Rack Mounting Kit

  Compatibility	Listen Technologies LT-800, LT-803, LT-82, LR-00
  Dimensions	19.0 x 1.8 x 8.0" / 48.3 x 4.4 x 20.3 cm
  Weight	4.4 lb / 2.0 kg

  Box Dimensions (LxWxH)	13.5 x 9.8 x 2.2"

• Portable Display RF Receiver (72 MHz)

  RF Frequency Range	72.025 to 75.950 MHz
  Number of Channels	17 wide band, 40 narrow band
  Sensitivity	0.6 uV typical, 1 uV maximum for 12 dB SINAD
  Frequency Accuracy	± .005% stability +32 to 122°F (0 to 50°C)
  Antenna Type	Uses earphone cable
  Squelch	Programmable in 20 steps, automatic on loss of RF signal

  Frequency Response	System: 50 Hz to 15 kHz (±3 dB)
  Signal to Noise Ratio	System, A-Weighted: SQ enabled 80 dB, SQ disabled 60 dB
  System Distortion	<2% total harmonic distortion (THD) at 80% deviation
  Audio Output Jack	3.5 mm connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm

  User Controls	Channel UP/DOWN, SEEK (all controls except volume are lockable)
  Programming	Channel lock, squelch

  LEDs	Red, illuminated when unit is on, flashes when batteries are low or to indicate charging, flashes when locked and SEEK is pushed
  LCD	Channel designation,battery level, battery charging, RF signal strength and channel lock

  Battery Type	2 x AA batteries, alkaline or NiMH
  Battery Life	30 hours alkaline, 15 hours NiMH rechargeable
  Battery Charging Time	Fully automatic, 13 hours
  Power Supply	I/P 120 VAC, O/P 7.5 VDC 250 mA, drop in contact points for use with charging cases
  Power Supply Connector	0.09 OD by 0.02" ID (2.3 OD by 0.7 mm ID}, barrel type connector 7.5 VDC, center positive <250 mA, drop in contact points for use with Listen charging cases
  Battery	12 VDC, connected via terminal block
  Battery Charging	Trickle charge of optional 12 VDC battery through terminal block connection
  Compliance	RoHS, WEEE, UL, PSE, CE, CUL, TUV, CB

  Operation Temperature	14 to 104°F (-10 to 40°C)
  Storage Temperature	-4 to 122°F (-20 to 50°C)
  Humidity (Non-Condensing)	0 to 95% relative humidity

  Color	Dark gray with white silk screening
  Doors	Manually lockable, SEEK/channel select behind the door
  Dimensions	4.25 x 2.75 x 1.5" (10.8 x 7 x 3.8 cm)
  Weight	Unit with Batteries: 5.8 oz (164 g)

  Box Dimensions (LxWxH)	6.0 x 4.3 x 2.1"

• LA-164 Ear Speaker

  Connections	1 x 3.5 mm Stereo
  Frequency Response	20 Hz to 20 kHz
  Impedance	32 Ohms ±15% @ 1 kHz
  Input Sensitivity	Headset: 115 dB ±4 dB @ 1 kHz, 1 mW
  Power Input	Rated: 50 mW Maximum: 100 mW
  Approvals and Compliance	RoHS
  Cable Length	36.0" / 91.4 cm
  Weight	4.0 oz / 113.4 g

  Box Dimensions (LxWxH)	2.3 x 2.3 x 1.5"

• LA-166 Neck Loop

  Compatibility	Any hearing aid with a "T" coil All of Listen Technologies' receivers
  Frequency Response	20 Hz to 20 kHz
  Impedance	12 Ohms ±15% @ 1 kHz
  Power Input	Rated: 75 mW Maximum: 2 W
  Input Sensitivity	Headset: 110 dB ±4 dB @ 1 kHz, 1 mW
  Magnetic Field Strength	100 mA/m 6.0" / 15.2 cm above loop at 85 µW input
  Connections	1 x 3.5 mm Stereo
  Approvals and Compliance	RoHS, IEC 60118-4
  Cable Length	22.0" / 55.9 cm Loop: 33.0" / 83.8 cm
  Dimensions	1.4 x 1.1 x 0.6" / 3.7 x 2.8 x 1.5 cm
  Weight	1.7 oz / 46.8 g

  Box Dimensions (LxWxH)	6.1 x 6.0 x 1.6"

• LA-361 High Capacity AA Alkaline Batteries (Pack of 2)

  Packaged Quantity	2
  Nominal Voltage	1.5 VDC
  Battery Size	AA
  Classification	Alkaline
  Operating Temperature	0 to 131°F / -18 to 55°C
  Weight	1.6 oz / 45.4 g

  Box Dimensions (LxWxH)	3.0 x 1.8 x 0.4"

• LA-304 Assistive Listening Notification Signage Kit

  Dimensions	Hard plaque: 6.0 x 8.0" / 15.2 x 20.3 cm Soft cling: 6.0 x 7.9" / 15.2 x 19.9 cm
  Weight	6.0 oz / 170.1 g

  Box Dimensions (LxWxH)	8.3 x 6.4 x 0.2"
