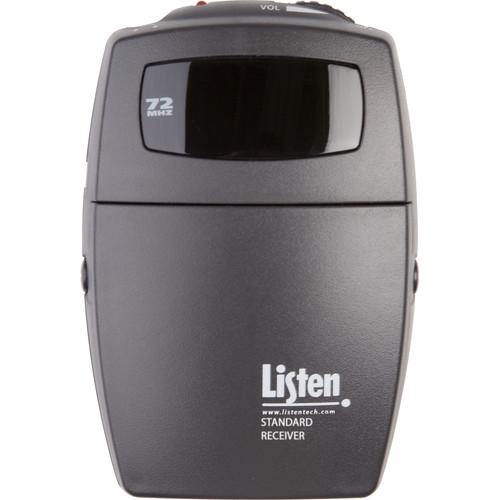

User Manual for Listen Technologies Standard 3-Channel RF Receiver Click to enlarge the picture
Contents of the user manual for the Listen Technologies Standard 3-Channel RF Receiver
- Product category: Components & Accessories Listen Technologies
- Brand: Listen Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Listen Technologies Components & Accessories
|
User manual for the Listen Technologies Standard 3-Channel RF Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Listen Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Listen Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Listen Technologies product will considerably shorten its lifespan!
|
Product description The Standard 3-Channel RF Receiver from Listen Technologies is a 72 MHz RF receiver with 3 channels and features clear sound quality with 62 dB signal-to-noise ratio. It's equipped with a universal headphone jack that supports mono and stereo output and will accommodate any version or brand of earpiece. Additionally, it features one-step digital tuning so the receiver won't drift off channel, and boasts a long battery life of up to 120 hours from 2 AA alkaline batteries or 75 hours from 2 NiMH rechargeable batteries. - Long battery life at 120 hours on alkaline, 75 hours NiMH rechargeable
- One step digital tuning, so receiver won't drift off channel
- Universal headphone jack offers mono or stereo output
UPC: 819267022164 In the Box Listen Technologies Standard 3-Channel RF Receiver (72 MHz) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Listen Technologies Standard 3-Channel RF Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersListen Technologies LR-200-072 Specs | | | Frequency | 72 MHz | | Number of Channels | 3 x wide band, A 72.1, E 72.9, H 75.9 | | Sensitivity | 0.6 uV typical, 1 uV maximum for 12 dB sinad | | Frequency Accuracy | ±0.005% stability 32 to 122°F (0 to 50°C) | | Antenna | Uses earphone cable | | Squelch | None | | | | Frequency Response | 50 Hz to 15 kHz (±3 dB) | | Signal to Noise Ratio | System, A-Weighted: 62 dB | | Distortion | <2% total harmonic distortion (THD) at 80% deviation | | Output | 1 x 3.5 mm connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 Ohms | | | | User Controls | ON/OFF, volume, channel switch, lockable door | | | | LEDs | Red, illuminated when unit is on or to indicate charging, flashes when batteries are low | | LCD Display | None | | | | Battery Type | 2 x AA batteries, alkaline or NiMH | | Battery Life | 120 hours alkaline, 75 hours NiMH rechargeable | | Battery Charging Time | Fully automatic, 10-12 hours under normal use | | Power Supply | I/P 120 VAC, O/P 7.5 VDC 250 mA, drop in contact points for use with charging cases | | Power Supply Connector | 0.09 OD x 0.02" ID (2.3 mm OD by 0.7 mm ID), barrel type connector 7.5 VDC, center positive <250 mA, drop in contact points | | | | Operation Temperature | 14 to 104°F (-10 to 40°C) | | Storage Temperature | -4 to 122°F (-20 to 50°C) | | Humidity (Non-Condensing) | 0 to 95% relative humidity | | | | Color | Dark gray with white silk screening and dark lens | | Dimensions | 4.25 x 2.75 x 1.5" (10.8 x 7 x 3.8 cm) | | Weight | Unit: 3.1 oz (88 g)
Unit with Batteries: 5.2 oz (147 g) | | | | RF | FCC Part 15, Industry Canada, RoHS | | Power Supply | RoHS, WEEE, UL, PSE, CE, CUL, TUV, CB compliant | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.05 x 4.5 x 2.1" |
