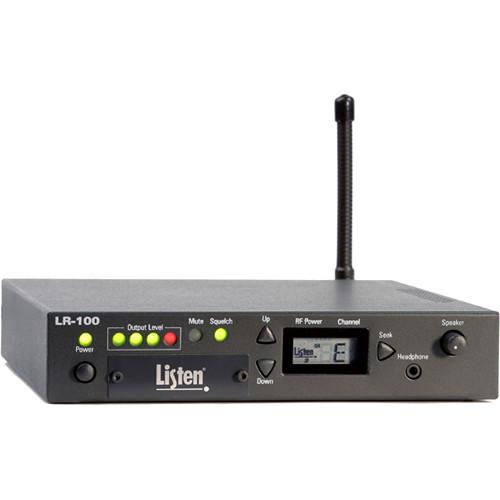

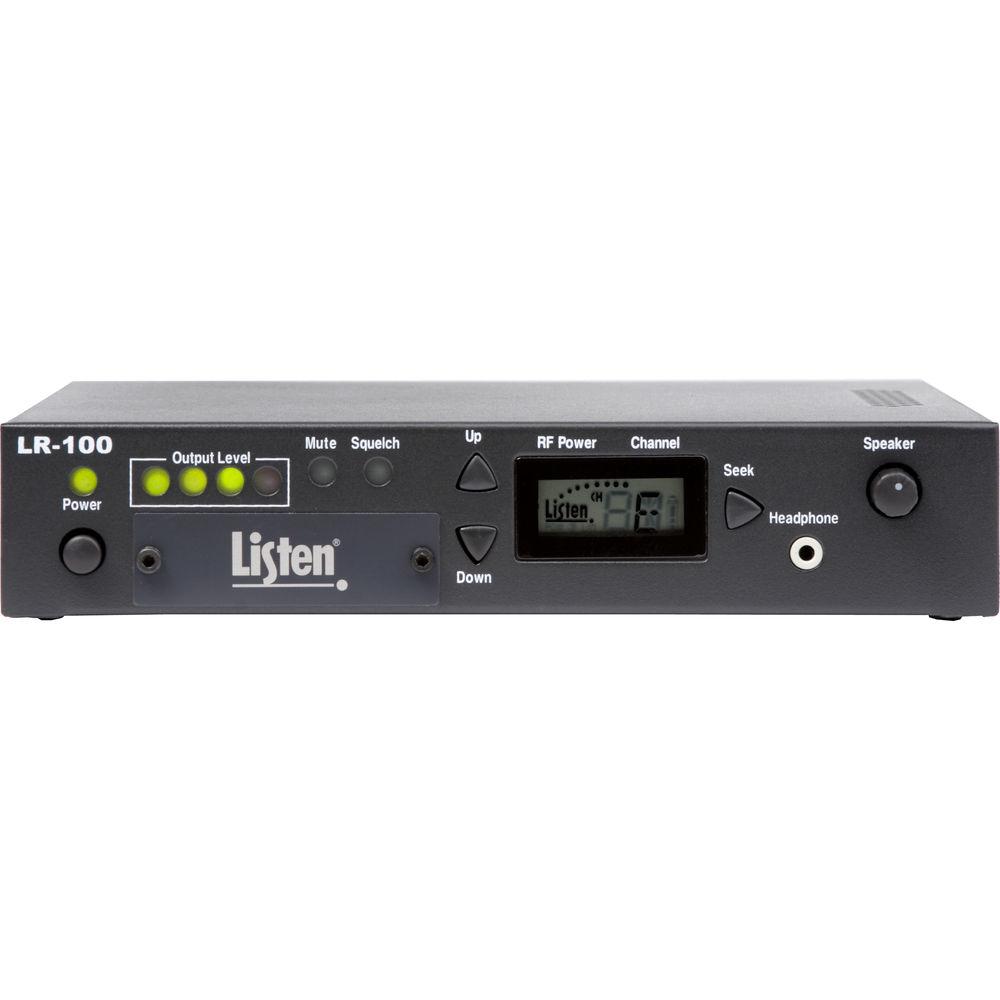

Product description The Stationary RF Receiver/Power Amplifier from Listen Technologies is a 216 MHz stationary, auditory assistance receiver with a built-in power amplifier. This unit has Listen Technologies' Look & Listen LCD Display showing channel, lock, and battery level. A security cover protects auxiliary and receiver volume, adjustable squelch, and trim controls. It has a balanced or unbalanced speaker wire output options and multiple input options. It's powered by a 15 VAC/1000 mA power input or a 12 VDC battery. - 80 dB signal-to-noise ratio (SNR)
- Listen receivers are digitally tuned so the transmission won't drift
- Unneeded channels can be locked so the receiver will access only one or more channels of your choice
- Look & Listen LCD shows channel, battery status, signal strength, and programming information
- Uses standard alkaline or nickel-metal hydride (NiMH) batteries
- Built in SmartCharge won't allow batteries to overcharge
- Drop-in charging contacts for any of Listen's many charging cases or a charging plug on the side of the unit
- Adjustable squelch control
- Remote control capabilities
In the Box Listen Technologies Stationary RF Receiver/Power Amplifier (216 MHz) 216 MHz Stationary RF Receiver/Power Amplifier 120 VAC Power Supply LA-124 90° Helical Antenna (216 MHz) Allen Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Listen Technologies Stationary RF Receiver Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

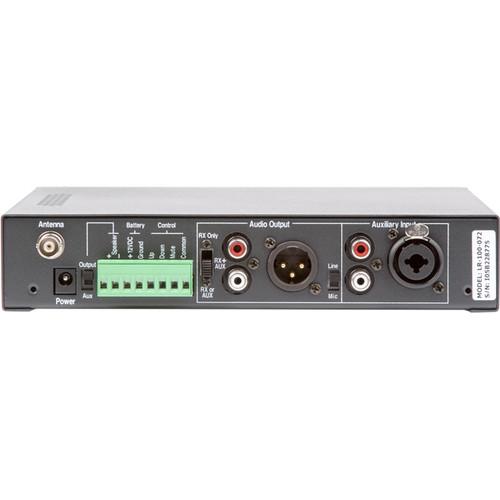

Technical parametersListen Technologies LR-100-216 Specs | | | RF Frequency Range | 216.025 to 216.98 MHz | | Number of Channels | 57 (19 wideband, 38 narrowband) | | Frequency Accuracy | ± .005% stability +32 to 122°F (0 to 50°C) | | Sensitivity | 0.6 uV typical, 1 uV maximum for 12 dB SINAD | | Antenna | LA-124 90° helical antenna (216 MHz) | | Antenna Connector | BNC | | Compliance | FCC Part 90, Industry Canada | | | | Frequency Response | System: 63 Hz to 10 kHz (±3 dB) | | Signal to Noise Ratio | System, A-Weighted: 80 dB SQ enabled, 50 dB SQ disabled | | System Distortion | <2% total harmonic distortion (THD) at 80% deviation | | Auxiliary | Input to Output: 25 Hz to 20 kHz (±3 dB) frequency response, SNR 80 dB, distortion: <0.2% | | Auxiliary Input | Balanced: rear panel, 1 x female XLR 1/4" combo connector, 0 dBu nominal input level adjustable, +13 dBu maximum, impedance 600 ohm
Unbalanced: rear panel, 2 x phono connectors, -10 dBu nominal input level adjustable, +7 dBu maximum, impedance 10k ohm | | Output | Balanced Output: rear panel, 1 x male XLR, 0 dBu nominal output level, +16 dBu maximum, impedance 2 k/10 Ohms (line/mic)
Unbalanced Output: rear panel, 2 x phono connectors, -10 dBu nominal output level, +2 dBu maximum, impedance 2 k ohm | | Headphone Output | Monitor: front panel, 1 x 3.5 mm stereo connector, unbalanced, adjustable output level, +7 dBu maximum, impedance 10 ohm | | Speaker Output | Rear panel, 1 x detachable terminal block, bridged, adjustable output level, 15/10 W (peak/RMS) continuous power with 4 ohm load | | | | Controls Front Panel | Power, test tone on/off, channel up/down, input levels, mix level, contour, monitor volume control | | User Controls | Volume, channel UP/DOWN, SEEK (all controls except volume are lockable) | | Rear Panel | Audio output select (RX Only, RX + AUX, RX or AUX)
Speaker (Output, Aux), switchable balanced output level | | Remote Control | 8-position detachable terminal block, channel up, channel down, mute | | Programming | Unit can be programmed so that only desired channels are displayed to the user | | | | VU Meter | 4 LED (three green, one red) | | Power | Indicated by a green LED when on (front panel) | | RF Power | Indicated on the LCD (low, mid, high) | | LCD Display | Channel designation, lock status, RF power level, programming (front panel) | | Squelch | Green LED illuminates when the unit is squelched | | Mute | Green LED illuminates when the output audio is muted | | | | Type | In-line power supply | | Input | 120 VAC, 60 Hz, 19 W | | Output | 15 VAC, 1 A | | Output Connector | 0.02" (5 mm) OD, 0.01" (2.5 mm) ID, barrel type | | Compliance | UL listed | | Battery | 12 VDC, connected via terminal block | | Battery Charging | Trickle charge of optional 12 VDC battery through terminal block connection | | | | Operation Temperature | 14 to 104°F (-10 to 40°C) | | Storage Temperature | -4 to 122°F (-20 to 50°C) | | Humidity (Non-Condensing) | 0 to 95% relative humidity | | | | Rack Mount | One rack space height, 1/2 rack space wide, one or two receivers can be mounted in one rack space | | Dimensions | 1.75 x 8.5 x 9.13" (4.5 x 21.5 x 23 cm) | | Weight | Unit: 2.8 lb (1.3 kg)
Unit with Power Supply: 4.2 lb (1.9 kg) |
