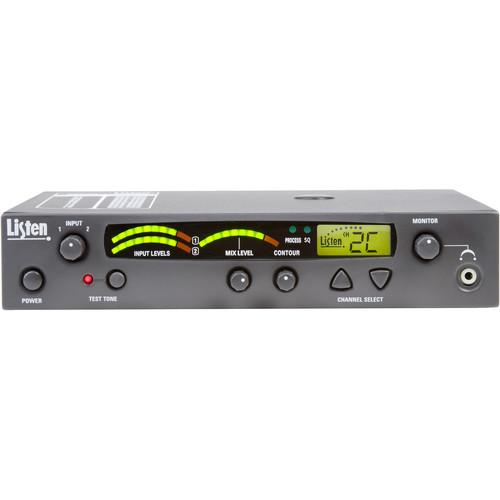

Product description The 216 MHz Stationary RF Transmitter from Listen Technologies connects to your main audio system to broadcast a high-quality audio signal to belt pack receivers or stationary receivers, ensuring your audience can clearly hear and understand your presentation. The transmitter features Listen Technologies' signature Look & Listen LCD display, which shows channel, lock, programming, and RF power. - 70 dB signal-to-noise ratio
- Digitally-tuned so the transmission won't drift
- Balanced and unbalanced inputs
- Auto processor to condition the audio for voice/music prior to transmission
- VU level meter and test tone
In the Box Listen Technologies Stationary RF Transmitter (216 MHz) LA-207-01 12 VDC Replacement Power Supply for LT-800 (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Listen Technologies Stationary RF Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersListen Technologies LT-800-216-01 Specs | | | Inputs | Rear panel: 1 x female XLR or 1/4" in combo connector, balanced, 0/-55 dBu (line/mic) nominal input level adjustable, -30/+21 dBu (line/mic) maximum input level, impedance 20k/1k ohm (line/mic), phantom power +12 VDC
2 x phono connectors, unbalanced, -10/+10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100 kohm | | Frequency Response | 50 Hz to 10 kHz (±3 dB) | | Signal to Noise Ratio | SQ Enabled: 80 dB
SQ Disabled: 50 dB | | Distortion | <2% total harmonic distortion (THD) at 80% deviation | | Audio Processing | Compression can be turned on/off, slope internally adjustable from 1:1 to 4:1, default 2:1 | | Contour | Cuts and boosts frequencies above 5 kHz | | Outputs | Audio: input 1 and input 2, mixed output (rear panel), 2 x phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 Ohms
Headphone:Front panel, 1 x 3.5 mm stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 Ohms | | | | User Controls | Front Panel: Power, test tone on/off, channel up/down, input levels, mix level, contour, monitor volume control
Rear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high) | | Adjustments | Internal: compression ratio for audio processor | | Programming | SQ on/off, process on/off, channel lock | | | | LEDs | Indicates input 1, input 2, and mix audio levels
10 segment LEDs (8 green, 2 red) | | Processing | Indicated by a green LED when on (front panel) | | RF Power | Indicated on the LCD (low, mid, high) | | LCD | Channel designation, lock status, RF power level, programming (front panel) | | Tone | Test Tone: red LED illuminates when test tone is enabled | | | | Frequency Range | 216.0125 to 216.9875 MHz | | Number of Channels | 19 wide band, 38 narrow band | | Frequency Accuracy | ±.005% stability 32 to 122°F (0 to 50°C) | | Stability | Transmitter: 50 PPM | | Transmission Range | Up to 3,000' (914 m) | | Output Power | 100 mW | | Antenna Connector | BNC | | | | Power Supply | In-line power supply | | Power Supply Input | 100-240 VAC, 50-60 Hz, 0.4 A | | Power Supply Output | 12 VDC, 1.3 A, 15.6 W | | Power Supply Connector | 0.02" (5.0 mm) OD, 0.01" (2.5 mm) ID, barrel type | | Compliance | UL, CE, GS, TUV, RoHS | | | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Storage Temperature | -4 to 122°F (-20 to 50°C) | | Humidity (Non-condensing) | <95% relative humidity | | | | Color | Dark gray with white silk screening | | Rack Mountable | One rack space high, 1/2 rack space wide | | Dimensions | 1.75 x 8.5 x 9.13" (4.5 x 21.5 x 23 cm) | | Weight | Unit: 2.6 lb (1.2 kg)
Unit with Power Supply: 3.5 lb (1.6 kg) | | | | RF | FCC Part 15, Part 90, Industry Canada | | Safety | RoHS | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 13.4 x 9.7 x 3.0" |
