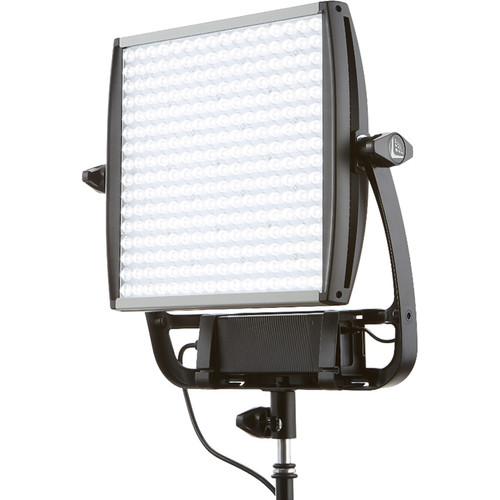

User Manual for Litepanels Astra 3X Daylight LED Panel Click to enlarge the picture
Contents of the user manual for the Litepanels Astra 3X Daylight LED Panel
- Product category: LED Lights Litepanels
- Brand: Litepanels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Litepanels LED Lights
 |
User manual for the Litepanels Astra 3X Daylight LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Litepanels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Litepanels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Litepanels product will considerably shorten its lifespan!
|

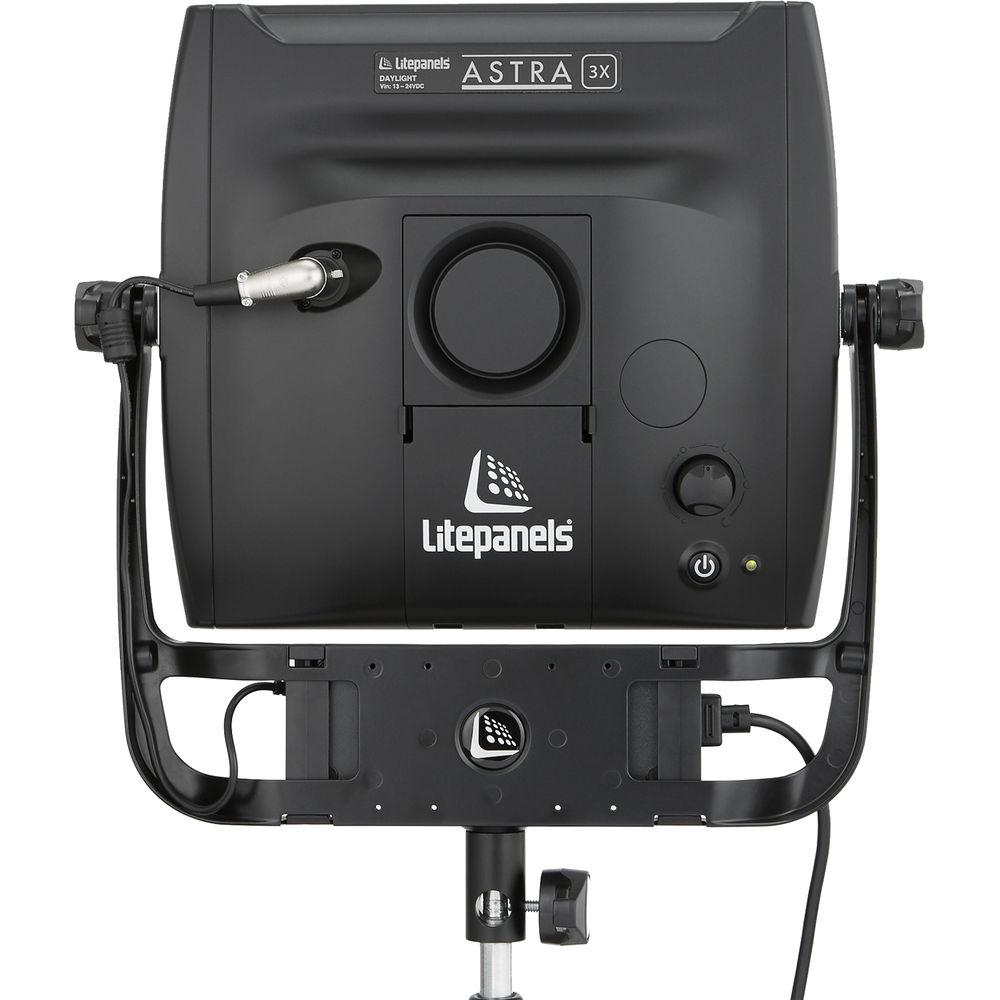

Product description Presenting the New Astra and Sola Light Fixtures, from Litepanels Read More rqecqxwrcquuxcxcyfbutaxtzfydtwvvx Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra 3X Daylight LED Panel that offers 3x the brightness as the original Daylight 1x1. As in previous versions of the 1x1 form factor, the Astra boasts a stable daylight color balance, 0-100% dimming with negligible color shift and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-mount or Gold mount battery plate.The technological advancement and enhancement is evident in the high CRI and significantly increased brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics resulting in a longer throw over a wider field. Another addition is the Astra Daylight's Dual Cooling. Choose the fan/convection mode or run silent with the field-replaceable fan off. You can control the Astra's functions locally or remotely with separate purchase of a DMX module. The Astra 3X Daylight comes with both US and EU power cables and a removable 5/8" TVMP connector for hanging or stand mounting. Two 1/4"-20 female taps offer alternate mounting points. - Output is up to 3x Brighter than Original Daylight 1x1
-
- High performance LEDs with custom paired optics
- Higher intensity equals longer throw with wider effective beam spread
- Superior Color Reproduction
-
- High color rendition (CRI)
- Efficient Thermal Management
-
- Ultra-quiet active cooling or fan off
- Smooth Dimming from 0-100%
-
- No noticeable color shift throughout the entire range
- Flicker-free at any frame rate or shutter angle
- Flexible, Modular Concept
-
- Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (additional module options under development)
- Optional yoke mounted Gold mount or V-mount battery plates
- External power supply
- Modern Fixture Design
-
- Easily identifiable and ergonomic manual controls for dimming, color, and power status
- Aluminum I-beam core construction to provide maximum durability and superior thermal management
- Aluminum accessory mounting points and lens/filter rails
- End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
- Durable, industry standard 3-pin XLR locking power connector

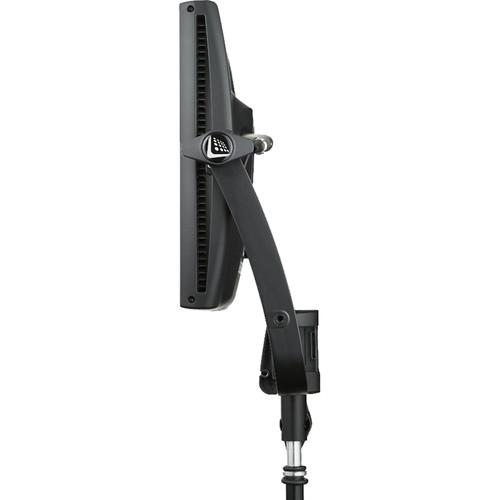

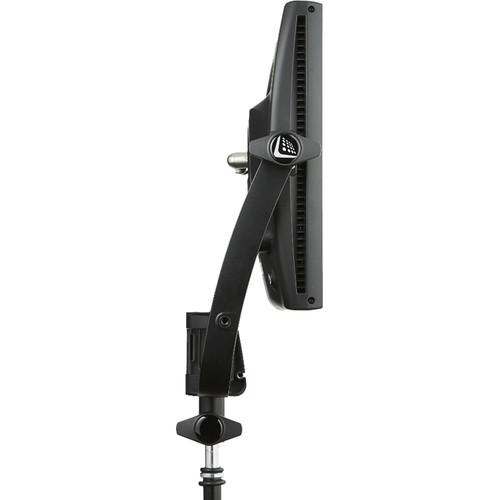

- Custom Curved Yoke Design
-
- Wide, unobstructed tilt range
- Yoke mounted power supply and optional battery plates with dual integrated cable guides
- Removable TVMP connector for flexible mounting options
- Two alternate 1/4"-20 mounting points
In the Box Litepanels Astra 3X Daylight LED Panel AC Adapter (100-240 VAC) Yoke with 5/8" Receiver US Power Cable EU Power Cable Limited 1-Year Warranty Limited 1-Year Warranty Extension for Total of 2-Years after Online Registration Brochure PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Astra 3X Daylight LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLitepanels Astra 3X Specs | | | Beam Angle | 46° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.4 cm | | Fixture Weight | 7.0 lb / 3.2 kg | | | | Power Input Connector | 3-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 13 to 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 55 W | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 21.5 x 20.5 x 5.5" |
