Product description

• Astra 3X Bi-Color LED Panel Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra 3X Bi-Color LED Panel that is 3x the brightness of the original Bi-Color 1x1. As in previous versions of the 1x1 form factor, the Astra has variable tungsten to daylight color temperature with negligible color shift, 0-100% dimming and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-Mount or Gold Mount battery plate. The technological advancement and enhancement is evident in the high CRI and significantly increased brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. Another feature is the Astra's passive cooling system. This dead silent feature is especially valuable in sound sensitive situations. You can control the Astra's functions locally or remotely with separate purchase of a DMX module. The Astra 3X Bi-Color comes with both US and EU power cables and a removable 5/8" TVMP connecter for hanging or stand mounting. Two 1/4"-20 female taps offer alternate mounting points.
  High Output
  • High performance LEDs with custom paired optics
  • Higher intensity equals longer throw with wider effective beam spread
  Superior Color Reproduction
  • High color rendition (CRI)
  Efficient Thermal Management
  • Completely silent passive cooling
  Smooth Dimming from 0-100%
  • No noticeable color shift throughout the entire range
  • Flicker-free at any frame rate or shutter angle
  Flexible, Modular Concept
  • Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (additional module options under development)
  • Optional yoke mounted Gold Mount or V-Mount battery plates
  • External power supply
  Modern Fixture Design
  • Easily identifiable and ergonomic manual controls for dimming, color, and power status
  • Aluminum I-beam core construction to provide maximum durability and superior thermal management
  • Aluminum accessory mounting points and lens/filter rails
  • End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
  • Durable, industry standard 3-pin XLR locking power connector
  Custom Curved Yoke Design
  • Wide, unobstructed tilt range
  • Yoke mounted power supply and optional battery plates with dual integrated cable guides
  • Removable TVMP connector for flexible mounting options
  • Two alternate 1/4"-20 mounting points
• Kit Light Stand (8.5') This 8.5' Kit Light Stand from Litepanels is an aluminum 4-section support with a maximum height of 8.5' and a minimum height of 2.4'. UPC: 891353002854
• Anton Bauer Gold-Mount Battery Bracket for Astra 1x1 LED Panel This Litepanels Anton Bauer Gold-Mount Battery Bracket allows users to run their Astra 1x1 Bi-Color LED Panel with Anton Bauer Gold-mount batteries. This bracket also includes a P-Tap to 3-pin XLR cable.

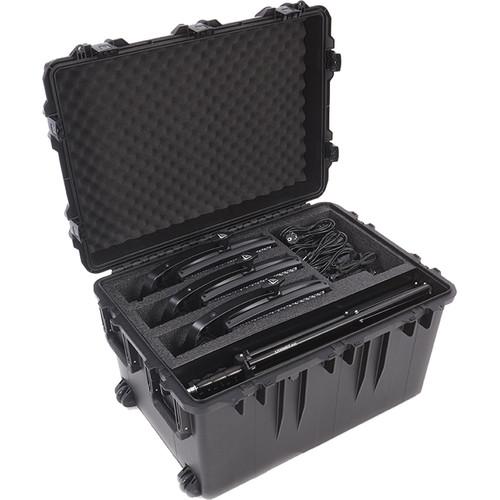

• Trio Travel Case with Cut Foam for 3 Astra Lights (Black) The Trio Travel Case with Cut Foam from Litepanels is a Pelican iM3075 Storm Trak Case in black, that holds 3 Astra Lights. An injection-molded case made of HPX high performance resin, it is virtually unbreakable, dent-resistant and shatter-resistant. It is tough, rugged, lightweight, airtight and watertight. There is a permanently attached Vortex valve that automatically adjusts air pressure without letting in water, and won't unscrew from the case. Press & Pull latches open with the push of a button, yet stay closed securely under impact or stress. The case has unbreakable molded-in hasps that allow the addition of standard size padlocks. Hinges with integrated feet will hold fast under impact, and create a flat surface for upright stability. Three double-layered, soft-grip, solid-core handles, plus a lightweight and retractable telescoping handle, as well as rugged in-line wheels make it easy to transport. This case has a multilayer cubed foam bottom and a convoluted foam pad in the lid.
  • Injection-molded case made of HPX high performance resin is virtually unbreakable, dent-resistant and shatter-resistant
  • Tough, rugged and lightweight
  • Airtight and watertight
  • Multilayer cubed foam bottom and a convoluted foam pad in the lid
  • Permanently attached Vortex valve automatically adjusts air pressure without letting in water, and won't unscrew from the case
  • Press & Pull latches open with the push of a button, yet stay closed securely under impact or stress
  • Two unbreakable molded-in hasps allow the addition of standard size padlocks, offering another measure of security
  • Hinges with integrated feet hold fast under impact and create a flat surface for upright stability
  • Molded-in stacking ribs provide no-slip stability for multiple case-stacking during storage or transport
  Carrying options
  • • Three double-layered, soft-grip, solid-core carrying handles provides strong, durable comfort
    • Lightweight, retractable, telescoping handle locks in place
    • Rugged in-line wheels have shielded ball bearings, are composed of a nylon core encased in a polyurethane tread, and are mounted on a solid axle for improved stability and ease of transport
  Tests
  • • Meets ATA 300 category 1 standards for transit cases
    • Meets FED-STD-101C requirements for drops and vibration (loose cargo)
    • Exceeds the specifications listed in MIL-STD-648C for vibration (sweep)
    • Meets MIL-STD-810F for immersion and simulated rainfall

• Yoke with TVMP Adapter

• US Power Cable

• EU Power Cable

• Power Supply

• Limited 1-Year Warranty

• Limited 1-Year Extension to 2-Years with Online Registration

• Limited 1-Year Warranty

• P-Tap to 3-Pin XLR Cable

• Limited 1-Year Warranty

• Foam Set

• Pelican Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Astra 3X Bi-Color LED Panel

  Beam Angle	46°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.4 cm
  Fixture Weight	7.0 lb / 3.2 kg

  Power Input Connector	3-Pin XLR

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	13 to 24 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	55 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	21.6 x 20.2 x 6.1"

• Kit Light Stand (8.5')

  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	8.5' / 2.6 m
  Minimum Working Height	2.4' / 0.7 m
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum

  Box Dimensions (LxWxH)	32.5 x 4.25 x 4.25"

• Anton Bauer Gold-Mount Battery Bracket for Astra 1x1 LED Panel

  Box Dimensions (LxWxH)	15.0 x 6.25 x 3.05"

• Trio Travel Case with Cut Foam for 3 Astra Lights (Black)

  Interior Dimensions	29.8 x 20.8 x 17.8" / 75.7 x 52.8 x 45.2 cm
  Padding	Foam

  Closure Type	Latch, Hasp
  Carry and Transport Options	3 x Handle Telescoping Handle
  Lid Depth	4" / 10.16 cm
  Exterior Dimensions (W x H x D)	33.3 x 24.4 x 19.3" / 84.6 x 62.0 x 49.0 cm
  Weight	46 lb / 20.9 kg

  Box Dimensions (LxWxH)	33.0 x 25.0 x 20.0"
