Product description

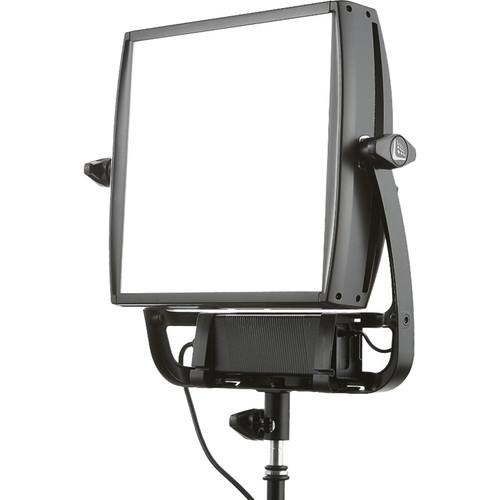

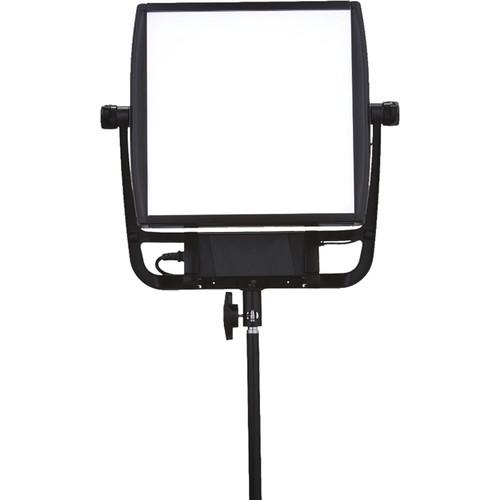

• Astra Soft Bi-Color With its chassis-integrated diffusion, the Litepanels Astra Soft Bi-Color is like having a softbox built into the slim Litepanels Astra profile. The diffusion is designed to all but eliminate the multi-source shadow effect and lend a soft wrap-around aesthetic to your subject while covering a larger, less concentrated area of illumination.Like the rest of the Astra series, the Soft Bi-Color is designed for professional production, with 25% higher output than the previous version and high color fidelity in its full 3200K to 5600K temperature range. Adjustments of color and brightness are stepless all the way through, and the output is flicker-free at all settings. A quiet fan at the rear cools the electronics, and it can be turned off during critical scenes, although the light output will be less while the fan is inactive.The Astra is ready for worldwide use thanks to its 100-240 VAC power supply, but it can also run on batteries when AC power is unavailable.
  Benefits
  • Premium selected LEDs paired with a diffusion panel for a soft wrap around quality of illumination
  • Flexible, modular concept
  • Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX or Bluetooth
  • Optional yoke mounted Gold Mount or V-Mount battery plates
  • Field replaceable fan module and external power supply
  • Modern fixture design

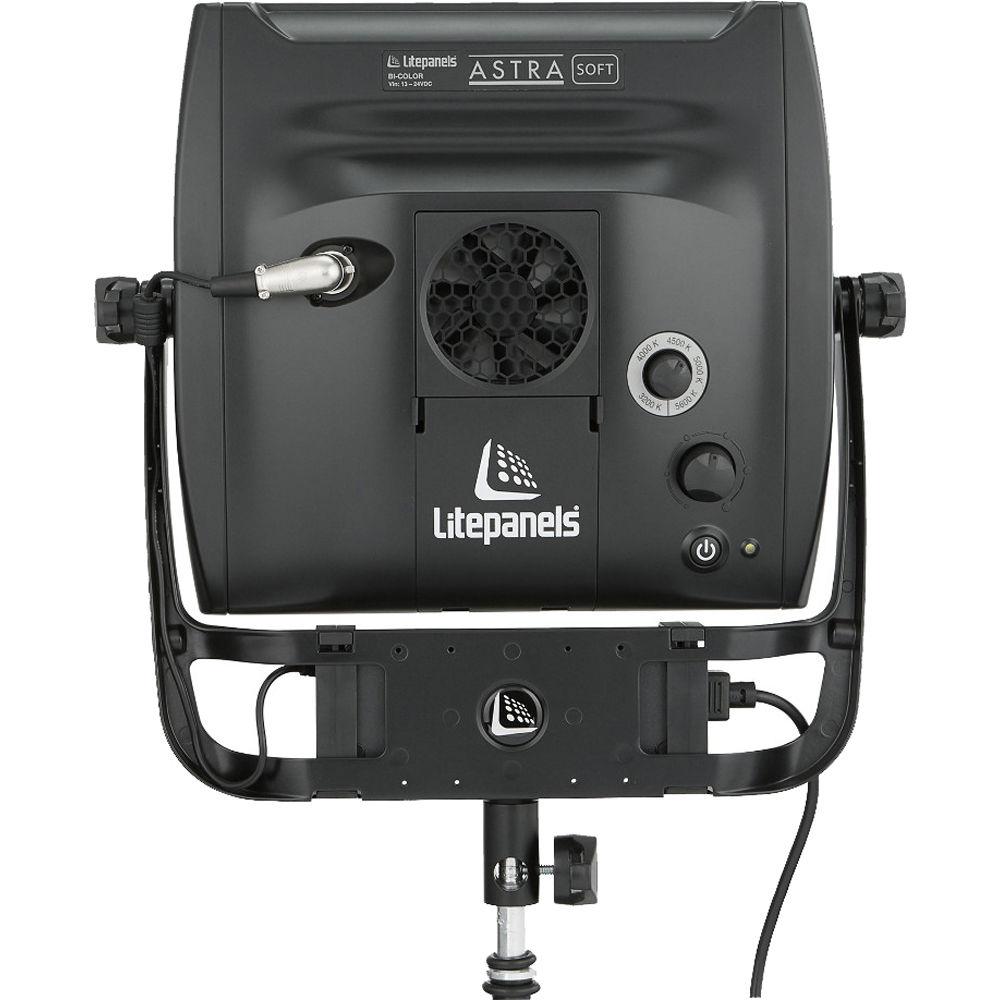

  • Easily identifiable and ergonomic manual controls for dimming, color, and power status
  • Aluminum I-beam core construction to provide maximum durability and superior thermal management
  • Integrated smooth dimming from 100 to 0% with no color shift
  • Flicker-free at any frame rate or shutter angle
  • Aluminum accessory mounting points and lens/filter rails
  • End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
  • Durable, industry standard 3-pin XLR locking power connector
  • Yoke mounted power supply and optional battery plates with dual integrated cable guides
  • Removable TVMP connector for flexible mounting options
  • Two alternate 1/4"-20 mounting points

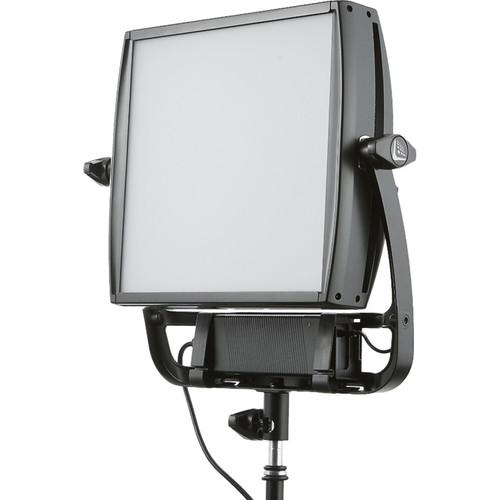

• Astra 6X Bi-Color LED Panel Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra 6X Bi-Color LED Panel that is 6x the brightness of the original Bi-Color 1x1. As in previous versions of the 1x1 form factor, the Astra has variable tungsten to daylight color temperature with negligible color shift, 0-100% dimming and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-Mount or Gold Mount battery plate. The technological advancement and enhancement is evident in the high CRI and significantly increased brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. Another addition is the Astra Bi-Color's Dual Cooling. Choose the fan/convection mode or run silent with the field-replaceable fan off. You can control the Astra's functions locally or remotely with separate purchase of a DMX module. The Astra 6X Bi-Color comes with both US and EU power cables and a removable 5/8" TVMP connecter for hanging or stand mounting. Two 1/4"-20 female taps offer alternate mounting points.
  High Output
  • High performance LEDs with custom paired optics
  • Higher intensity equals longer throw with wider effective beam spread
  Superior Color Reproduction
  • High color rendition (CRI)
  Efficient Thermal Management
  • Ultra-quiet active cooling mode
  Smooth Dimming from 0-100%
  • No noticeable color shift throughout the entire range
  • Flicker-free at any frame rate or shutter angle
  Flexible, Modular Concept
  • Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (additional module options under development)
  • Optional yoke mounted Gold Mount or V-Mount battery plates
  • External power supply
  • Field-replaceable fan module
  Modern Fixture Design
  • Easily identifiable and ergonomic manual controls for dimming, color, and power status
  • Aluminum I-beam core construction to provide maximum durability and superior thermal management
  • Aluminum accessory mounting points and lens/filter rails
  • End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
  • Durable, industry standard 3-pin XLR locking power connector

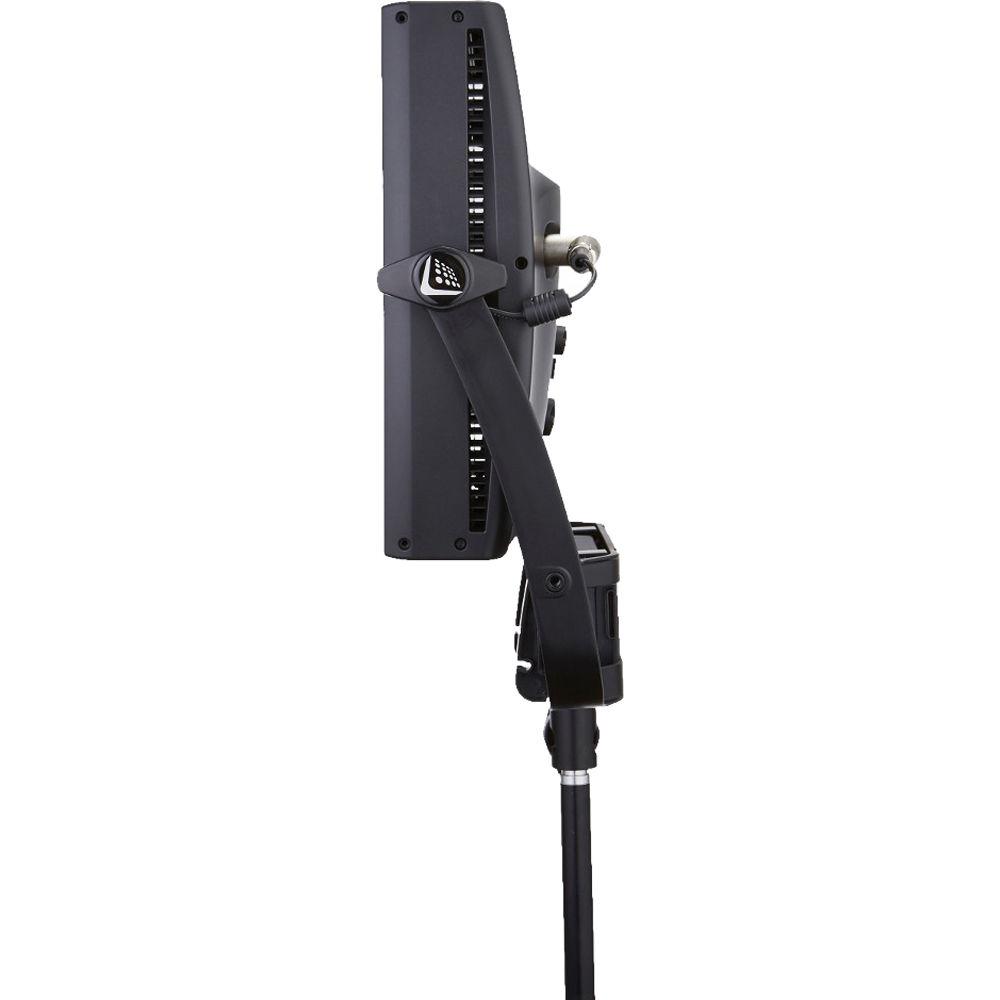

  Custom Curved Yoke Design
  • Wide, unobstructed tilt range
  • Yoke mounted power supply and optional battery plates with dual integrated cable guides
  • Removable TVMP connector for flexible mounting options
  • Two alternate 1/4"-20 mounting points
• Compact Light Stand for the LP1x1 LED Production Light The Compact Light Stand for the LP1x1 LED Production Light from Litepanels has four risers and a 5/8" baby pin. It extends 19.5" to 7.5', and is made of lightweight, durable aluminum.
• V-Mount Battery Bracket for Astra 1x1 LED Panel This Litepanels V-Mount Battery Bracket allows users to run their Astra 1x1 Bi-Color LED Panel with V-mount batteries. This bracket also includes a P-Tap to 3-pin XLR cable.

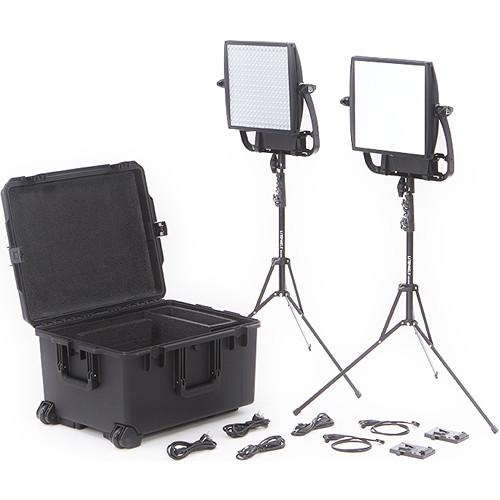

• Traveler Case Duo with Custom Foam for 1 Astra Soft and 1 Astra (Black) The black Traveler Case Duo with Custom Foam for 1 Astra Soft and 1 Astra from Litepanels is a Pelican iM2750 Storm Trak case designed to hold one Astra Soft and one regular Astra, or two regular Astra lights. An injection-molded case made of HPX high performance resin, it is virtually unbreakable, dent-resistant, and shatter-resistant. It is tough, rugged, lightweight, airtight, and watertight. There is a permanently attached Vortex valve that won't unscrew from the case and will automatically adjust air pressure without letting in water. Press & Pull latches open with the push of a button, yet stay closed securely under impact or stress. The case has unbreakable molded-in hasps that allow the addition of standard size padlocks. Hinges with integrated feet will hold fast under impact, and create a flat surface for upright stability. Three double-layered soft-grip, solid-core handles, a lightweight retractable telescoping handle, and rugged inline wheels make it easy to transport. This case has a multilayer cubed foam bottom and a convoluted foam pad in the lid.
  • Injection-molded case made of HPX high performance resin is virtually unbreakable, dent-resistant, and shatter-resistant
  • Tough, rugged, and lightweight
  • Airtight and watertight
  • Multilayer cubed foam bottom and a convoluted foam pad in the lid
  • Permanently attached Vortex valve automatically adjusts air pressure, without letting in water or unscrewing from the case
  • Press & Pull latches open with the push of a button, yet stay closed securely under impact or stress
  • Two unbreakable molded-in hasps allow for the addition of standard size padlocks, offering another measure of security
  • Hinges with integrated feet hold fast under impact and create a flat surface for upright stability
  • Molded-in stacking ribs provide no-slip stability for multiple-case stacking during storage or transport
  Carrying Options
  • • Three double-layered, soft-grip, solid-core carrying handles provide strong, durable comfort
    • Lightweight, retractable, telescoping handle locks in place
    • Rugged inline wheels with shielded ball bearings, composed of a nylon core encased in a polyurethane tread, and mounted on a solid axle for improved stability and ease of transport
  Tests
  • • Meets ATA 300 category 1 standards for transit cases
    • Meets FED-STD-101C requirements for drops and vibration (loose cargo)
    • Exceeds the specifications listed in MIL-STD-648C for vibration (sweep)
    • Meets MIL-STD-810F for immersion and simulated rainfall

• Mounting Yoke

• AC Power Supply for Sola 6, Inca 6, and Astra 1x1 Series LED Lights

• US Power Cable

• EU Power Cable

• Limited 1-Year Warranty

• Limited Additional 1-Year Warranty with Product Registration

• Yoke with TVMP Adapter

• US Power Cable

• EU Power Cable

• Power Supply

• Limited 1-Year Warranty

• Limited 1-Year Extension to 2-Years with Online Registration

• Limited 1-Year Warranty

• P-Tap to 3-Pin XLR Cable

• Limited 1-Year Warranty

• Foam Set

• Limited 1-Year Warranty, with Additional Year if Registered

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Astra Soft Bi-Color

  Material	Aluminum
  Light Source	LED
  Equivalent	125 W HMI Pocket PAR 750 W tungsten
  Color Range	Approximately 3200-5600K
  CRI	CRI / TLCI: Tungsten: 98, Daylight: 95
  Beam Angle	94°
  Photometrics	Daylight: 109 fc / 1178 lux @ 5.0' / 1.5 m 27 fc / 294 lux @ 10' / 3.0 m 12 fc / 131 lux @ 15' / 4.6 m Tungsten: 95 fc / 1022 lux @ 5.0' / 1.5 m 24 fc / 256 lux @ 10' / 3.0 m 11 fc / 114 lux @ 15' / 4.6 m
  Dimming	0-100%
  Cooling	Active/Passive: Fan on or off
  Operating Voltage	100-240 VAC 50/60 Hz with included AC adapter 13-24 VDC with optional battery
  Power Connector	3-pin
  Power Draw	105 W
  DMX	Yes, with optional adapter
  Mount	5/8" / 16 mm
  Dimensions	17.7 x 16.3 x 5.3" / 45 x 41.3 x 13.4 cm
  Weight	7.0 lb / 3.2 kg

  Box Dimensions (LxWxH)	21.5 x 20.5 x 6.0"

• Astra 6X Bi-Color LED Panel

  Beam Angle	46°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	Fan/Passive Combo
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.4 cm
  Fixture Weight	7.0 lb / 3.2 kg

  Power Input Connector	3-Pin XLR

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	13 to 24 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	105 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	21.4 x 20.3 x 6.0"

• Compact Light Stand for the LP1x1 LED Production Light

  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	7.5' / 2.3 m
  Minimum Working Height	19.5" / 49.5 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum

  Box Dimensions (LxWxH)	20.4 x 3.2 x 3.0"

• V-Mount Battery Bracket for Astra 1x1 LED Panel

  Box Dimensions (LxWxH)	14.05 x 5.65 x 3.45"

• Traveler Case Duo with Custom Foam for 1 Astra Soft and 1 Astra (Black)

  Interior Dimensions	22 x 17 x 12.7" / 55.9 x 43.2 x 32.6 cm
  Padding	Foam

  Closure Type	Latch, Hasp
  Carry and Transport Options	3 x Handle Telescoping Handle
  Material of Construction	Resin
  Lid Depth	2" / 5.1 cm
  Exterior Dimensions (W x H x D)	24.6 x 19.7 x 14.4" / 62.5 x 50.0 x 36.6 cm
  Weight	20 lb / 9.1 kg

  Box Dimensions (LxWxH)	24.5 x 19.5 x 14.5"
