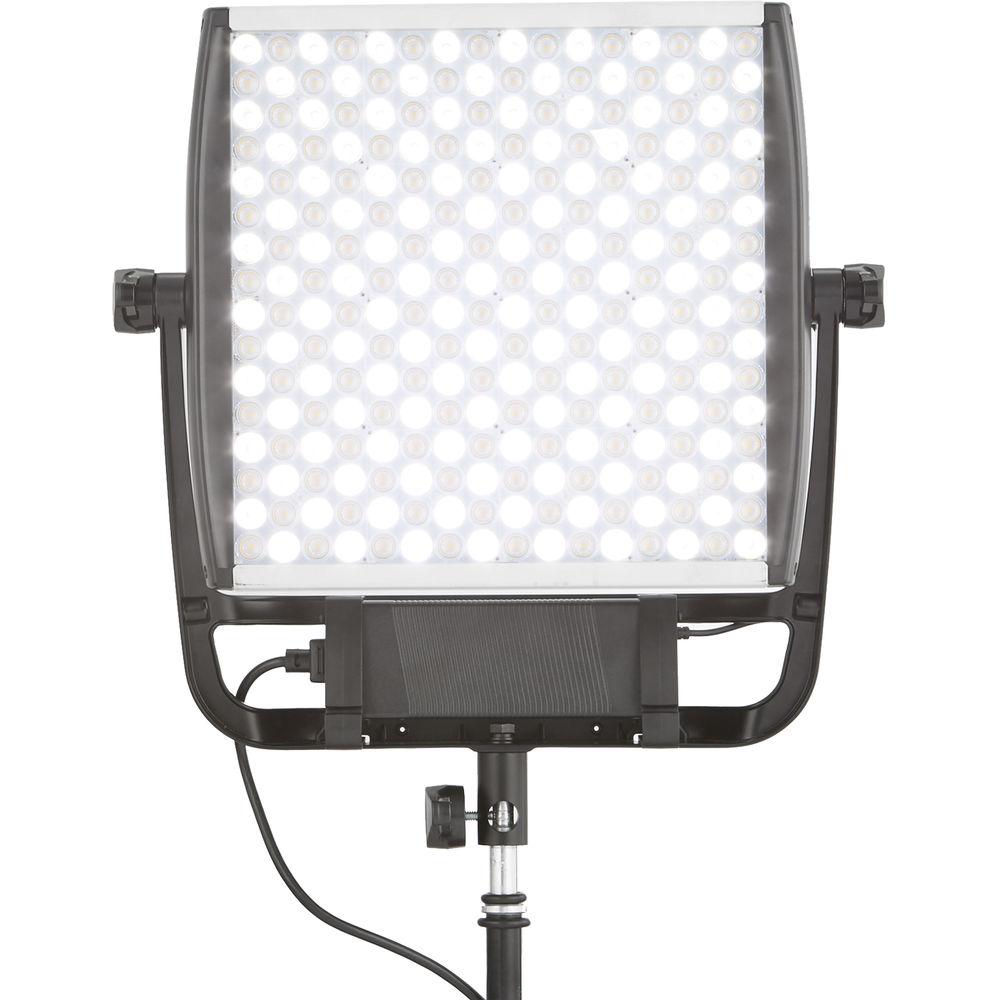

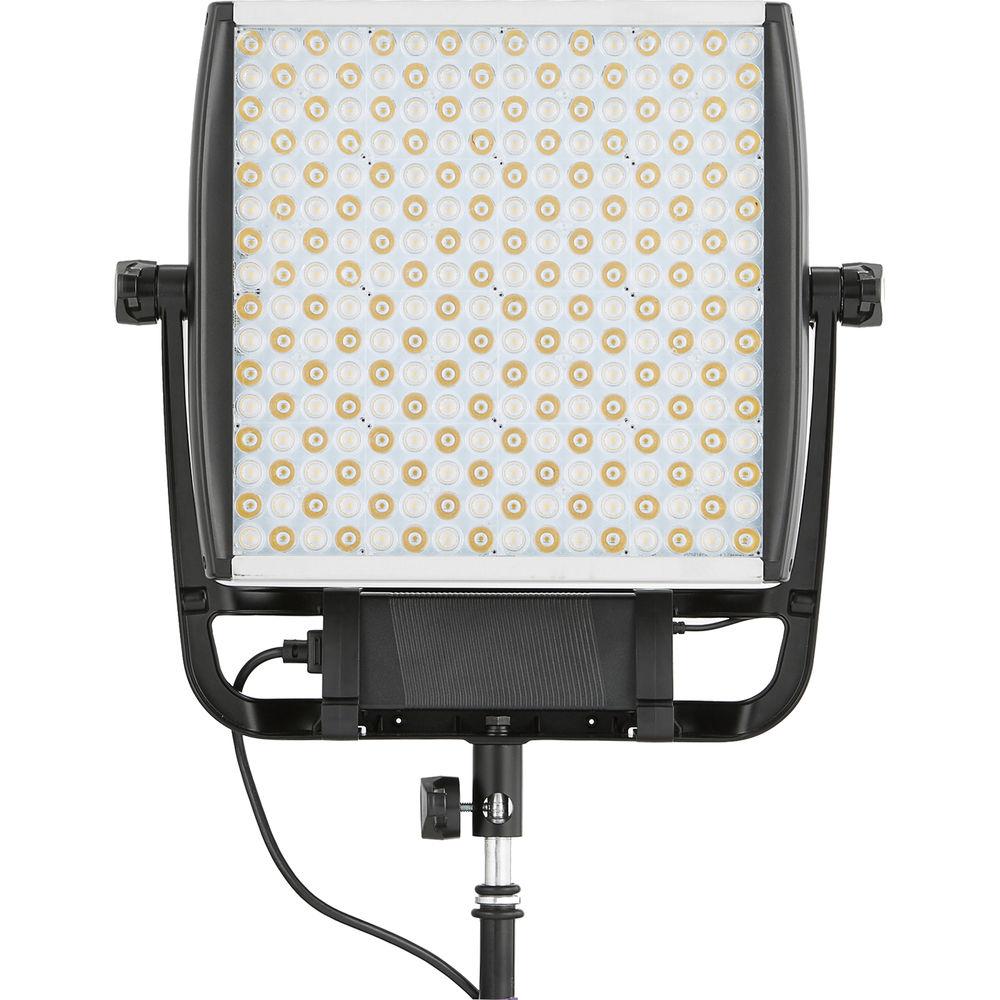

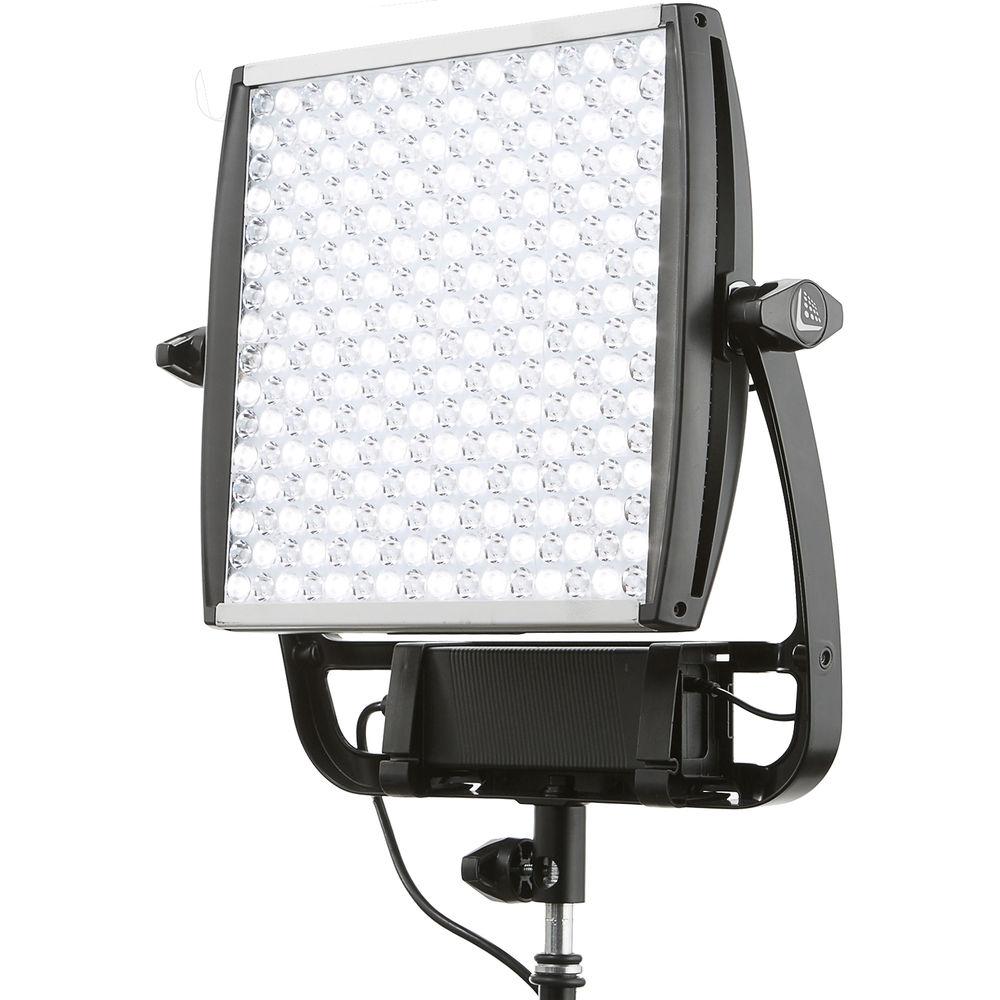

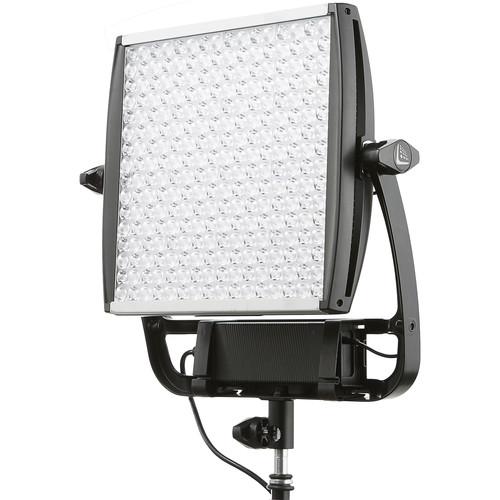

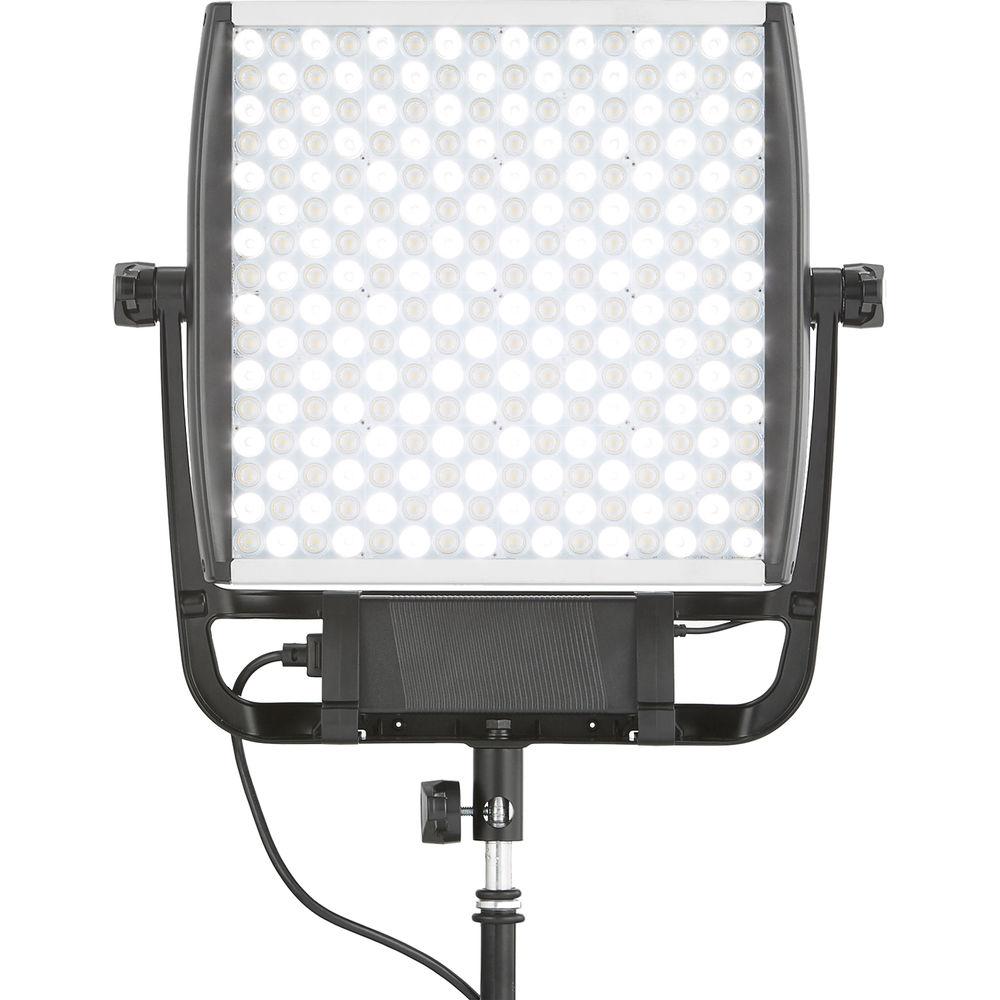

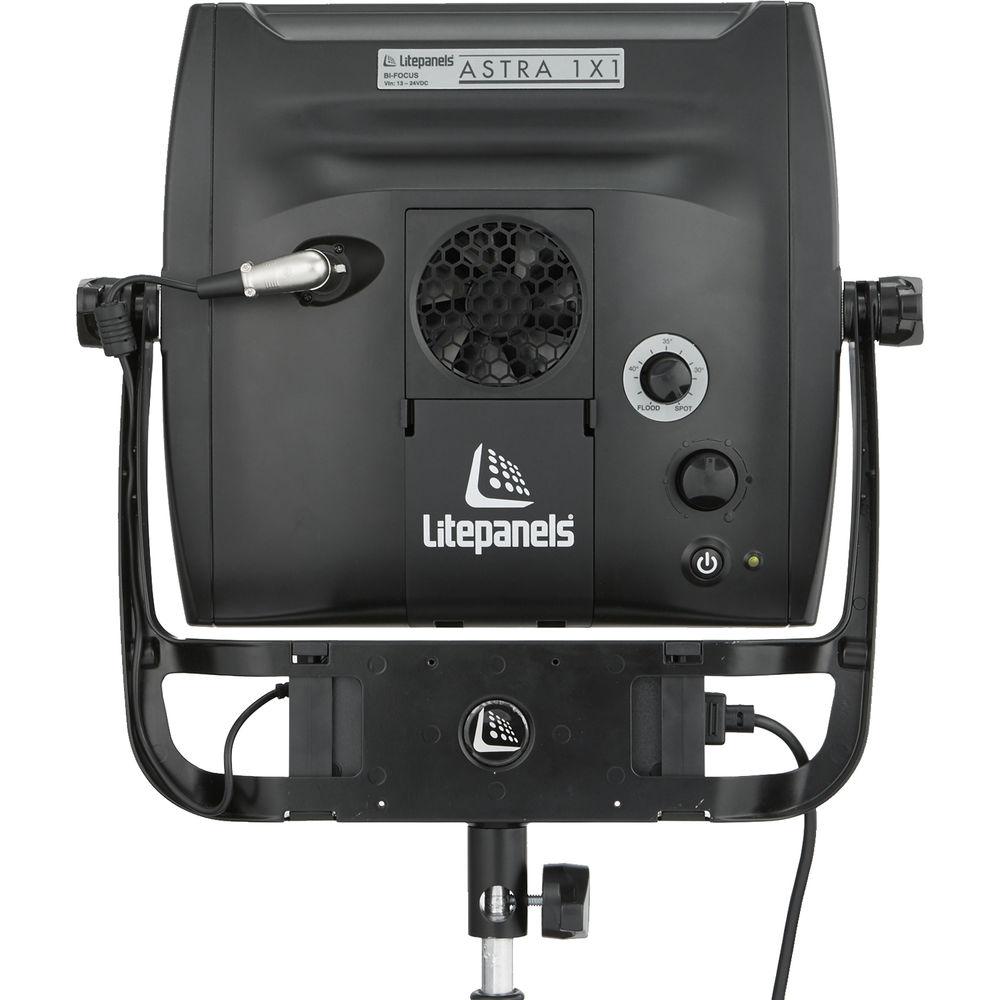

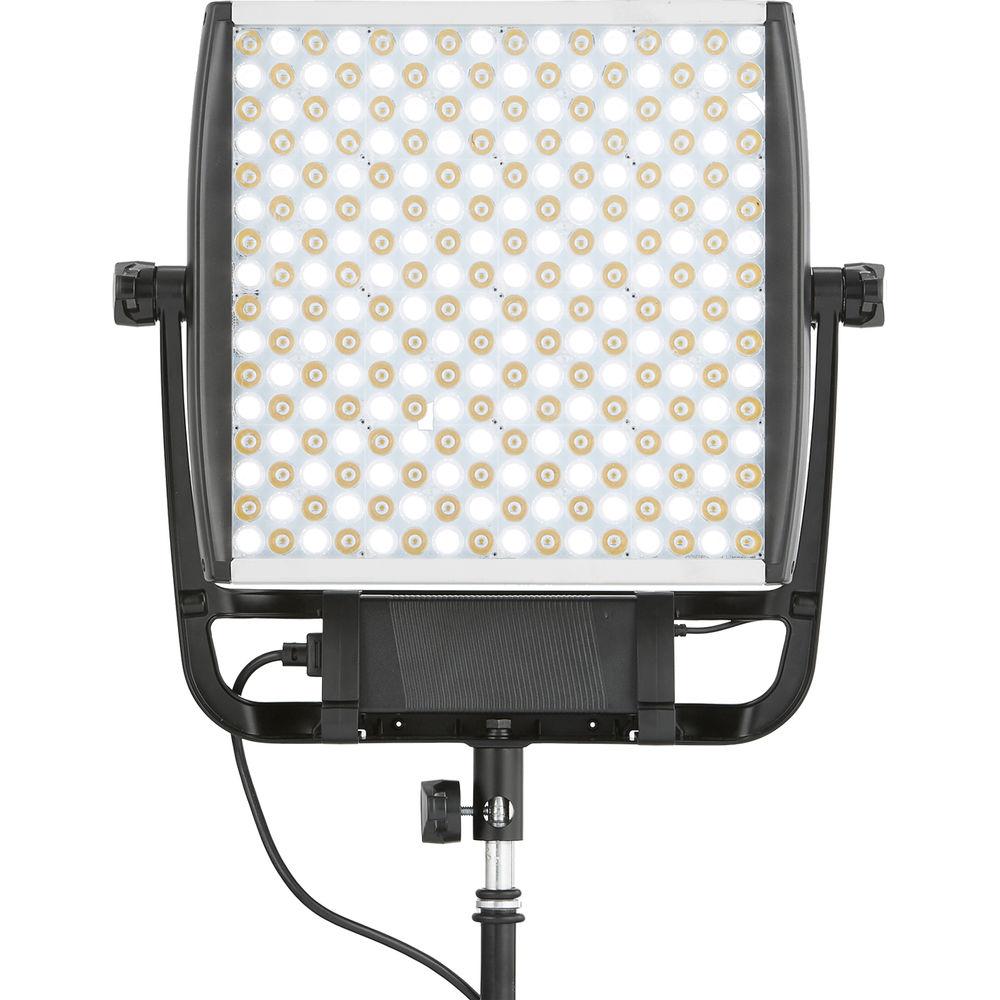

Product description At one time the only way you could focus your light source was by using a Fresnel or PAR fixture. Litepanels, a pioneer in the LED field, has changed that with the introduction of the Astra Bi-Focus Daylight LED Panel. Fresnels and PARs can be cumbersome but Litepanels uses two sets of lenses in the panel to allow spot-to-flood beam adjustment from 15 degrees to 45 degrees in a fixture that is only 5.3" thick. The 15-degree beam angle is handy in situations where you want to isolate a subject, control spill, or for long throw applications; whereas 45 degrees is ideal for wide coverage. And best of all you can adjust your coverage without moving the light, a valuable capability when the Astra is hung overhead or mounted in a hard to reach place. This is where the Astra's control features will be appreciated. While you can make adjustments on the unit, you can also control dimming (from 0 to 100%), focus, and turning the cooling fan on or off, with the purchase of a Bluetooth or DMX module - a great option in sound sensitive environments.The Astra Bi-Focus offers all the benefits of using an LED light source and then some. The light features a low power draw of 105W with a high output, while maintaining a high TLCI/CRI rating of 95, indicating accurate and precise color rendering. The Astra Bi-Focus Daylight is ready for worldwide use thanks to the included 100 - 240 VAC power supply, but it can also run on 14.4V professional batteries with the purchase of a V-Mount or Gold-Mount battery plate for situations where mains power is unavailable. Mounting options include a 5/8" receiver, or alternatively, two 1/4"-20 mounting points. - Benefits
-
- Aluminum I-beam core construction for maximum durability
- Aluminum accessory mounting points and lens/filter rails

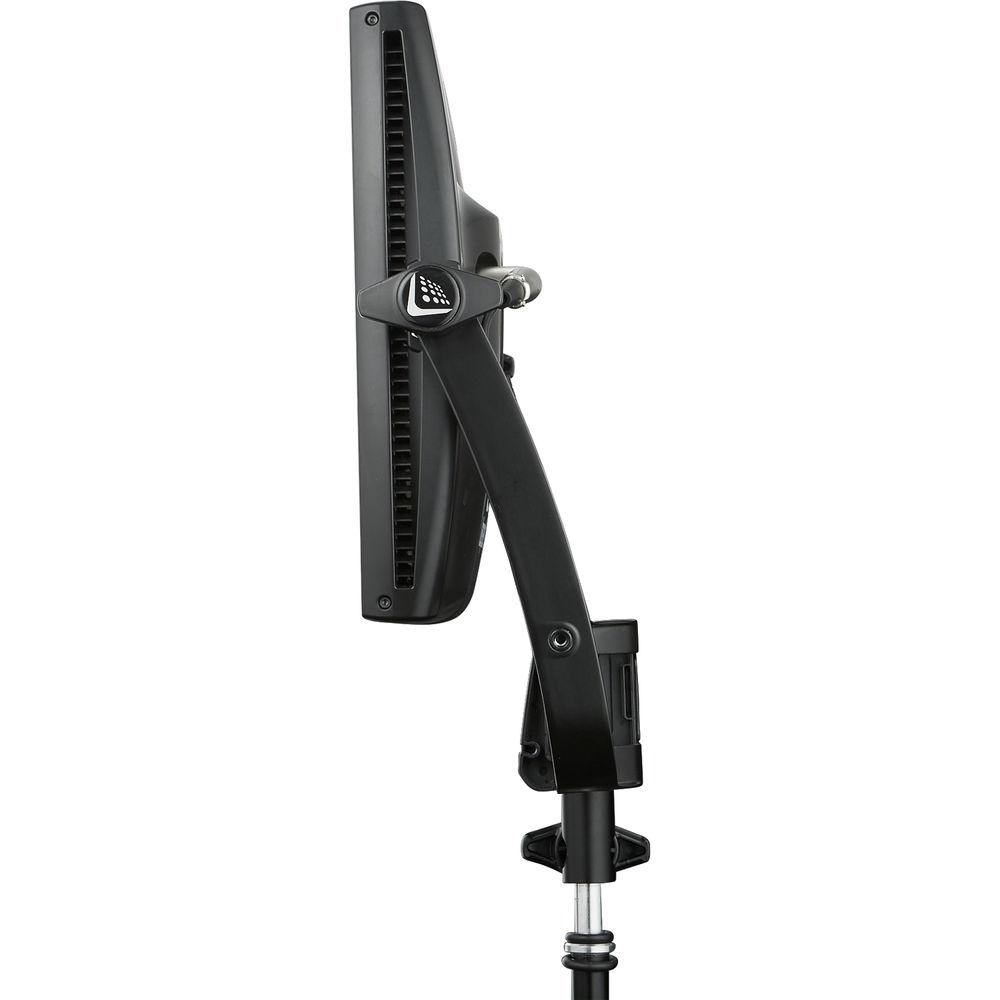

- Modular curved yoke design
- Wide, unobstructed tilt range
- High performance LEDs with custom paired optics
- High intensity 15-degree spot for longer throw, 45-degree flood for wider coverage
- Flicker-free at any frame rate or shutter angle
- Accurate color reproduction - CRI/TLCI rated 95
- Ultra-smooth dimming from 0 to 100% without color shift
- Efficient thermal management
- Completely silent passive cooling mode or very quiet active cooling mode allows high light output
- Max power draw 105W
- Optional yoke-mounted Gold Mount or V-Mount battery plates with dual integrated cable guides for external power source
- Optional Bluetooth and DMX communications modules allow the intensity, focus, and cooling mode to be controlled remotely
- Industry standard 3-pin XLR locking power connector
- Removable TVMP connector for flexible mounting options
- Two alternate 1/4"-20 mounting points
- Photometrics
- (Readings taken without diffusion; diffusion reduces output by 1/2 stop)
At 3.3' (1.0 m)
Spot: 8395 fc / 90,364 lux
Flood:1132 fc / 12,180 lux
At 10' (3.0 m)
Spot: 756 fc / 8133 lux
Flood: 102 fc / 1096 lux
At 15' (4.5 m)
Spot: 336 fc / 3615 lux
Flood: 45 fc / 487 lux
At 20' (6.0 m)
Spot: 189 fc / 2033 lux
Flood: 26 fc / 274 lux UPC: 859058005273 In the Box Litepanels Astra Bi-Focus Daylight LED Panel AC Adapter (100-240 VAC) Yoke with 5/8" (16mm) Receiver US Power Cable EU Power Cable Limited 1-Year Warranty Limited 1-Year Warranty Extension for Total of 2 Years after Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Astra Bi-Focus Daylight LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLitepanels Astra Bi-Focus Specs | Material | Aluminum | | Light Source | LED | | Color Range | Daylight | | CRI / TLCI | 95 | | Beam Angle | 15 - 48° | | Dimming | 0 - 100% | | Fan Cooled | Quiet active cooling mode or fan off | | Operating Voltage | 100-240 VAC 50/60 Hz, 24 VDC with included AC adapter
13-24 VDC with optional battery | | Power Draw | 105 W | | Control | Locally on the unit, DMX and Bluetooth with optional adapters | | Power Connector | 3-Pin XLR | | Mount | Yoke with 5/8" (16 mm) receiver
Two 1/4"-20 mounting points | | Material of Construction | Aluminum | | Dimensions | 17.7 x 16.3 x 5.3" (45.0 x 41.4 x 13.4 cm) | | Weight | 7.0 lb (3.2 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 5.5" |
