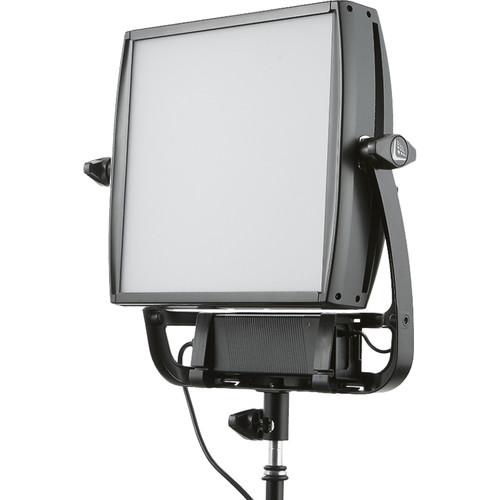

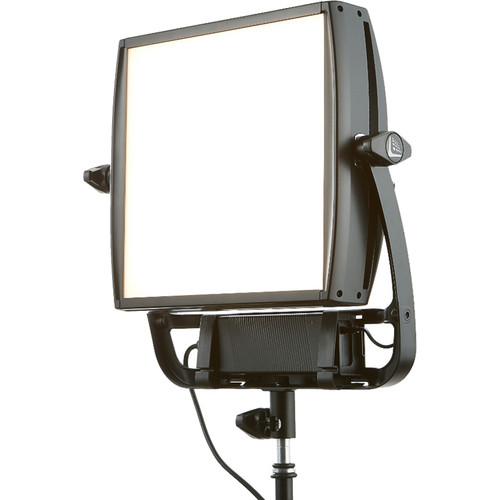

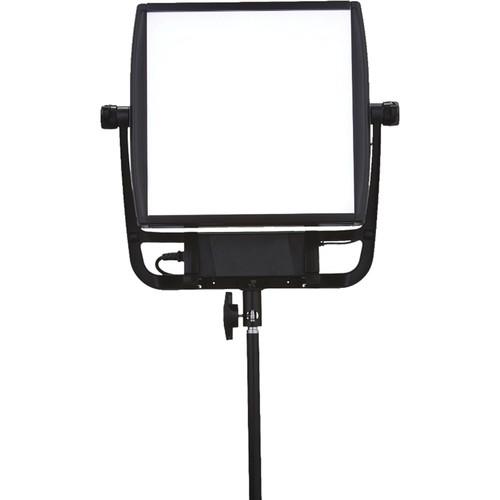

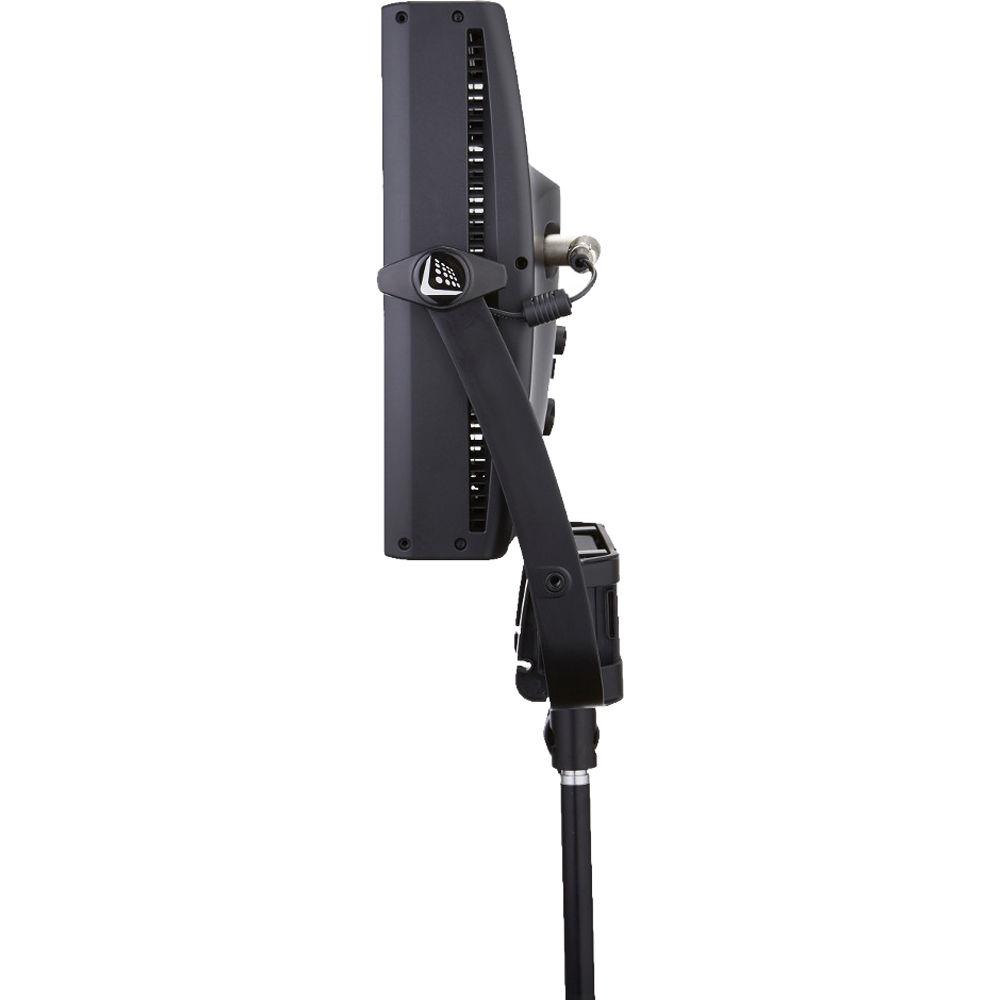

User Manual for Litepanels Astra Soft Bi-Color Click to enlarge the picture
Contents of the user manual for the Litepanels Astra Soft Bi-Color
- Product category: LED Lights Litepanels
- Brand: Litepanels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Litepanels LED Lights
 |
User manual for the Litepanels Astra Soft Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Litepanels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Litepanels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Litepanels product will considerably shorten its lifespan!
|

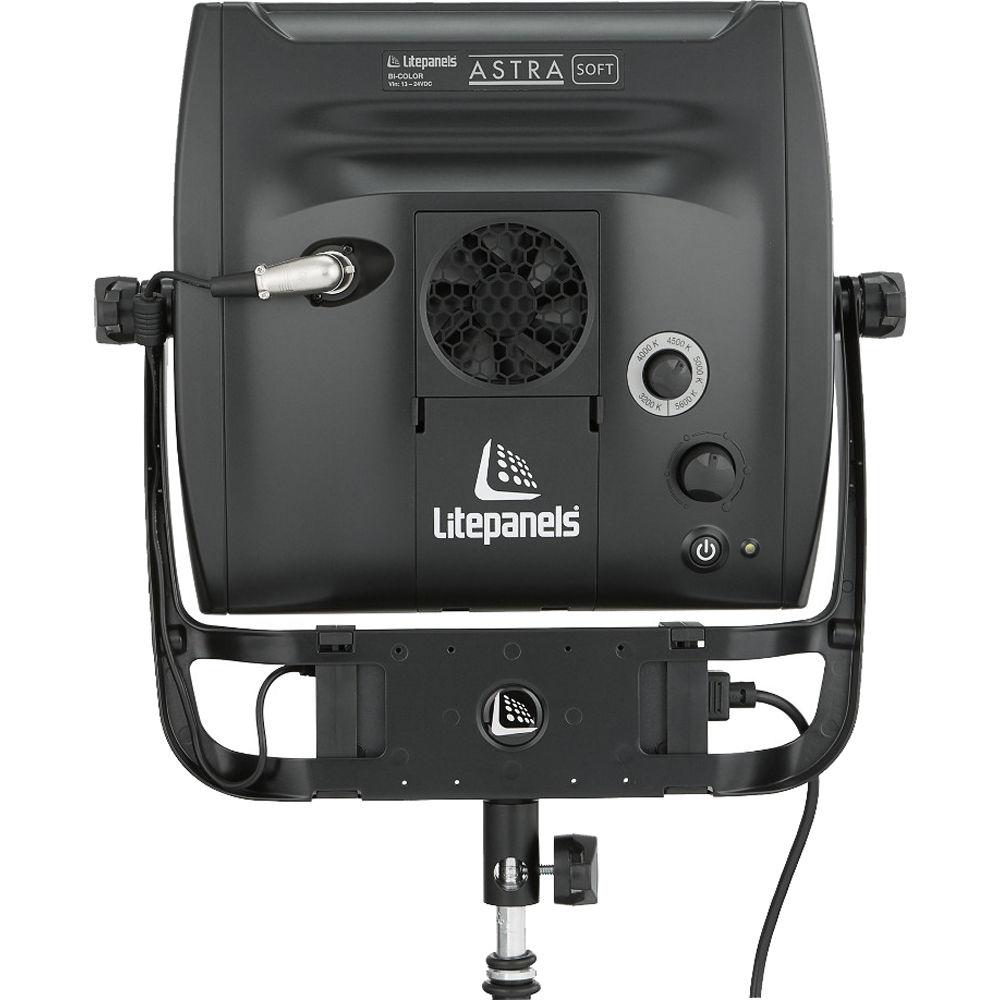

Product description With its chassis-integrated diffusion, the Litepanels Astra Soft Bi-Color is like having a softbox built into the slim Litepanels Astra profile. The diffusion is designed to all but eliminate the multi-source shadow effect and lend a soft wrap-around aesthetic to your subject while covering a larger, less concentrated area of illumination.Like the rest of the Astra series, the Soft Bi-Color is designed for professional production, with 25% higher output than the previous version and high color fidelity in its full 3200K to 5600K temperature range. Adjustments of color and brightness are stepless all the way through, and the output is flicker-free at all settings. A quiet fan at the rear cools the electronics, and it can be turned off during critical scenes, although the light output will be less while the fan is inactive.The Astra is ready for worldwide use thanks to its 100-240 VAC power supply, but it can also run on batteries when AC power is unavailable. - Benefits
-
- Premium selected LEDs paired with a diffusion panel for a soft wrap around quality of illumination
- Flexible, modular concept
- Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX or Bluetooth
- Optional yoke mounted Gold Mount or V-Mount battery plates
- Field replaceable fan module and external power supply
- Modern fixture design
- Easily identifiable and ergonomic manual controls for dimming, color, and power status
- Aluminum I-beam core construction to provide maximum durability and superior thermal management
- Integrated smooth dimming from 100 to 0% with no color shift
- Flicker-free at any frame rate or shutter angle
- Aluminum accessory mounting points and lens/filter rails
- End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
- Durable, industry standard 3-pin XLR locking power connector
- Yoke mounted power supply and optional battery plates with dual integrated cable guides
- Removable TVMP connector for flexible mounting options
- Two alternate 1/4"-20 mounting points
In the Box Litepanels Astra Soft Bi-Color Mounting Yoke AC Power Supply for Sola 6, Inca 6, and Astra 1x1 Series LED Lights xebyfvqwuqcctzzwubwevzutbyvsbwdxueya US Power Cable EU Power Cable Limited 1-Year Warranty Limited Additional 1-Year Warranty with Product Registration ASTRA FAMILY PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Astra Soft Bi-Color in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLitepanels Astra Soft Specs | Material | Aluminum | | Light Source | LED | | Equivalent | 125 W HMI Pocket PAR
750 W tungsten | | Color Range | Approximately 3200-5600K | | CRI | CRI / TLCI: Tungsten: 98, Daylight: 95 | | Beam Angle | 94° | | Photometrics | Daylight:
109 fc / 1178 lux @ 5.0' / 1.5 m
27 fc / 294 lux @ 10' / 3.0 m
12 fc / 131 lux @ 15' / 4.6 m
Tungsten:
95 fc / 1022 lux @ 5.0' / 1.5 m
24 fc / 256 lux @ 10' / 3.0 m
11 fc / 114 lux @ 15' / 4.6 m | | Dimming | 0-100% | | Cooling | Active/Passive: Fan on or off | | Operating Voltage | 100-240 VAC 50/60 Hz with included AC adapter
13-24 VDC with optional battery | | Power Connector | 3-pin | | Power Draw | 105 W | | DMX | Yes, with optional adapter | | Mount | 5/8" / 16 mm | | Dimensions | 17.7 x 16.3 x 5.3" / 45 x 41.3 x 13.4 cm | | Weight | 7.0 lb / 3.2 kg | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 21.5 x 20.5 x 6.0" |
