Product description Top 5 Ways to Use Onboard Camera Lights Off-Camera Creatively Read More - 5 Ways To Creatively To Use On-board Camera Lights Off-Camera

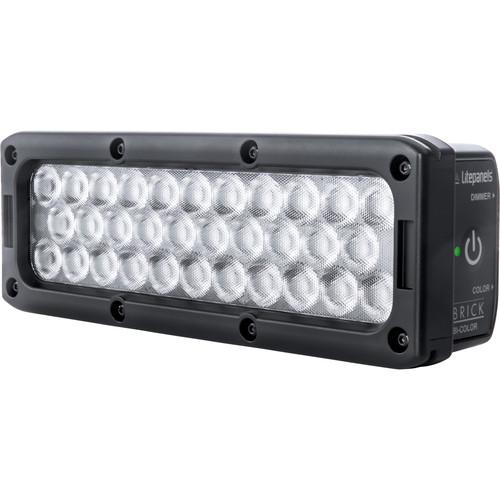

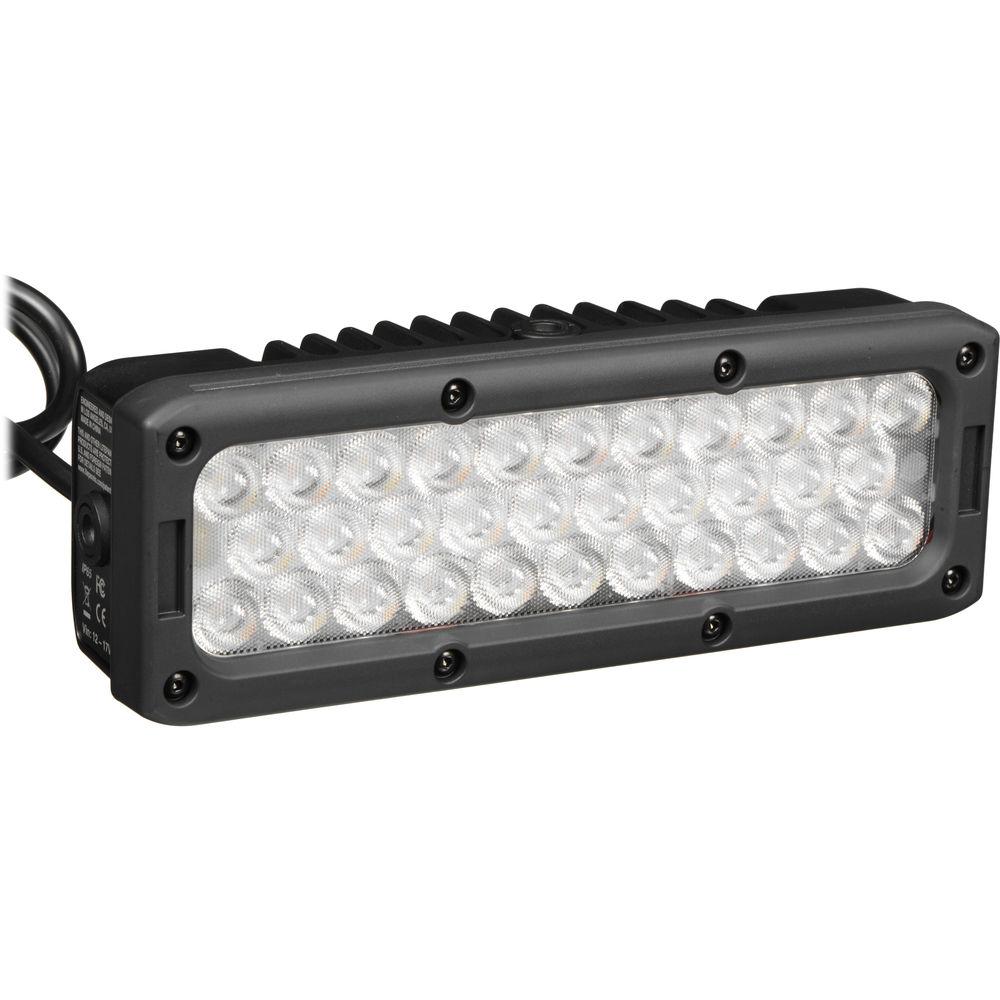

Building on the popular, compact MiniPlus LED Light, the Litepanels Brick LED Light features the same rectangular form factor but offers 4x the brightness, tungsten-to-daylight variable color-temperature, and IP65 weatherproof rating, all ideal for on-the-go shooters in varying weather conditions. It is designed with tightly-binned surface-mount LEDs paired with fine-tuned, custom-designed TIR optics. This results in improved color reproduction and increased brightness that provides a longer throw. The Brick delivers a 100W tungsten equivalent output at a 36° beam angle and is flicker-free at any frame rate or shutter angle.
The Brick LED Light features an ultra-smooth 100 to 0% brightness dimmer. It also has a dedicated power button, allowing you to maintain your settings when you turn the light off. The Brick has an integrated D-Tap cable, compatible with select camera batteries, and also supports optional AC/DC power. - Key Features
-
- Tungsten-to-daylight variable color-temperature
- High-bright 100W tungsten equivalent output
- IP65 weatherproof rating

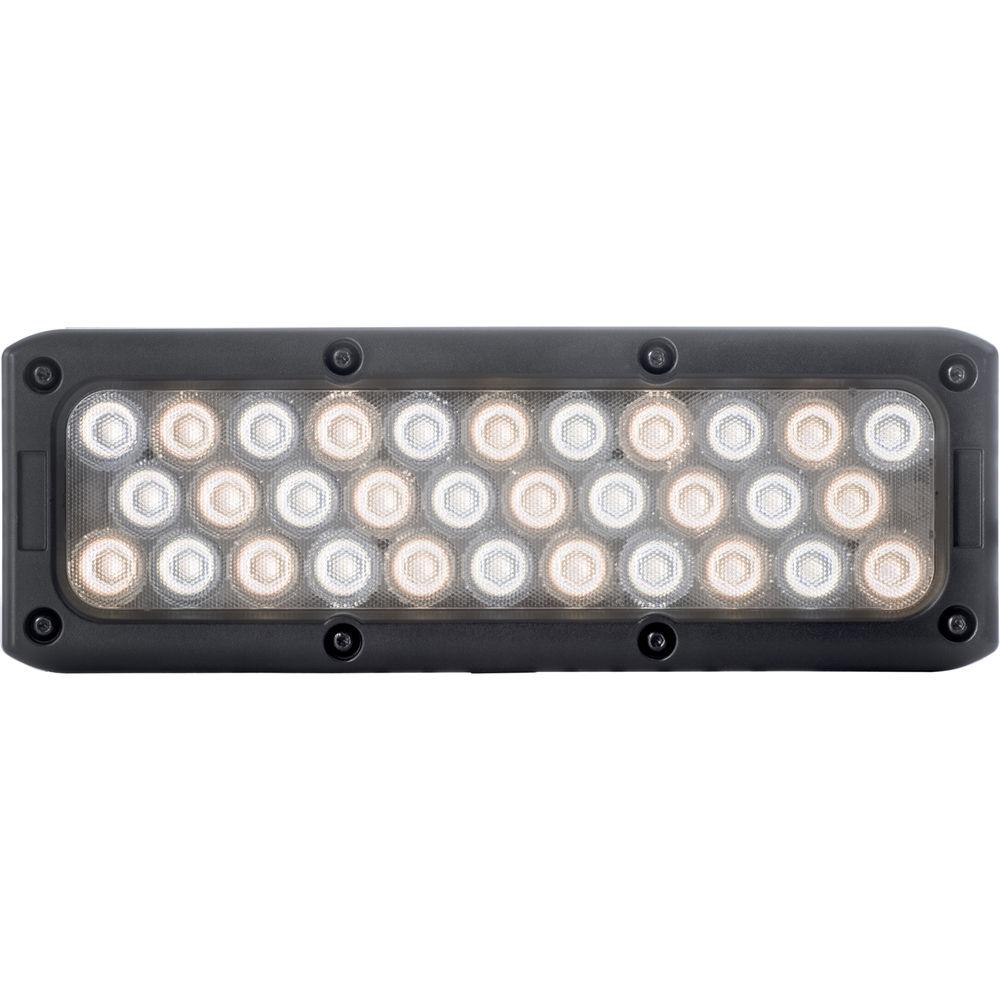

- Tightly-binned surface-mount LEDs paired with fine-tuned TIR optics
- 36° beam angle

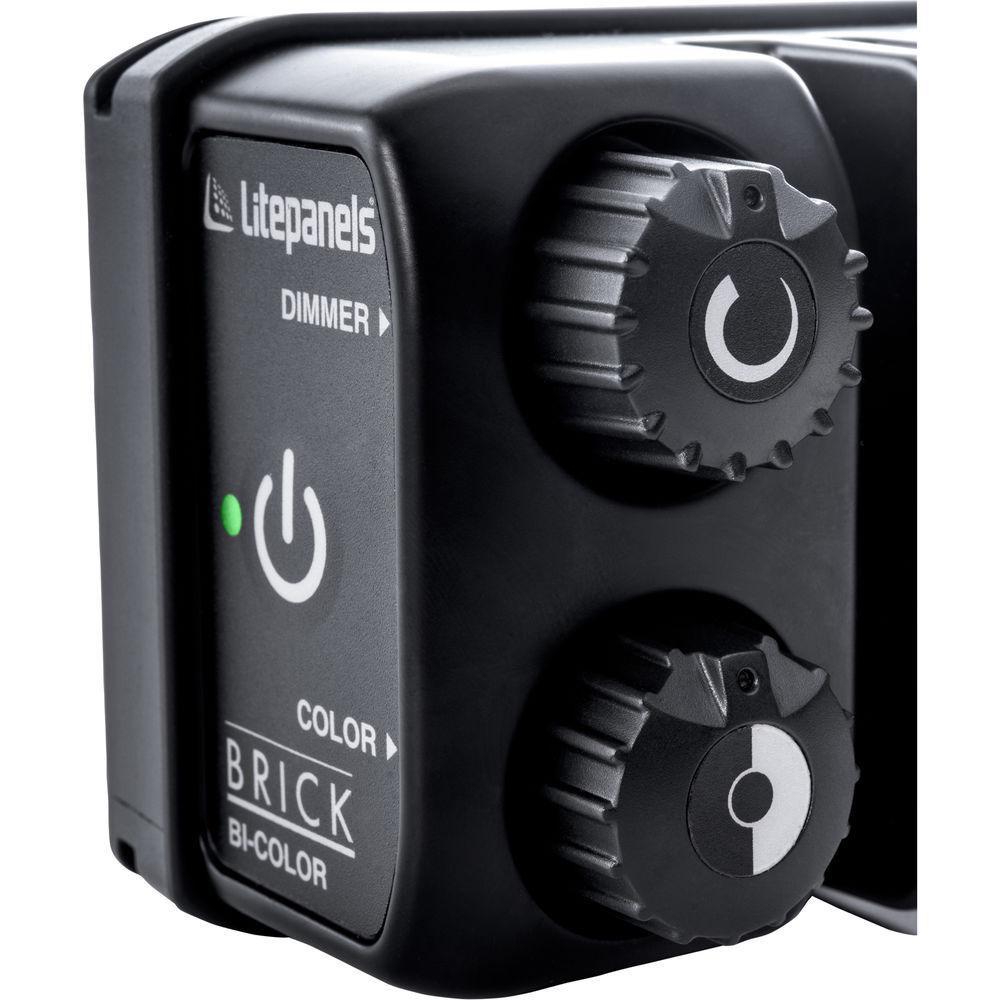

- 100 to 0% ultra-smooth brightness dimmer
- Flicker-free at any frame rate or shutter angle

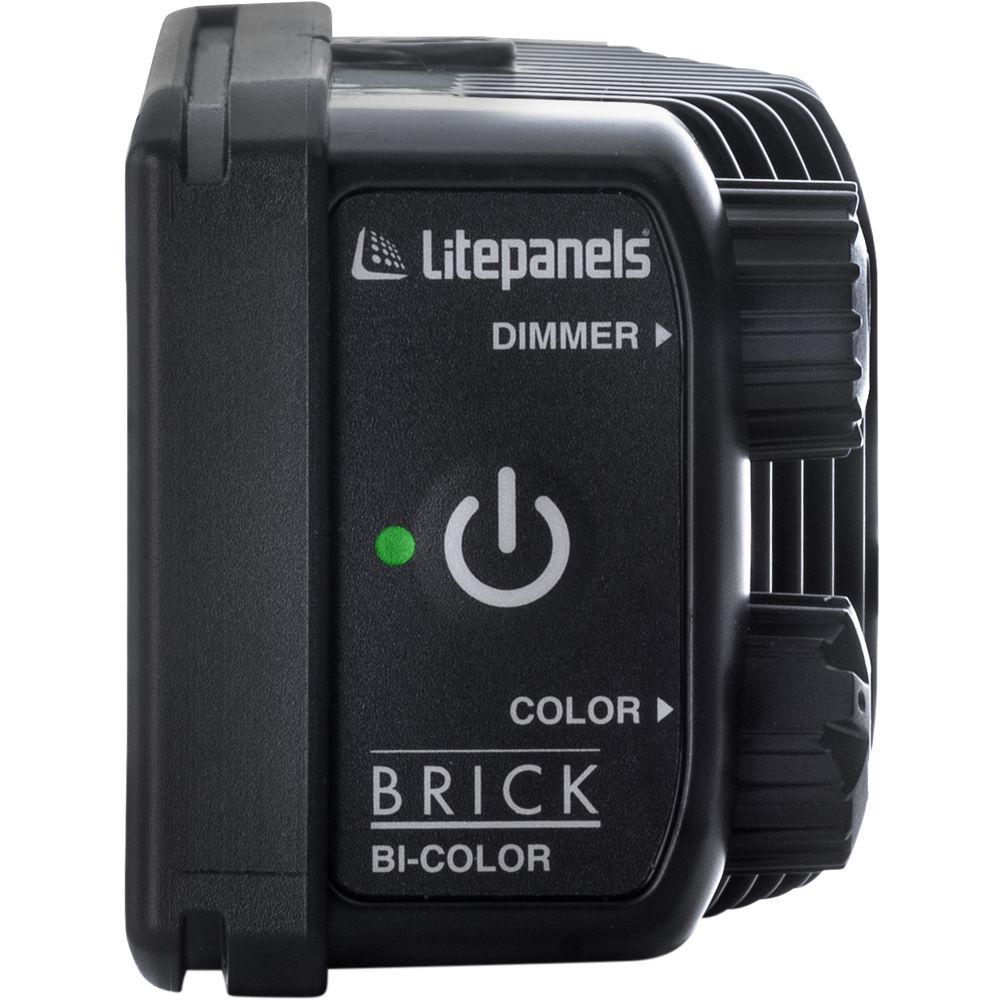

- Dedicated power button
- Integrated D-Tap cable
- Supports optional AC/DC power

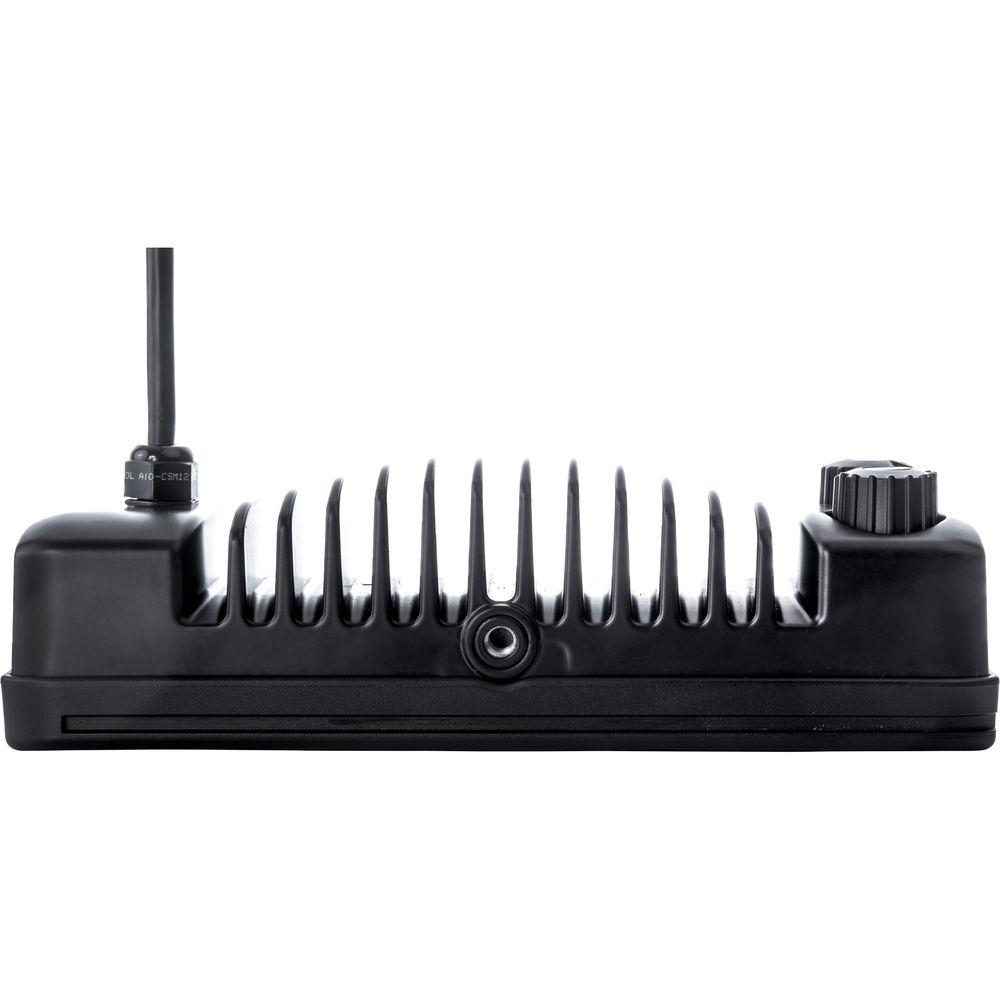

- 1/4"-20 mounting threads

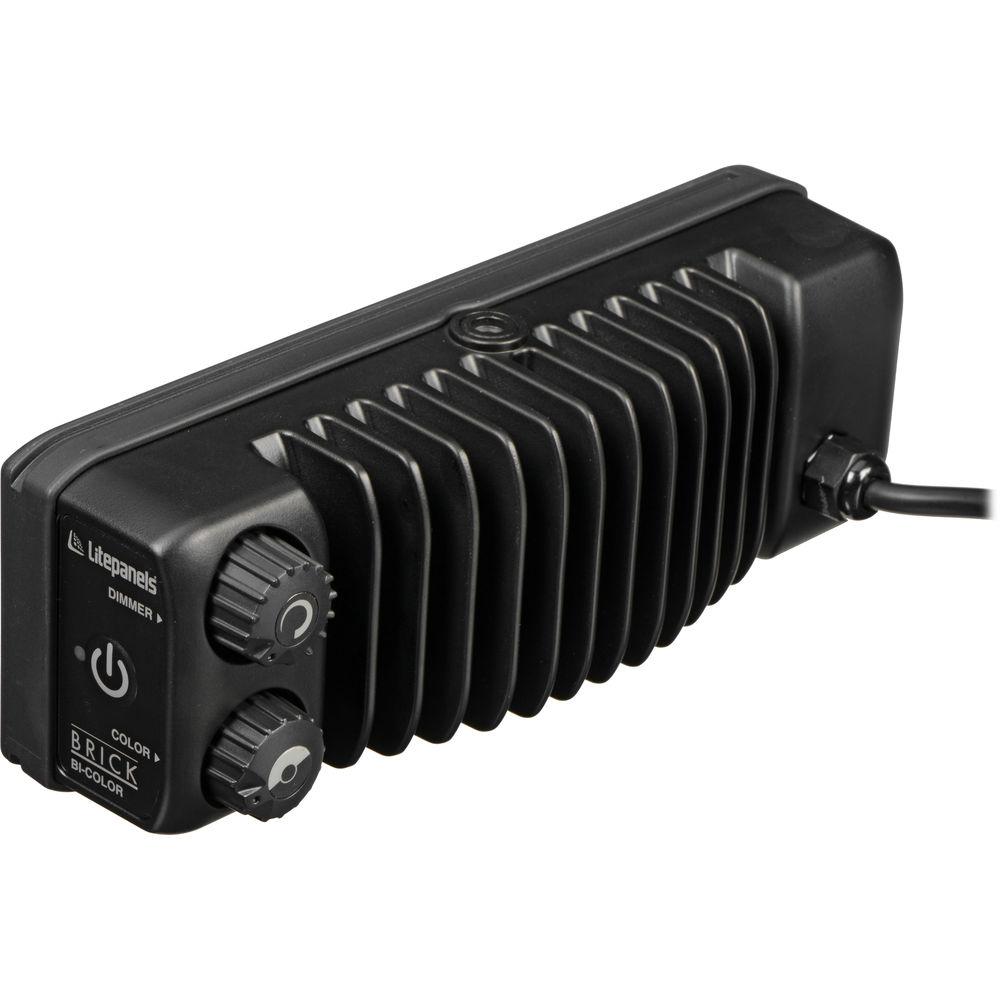

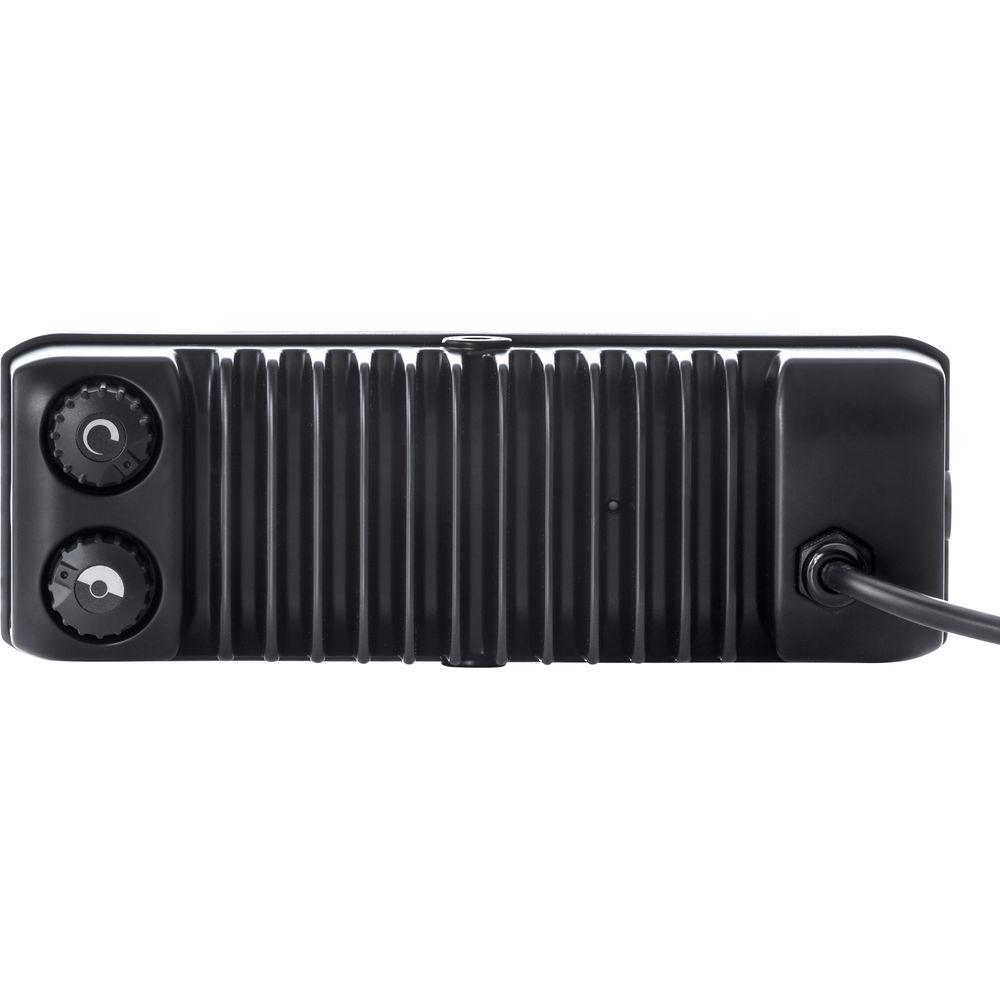

- Completely silent passive cooling
- Half-white diffusion gel included
UPC: 859058005174 In the Box Litepanels Brick Bi-Color On-Camera LED Light Half-White Diffusion Gel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Brick Bi-Color On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLitepanels 915-1003 Specs | | | Beam Angle | 36° | | Color Temperature | 3200 to 5600K | | Photometrics | 36° at 5600K:
98.5 fc / 1060 lux at 4.92' / 1.5 m
23.7 fc / 255 lux at 9.84' / 3 m
10.7 fc / 115 lux at 15.09' / 4.6 m
36° at 3200K:
80.8 fc / 870 lux at 4.92' / 1.5 m
18.6 fc / 200 lux at 9.84' / 3 m
9.3 fc / 100 lux at 15.09' / 4.6 m | | Dimming | Yes, 0 to 100% | | Cooling System | Passive | | | | Max Power Consumption | 19 W | | Power Input Connector | D-Tap | | | | Mount Type | 1/4"-20 Female Thread | | IP Rating | IP65 | | Dimensions | 7.9 x 2.4 x 2.8" / 20 x 6.1 x 7.1 cm | | Weight | 23.99 oz / 680 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 10.1 x 5.6 x 4.8" |
