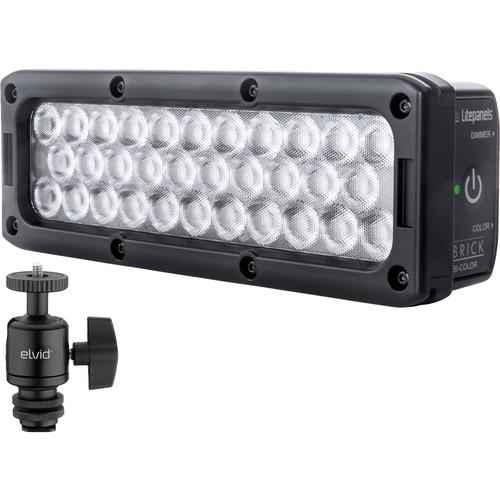

User Manual for Litepanels Brick Bi-Color On-Camera LED Light Kit with Shoe-Mount Ball Head Click to enlarge the picture
Contents of the user manual for the Litepanels Brick Bi-Color On-Camera LED Light
- Product category: On Camera Lights Litepanels
- Brand: Litepanels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Litepanels On Camera Lights
|
User manual for the Litepanels Brick Bi-Color On-Camera LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Litepanels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Litepanels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Litepanels product will considerably shorten its lifespan!
|
Product description This B&H kit adds a heavy-duty ball joint shoe to a Litepanels Brick bi-color LED light. The ball-joint cold-shoe mount expands the mounting possibilities of the light fixture. The cold-shoe mounting foot assembly can be unscrewed from the ball joint revealing a 3/8"-16 threaded mounting hole.
The light delivers a 100W tungsten-equivalent output with a 36° beam angle and is flicker-free at any frame rate or shutter angle. It is dimmable from 100 to 0%, variable from tungsten to daylight, and has an integrated D-Tap cable for power. - Litepanels Brick Bi-Color On-Camera LED Light
- 5 Ways To Creatively To Use On-board Camera Lights Off-Camera
Building on the popular, compact MiniPlus LED Light, the Litepanels Brick LED Light features the same rectangular form factor but offers 4x the brightness, tungsten-to-daylight variable color-temperature, and IP65 weatherproof rating, all ideal for on-the-go shooters in varying weather conditions. It is designed with tightly-binned surface-mount LEDs paired with fine-tuned, custom-designed TIR optics. This results in improved color reproduction and increased brightness that provides a longer throw. The Brick delivers a 100W tungsten equivalent output at a 36° beam angle and is flicker-free at any frame rate or shutter angle.
The Brick LED Light features an ultra-smooth 100 to 0% brightness dimmer. It also has a dedicated power button, allowing you to maintain your settings when you turn the light off. The Brick has an integrated D-Tap cable, compatible with select camera batteries, and also supports optional AC/DC power. - Key Features
-
- Tungsten-to-daylight variable color-temperature
- High-bright 100W tungsten equivalent output
- IP65 weatherproof rating
- Tightly-binned surface-mount LEDs paired with fine-tuned TIR optics
- 36° beam angle
- 100 to 0% ultra-smooth brightness dimmer
- Flicker-free at any frame rate or shutter angle
- Dedicated power button
- Integrated D-Tap cable
- Supports optional AC/DC power
- 1/4"-20 mounting threads
- Completely silent passive cooling
- Half-white diffusion gel included
UPC: 859058005174 Elvid Heavy Duty Camera Shoe Mount Adapter with Ball Head for Monitors - 5 Ways To Creatively To Use On-board Camera Lights Off-Camera
Add a monitor to your video recording system with this aluminum Heavy Duty Camera Shoe Mount Adapter with Ball Head from Elvid. This convenient accessory mounts directly to a camera's shoe mount, and allows for the attachment of a full array of video accessories. Specifically meant to attach monitors or small lights to your camcorder or camera while shooting video, this ball head has a single locking knob for fast and safe operation, and is easily removable. Accessories attach via the 1/4"-20 screw thread on top, and the bottom features a removable shoe mount and a 3/8" thread. The shoe mount itself is removable and features its own 3/8"-16 mounting screw, in case you want to use it without the ball head. Note: Due to its compact design, this ball head should not be used to support a camera. - Removeable shoe mount on bottom and 1/4"-20 screw on top allows for multiple applications
- Single locking knob for safe and fast operation
- Head itself allows for 90º vertical articulation
- Fits most standard shoe mounts (except for Sony flash shoe)
UPC: 847628578029 In the Box - Brick Bi-Color On-Camera LED Light uevtewsvrebeetceddyzaeeybxuwfw
- Half-White Diffusion Gel
- Limited 1-Year Warranty
- Elvid - Heavy Duty Camera Shoe Mount Adapter with Ball Head for Monitors
Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Brick Bi-Color On-Camera LED Light Kit with Shoe-Mount Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Litepanels Brick Bi-Color On-Camera LED Light
| | | Beam Angle | 36° | | Color Temperature | 3200 to 5600K | | Photometrics | 36° at 5600K:
98.5 fc / 1060 lux at 4.92' / 1.5 m
23.7 fc / 255 lux at 9.84' / 3 m
10.7 fc / 115 lux at 15.09' / 4.6 m
36° at 3200K:
80.8 fc / 870 lux at 4.92' / 1.5 m
18.6 fc / 200 lux at 9.84' / 3 m
9.3 fc / 100 lux at 15.09' / 4.6 m | | Dimming | Yes, 0 to 100% | | Cooling System | Passive | | | | Max Power Consumption | 19 W | | Power Input Connector | D-Tap | | | | Mount Type | 1/4"-20 Female Thread | | IP Rating | IP65 | | Dimensions | 7.9 x 2.4 x 2.8" / 20 x 6.1 x 7.1 cm | | Weight | 23.99 oz / 680 g | | | | Box Dimensions (LxWxH) | 10.1 x 5.6 x 4.8" | - Elvid Heavy Duty Camera Shoe Mount Adapter with Ball Head for Monitors
| Bottom Mount | 1 x 3/8"-16 Female
1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | Load Capacity | 15 lb / 6.8 kg | | Material | Aluminum | | Weight | 0.3 lb / 136.0 g | | | | Box Dimensions (LxWxH) | 3.95 x 3.8 x 1.55" |
