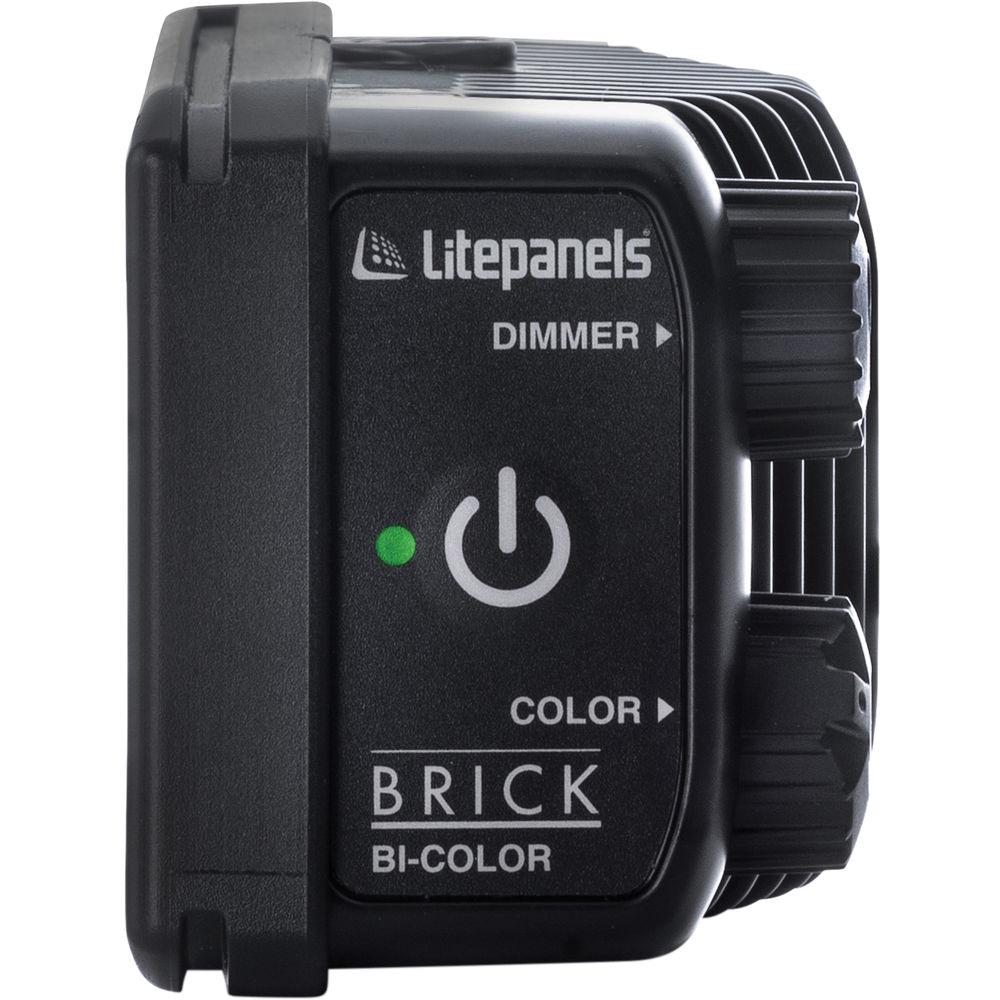

User Manual for Litepanels Brick One Bi-Color On-Camera Light Kit Click to enlarge the picture
Contents of the user manual for the Litepanels Brick One Bi-Color On-Camera Light
- Product category: On Camera Lights Litepanels
- Brand: Litepanels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Litepanels On Camera Lights
 |
User manual for the Litepanels Brick One Bi-Color On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Litepanels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Litepanels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Litepanels product will considerably shorten its lifespan!
|

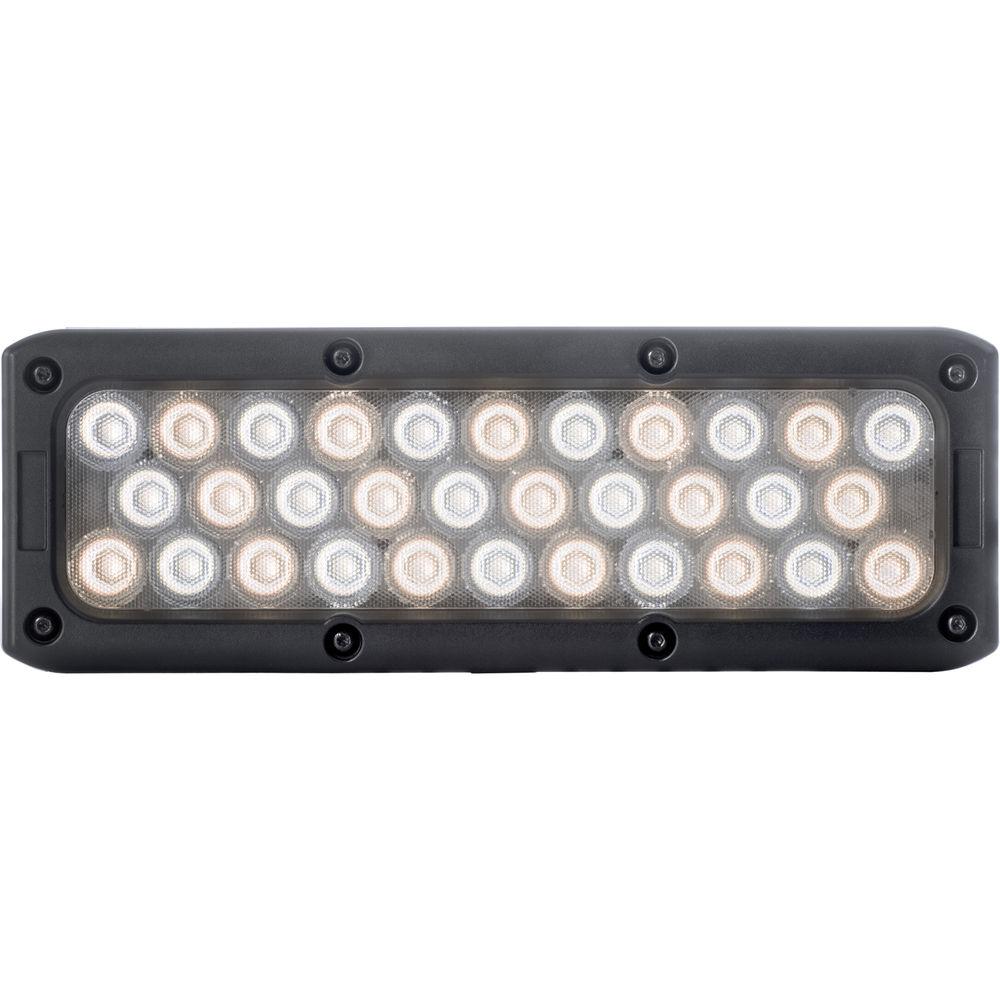

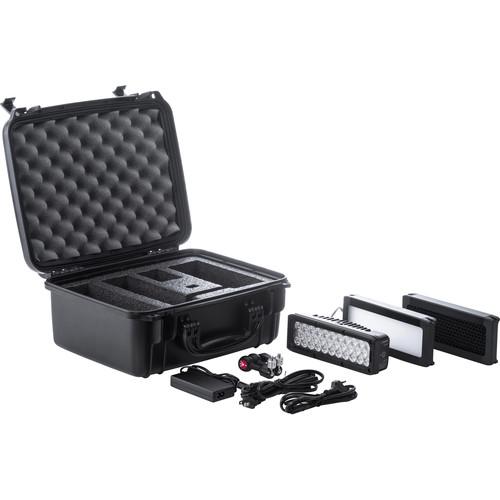

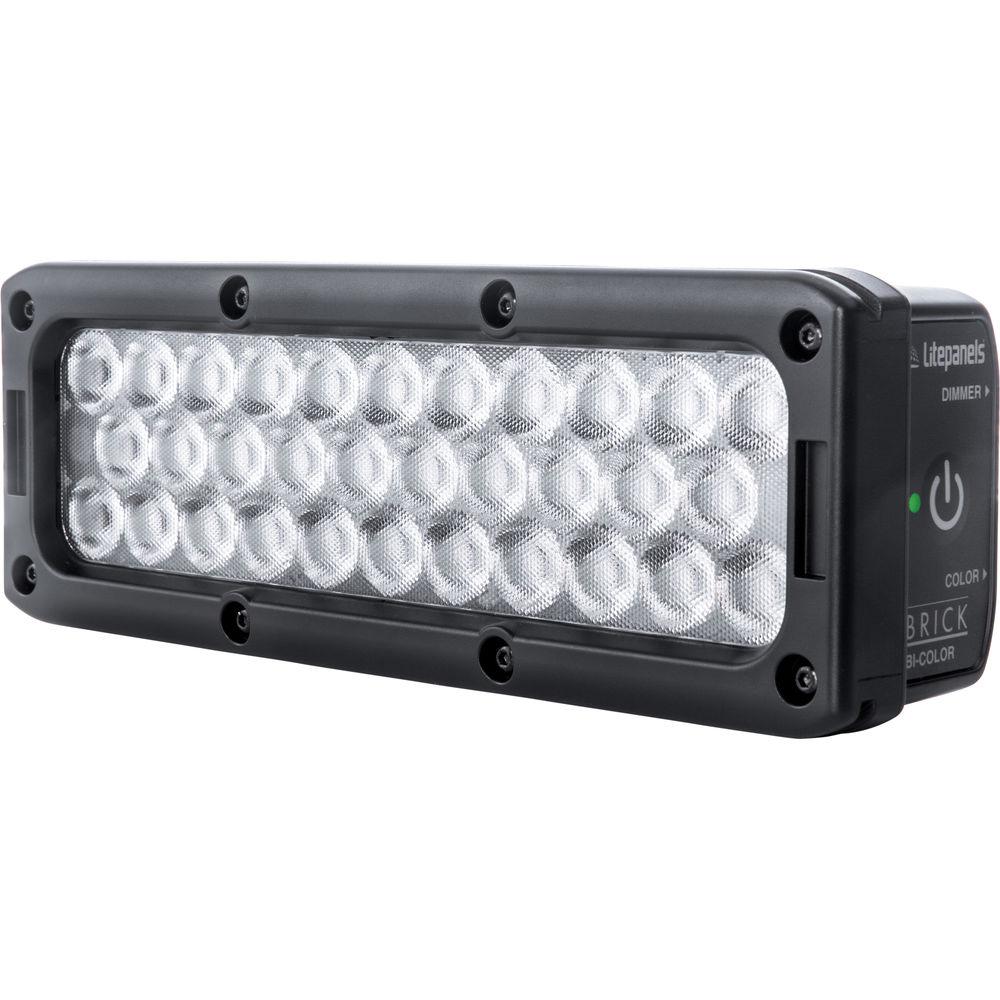

Product description The Litepanels Brick One Bi-Color On-Camera Light Kit includes a Litepanels Brick on-camera light, a Seahorse case with custom cut foam, a power supply, a gel frame, and a 60° honeycomb grid. The Brick features the same rectangular form factor of the MiniPlus LED Light but offers 4x the brightness, tungsten-to-daylight variable color temperature, and an IP65 weatherproof rating; all are ideal for on-the-go shooters in varying weather conditions. Combining tightly binned, surface-mount LEDs paired with fine-tuned, custom-designed TIR optics for improved color reproduction and increased brightness, the Brick delivers a 100W tungsten-equivalent output at a 36° beam angle. This allows you to take advantage of the included gel frame or honeycomb frame without diminishing the output so far as to be useless.
The Brick LED Light features a smooth 100 to 0% brightness dimmer, and it is flicker-free at any frame rate or shutter angle. A dedicated power button allows you to maintain your settings when you turn the light off. The Brick has an integrated D-Tap cable, compatible with select camera batteries and also supports AC power via the included international power supply. The Brick and accessories fit inside the custom-foamed Seahorse SE-520, which is constructed to meet Mil-Spec and IP67 standards. - Brick Bi-Color On-Camera LED Light
- 5 Ways To Creatively To Use On-board Camera Lights Off-Camera
Building on the popular, compact MiniPlus LED Light, the Litepanels Brick LED Light features the same rectangular form factor but offers 4x the brightness, tungsten-to-daylight variable color-temperature, and IP65 weatherproof rating, all ideal for on-the-go shooters in varying weather conditions. It is designed with tightly-binned surface-mount LEDs paired with fine-tuned, custom-designed TIR optics. This results in improved color reproduction and increased brightness that provides a longer throw. The Brick delivers a 100W tungsten equivalent output at a 36° beam angle and is flicker-free at any frame rate or shutter angle.
The Brick LED Light features an ultra-smooth 100 to 0% brightness dimmer. It also has a dedicated power button, allowing you to maintain your settings when you turn the light off. The Brick has an integrated D-Tap cable, compatible with select camera batteries, and also supports optional AC/DC power. - Key Features
-
- Tungsten-to-daylight variable color-temperature
- High-bright 100W tungsten equivalent output
- IP65 weatherproof rating
- Tightly-binned surface-mount LEDs paired with fine-tuned TIR optics
- 36° beam angle
- 100 to 0% ultra-smooth brightness dimmer
- Flicker-free at any frame rate or shutter angle

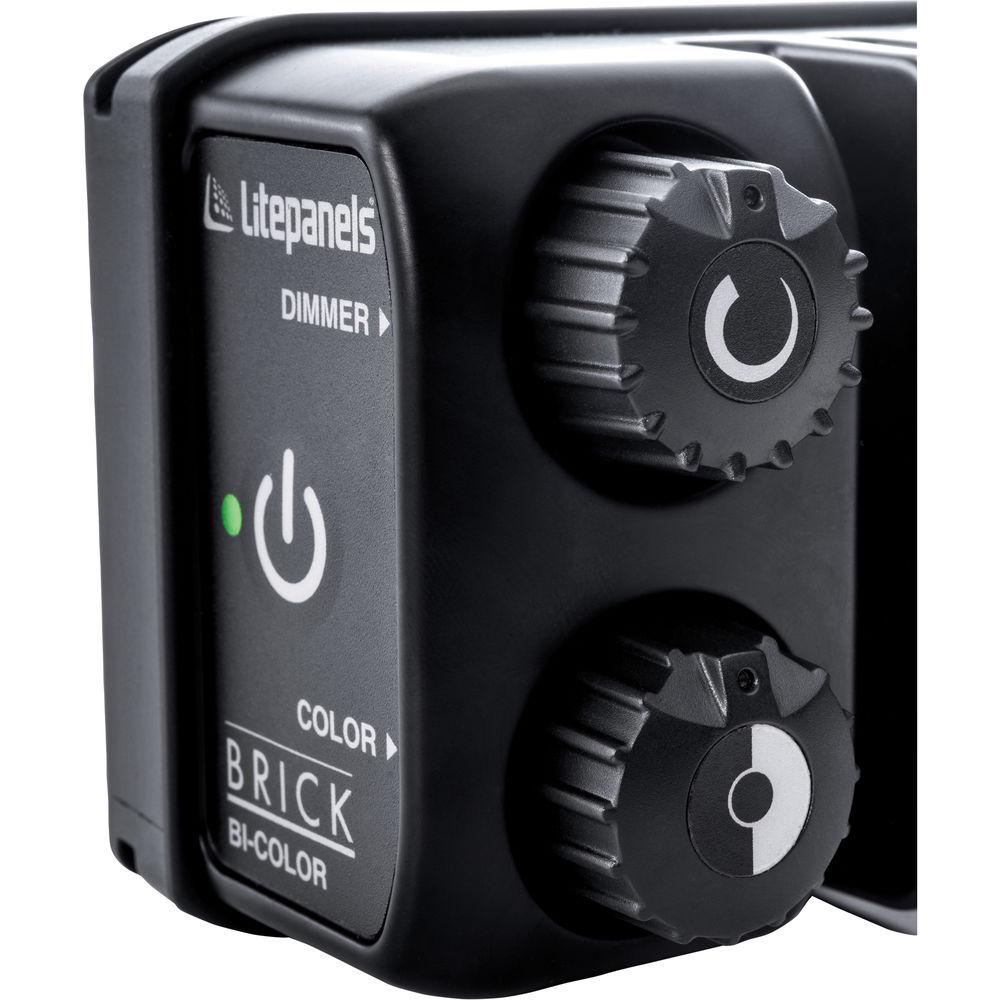

- Dedicated power button
- Integrated D-Tap cable
- Supports optional AC/DC power

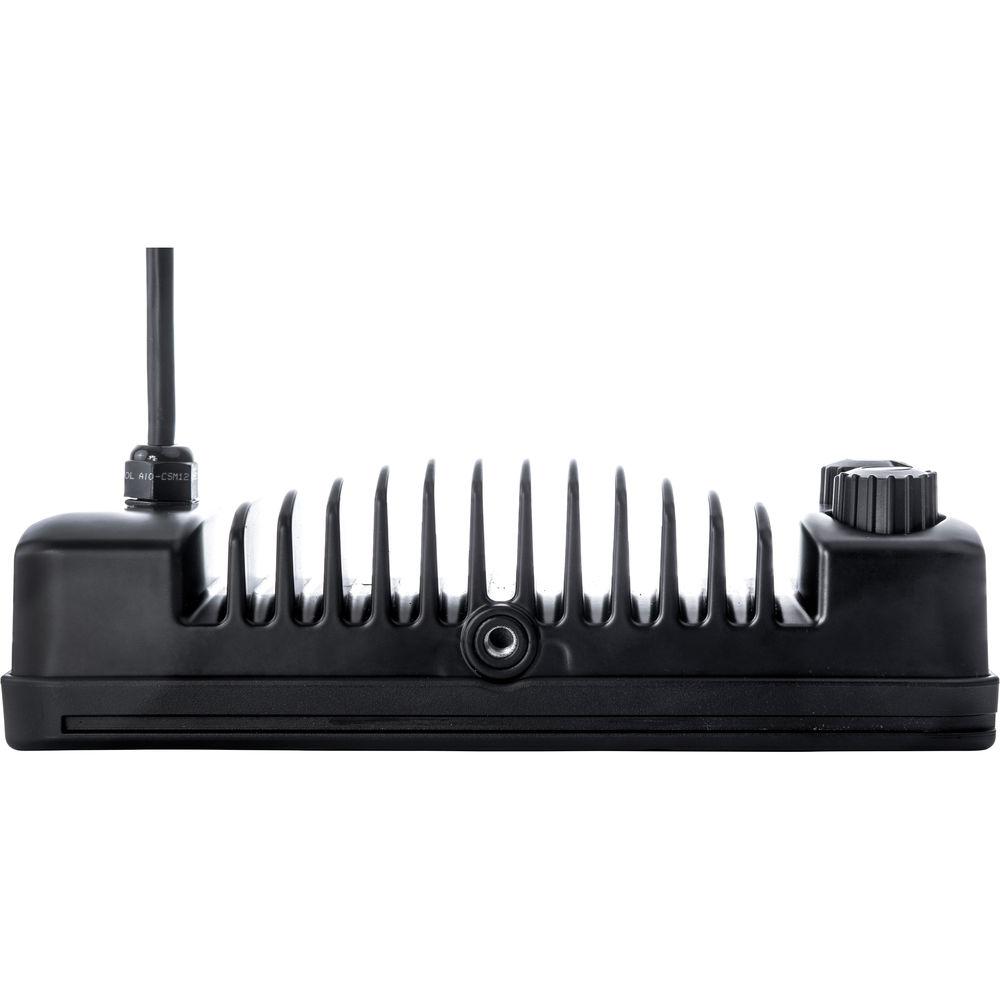

- 1/4"-20 mounting threads

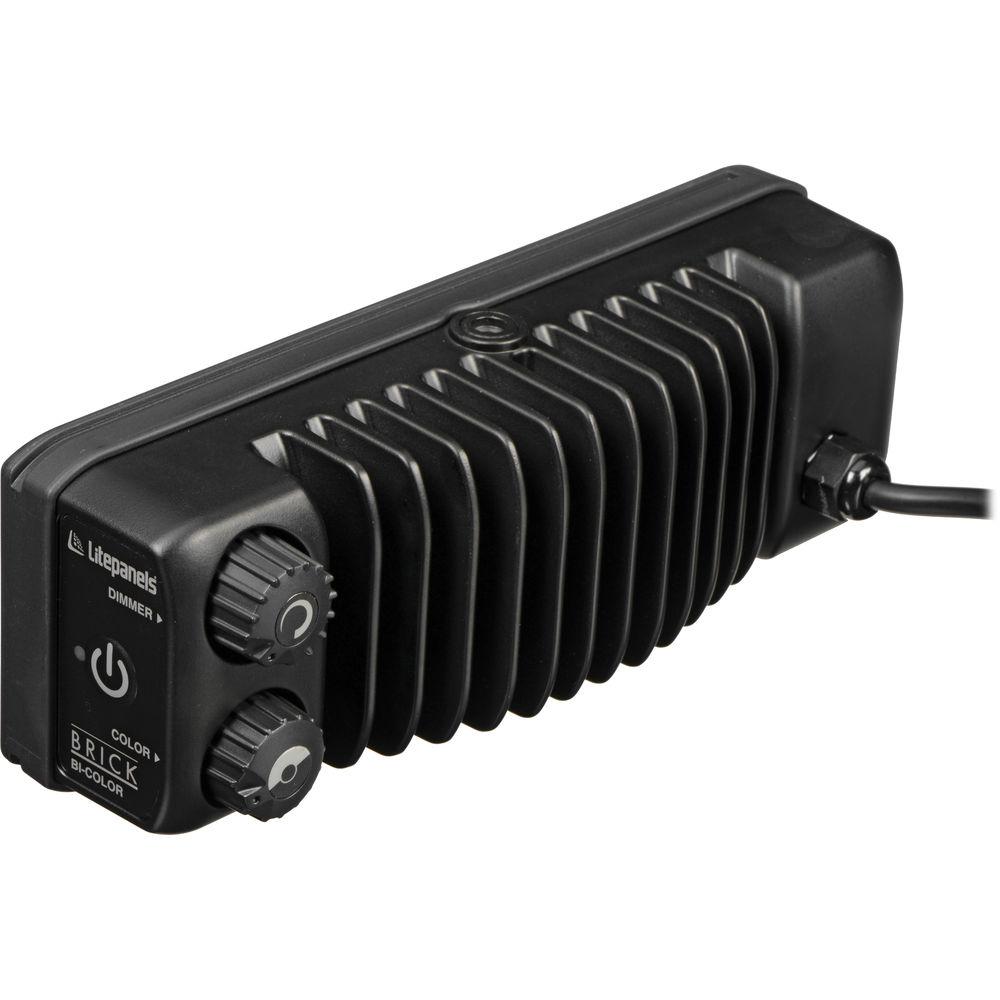

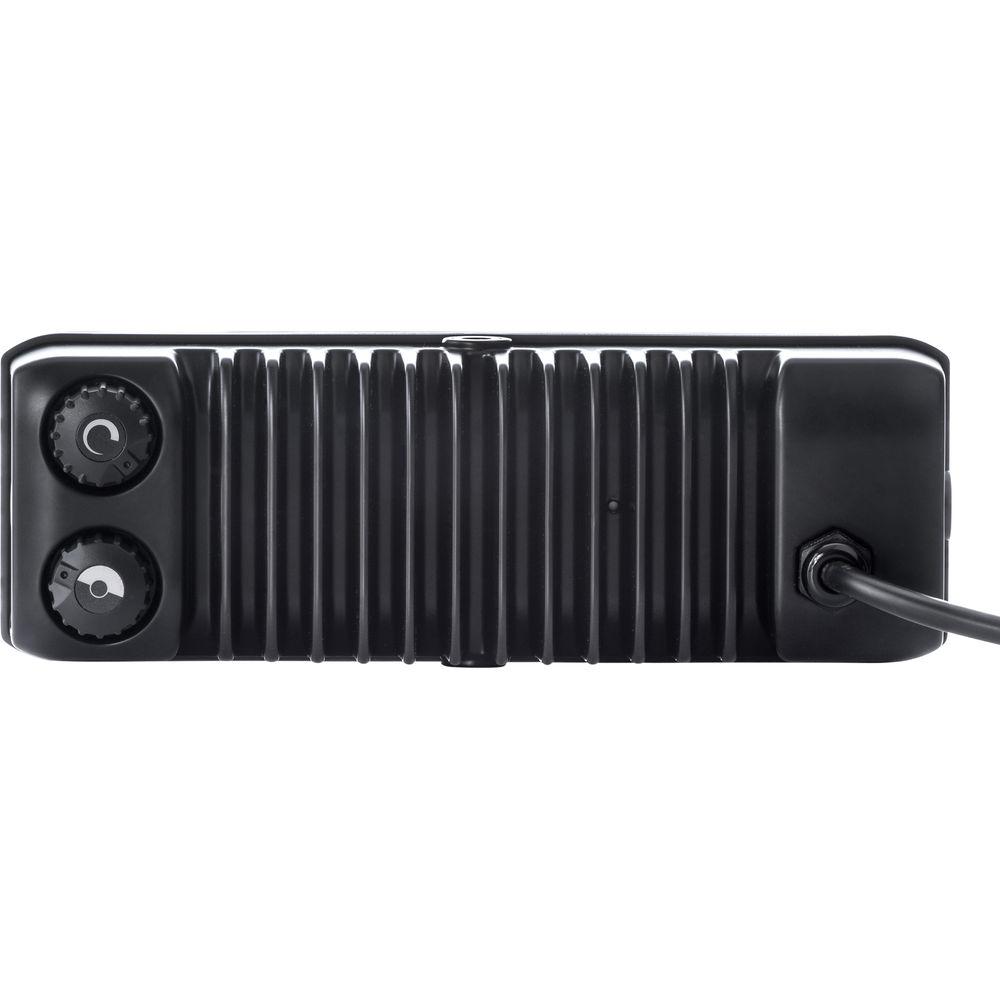

- Completely silent passive cooling
- Half-white diffusion gel included
UPC: 859058005174 244 Micro Friction Arm Mount an off-camera flash, LED light, or monitor to a tripod, stand, or bar with the Manfrotto 244 Micro Friction Arm. The arm features one 1/4"-20 threaded stud and one 3/8"-16 stud; one can be fitted to a clamp or mounting device, while the other side can be used for holding various types of gear or accessories. This arm helps you to place accessories like gobos and scrims in difficult-to-reach positions. It will support up to 6.6 lb and can be easily installed using the hex key. UPC: 719821378723 In the Box Bundle Items Brick Bi-Color On-Camera LED Light 244 Micro Friction Arm
Also Includes - Worldwide AC Power Supply
- Honeycomb Grid
- Soft Diffusion Frame

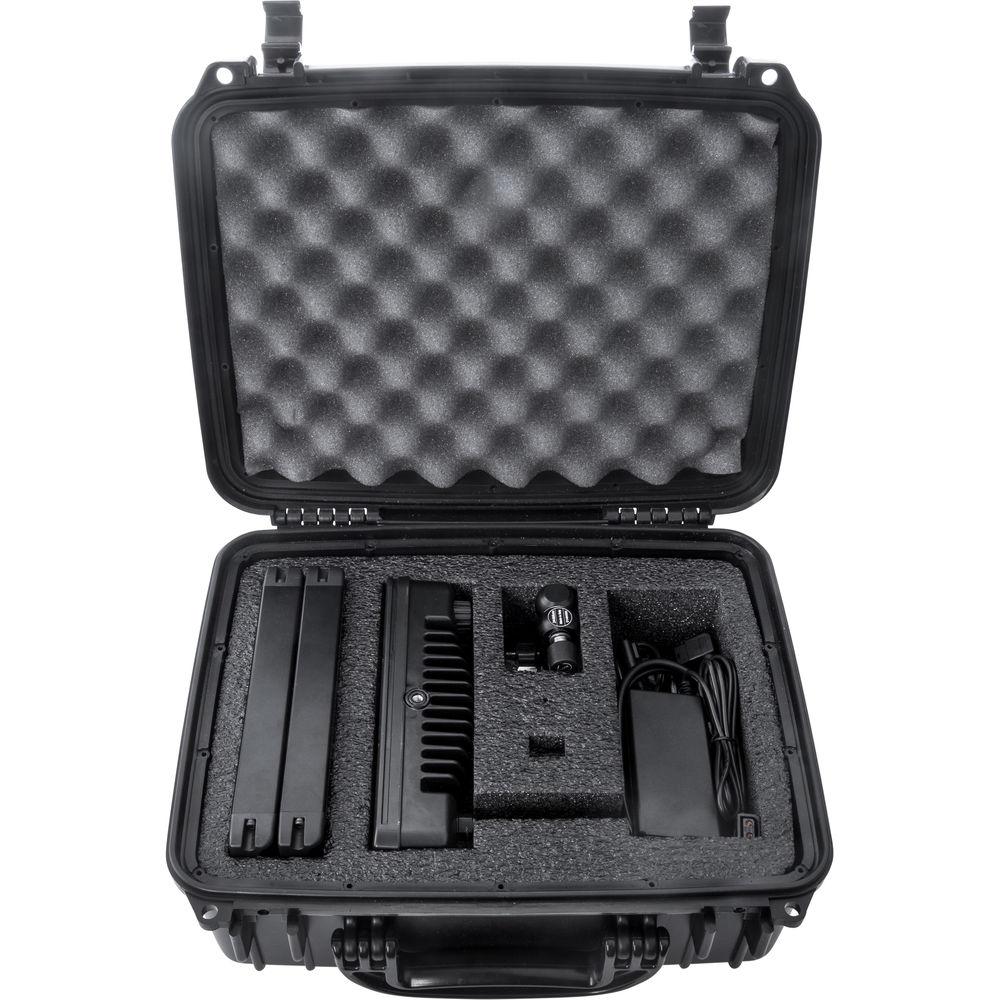

- Seahorse SE520 Custom Foamed Case
- Limited 1-Year Warranty Extendable to 2-Years with Product Registration
Data Sheet PDF 888.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Brick One Bi-Color On-Camera Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Brick Bi-Color On-Camera LED Light
| | | Beam Angle | 36° | | Color Temperature | 3200 to 5600K | | Photometrics | 36° at 5600K:
98.5 fc / 1060 lux at 4.92' / 1.5 m
23.7 fc / 255 lux at 9.84' / 3 m
10.7 fc / 115 lux at 15.09' / 4.6 m
36° at 3200K:
80.8 fc / 870 lux at 4.92' / 1.5 m
18.6 fc / 200 lux at 9.84' / 3 m
9.3 fc / 100 lux at 15.09' / 4.6 m | | Dimming | Yes, 0 to 100% | | Cooling System | Passive | | | | Max Power Consumption | 19 W | | Power Input Connector | D-Tap | | | | Mount Type | 1/4"-20 Female Thread | | IP Rating | IP65 | | Dimensions | 7.9 x 2.4 x 2.8" / 20 x 6.1 x 7.1 cm | | Weight | 23.99 oz / 680 g | | | | Box Dimensions (LxWxH) | 10.1 x 5.6 x 4.8" | - 244 Micro Friction Arm
| Material | Aluminum alloy | | Length | 5.9" (15 cm) | | Load Capacity | 6.6 lb (3.0 kg) | | Weight | 0.5 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 9.0 x 5.35 x 1.25" |
