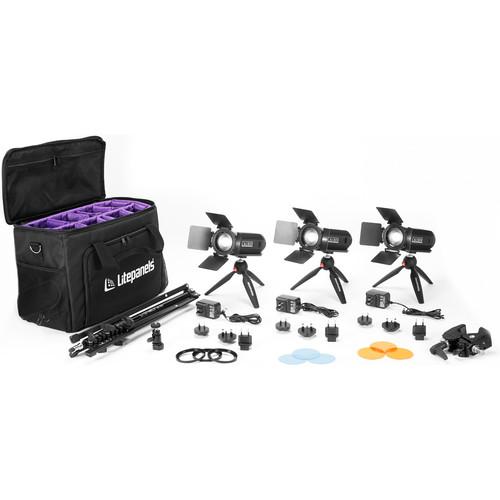

Product description Hands-On Review: the Litepanels Caliber LED Fresnel 3-Light Kit Read More The Caliber LED Fresnel 3-Light Kit with Soft Case from Litepanels is a lightweight versatile and highly controllable lighting solution for photographers and videographers on location or on set. The kit includes 3 Caliber LED Fresnel lights, each with 4-way barndoors, a PIXI tabletop tripod, color frame, gel set and international AC power supply. The kit also includes a compact light stand, ball head shoe mount and a soft case with customizable interior compartments.Ideal for travel and location work, the 2" Caliber Fresnel measures 8.8 x 3 x 3 and weighs just 1.3 lb. yet its daylight-balanced output is the equivalent of a 150W tungsten fixture while consuming just 17W of current. Versatility and control are key to the Caliber's design. Its 0-100% dimming range and exceptionally wide 17-73 degree spot-to-flood beam angle make it highly useful for everything from wide, soft wash lighting to sharp-shadow sunlight effects or hairlighting. The included 4-way barndoors allow further refinement and precise placement of the unit's beam. The light is ready for worldwide use via its included 100-240 VAC power supply but it can also run on 6 easily-sourced AA batteries when mains power is unavailable.The lights and accessories store and travel in a soft-sided 16.5 x 10.5 x 12" case with user- adjustable interior compartments that weighs just 13 lb when filled with the kit's components. - Caliber LED Light
- Litepanels Caliber 3-Light Kit

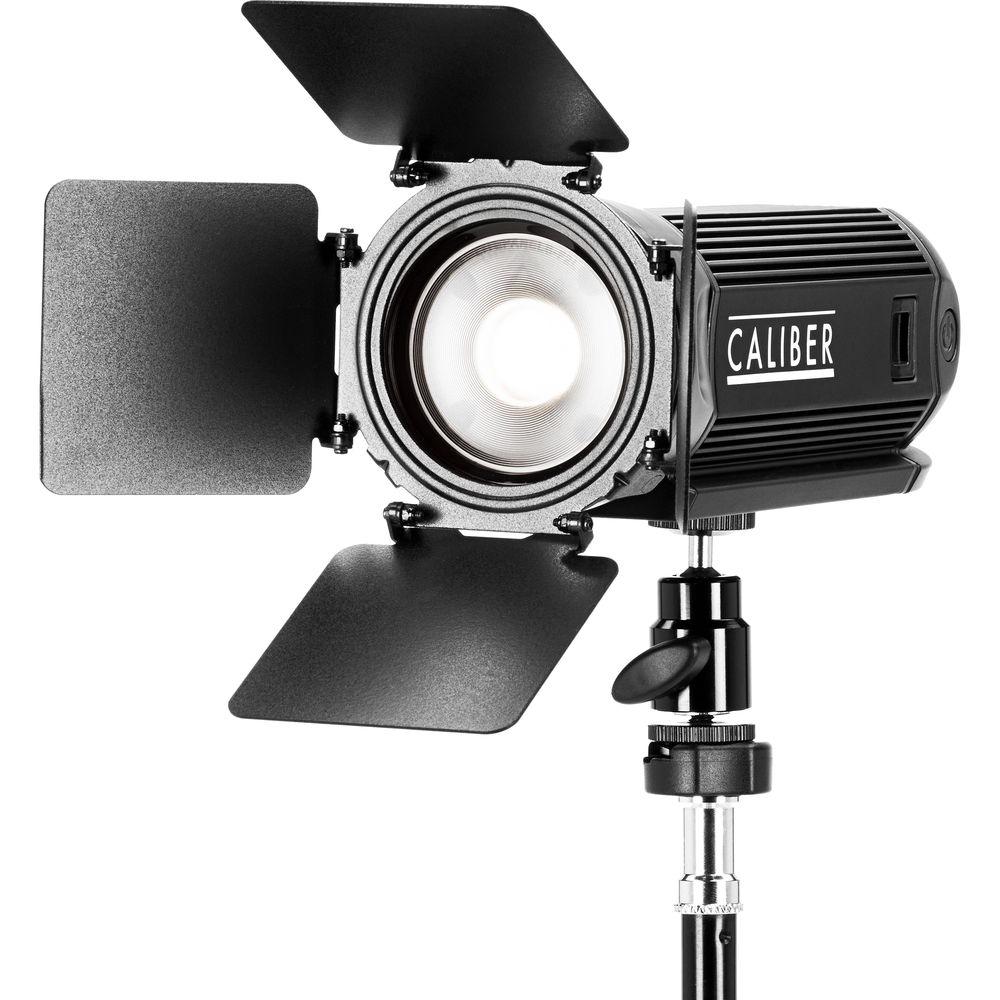

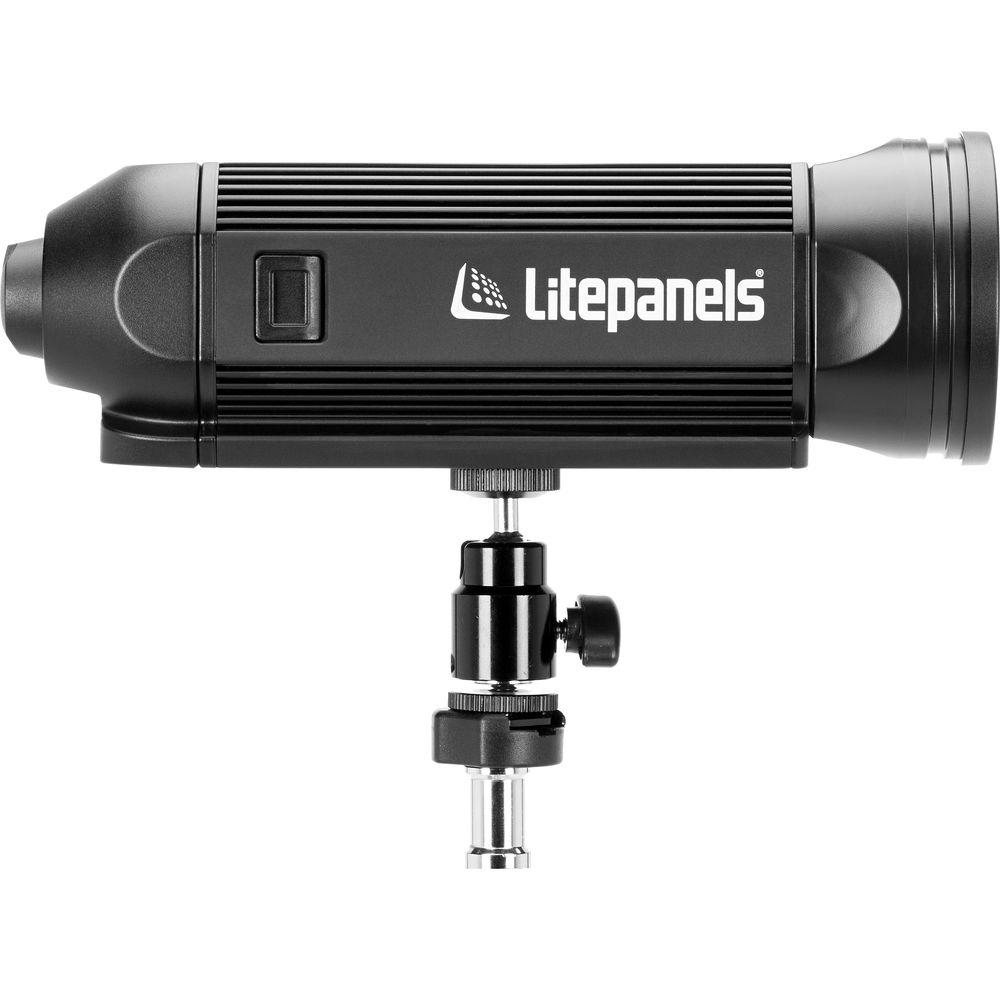

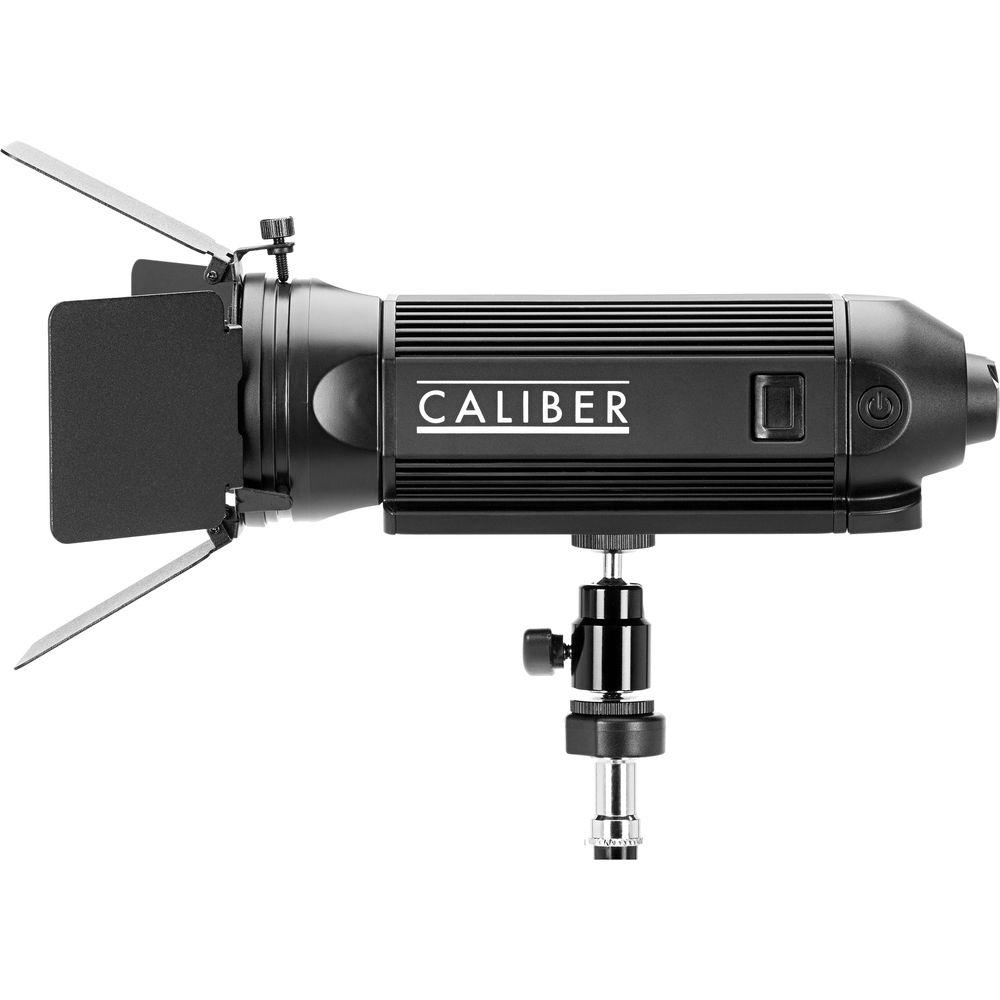

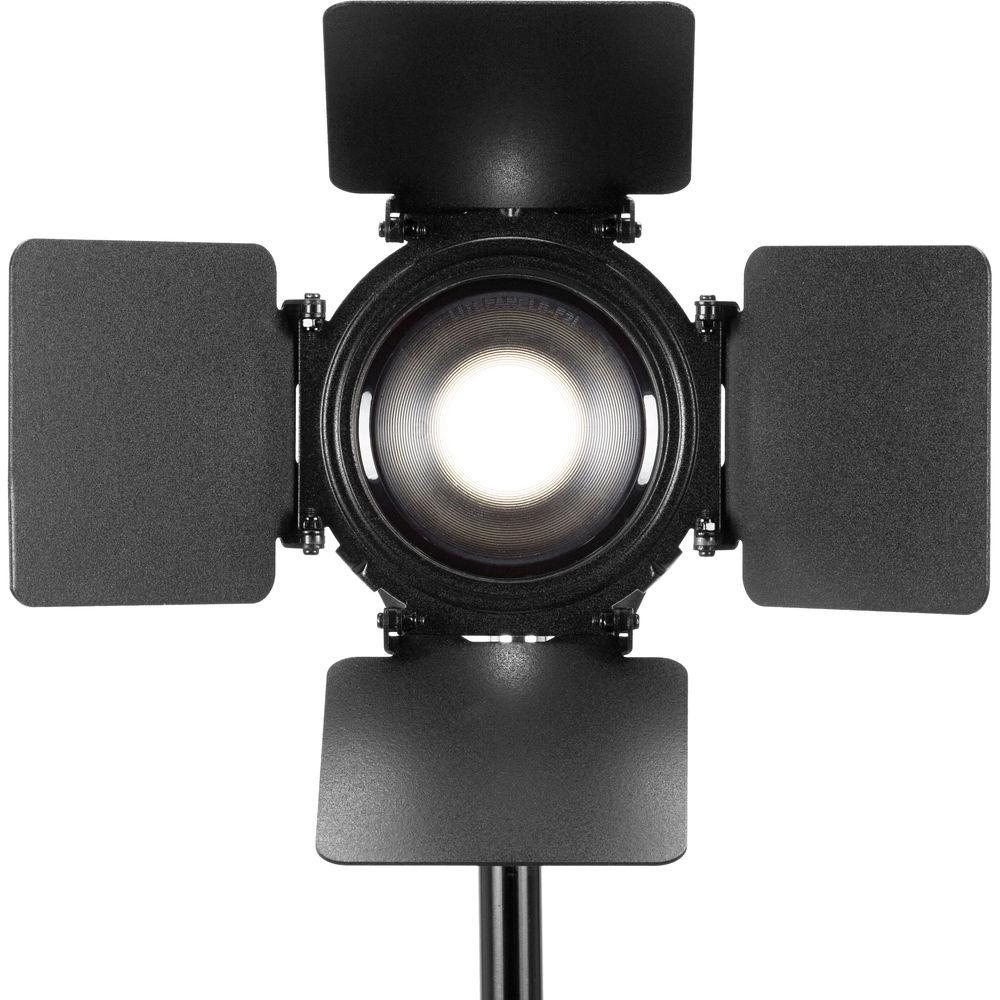

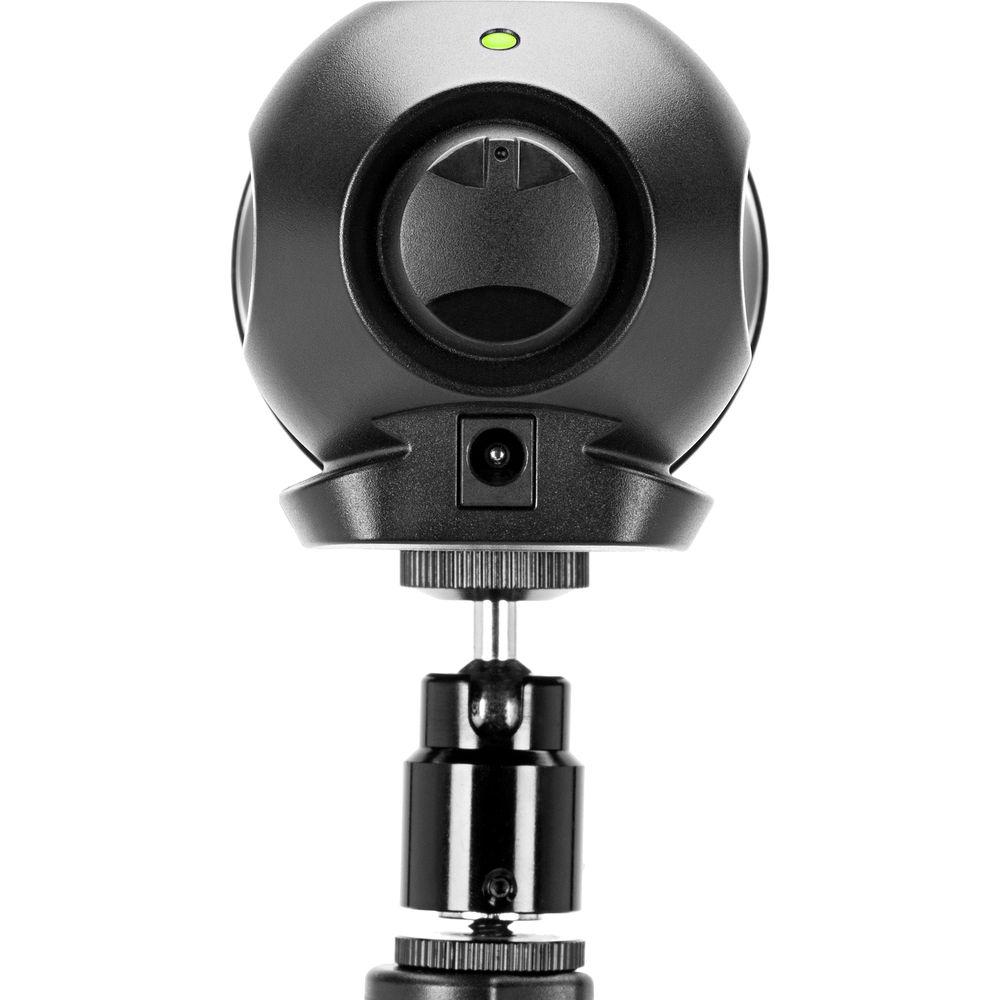

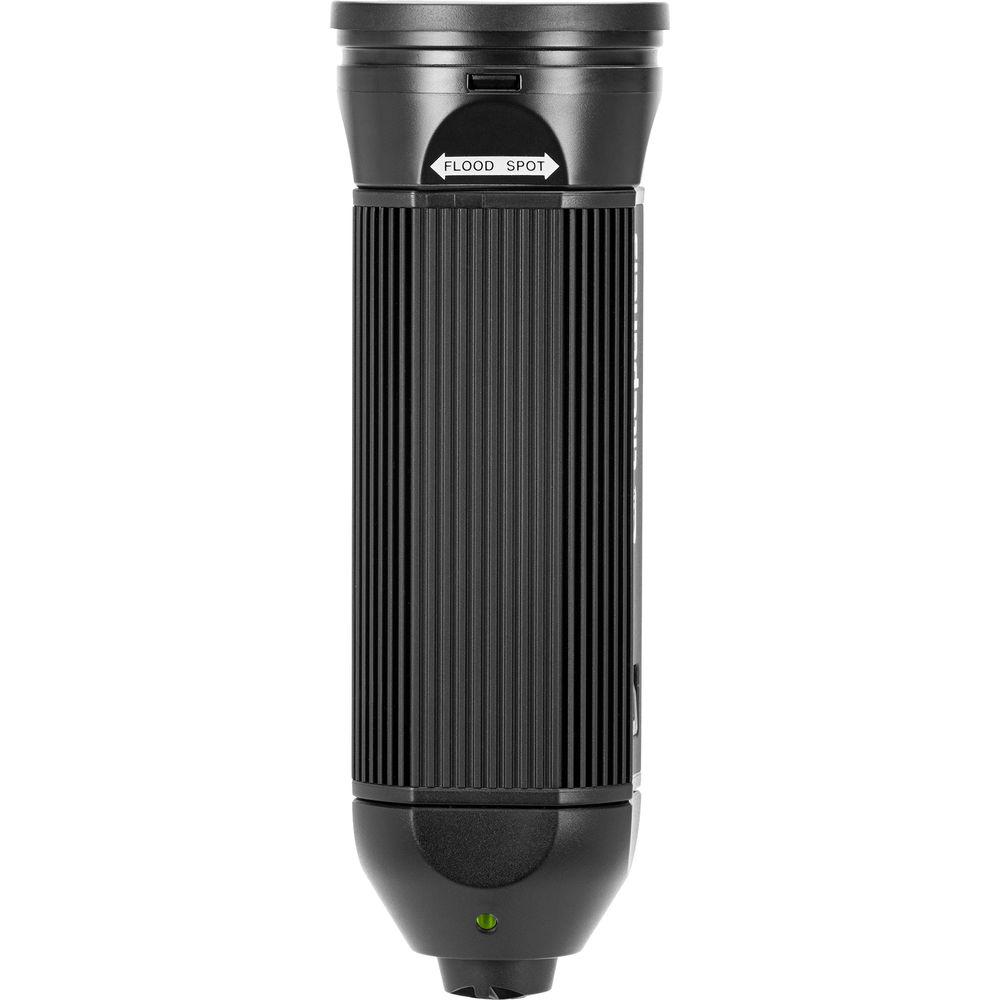

The Caliber LED Fresnel Light from Litepanels is a lightweight versatile and highly controllable lighting solution for photographers and videographers on location or on set. The light includes a 4-way barndoor set, a PIXI tabletop tripod, color frame, gel set, and international AC power supply.Ideal for travel and location work, the 2" Caliber Fresnel measures 8.8 x 3 x 3" and weighs just 1.3 lb., yet its daylight-balanced output is the equivalent of a 150W tungsten fixture while consuming just 17W of current. Versatility and control are key to the Caliber's design. Its 0-100% dimming range and exceptionally wide 17-73 degree spot-to-flood beam angle make it highly useful for everything from wide, soft wash lighting to sharp-shadow sunlight effects or hairlighting. The included 4-way barndoors allow further refinement and precise placement of the unit's beam. The light is ready for worldwide use via its included 100-240 VAC power supply, but it can also run on 6 easily-sourced AA batteries when mains power is unavailable. - Caliber Advantages
-
- True Fresnel fixture that produces highly controllable illumination
- Flicker-free at any frame rate or shutter angle
- Ultra-smooth dimming from 0 - 100%, with no noticeable color shift throughout the entire range
- Low power draw means the portable fixtures can run anywhere light is needed, on AA batteries or via AC (fixture is 2x brighter when run on AC)
- Low 17W power draw with output comparable to a 150W tungsten fixture
- Durable rugged aluminum chassis design

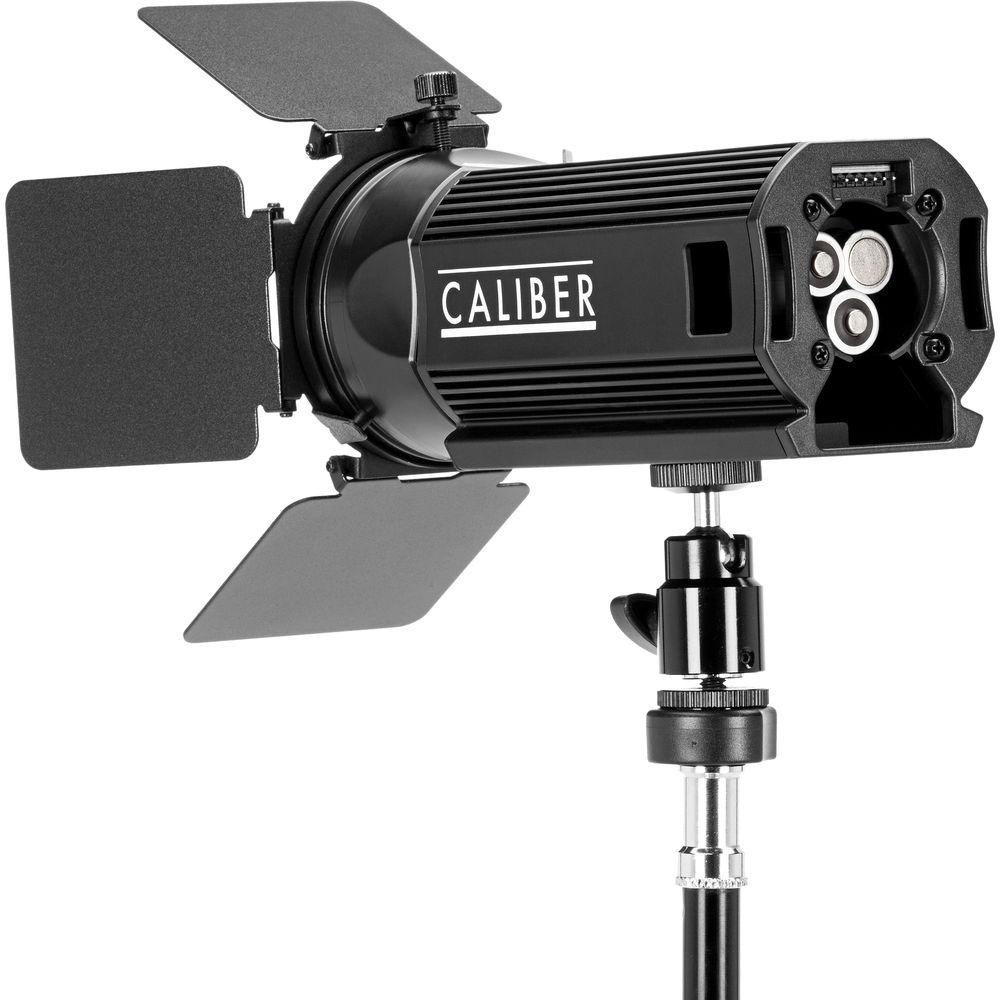

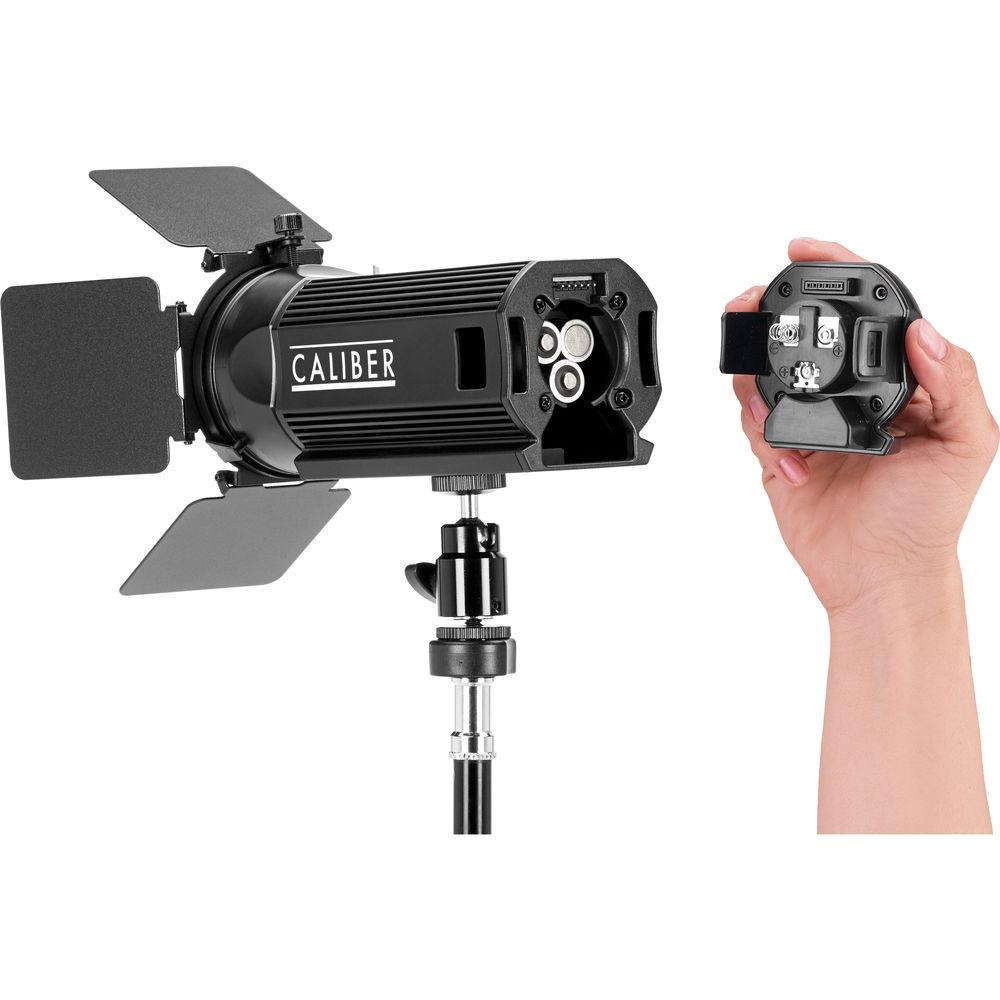

- Serve as a battery compartment for mobile lighting
- Provides efficient thermal management to ensure color quality and long life
- Premium selected high CRI/TLCI rated
- Photometrics with AC Power
- Spot: 15 Degrees
2,097 lux / 195 fc @ 6.0' (1.8 m) with a beam diameter of 1.6' (0.5 m) and field diameter of 2.6' (0.8 m)
932 lux / 87 fc @ 9.0' (2.7 m) with a beam diameter of 2.4' (0.7 m) and field diameter of 4.0' (1.2 m)
524 lux / 49 fc @ 12' (3.7 m) with a beam diameter of 3.2' (1.0 m) and field diameter of 5.3' (1.6 m)
Flood: 73 Degrees
225 lux / 21 fc @ 6.0' (1.8 m) with a beam diameter of 9.0' (2.7 m) and field diameter of 12.5' (3.8 m)
100 lux / 9.0 fc @ 9.0' (2.7 m) with a beam diameter of 13.3' (4.1 m) and field diameter of 18.7' (5.7 m)
56 lux / 5.0 fc @ 12' (3.7 m) with a beam diameter of 17.8' (5.4 m) and field diameter of 25' (7.6 m) - PIXI Mini Table Top Tripod (Black) The black PIXI Mini Table Top Tripod from Manfrotto doubles as a tabletop tripod and a handheld grip support for a DSLR, point and shoot, or compact camcorder. The legs are rounded on their outer side, so the closed tripod provides a comfortable hand grip. When open, the tripod and head have a maximum height of 5.31". Rubber feet prevent slipping and protect delicate surfaces.Fabricated from stainless steel and black Adapto polymer, the PIXI supports up to 2.2 pounds while weighing only 6.7 ounces. Its built-in ball head has a 1/4"-20 camera screw and a unique design that allows adjustments and locking with a single push button. Besides cameras, the PIXI is also ideal for iPhones outfitted with the optional Manfrotto KLYP, and other small devices.
- DSLR Compatibility
- The PIXI has been developed for entry level DSLRs fitting these basic requirements:
- Body: maximum weight of 1.4 lb
- Focal length: maximum 85mm (standard non-professional lens)
- Total equipment payload: maximum 2.2 lb
UPC: 719821362203 In the Box Bundle Items 3 x Caliber LED Light tevtqceftbwaczfdyuxrbbw - PIXI Mini Table Top Tripod (Black)
- International Power Supply
3 x PIXI Mini Table Top Tripod (Black) - Limited 3-Year Warranty Extension When Registered Online
Also Includes - Compact Light Stand
- Stand Adapter
- Ball Head Shoe Mount

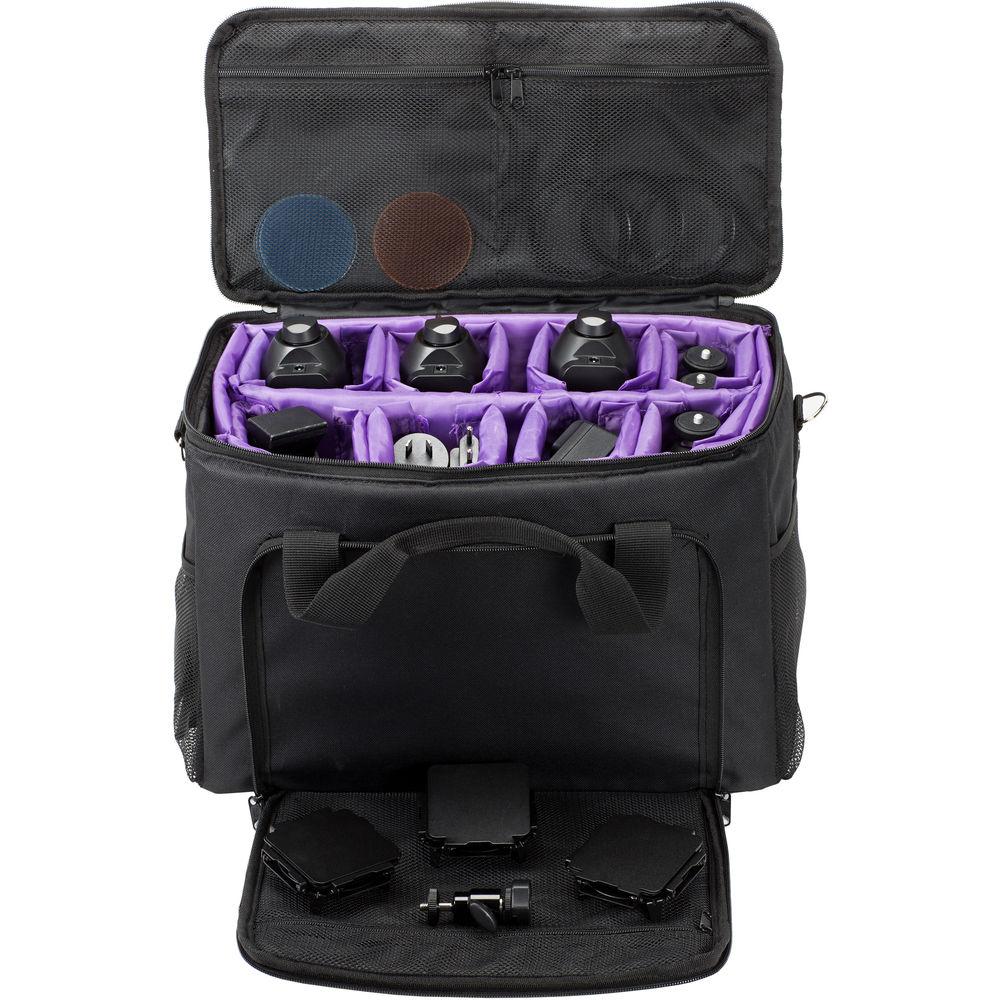

- Soft Case with Customizable Interior Compartments
- Limited 1-Year Warranty
Specification PDF 639.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Caliber LED Fresnel 3-Light Kit with Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Caliber LED Light
| | | Beam Angle | 15 to 73° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 93 | | Cooling System | None | | Display | None | | Fixture Dimensions | Fresnel Lens: 2.0" / 50.8 mm
Flood: 9.6 x 3.0 x 3.0" / 24.4 x 7.6 x 7.6 cm
Spot: 8.8 x 3.0 x 3.0" / 22.4 x 7.6 x 7.6 cm | | Fixture Weight | 1.3 lb / 0.59 kg | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 6 to 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 17 W | | | | Box Dimensions (LxWxH) | 17.2 x 10.7 x 3.2" | - PIXI Mini Table Top Tripod (Black)
| Camera Mounting Screw | 1/4"-20 Male | | | | Vertical Tilt | -35
