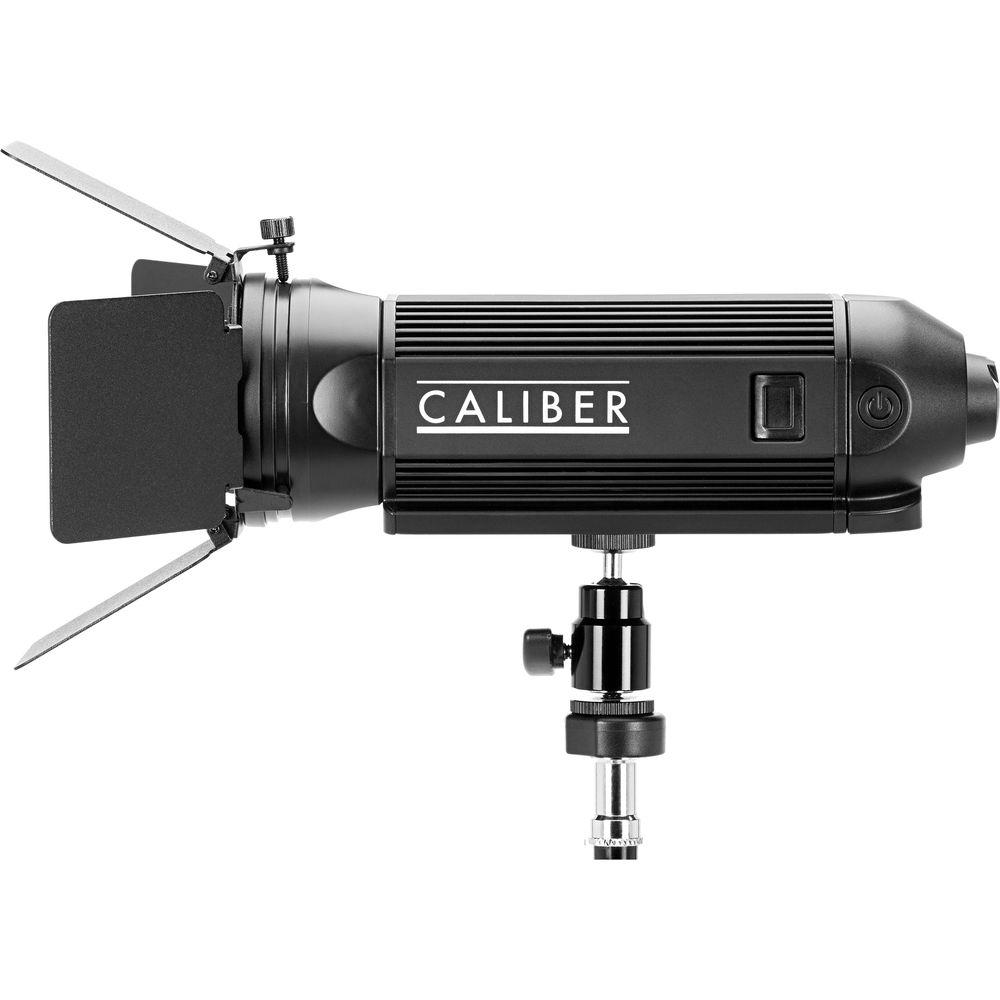

User Manual for Litepanels Caliber LED Light Click to enlarge the picture
Contents of the user manual for the Litepanels Caliber LED Light
- Product category: LED Lights Litepanels
- Brand: Litepanels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Litepanels LED Lights
 |
User manual for the Litepanels Caliber LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Litepanels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Litepanels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Litepanels product will considerably shorten its lifespan!
|

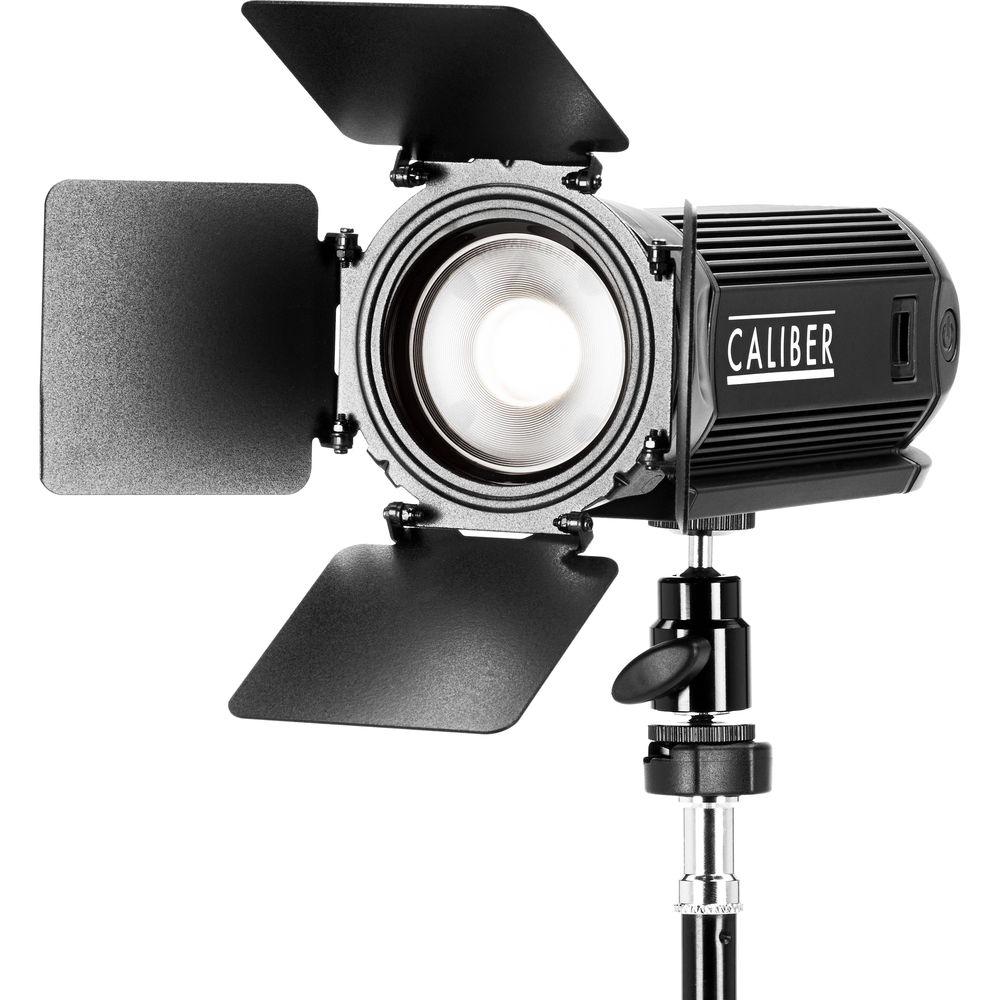

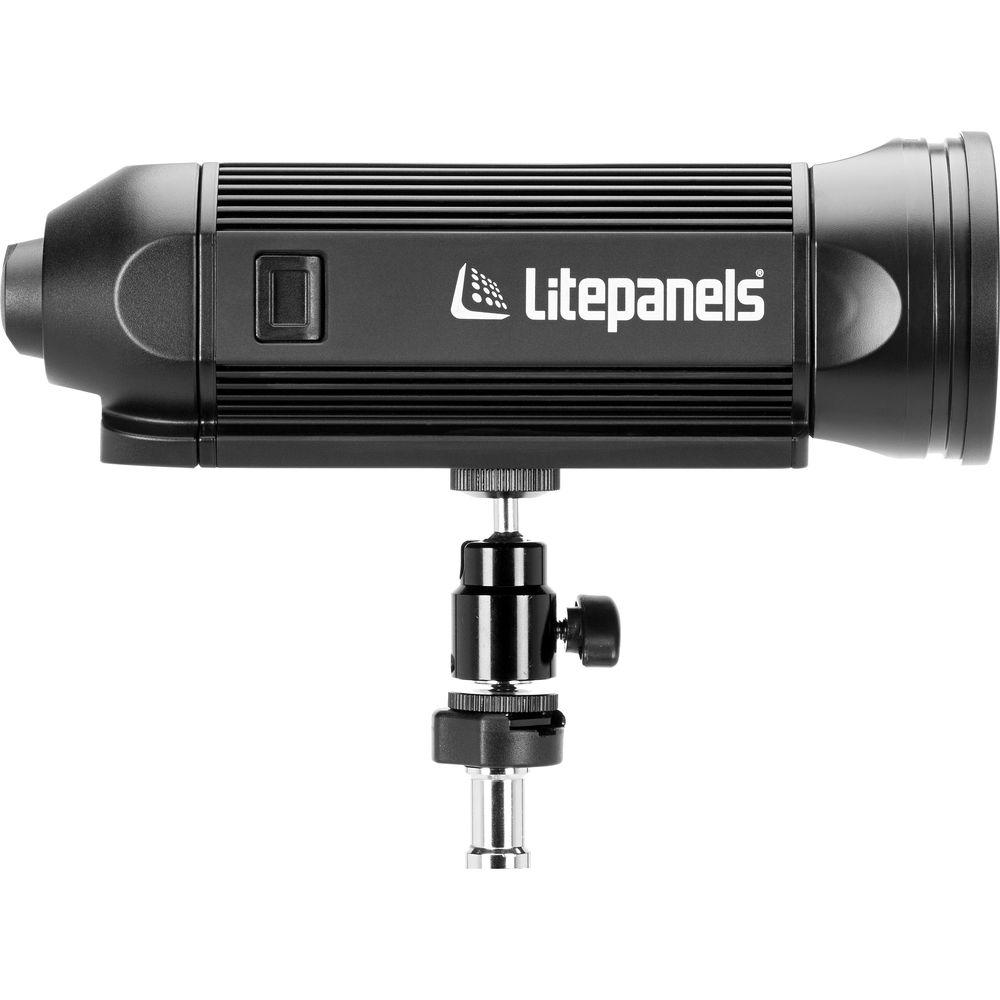

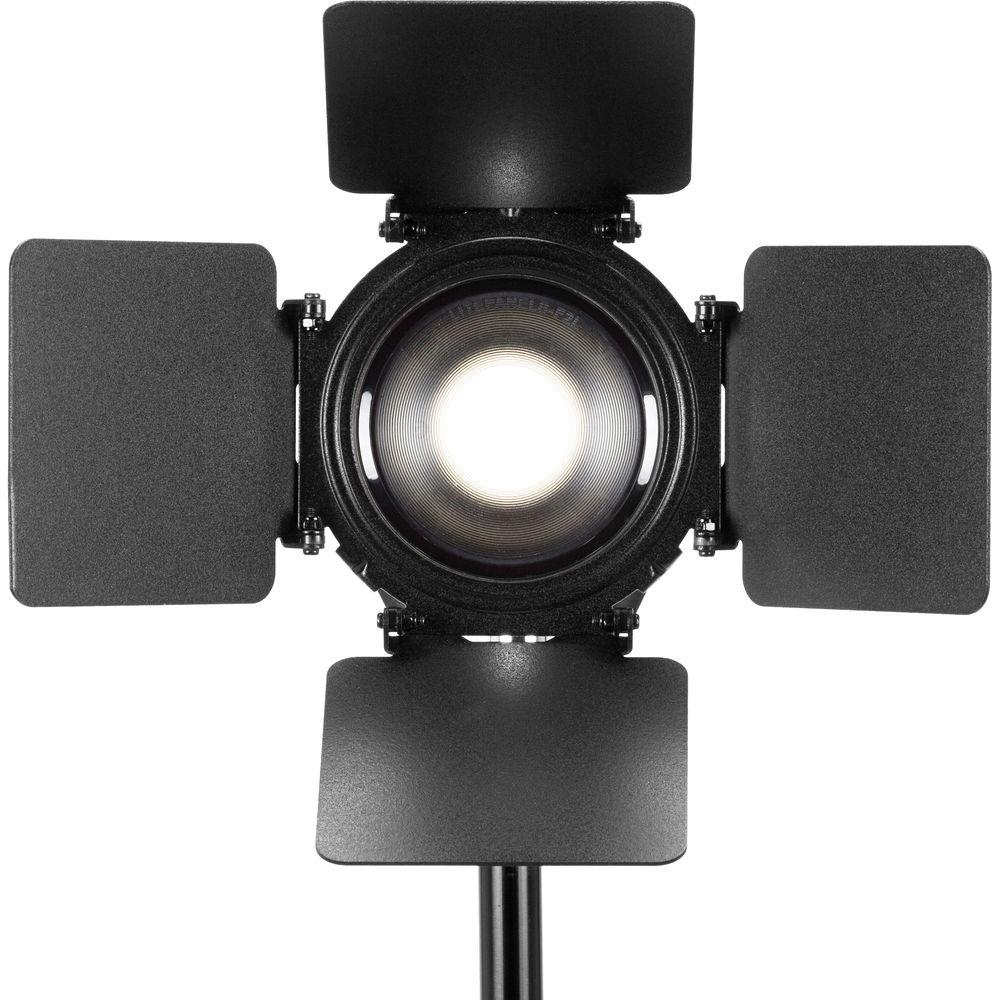

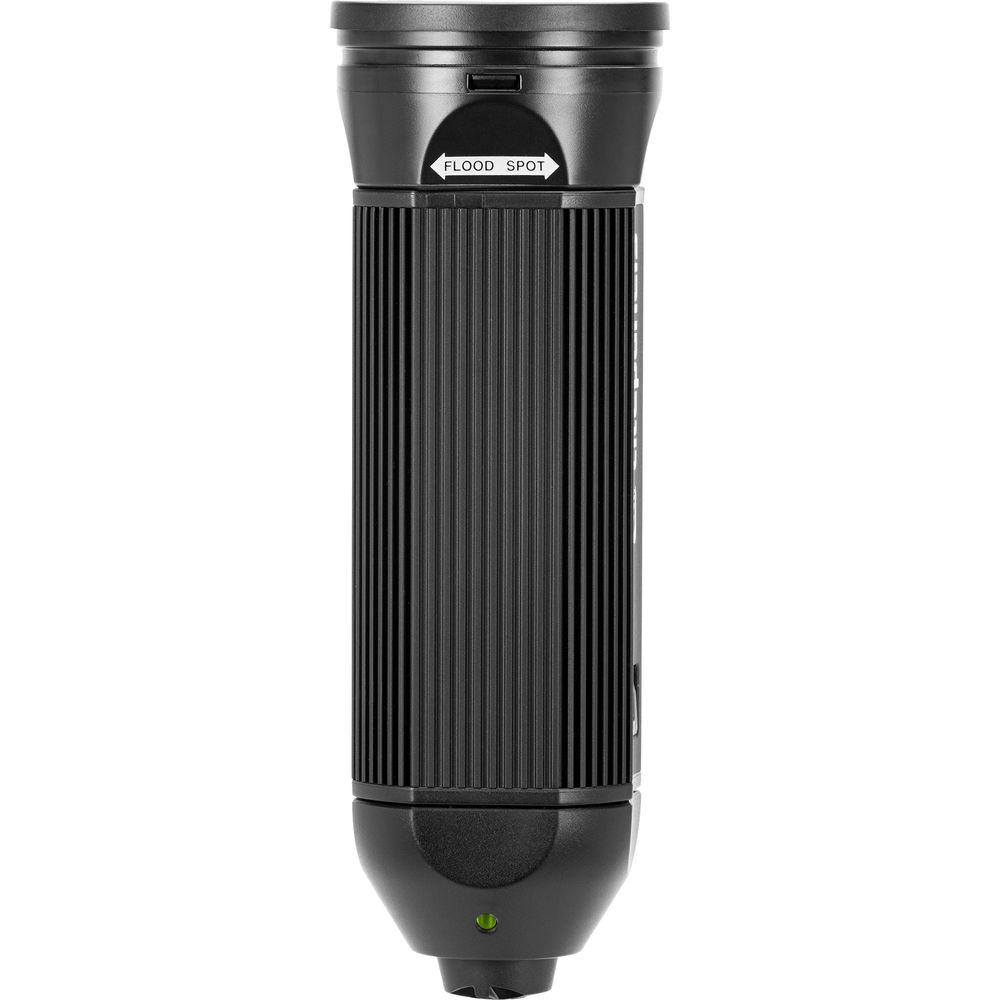

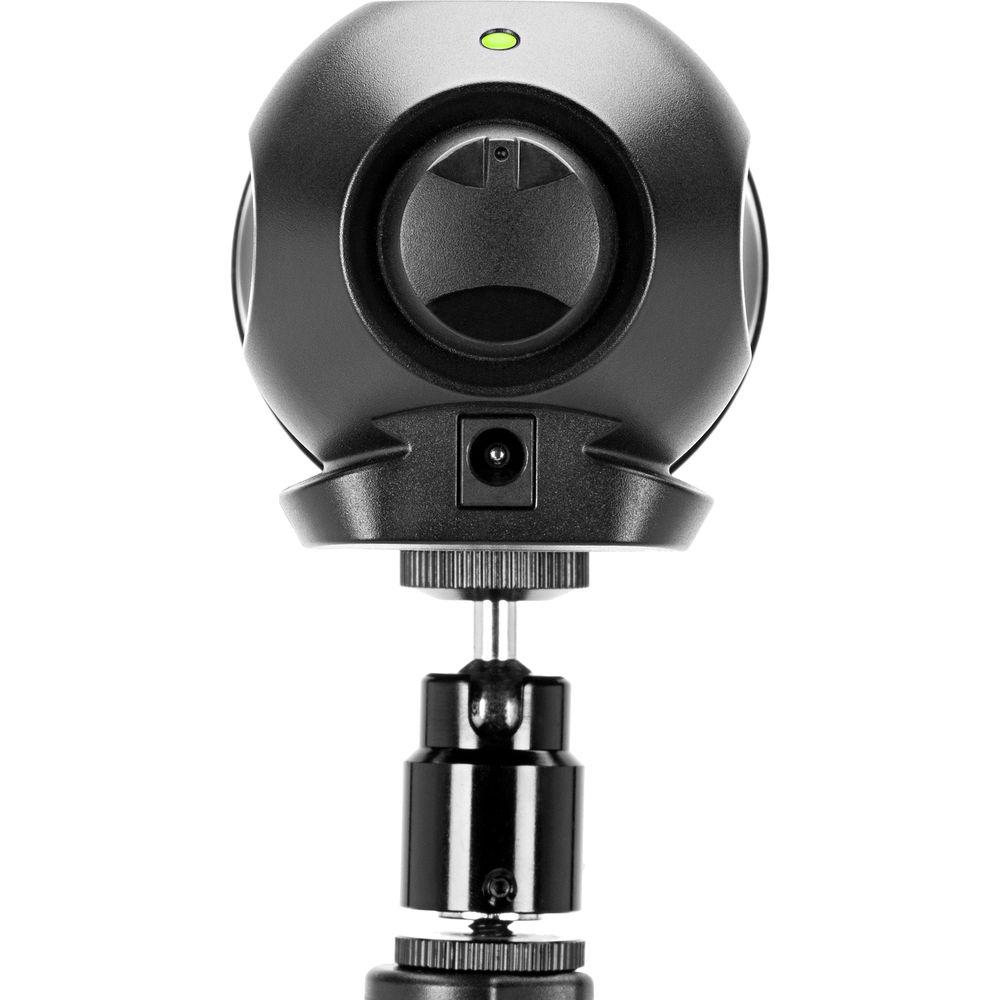

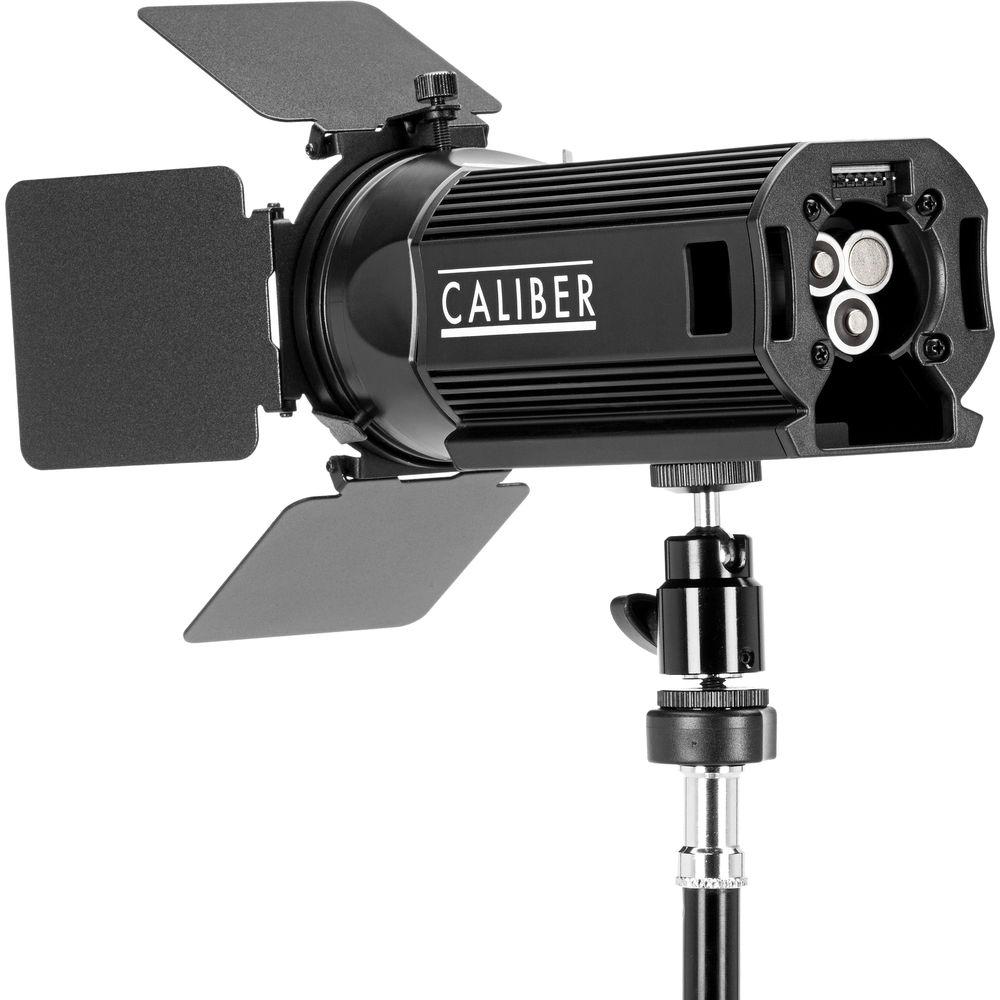

Product description The Caliber LED Fresnel Light from Litepanels is a lightweight versatile and highly controllable lighting solution for photographers and videographers on location or on set. The light includes a 4-way barndoor set, a PIXI tabletop tripod, color frame, gel set, and international AC power supply.Ideal for travel and location work, the 2" Caliber Fresnel measures 8.8 x 3 x 3" and weighs just 1.3 lb., yet its daylight-balanced output is the equivalent of a 150W tungsten fixture while consuming just 17W of current. Versatility and control are key to the Caliber's design. Its 0-100% dimming range and exceptionally wide 17-73 degree spot-to-flood beam angle make it highly useful for everything from wide, soft wash lighting to sharp-shadow sunlight effects or hairlighting. The included 4-way barndoors allow further refinement and precise placement of the unit's beam. The light is ready for worldwide use via its included 100-240 VAC power supply, but it can also run on 6 easily-sourced AA batteries when mains power is unavailable. - Caliber Advantages
-
- True Fresnel fixture that produces highly controllable illumination
- Flicker-free at any frame rate or shutter angle
- Ultra-smooth dimming from 0 - 100%, with no noticeable color shift throughout the entire range
- Low power draw means the portable fixtures can run anywhere light is needed, on AA batteries or via AC (fixture is 2x brighter when run on AC)
- Low 17W power draw with output comparable to a 150W tungsten fixture
- Durable rugged aluminum chassis design

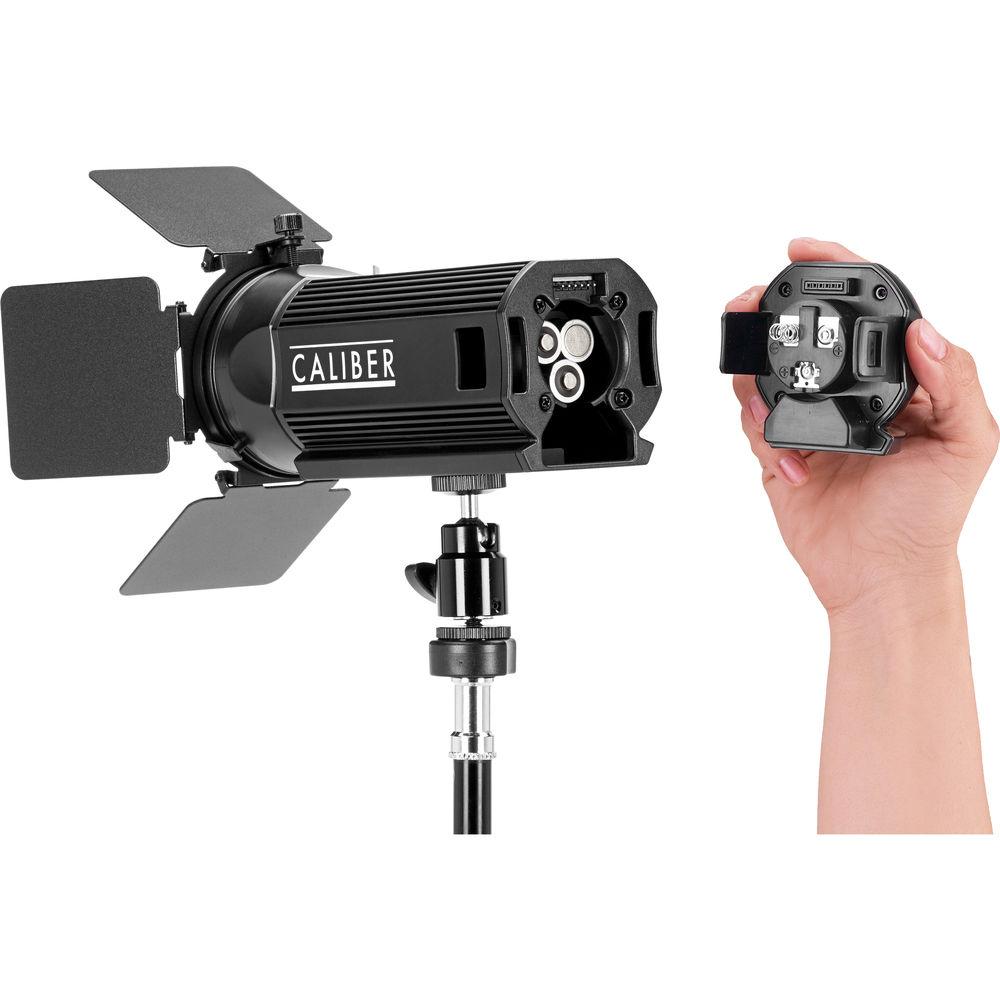

- Serve as a battery compartment for mobile lighting
- Provides efficient thermal management to ensure color quality and long life
- Premium selected high CRI/TLCI rated
- Photometrics with AC Power
- Spot: 15 Degrees
2,097 lux / 195 fc @ 6.0' (1.8 m) with a beam diameter of 1.6' (0.5 m) and field diameter of 2.6' (0.8 m)
932 lux / 87 fc @ 9.0' (2.7 m) with a beam diameter of 2.4' (0.7 m) and field diameter of 4.0' (1.2 m)
524 lux / 49 fc @ 12' (3.7 m) with a beam diameter of 3.2' (1.0 m) and field diameter of 5.3' (1.6 m)
Flood: 73 Degrees
225 lux / 21 fc @ 6.0' (1.8 m) with a beam diameter of 9.0' (2.7 m) and field diameter of 12.5' (3.8 m)
100 lux / 9.0 fc @ 9.0' (2.7 m) with a beam diameter of 13.3' (4.1 m) and field diameter of 18.7' (5.7 m)

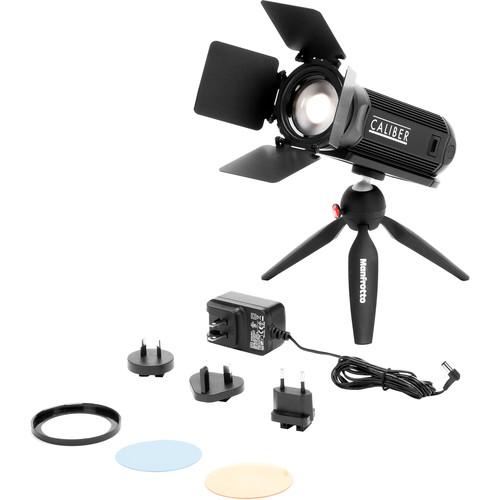

56 lux / 5.0 fc @ 12' (3.7 m) with a beam diameter of 17.8' (5.4 m) and field diameter of 25' (7.6 m) In the Box Litepanels Caliber LED Light PIXI Mini Table Top Tripod (Black) Gel Set Color Frames Four-way Barndoors International Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Caliber LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLitepanels Caliber Specs | | | Beam Angle | 15 to 73° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 93 | | Cooling System | None | | Display | None | | Fixture Dimensions | Fresnel Lens: 2.0" / 50.8 mm
Flood: 9.6 x 3.0 x 3.0" / 24.4 x 7.6 x 7.6 cm
Spot: 8.8 x 3.0 x 3.0" / 22.4 x 7.6 x 7.6 cm | | Fixture Weight | 1.3 lb / 0.59 kg | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 6 to 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 17 W | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 17.2 x 10.7 x 3.2" |
