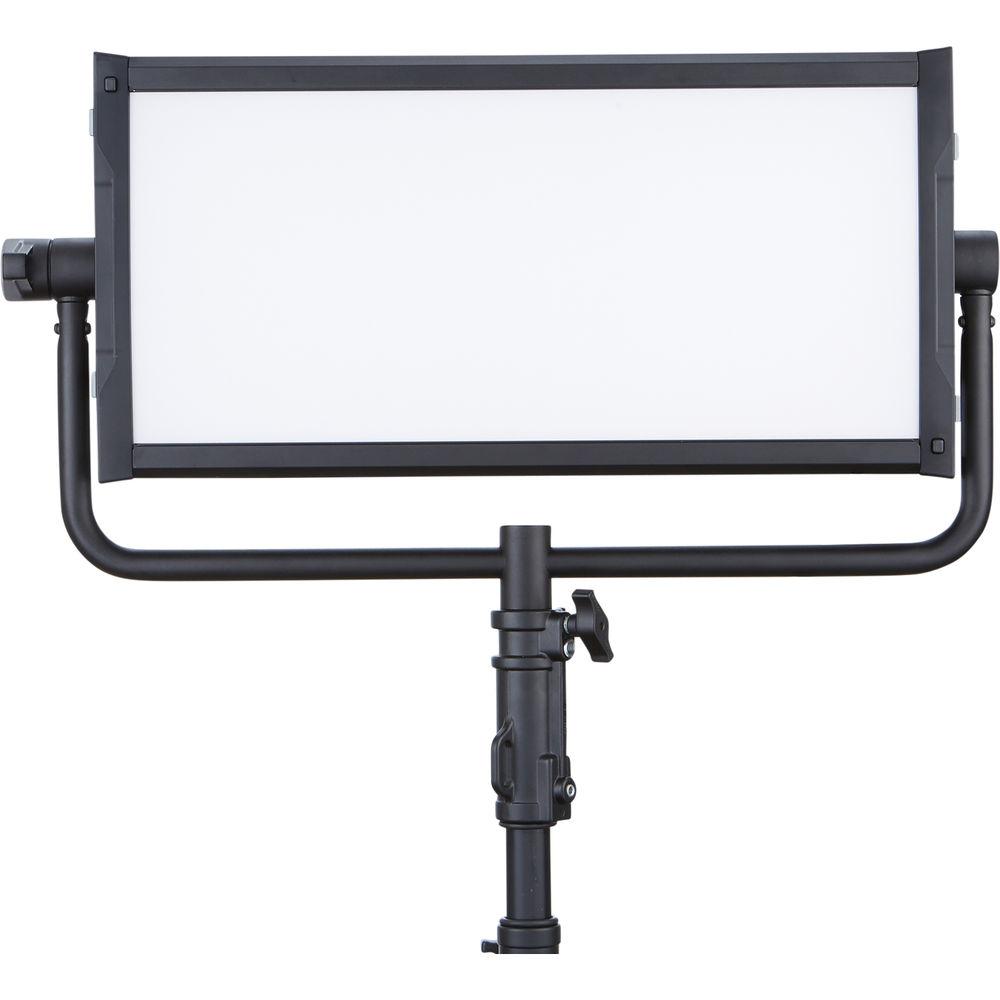

User Manual for Litepanels Gemini 2x1 Bi-Color LED Soft Panel Click to enlarge the picture
Contents of the user manual for the Litepanels Gemini 2x1 Bi-Color LED Soft
- Product category: LED Lights Litepanels
- Brand: Litepanels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Litepanels LED Lights
 |
User manual for the Litepanels Gemini 2x1 Bi-Color LED Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Litepanels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Litepanels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Litepanels product will considerably shorten its lifespan!
|
Product description - Setting Mood with the Litepanels Gemini

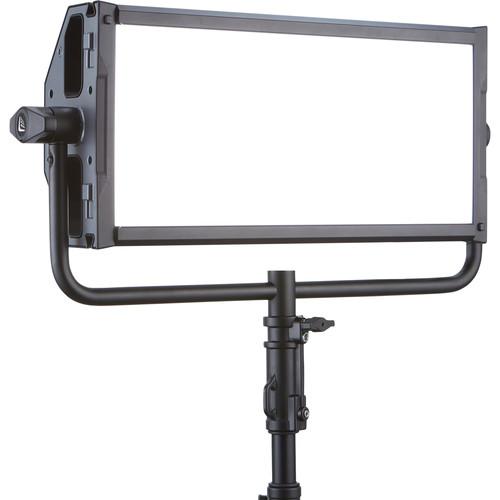

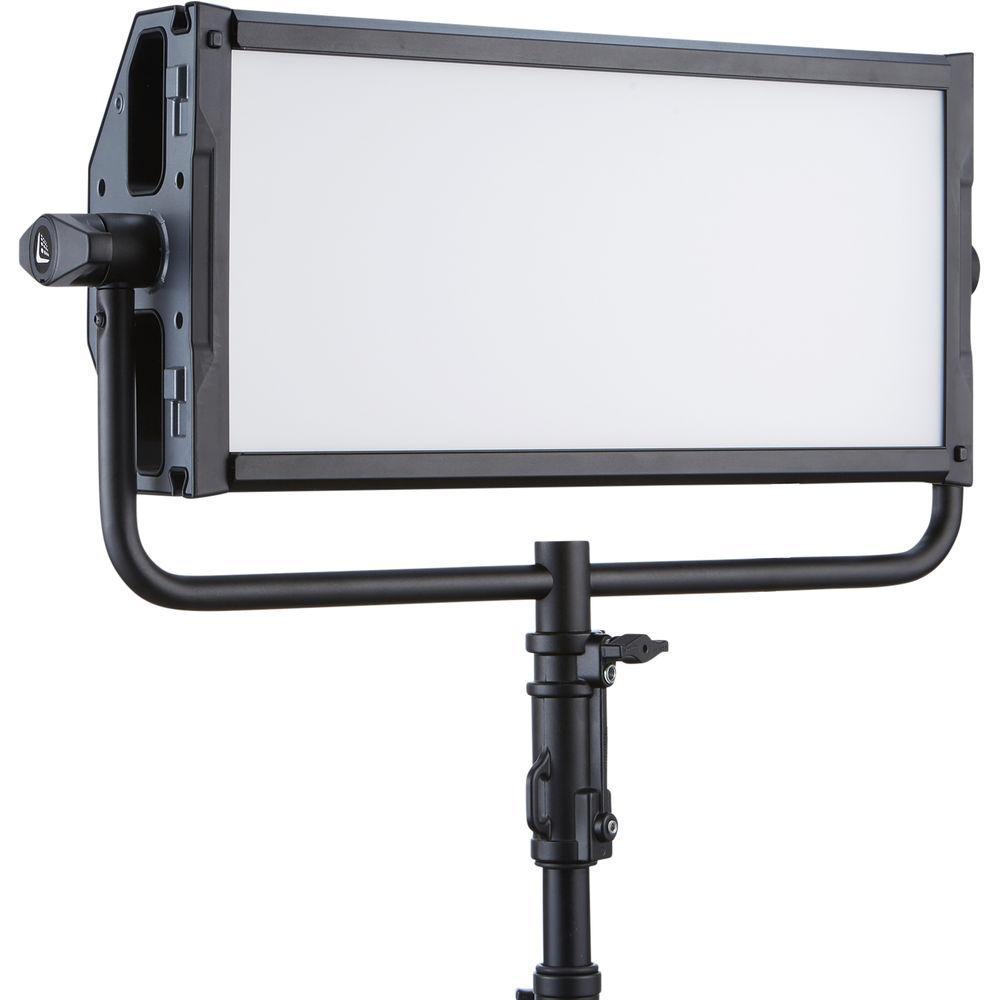

Flexibility and control are key to the creation of the Gemini 2x1 Bi-Color LED Soft Panel with Standard Yoke and UK Power Cable from Litepanels. The aluminum-constructed, 25.0 x 6.5 x 12.5" fixture has 3 lighting modes. The CCT color temperature control has 6 factory presets in increments from 2700 to 6000K. There are also 6 presets for user-defined color temperature and plus/minus green control. The HSI Color mode allows you to adjust the hue, saturation, and intensity, while Gel mode permits your choice from a library of filters often used by image makers. A firmware update adds a Lighting Effects Mode that includes TV simulation, hue burst, paparazzi, strobe, fire, squares, fireworks, emergency lights, pulse and party lights. The light has a CRI/TLCI rating of 97 for daylight balance and 99 for tungsten balance, indicating a very accurate rendition of color. The Gemini is dimmable from 100 to 0% without flicker or color shift. Settings and features are displayed on the rear LCD screen.All of these adjustments can be made locally on the unit or remotely via a console, thanks to the Gemini's built in DMX. There's even the option of wireless DMX or Bluetooth control via a separately purchased remote module. The Gemini is ready for worldwide use, thanks to its built in 100 to 240 VAC power supply but it can also run on batteries when power is unavailable.The Gemini has a number of convenience features, such as the ability to stack and gang several lights together with an optional yoke and hardware. You can also daisy-chain multiple lights together in Master/Slave mode, allowing a single designated "Master" light to control the others. This version of the Gemini ships with a standard yoke and a UK power cable. - 3 Lighting Modes
-
- CCT (Correlated Color Temperature) mode allows for bi-color (daylight to tungsten) operation with the addition of plus and minus green adjustment
- HSI Color mode allows for full color control over hue, saturation, and intensity
- Gel mode allows for a variety of gels to be selected from the menu
- Firmware Update for Special Effects
- A firmware update adds a Lighting Effects Mode that includes TV simulation, hue burst, paparazzi, strobe, fire, squares, fireworks, emergency lights, pulse and party lights.
- Performance
-
- Flicker-free at any frame rate or shutter angle at any intensity level
- Smooth dimming from 100 to 0%, with no color shift
- Energy efficient - fixture draws only 325W nominal
- No heavy external ballast or restrike period
- Presets
-
- Program user presets on Channel A, which records color and intensity. It also has factory presets on channel B with increments for 2700 to 6000K plus six user-programmable presets
- Control
-
- Master/Slave mode - connect multiple lights together and control them all from a single master light
- Optional Bluetooth and wireless DMX modules allow the brightness, color, and cooling mode to be remote controlled
- Intuitive and ergonomic controls for dimming, color, and fixture set up
- Power Options
-
- AC/DC power with DC battery power via 3-pin XLR
- Durability and Design Features
-
- Aluminum core construction to provide maximum durability and superior thermal management
- Durable, industry standard powerCon locking power connector with ability to daisy chain power

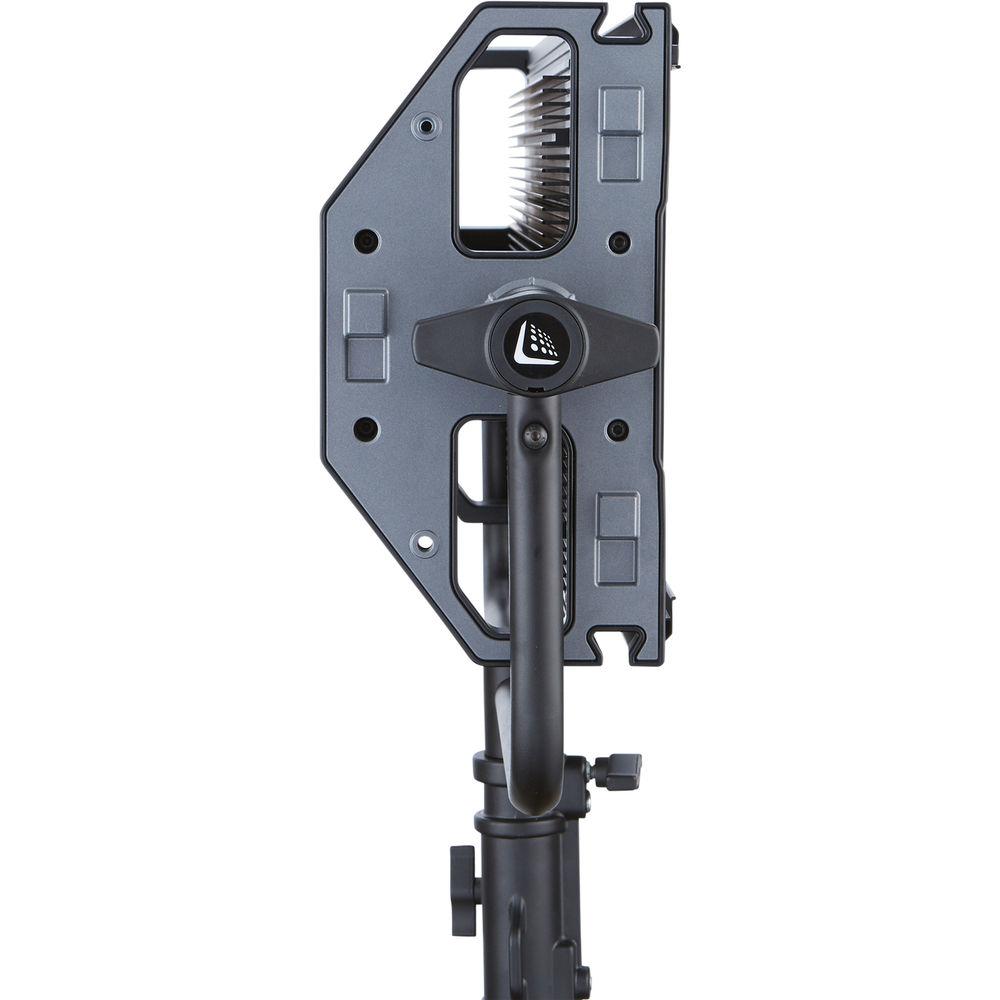

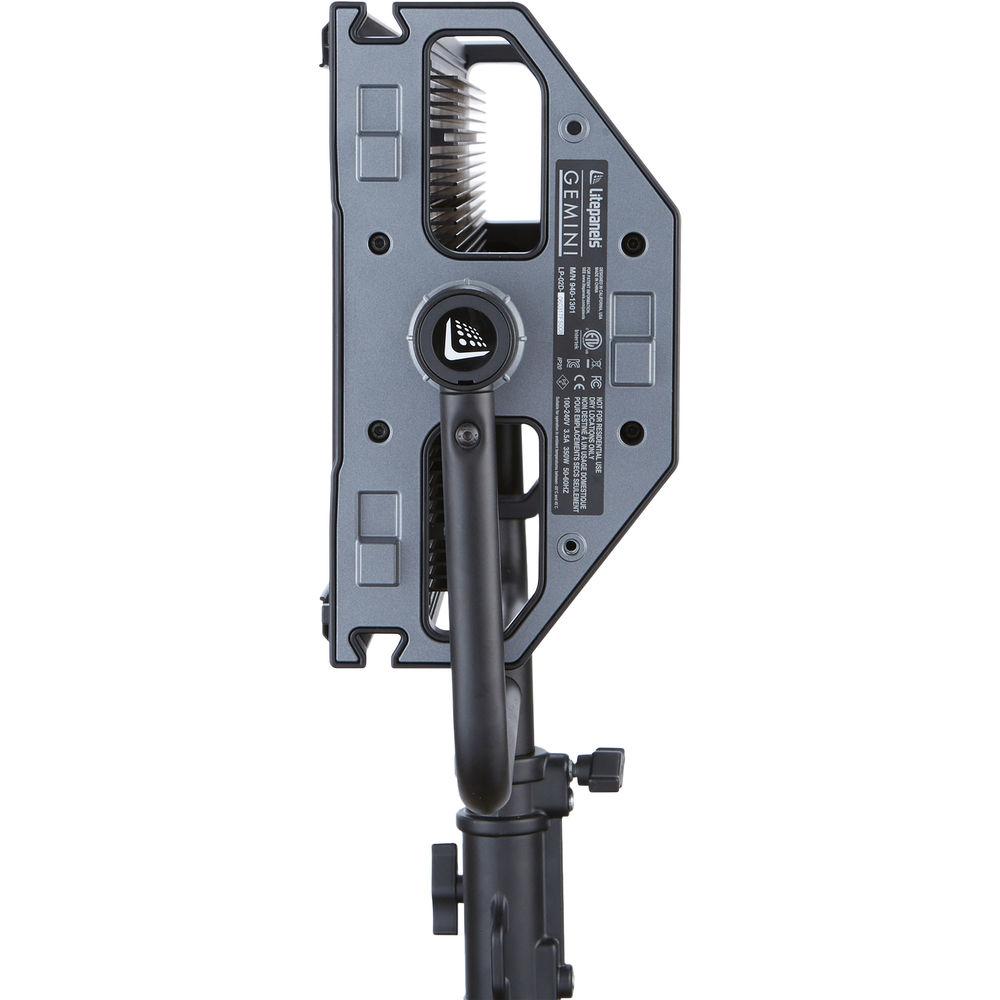

- Yoke with Junior pin for easy mounting and positioning

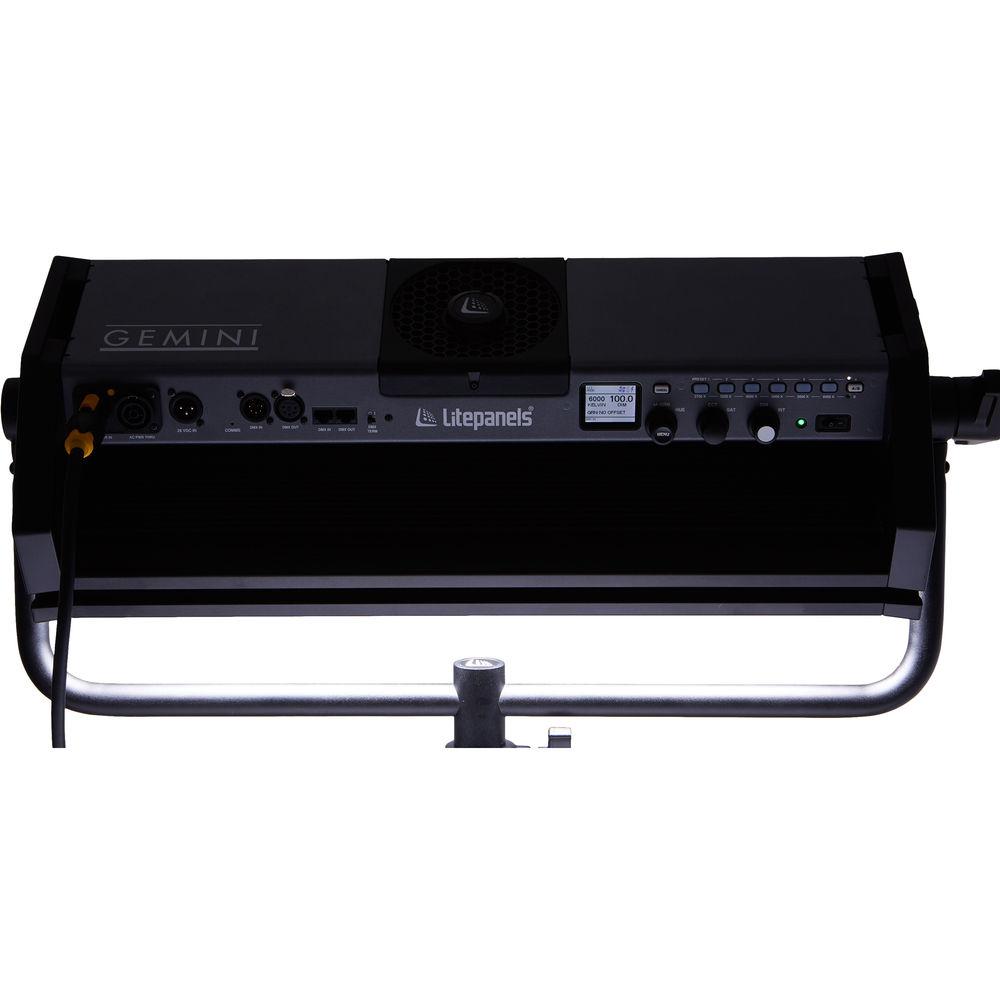

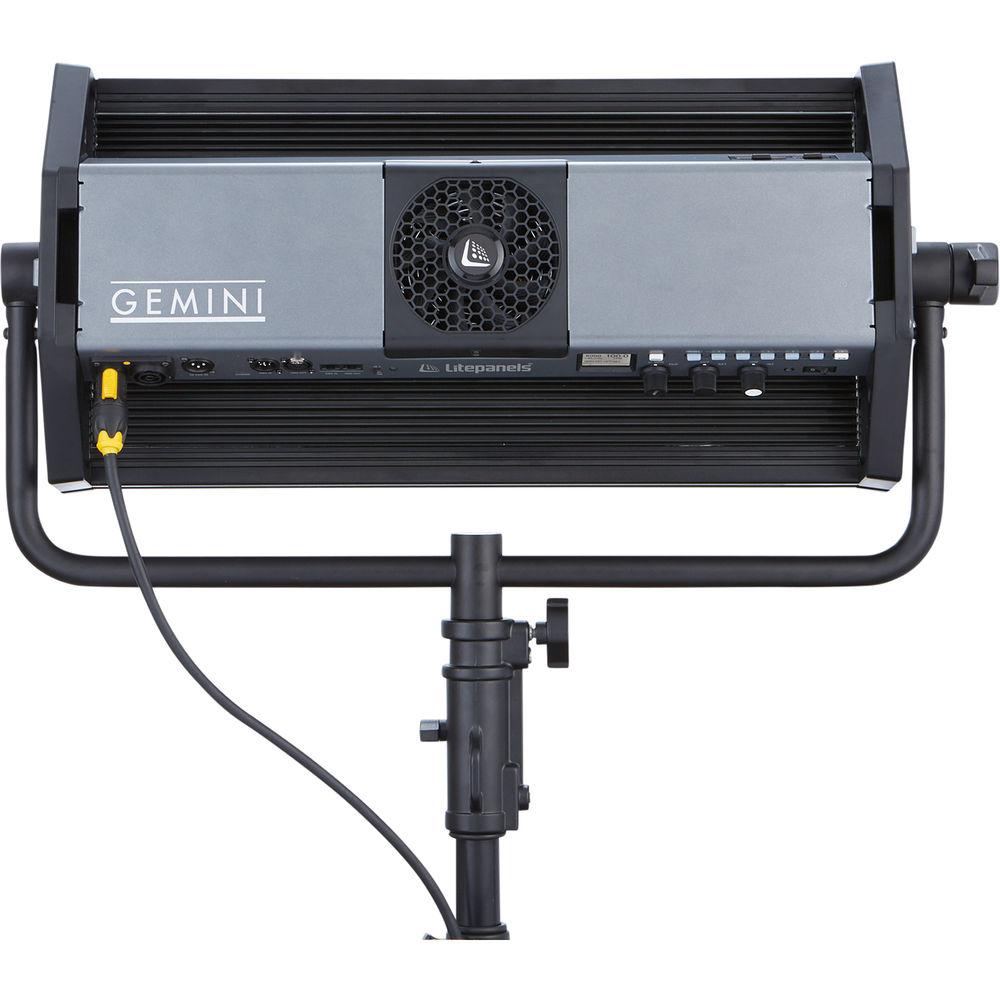

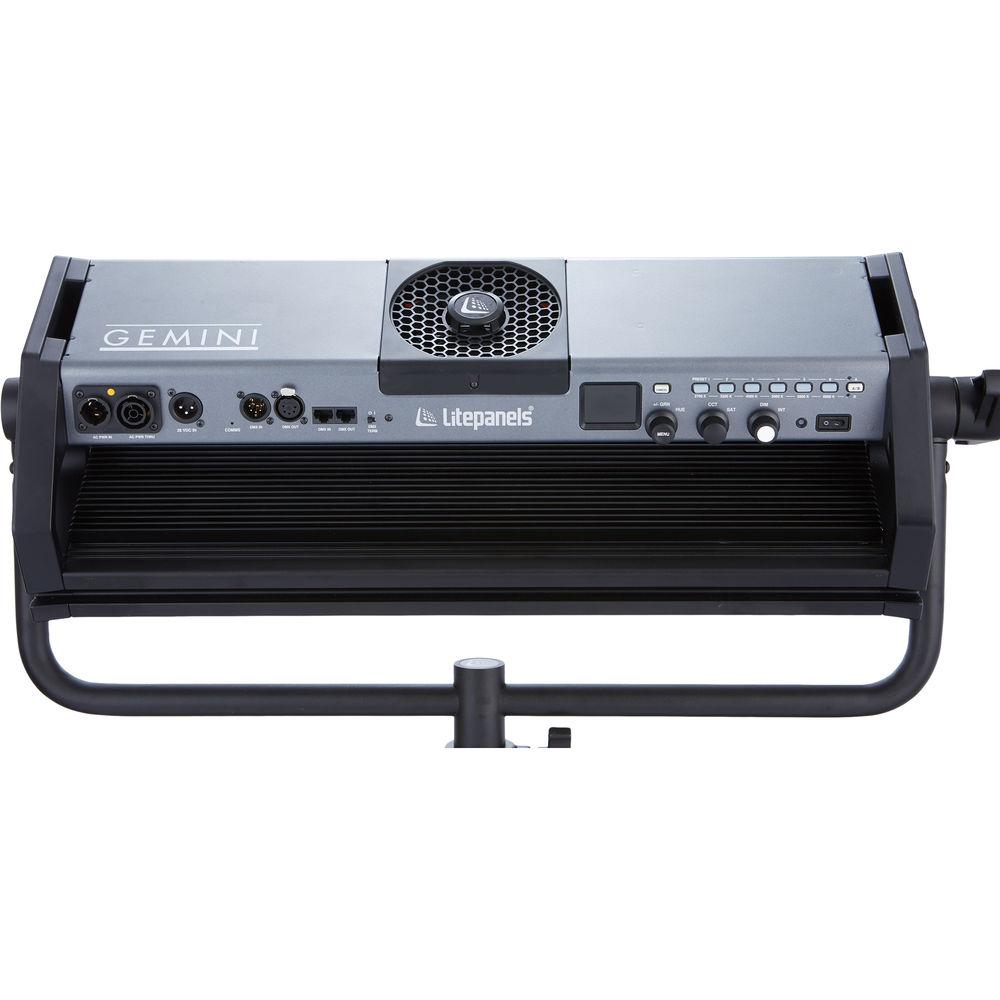

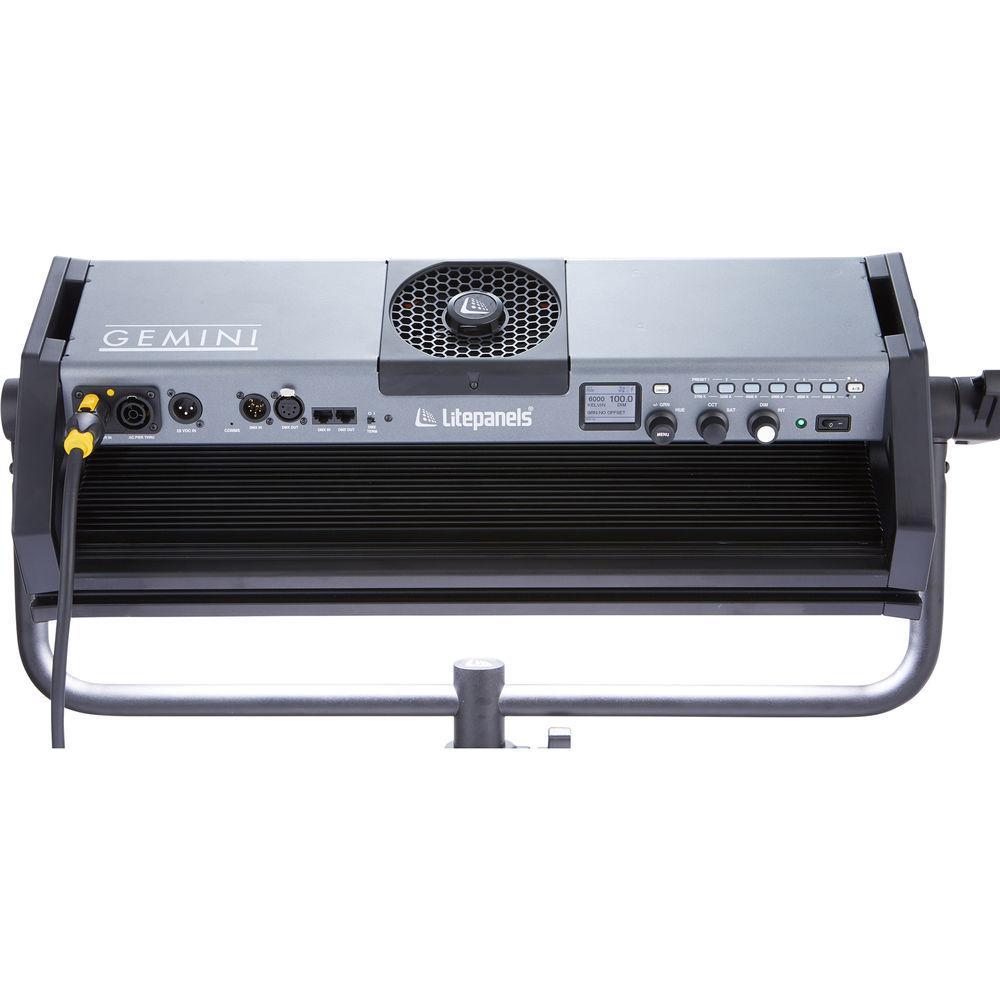

- LCD screen displays vital settings and status
- Barndoor/honeycomb accessory rails
- Photometrics
- Daylight
4317 lux / 389 fc @ 5.0' (1.5 m)
1079 lux / 97 fc @ 10' (3.0 m)
459 lux / 43 fc @ 15' (4.6 m)
Tungsten
3624 lux / 326 fc @ 5.0' (1.5 m)
906 lux / 82 fc @ 10' (3.0 m)
385 lux / 36 fc @ 15' (4.6 m) UPC: 859058005297 In the Box Litepanels Gemini 2x1 Bi-Color LED Soft Panel (Standard Yoke) Standard Yoke Power Cable for Gemini LED Light (UK) tzqeedsxzqyvfcwz Limited 1-Year Warranty Limited 1-Year Warranty Extension for a Total of 2 Years after Product Registration Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Gemini 2x1 Bi-Color LED Soft Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Litepanels Gemini 2x1 Bi-Color LED Soft Panel can be downloaded in PDF format at the link stated below.
Technical parametersLitepanels 940-1201 Specs | Input Voltage | 100-240 VAC, 50/60 Hz
28 VDC | | Power Consumption | 325 W nominal | | Color Temperature | 2700-6000K | | CRI / TLCI | Daylight: 97
Tungsten: 99 | | Beam and Field Angle | 93° / 157° | | Control | Built-in DMX, optional wireless DMX, Bluetooth, SmartLite App | | Color Controls | Kelvin temperature
Plus/minus green
Hue, saturation, intensity
Gel presets | | Dimming Range | 100-0% | | Cooling | Fan | | Power Cable | 9.8' (3.0 m) powerCON UK cable | | Mount | 1-1/8" (28 mm) pin
Standard yoke | | Dimensions | 25.0 x 6.5 x 12.5" / 63.5 x 16.5 x 31.8 cm | | Weight | 22.2 lb / 10.1 kg | | | | Package Weight | 31.3 lb | | Box Dimensions (LxWxH) | 34.5 x 25.0 x 10.1" |
