Product description - Litepanels Sola 4 & Inca 4

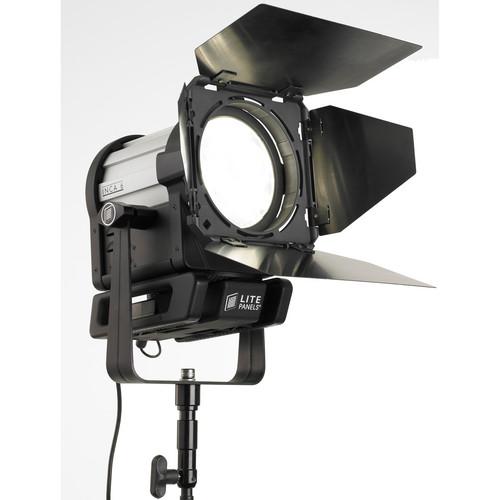

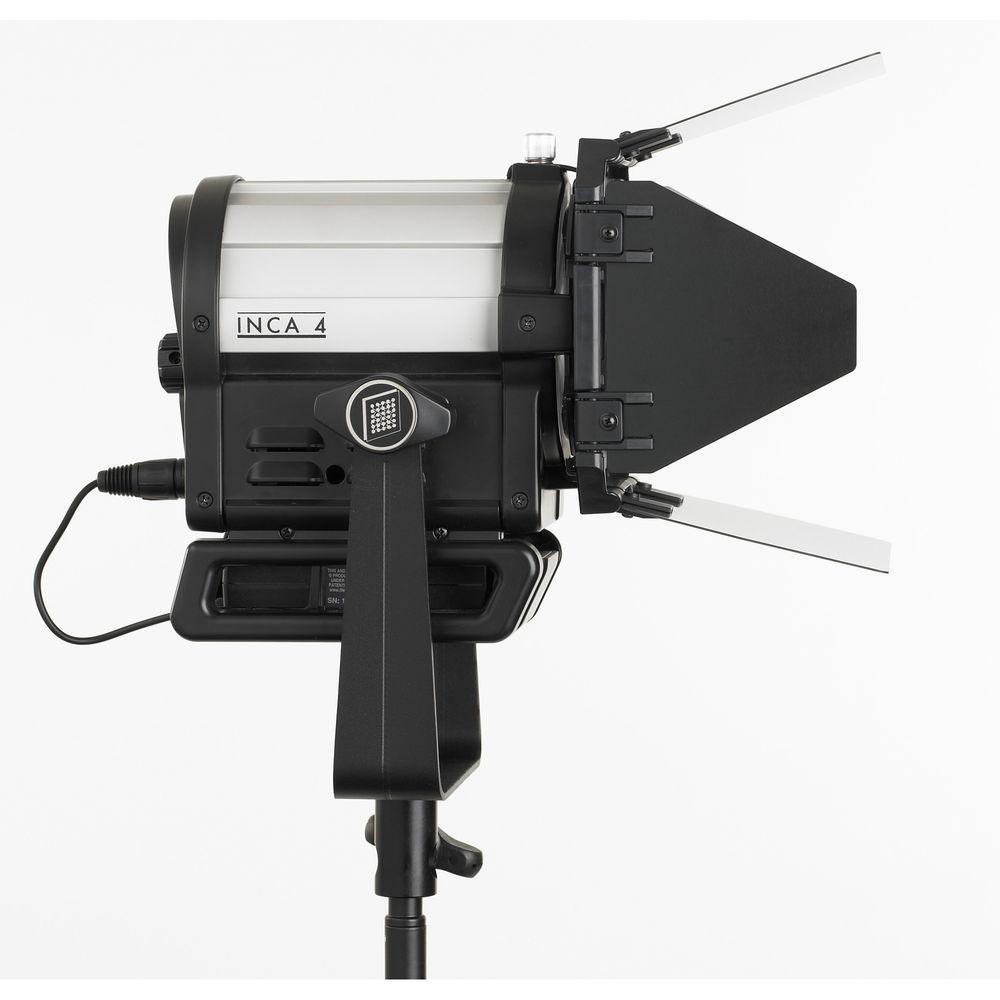

The Litepanels Inca 4 LED Fresnel Light just might be the best of all possible worlds: a 4.0" Fresnel light with beam control of 72 to 13°, combined with efficient tungsten-balanced LEDs. And the Inca 4 uses only a small fraction of the power that a conventional fixture would require to produce the same volume of light, offering the tungsten equivalent 300W while drawing only 39W with very little heat generation. But wait, there's more; the Inca 4 weighs 1/3 less than comparable traditional Fresnels, has no external ballast and dims from 100 to 0% with no noticeable color shift both on-fixture and remotely via DMX. The flicker-free, Inca 4 runs on 100-240VAC or 14-28VDC batteries. - A true Fresnel fixture that produces soft, directional illumination
- Litepanels proprietary heat-free LED technology
- High quality 4.0" Fresnel lens
- 39W power draw with comparable illumination to a 300W incandescent Fresnel
- No noticeable heat generation reduces air conditioning costs
- Energy savings and extended bulb life provide an approximately 3 year ROI in typical studio applications
- Tungsten output - color matched to incandescent fixtures

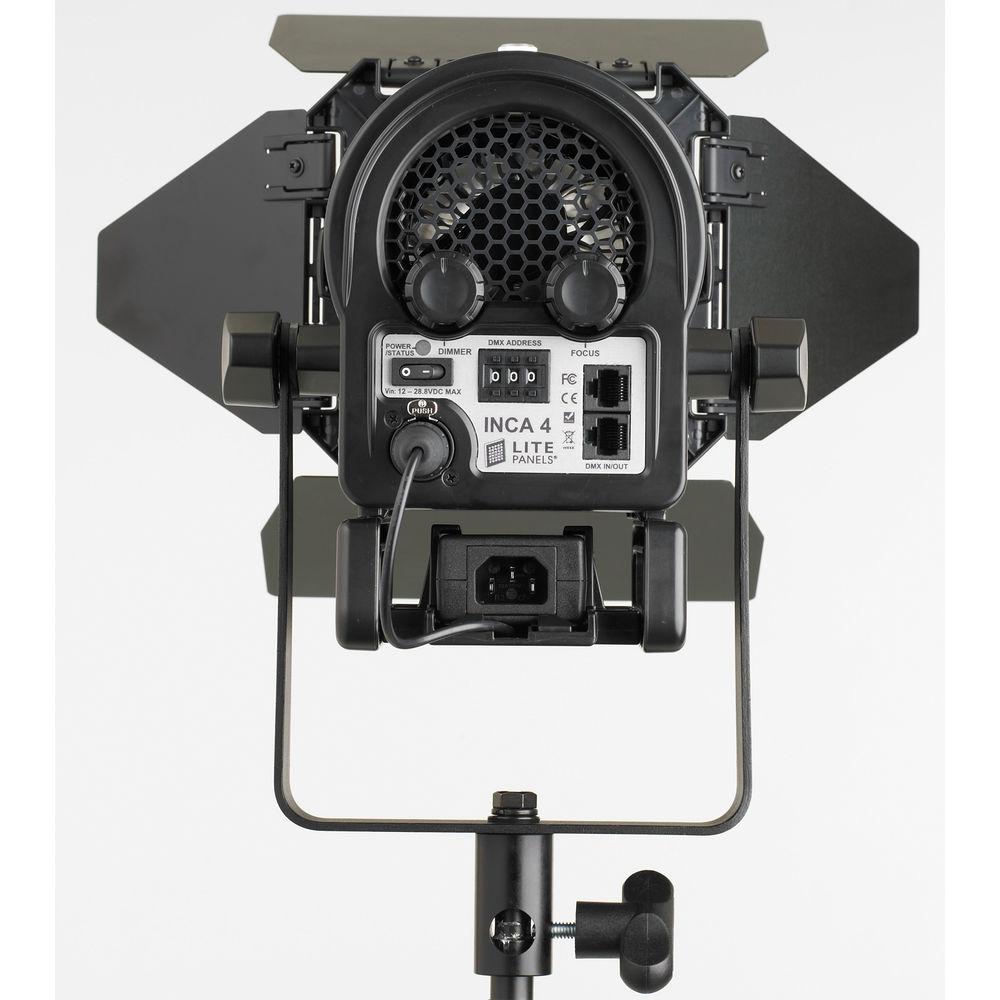

- AC/DC power with DC power via 4-pin XLR for versatility in and out of the studio
- Integrated DMX module with RJ45 (Ethernet) connectors for remote control using DMX 512 protocol
- 100 to 0% dimming with no noticeable color shift (via on-fixture dial or DMX)

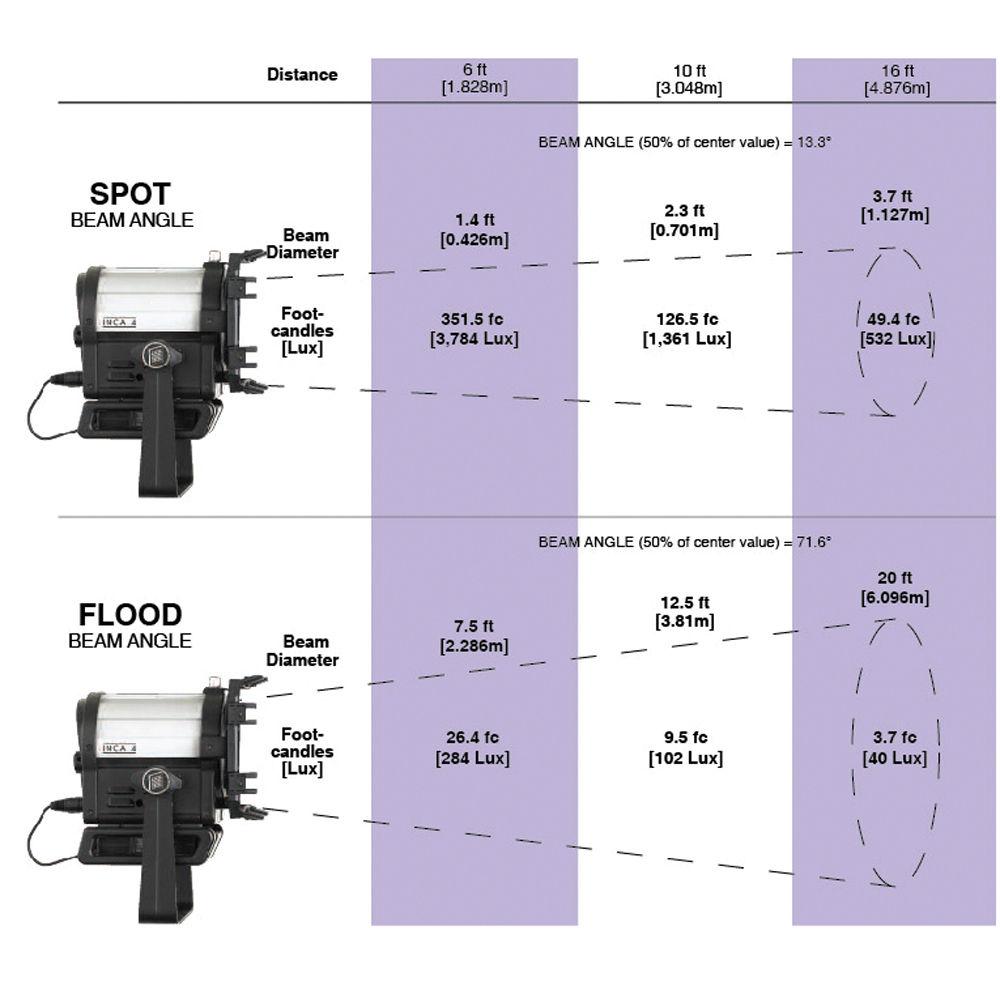

- Focus control from 72 to 13° beam via on-fixture dial or DMX
- Robust lightweight housing-weighs 1/3 as much as conventional Fresnels
- Standard yoke for easy mounting and positioning
- Perfect companion to the Inca 6 Fresnel
- Applications: Broadcast studios, location lighting, event lighting, still lighting, chroma key
UPC: 891353002465 In the Box Litepanels Inca 4 LED Fresnel Light (100-240VAC) Barndoor Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Inca 4 LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLitepanels Inca 4 Specs | | | Beam Angle | 13 to 72° | | Color Temperature | 3200K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 11.0 x 8.0 x 7.0" / 28.0 x 20.3 x 17.8 cm | | Fixture Weight | 3.6 lb / 1.6 kg | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | RJ45 | | | | Lens Diameter | 4" / 10.2 cm | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 200 VAC, 50 / 60 Hz | | DC Input Power | 14 to 28 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 39 W | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 18.6 x 13.1 x 12.1" |
