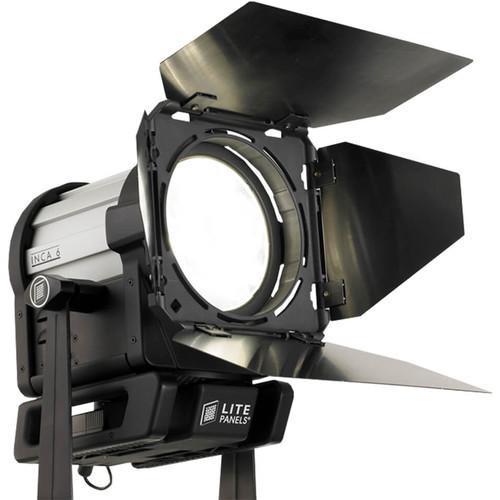

User Manual for Litepanels Inca 6C LED Fresnel Light Click to enlarge the picture
Contents of the user manual for the Litepanels Inca 6C LED Fresnel Light
- Product category: LED Lights Litepanels
- Brand: Litepanels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Litepanels LED Lights
|
User manual for the Litepanels Inca 6C LED Fresnel Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Litepanels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Litepanels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Litepanels product will considerably shorten its lifespan!
|
Product description - Litepanels Sola 6 & Inca 6
The tungsten-balanced Litepanels Inca 6C LED Fresnel Light is a versatile fixture with a 6" Fresnel lens and wide spot-to-flood 15 to 67° beam coverage that can be further controlled with the included 8-leaf barndoors. While drawing only 104W, the Inca 6C produces the heat-free tungsten equivalent of a 650W traditional Fresnel that is dimmable from 100 to 0% without flicker or color shifting, on the unit or remotely via DMX. Power efficiency means low running and air conditioning costs in the studio and a quick return on investment, while the LED lifespan of thousands of hours makes the Inca 6C virtually maintenance free.Powering the 6C is equally convenient and flexible. The light's 120-240 VAC power supply make it ready for worldwide use but you can also run on batteries via the light's 3-pin XLR DC power connector when mains current is unavailable.The Inca 6C light ships with a yoke, 1-1/8" junior pin / 5/8" receiver combo, power supply, power cord, and an 8-leaf barndoor set. - Benefits
-
- A true Fresnel fixture with spot or flood directional illumination
- Litepanels proprietary heat-free LED technology
- High quality 6" Fresnel lens
- 104W power draw with illumination comparable to a 650W incandescent Fresnel
- No noticeable heat generation-reduces air conditioning costs
- Energy savings and extended lamp life provide a <3 year ROI in typical studio applications
- Tungsten output color-matched to incandescent fixtures
- Versatility in and out of the studio - AC/DC power with DC power via 3-pin XLR
- Integrated DMX module for remote control using DMX 512 protocol
- 100 to 0% dimming with no noticeable color shift (via on-fixture dial or DMX)
- Focus control from 15 to 67° beam via on-fixture dial or DMX
- Robust lightweight housing weighs 1/3 as much as conventional Fresnels
- Standard yoke for easy mounting and positioning
- Applications
-
- Broadcast Studios
- Location Lighting
- Event Lighting
- Still Lighting
- Chroma Key
- Photometrics
- 15° Spot @ 10' (3.0 m)
290 fc / 3,290 lux) with 2.9' (0.9 m) beam diameter and 4.8' (1.5 m) field diameter
Flood @ 10' (3.0 m)
35 fc / 370 lux with 14.2' (4.3 m) beam diameter and 18.7' (5.7 m) field diameter UPC: 859058005082 In the Box Litepanels Inca 6C LED Fresnel Light Yoke Eight-Leaf Barndoor Set Power Supply AC Power Supply Cord for LP1x1 Fixtures (120VAC) Limited 1-Year Warranty Specification PDF 443.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Inca 6C LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLitepanels Inca 6C Specs | | | Beam Angle | 15 to 67° | | Color Temperature | 3200K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 15.0 x 11.0 x 10.0" / 38.0 x 28.0 x 35.0 cm | | Fixture Weight | 9.1 lb / 4.13 kg | | | | Power Input Connector | 3-Pin XLR | | DMX Connector | RJ45 | | | | Lens Diameter | 6" / 15.2 cm | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 14 to 28 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 104 W | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 24.5 x 16.0 x 14.0" |
