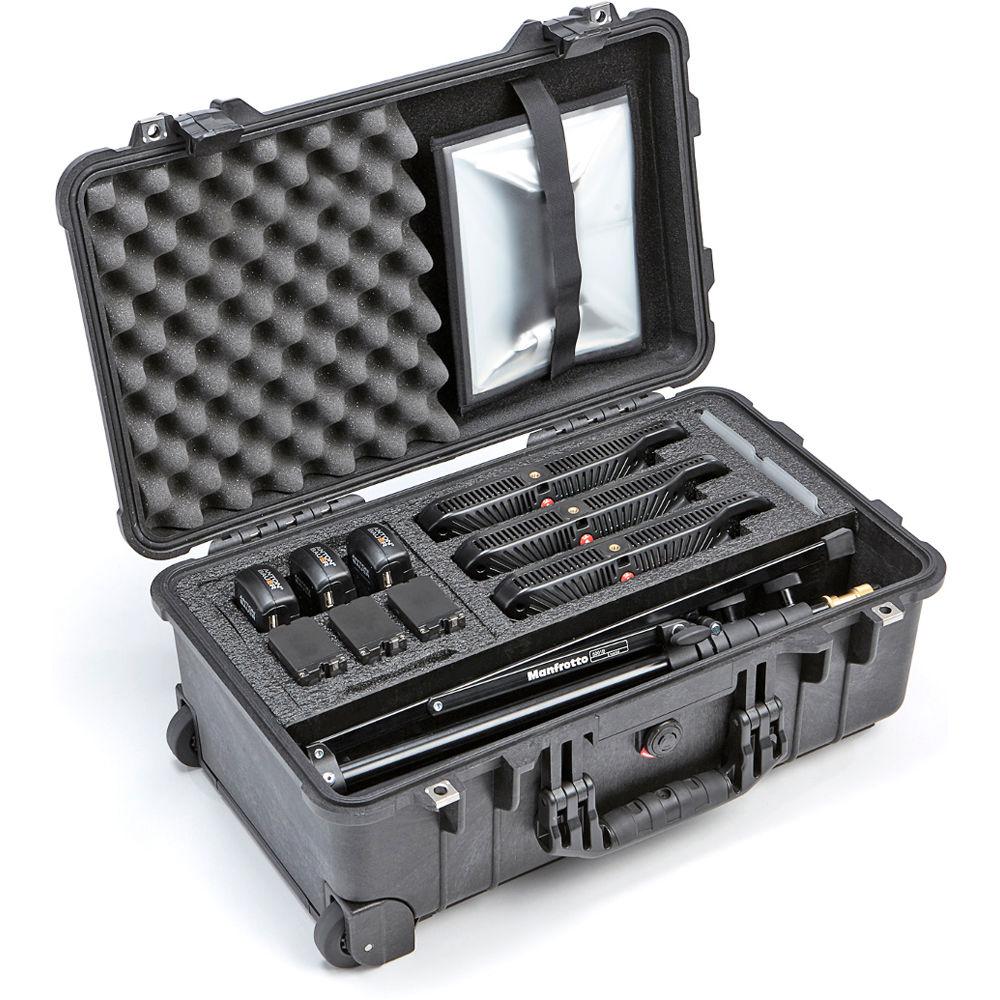

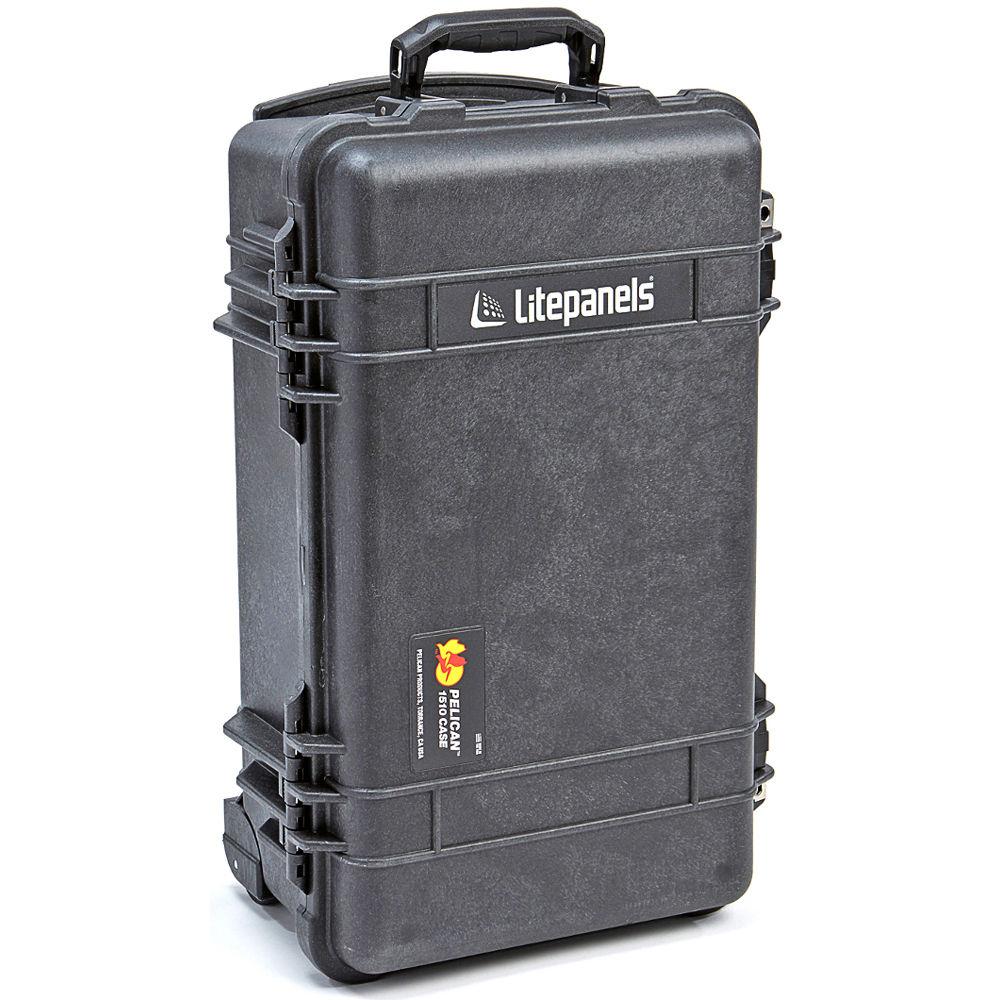

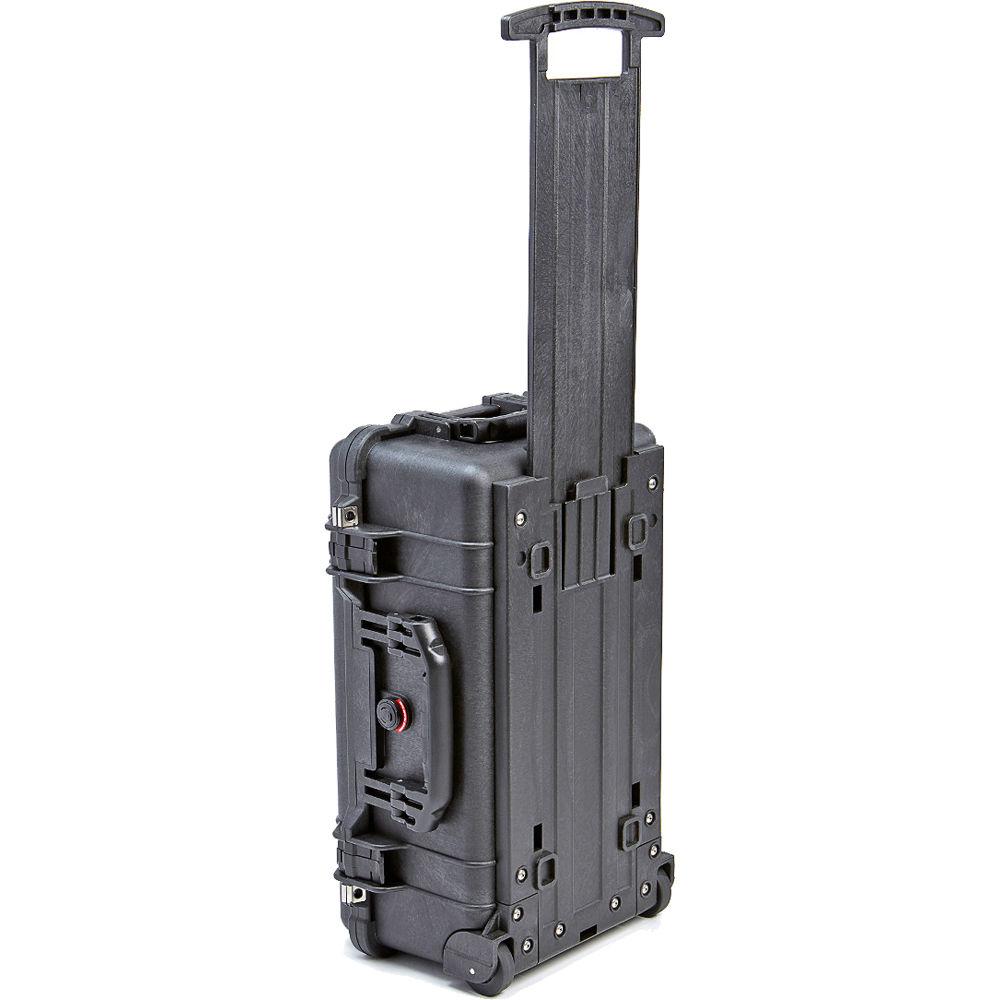

Product description The Lykos Bi-Color Flight Kit with Battery Bundle from Litepanels gives the mobile photographer, videographer, or lighting professional the opportunity to take precise, accurate lighting with a CRI/TLCI rating from 95-98 on the road in a small, lightweight ergonomic package. The kit contains three Bi-Color 3000-5600K Lykos fixtures with ball head shoe mounts, each with three diffusion gels, a multi-voltage AC adapter, and an Anton Bauer NP-F976 battery and charger. Three US, EU, Australia, and UK power cables and a softbox are also included. It all fits in the kit's watertight 22 x 13.8 x 9" Pelican 1510 hard case. - LYKOS Bi-Color On-Camera LED Light Featuring a lightweight, slim design, a handle on the side for precision adjustment, large SMT LEDs, high CRI, and other outstanding features, the LYCOS Bi-Color LED Light from Manfrotto is a modern-style, highly user-oriented on-camera light with a lot of punch.
The 48 SMT LEDs (Surface Mount Technology), designed for improved optical efficiency, feature a >93 CRI high color accuracy and provide 1500 lux max brightness at 3.3 ft. The color-temperature is adjustable by a dial on the side from 3000K tungsten to 5600K daylight, and this will allow for use in different environments. Brightness is adjustable flicker-free by a 100-0% dimmer next to the color dial.
The dials are positioned next to the handle on the side of the light, so you'll have them right at your fingertips when you adjust the light into position using the handle. The color and brightness adjustments can also be made remotely via an iPhone app by incorporating an optional LYKOS Bluetooth Dongle. This can be very useful when you have the light mounted on a tripod and especially when you're using multiple units.
There's also an LCD display on the rear that shows all the dialed in settings, and its background color is light blue, which will make reading it easier in darker environments, and which generally has a richer, more modern look. The LCD provides info on the color temperature, brightness, battery status, and more.
The light features a recessed L Series battery mount on the rear supporting all Sony and third-party L-Series batteries. It also comes with an AC adapter that will get you started right away and that can be used for continuous studio power. A diffusion gel is also supplied, and you can also attach an optional LYKOS LED Softbox to achieve more effective diffusion. Two 1/4"-20 mounting threads are available: one on top, one on the bottom. - Key Features
-
- Lightweight, slim design with a handle on the side for precision adjustment
- Color temperature and brightness dials at your fingertips next to the handle
- Optional LYKOS Bluetooth Dongle supported for adjusting color and brightness via an iPhone app
- 48 SMT LEDs (Surface Mount Technology), designed for improved optical efficiency
- >93 CRI high color accuracy
- 1500 lux max brightness at 3.3 ft (at daylight color temperature)
- 3000K - 5600K adjustable color temperature
- 100-0% flicker-free adjustable brightness
- Color LCD display on the rear
- L-Series battery mount
- AC adapter included
- Diffusion gel included
- Optional direct-attach LYKOS LED Softbox supported
UPC: 719821395300 - 5001B Nano Black Light Stand - 6.2' (1.9m) This Manfrotto 5001B Nano Retractable Compact Light Stand is perfect for supporting small light fixtures on location. The stand folds down to ~19 inches, which makes it easy to fit into a location case. Since it has five sections, support strength is maintained as the fixture is raised; most of the column remains inside the main shaft. It has a black anodized finish. This stand replaces 001B, 3373 and 3353. It has a 5/8" top stud, topped by a 3/8" thread, which is topped by a removable 1/4"-20 threaded top.
- Quick Set Up
- Sets up easily in the matter of seconds
- Compact
- Folds back on itself to only 18.9" long
- Standard Top Stud
- Fitted with a 5/8" top stud with threads
- Double Braced Leg Base
- Provides extra stability, giving the stand more strength
UPC: 719821265870 - NP-F976 7.2V, 6600mAh L-Series Li-Ion Battery (47Wh) The Anton/Bauer NP-F976 7.2V, 6600mAh L-Series Li-Ion Battery is 47Wh battery in a compact form factor. It is compatible with most cameras that power via L-series batteries, and can also power 7.2V accessories such as monitors and lights. It can be charged using the Anton/Bauer L-series single- or dual-position charger.
- Lithium-ion battery chemistry
UPC: 872496009047 - Single Charger with US Plug for L-Series Batteries A perfect companion for your Anton Bauer L-series batteries, this Single Charger is a compact charger that connects to US wall outlets. Connect your L-series battery and within 2-6 hours the red LED indicator with turn green, and you'll have a fully charged battery ready to go. A USB output on the side of the charger will supply power to a mobile device or other USB-powered electronics.
Key Features - Charge control switch: ECO setting for slower charging, FULL setting for fast charging
- 5V USB output charges mobile devices simultaneously

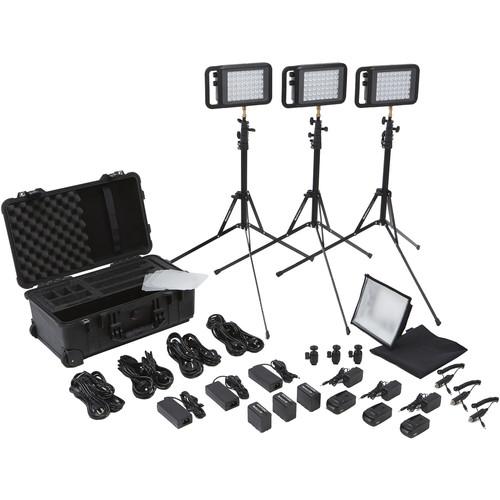

UPC: 872496009016 In the Box Bundle Items 3 x LYKOS Bi-Color On-Camera LED Light cdbrxqacrubdwufxeqwwabscfzwq 3 x 5001B Nano Black Light Stand - 6.2' (1.9m) - 3/8 (Euro) to 1/4-20" Male
3 x NP-F976 7.2V, 6600mAh L-Series Li-Ion Battery (47Wh) 3 x Single Charger with US Plug for L-Series Batteries
Also Includes - 3 x US, EU, Australia, and UK Power Cables
- Softbox
- Pelican 1510 Hard Case with Custom Foam
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Lykos Bi-Color Flight Kit with Battery Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LYKOS Bi-Color On-Camera LED Light
| | | Color Temperature | 3000 to 5600K | | Color Accuracy Standard | CRI 93 | | Dimming | Yes, 0 to 100% | | Number of LEDs | 48 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Weight | 1 lb / 470 g | | | | Box Dimensions (LxWxH) | 12.8 x 7.7 x 5.8" | - 5001B Nano Black Light Stand - 6.2' (1.9m)
| Load Capacity | 3.3 lb / 1.5 kg | | Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Stud | | Maximum Working Height | 6.2' / 1.9 m | | Minimum Working Height | 19.3" / 49 cm | | Collapsed Height | 19" / 48.3 cm | | Footprint Diameter | 3.3' / 1 m | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | Weight | 2.0 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 20.0 x 3.3 x 3.3" | - NP-F976 7.2V, 6600mAh L-Series Li-Ion Battery (47Wh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 47 Wh | | Amp-Hours | 6600 mAh | | Output Voltage | 7.2 VDC | | Dimensions (W x H x D) | 2.4 x 2.8 x 1.5" / 59.7 x 70.6 x 38.1 mm | | Weight | 0.6 lb / 0.3 kg | | | | Box Dimensions (LxWxH) | 3.1 x 2.5 x 1.7" | - Single Charger with US Plug for L-Series Batteries
| Input Power | 100-240 VAC, 50/60 Hz, 100 mA (maximum) | | Output Power | Battery Plate: 4.2-8.4 VDC, 800 mA (maximum)
USB Port: 5 VDC, 1 A (maximum) | | Plug Type | US | | Charging Time | 2-6 hours | | Dimensions | 2 x 1.3 x 3.5" / 5.1 x 3.3 x 9 cm | | Weight | 3.1 oz / 88 g | | | | Box Dimensions (LxWxH) | 7.9 x 4.9 x 2.1" |
