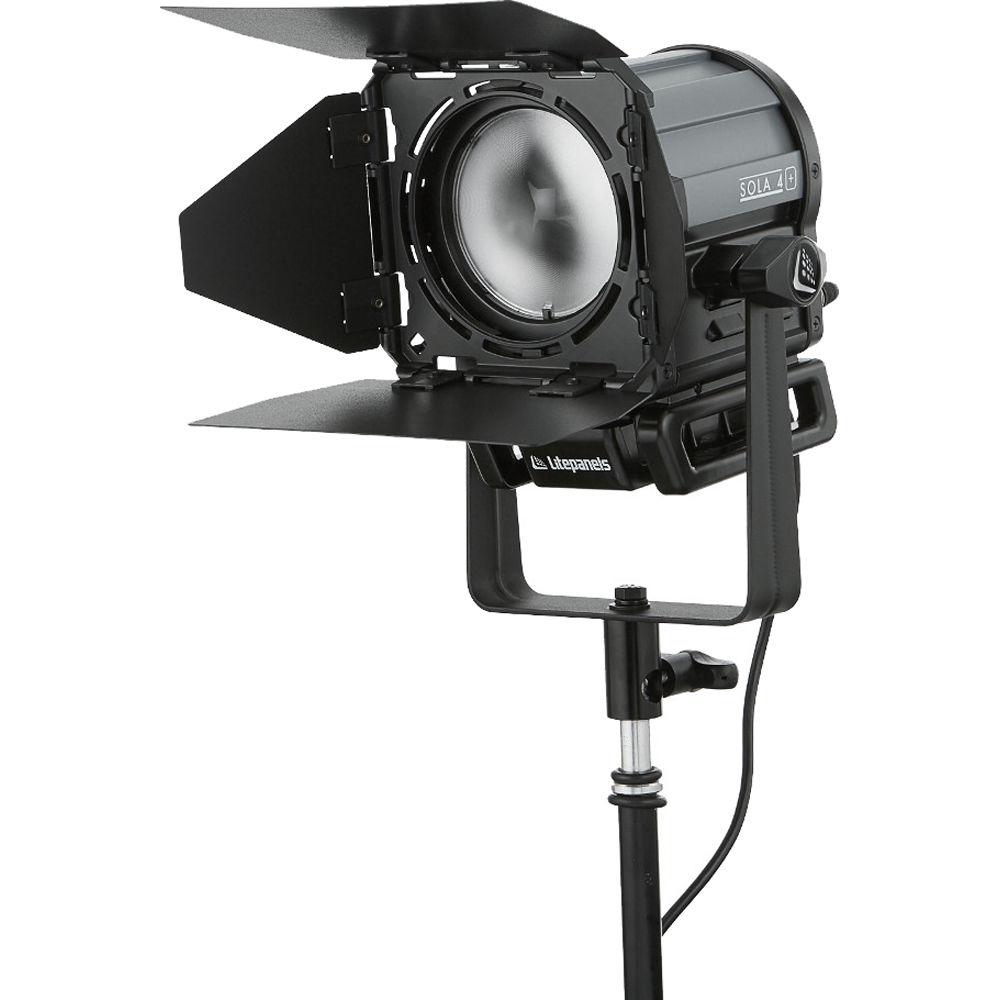

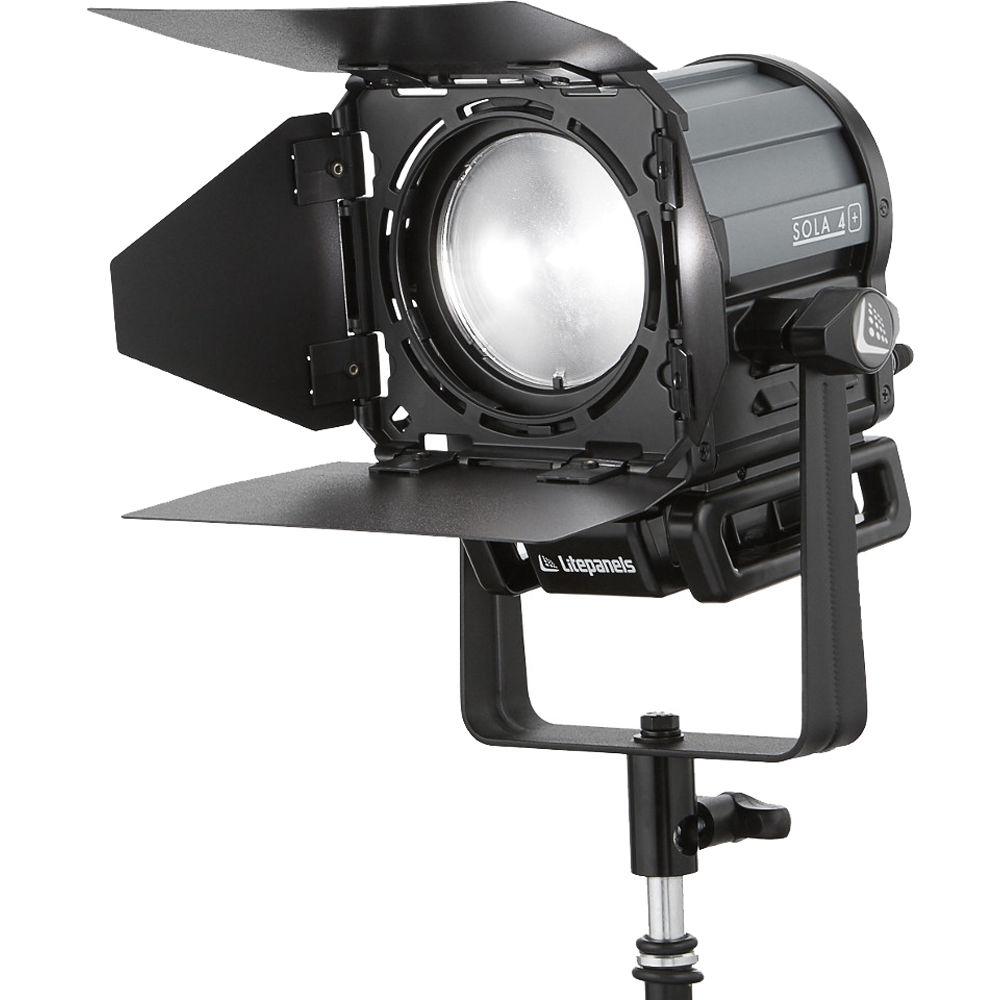

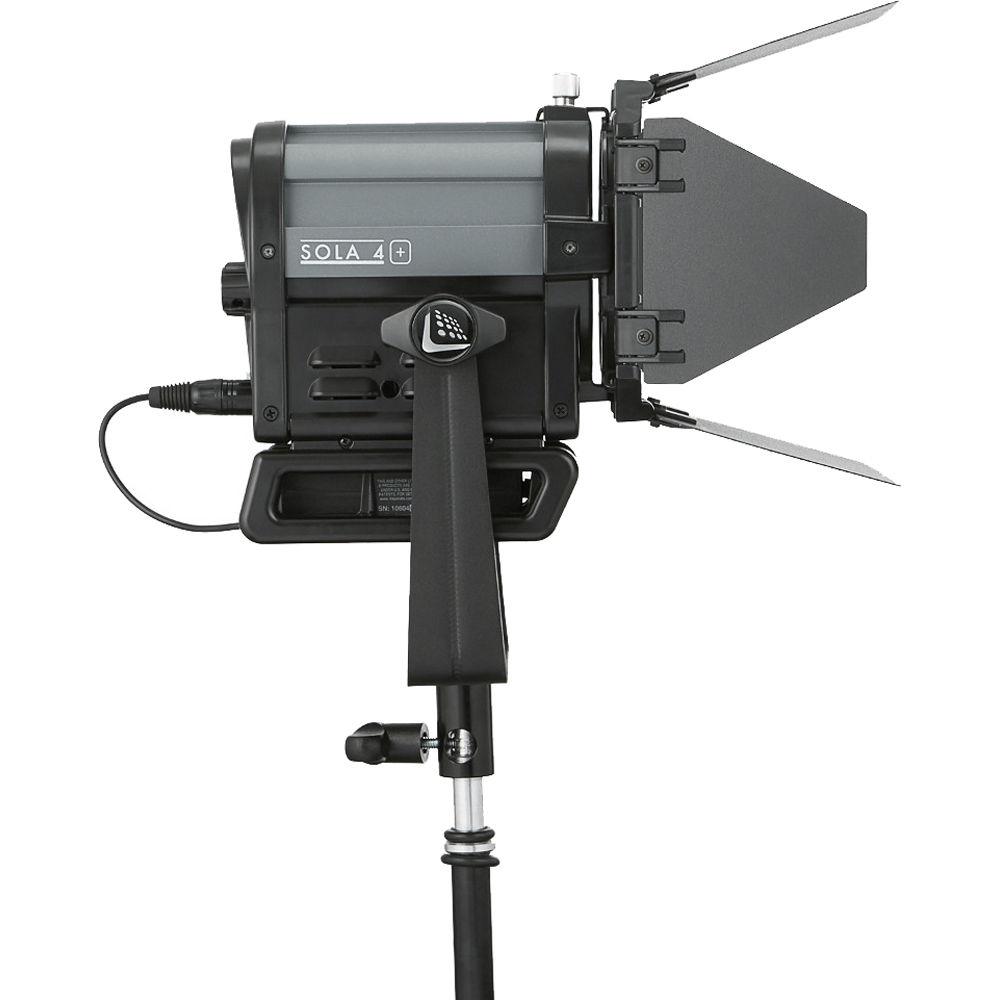

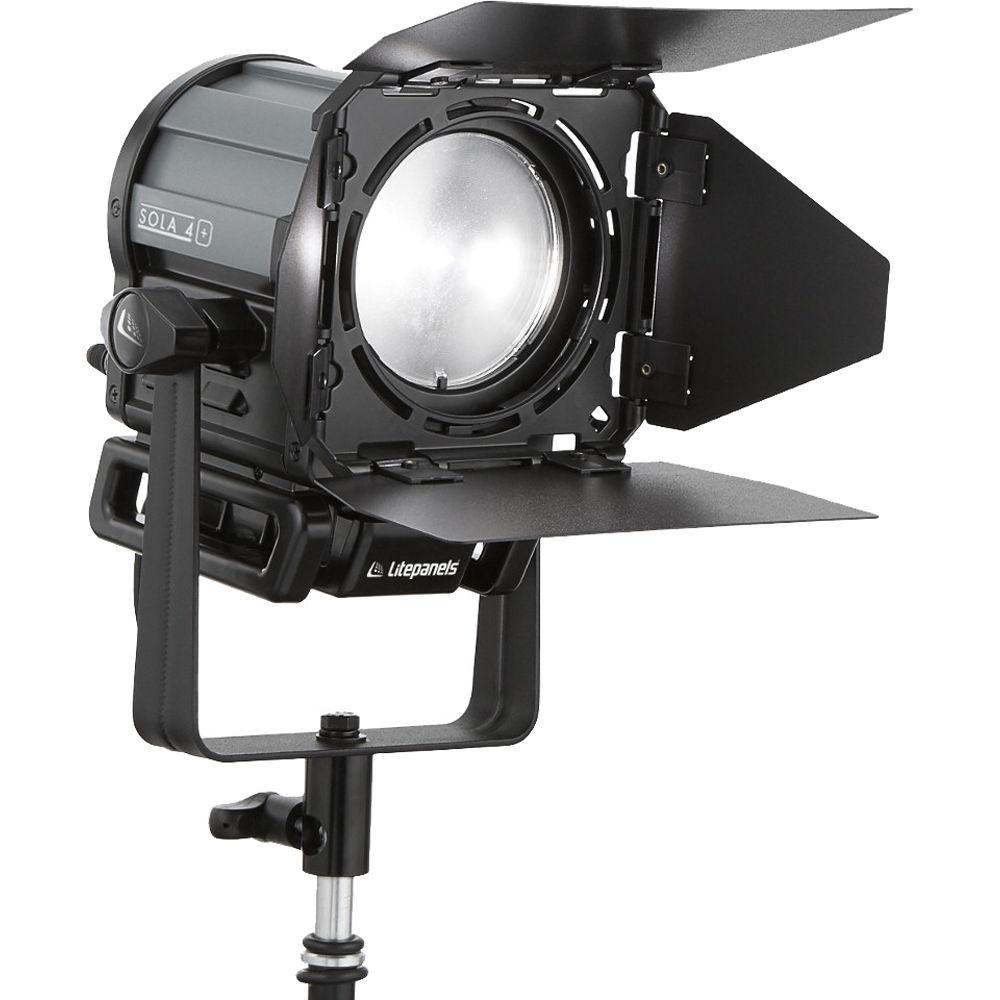

Product description The Sola 4+ Daylight Fresnel 3-Light Traveler Kit from Litepanels is built around 3 powerful, versatile studio-quality LED Fresnels that that are set up for use on the road. The kit includes 3 Sola 4+ Daylight LED 4" Fresnels. Each light comes with 4-leaf barndoors, a multi-voltage power supply and an 8.5' light stand. It all fits in the included hard, wheeled trolley case. - Sola 4+ LED Fresnel Light The Litepanels Sola 4+ LED Fresnel Light builds on the solid foundation of the Sola 4 but this time with much more power. Features include thermal management through advanced hardware and software and an enhanced 5600K LED source based on the phosphor mix research that brought us the Sola 12. These changes directly affect color fidelity, garner high CRI ratings, and extend the life of the fixture.At 15 to 71°, the 4" Fresnel has an impressively wide range of spot-to-flood adjustment and an output comparable to a 575 W HMI fixture, while drawing only 53W of power. It's also barely warm to the touch, eliminating of potential heat damage and talent discomfort. Low power consumption also means reduced HVAC costs in the studio that helps provide a rapid return of investment.Control is at the heart of the Sola 4+ design. Dimming from 100-0% can be done locally or remotely from an optional console with DMX. The Sola 4+ runs on 120-240 VAC mains power for worldwide use but can also run on optional 14-28 VDC battery sources. The lack of an external ballast trims down the fixture's form factor and allows it to weigh in at just 3.6 lb. Four-way barndoors are included for even greater control of the Sola 4+'s beam spread. If previous generations caught your eye, now is the time to check out the Sola 4+.
- Benefits
-
- A true Fresnel fixture that produces soft, directional illumination
- Litepanels proprietary heat-free LED technology
- High quality 4" Fresnel lens
- Energy savings and extended bulb life provide a <3 year ROI in typical studio applications
- Daylight color balance with no external ballast or restrike period required
- AC/DC power with DC power via 4-pin XLR-versatility in and out of the studio

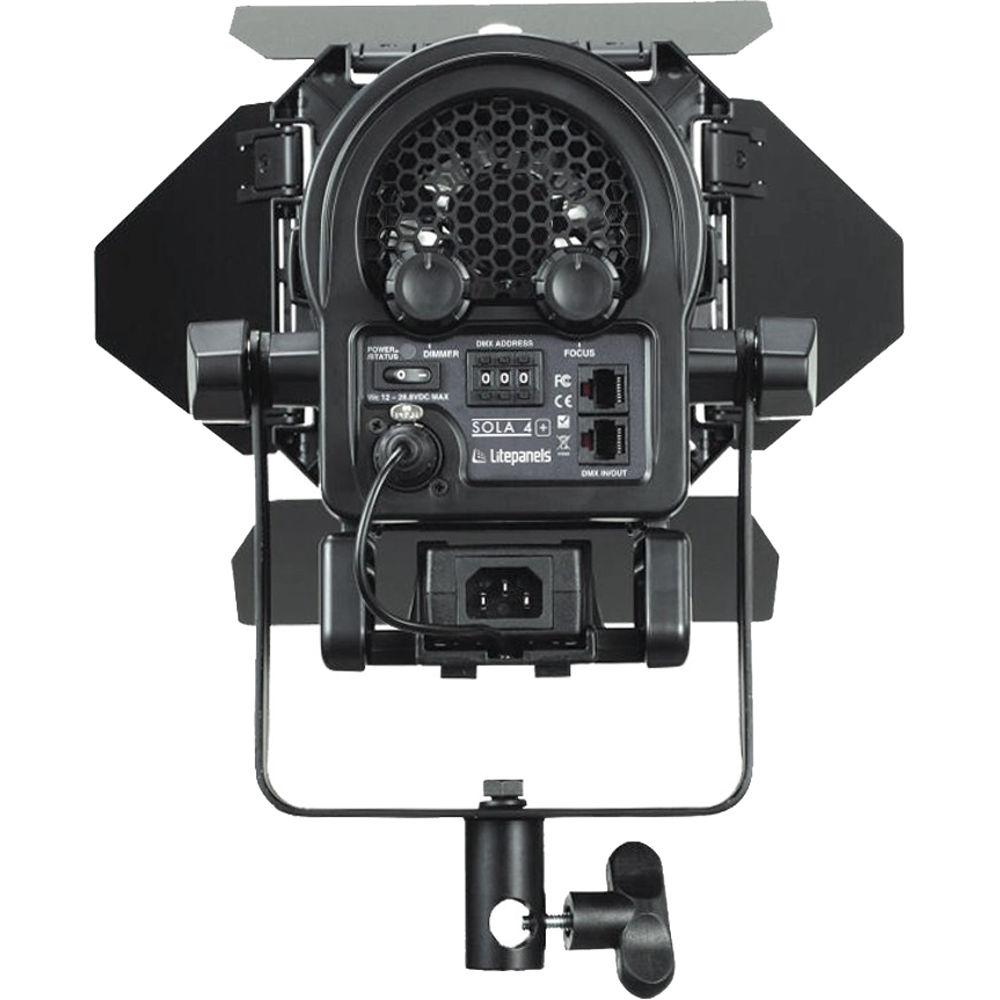

- Integrated DMX module with RJ45 (Ethernet) connectors for remote control using DMX512 protocol
- 100% to 0 dimming with no noticeable color shift or flicker at any frame rate or shutter angle
- Focus control from 15 to 71° beam via on-fixture dial or DMX
- Robust lightweight housing

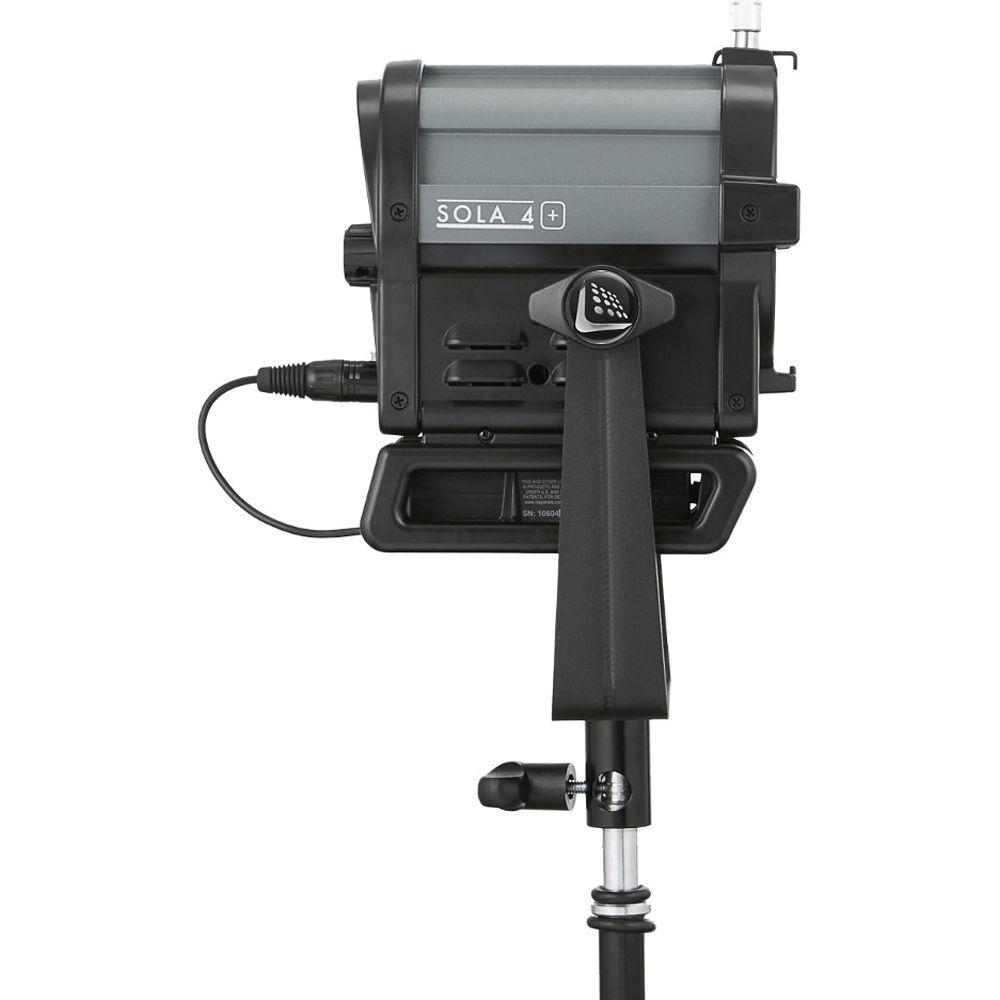

- Standard yoke with TVMP (5/8" baby-pin receiver) for easy mounting and positioning
- Low power draw with output comparable to a 575W HMI fixture
- Perfect companion to the Sola 6 LED Fresnel and Astra 1x1 family
- Photometrics
- 15° Spot
1,128 fc / 12,146 lux @ 5.0' (1.5 m) with a 1.3' (0.4 m) beam diameter and a 2.1' (0.6 m) field diameter
282 fc / 3,3036 lux @ 10' (3.0 m) with a 2.7' (0.8 m) beam diameter and a 4.3' (1.3 m) field diameter
125 fc / 1,350 lux @ 15' (4.6 m) with a 4.0' (1.2 m) beam diameter and a 6.4' (1.9 m) field diameter
71° Flood
87 fc / 936 lux @ 5.0' (1.5 m) with a 7.2' (2.2 m) beam diameter and a 8.9' (2.7 m) field diameter
22 fc / 234 lux @ 10' (3.0 m) with a 14.4' (4.4 m) beam diameter and a 17.7' (5.4 m) field diameter
10 fc / 104 lux @ 15' (4.6 m) with a 21.6' (6.6 m) beam diameter and a 26.6' (8.1 m) field diameter UPC: 859058005242 - Kit Light Stand (8.5') This 8.5' Kit Light Stand from Litepanels is an aluminum 4-section support with a maximum height of 8.5' and a minimum height of 2.4'. UPC: 891353002854

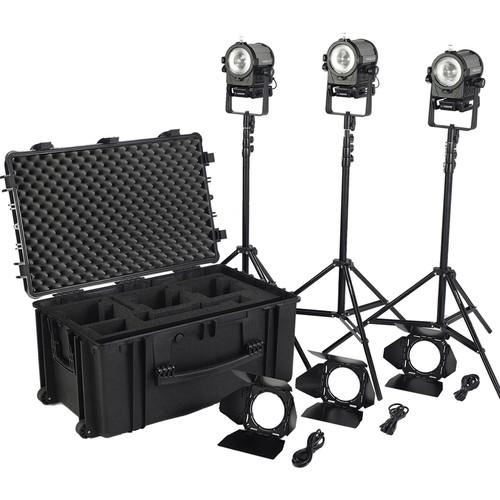

In the Box Bundle Items 3 x Sola 4+ LED Fresnel Light - 4-Way Barndoors for Sola 4
- Yoke Kit for Sola 4 and Inca 4
- Sola 4 AC/DC Power Supply (100-240V)
- Limited 1-Year Warranty Extension to 2-Years Total After Online Registration
3 x Kit Light Stand (8.5')
Also Includes - Hard, Wheeled Trolley Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Litepanels Sola 4 Daylight Fresnel 3-Light Traveler Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sola 4+ LED Fresnel Light
| Light Source | LED | | Equivalent | 575 W HMI fixture | | Color Range | >5600K | | CRI / TLCI | 95 | | DMX | Yes via RJ45 | | Dimming | 100 - 0 % | | Lens | 4.0" (10.16 mm) | | Focus | 15 to 71° | | Operating Voltage | Power Supply: 120-240 VAC, 50/60 Hz
14-28 VDC via 4-pin XLR | | Power Consumption | 53 W | | Mount | 5/8" (16 mm) | | DMX Interface | Yes, via RJ45 | | Dimensions | 11 x 8.0 x 7.0" (28 x 20.3 x 17.8 cm) | | Weight | 3.6 lb (1.63 kg) | | | | Box Dimensions (LxWxH) | 14.4 x 11.7 x 10.7" | - Kit Light Stand (8.5')
| Mounting Options | 5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 8.5' / 2.6 m | | Minimum Working Height | 2.4' / 0.7 m | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Aluminum | | | | Box Dimensions (LxWxH) | 32.5 x 4.25 x 4.25" |
