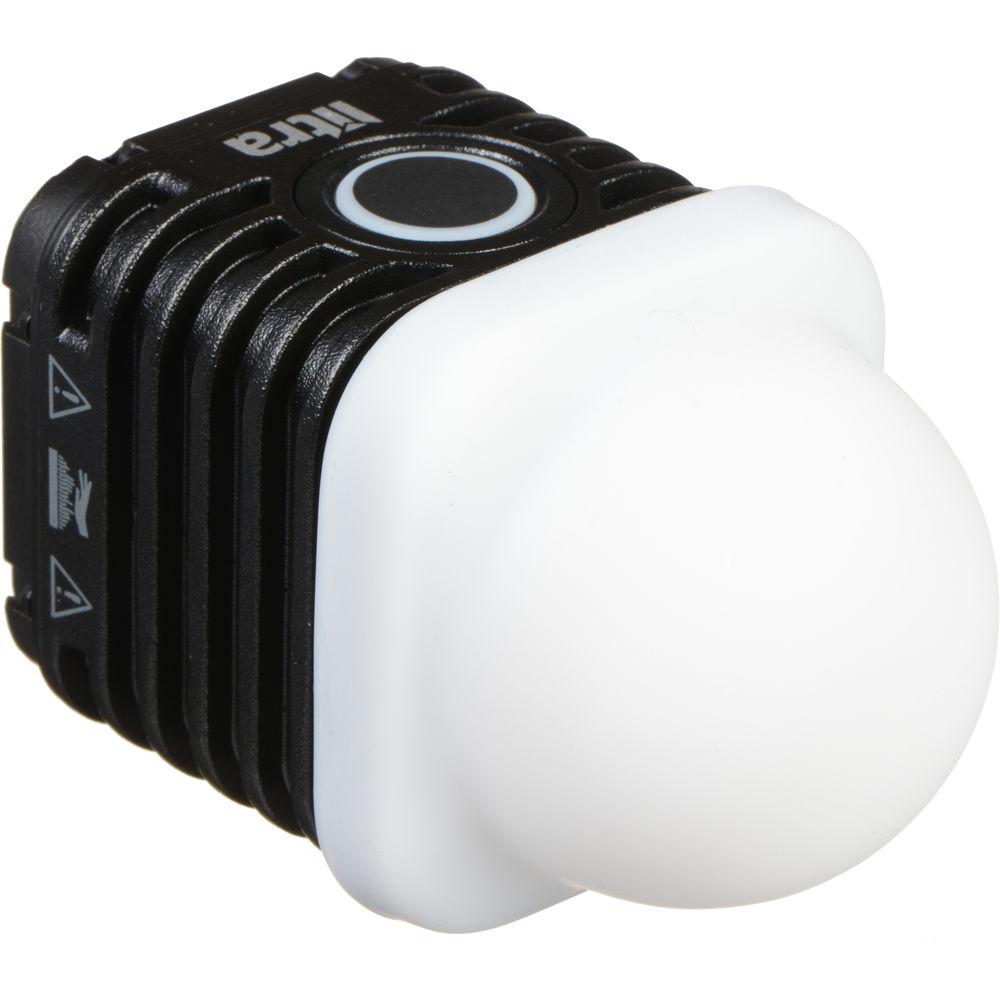

User Manual for LITRA LitraTorch Photo and Video Light Click to enlarge the picture
Contents of the user manual for the LITRA LitraTorch Photo and Video Light
- Product category: On Camera Lights LITRA
- Brand: LITRA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LITRA On Camera Lights
 |
User manual for the LITRA LitraTorch Photo and Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LITRA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LITRA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LITRA product will considerably shorten its lifespan!
|
Product description - The LitraTorch Story
- Litra - Professional Adventure Lighting

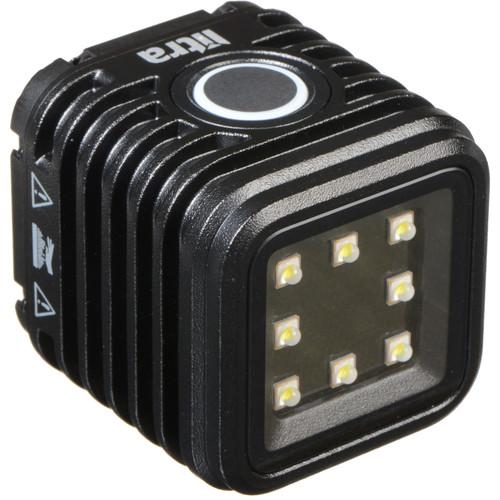

Litra's LitraTorch Photo and Video Light is a small compact light fixture no larger than a GoPro Sessions camera. It features a daylight balanced (5700K) output in either strobe or continuous output. It is powered by a rechargeable lithium-ion battery and can be charged via micro-USB charging port. The output is flicker-free at any of the three continuous output settings.
The light offers a run-time of four hours in low mode and 35 minutes in high mode. The 80° beam angle matches the camera view with no hot spots or harsh edges. The LitraTorch can also be used with your camera for flicker-free slow motion video recording. It also comes with two built-in 1/4"-20 standard mounting holes, an embedded magnet, a GoPro mount, belt clip, two magnetic mounts, a basic shoe mount, and slip-on diffusion. The fixture meets MIL-STD-810G standards and is water-resistant up to 30'. In addition, it can withstand drops up to 4'. - 100, 450, 800 lumens stepped brightness levels in continuous output, 2200 lumens when used as a strobe
- Features eight LEDs with each LED mounted on its own reflector
- Supports flicker-free operation
- Smooth light pattern (5700K daylight temperature)
- Lithium-ion rechargeable battery
- Standard micro-USB charging port
- Aluminum body construction
- Complies with MIL-STD-810G spec
- Blended/smooth lux beam (no center hot spot)
- Aluminum body construction
- Battery life up to seven hours (strobe) and four hours (continuous)
- Intelligent thermal management
- Can be used cordless or with external power
- One-touch button operation
- Fits in a GoPro Session frame

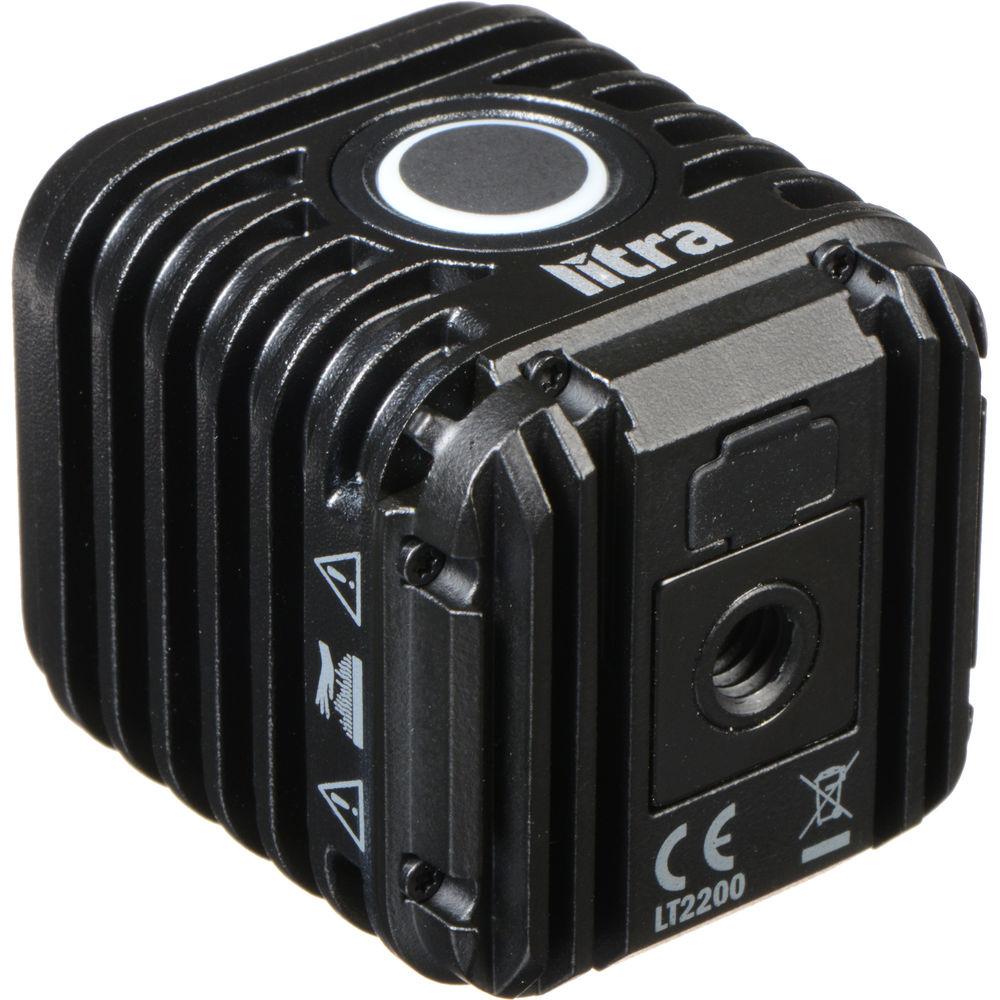

- Flexible mounting options with two 1/4"-20 standard camera mounting holes, an embedded magnet, a GoPro mount, belt clip, two magnetic mounts, slip-on diffusion, and a basic cold shoe mount so you can mount the Litra Torch to you camera

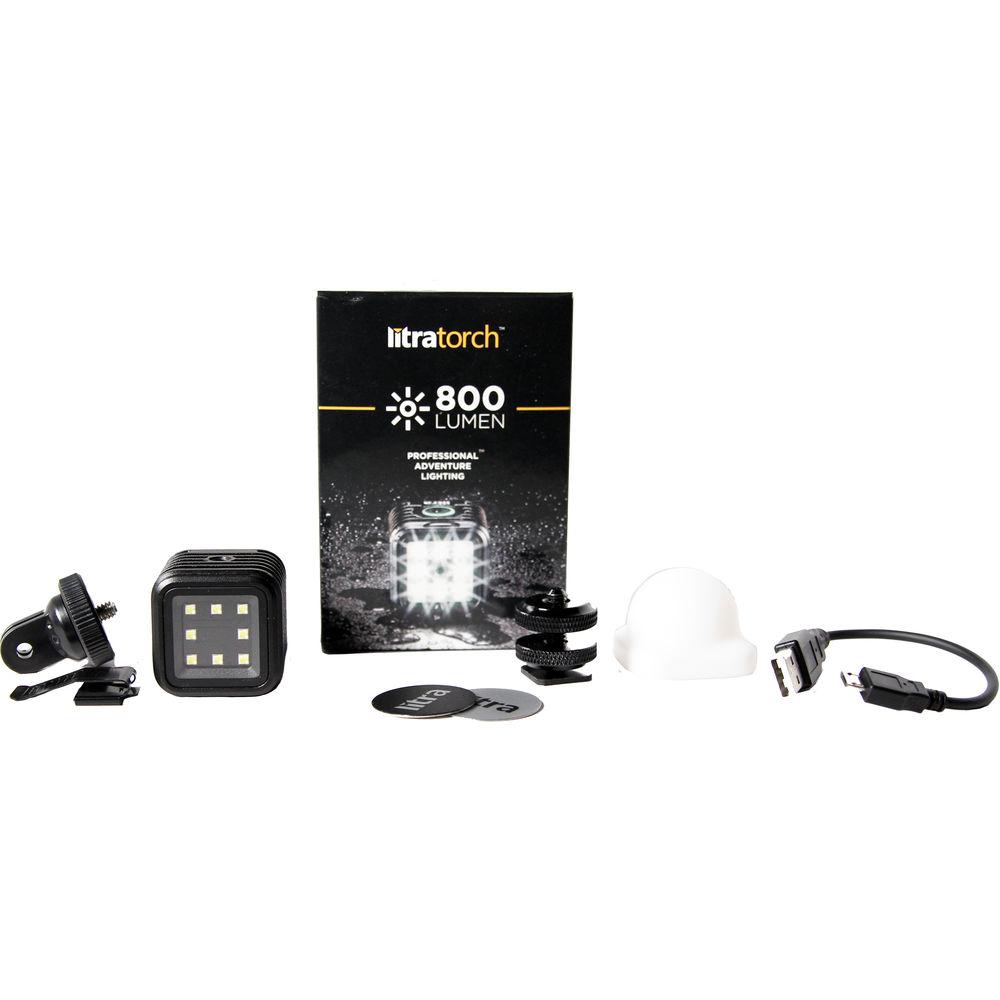

UPC: 710619489805 In the Box LITRA LitraTorch Photo and Video Light White Diffuser 2 x Magnetic Mounts Cold Shoe Mount Belt Clip GoPro 1/4"-20 Finger Mount USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LITRA LitraTorch Photo and Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLITRA LitraTorch Specs | Lamp Type | 8 LEDs | | Brightness | Level 1: 100 lumens
Level 2: 450 lumens
Level 3: 800 lumens
Strobe: 2200 lumens | | CRI | >70 | | Mount Type | 2 x 1/4"-20 mounting holes
Rear Magnet | | Color Temperature | 5700K | | Power Source | Lithium-ion rechargeable battery | | Battery Life | >7 hours Strobe
>4 hours @ Level 1
>70 minutes @ Level 2
>35 minutes @ Level 3 | | Beam Angle | 80° | | Military Specification | MIL-STD-810G
Shock/Drop/Thermal/Salt Spray | | Waterproofing | Up to 30' / 10 m | | Maximum Drop Height | 4' / 1.2 m on each of its six faces, 12 edges and eight corners, for a total of 26 drops | | Power Connector | Micro-USB | | Dimensions | 1.5 x 1.5 x 1.65" / 38 x 38 x 42 mm | | Weight | 3.17 oz / 90 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.6 x 3.2 x 2.2" |
