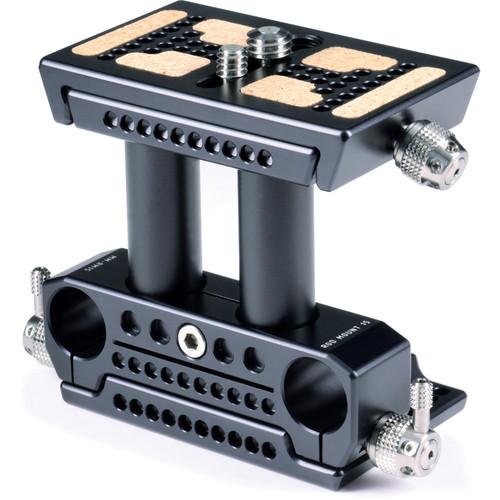

User Manual for LockCircle BasePlate MicroMega Kit 55 Click to enlarge the picture
Contents of the user manual for the LockCircle BasePlate MicroMega Kit 55
- Product category: DSLR Video Supports & Rigs LockCircle
- Brand: LockCircle
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LockCircle DSLR Video Supports & Rigs
|
User manual for the LockCircle BasePlate MicroMega Kit 55 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LockCircle product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LockCircle user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LockCircle product will considerably shorten its lifespan!
|
Product description The BasePlate MicroMega Kit 55 from LockCircle includes the MicroMega Mounting Base Plate, MicroMega Slider Kit, MicroMega Top Plate, 15mm Rod Mount with Titanium Knobs, and two MicroMega Risers 55.
The MicroMega is a height/length-adjustable, 15mm modular baseplate system supporting a broad range of camera sizes. With the MicroMega concept, your baseplate can follow a wide range of set-ups from a small, compact action camera to a bigger production camera. Using MicroMega, the standard 15mm rod distance (85mm from the lens optical center) can be adjusted precisely.
The Top Slider camera plate can be used in conjunction with the MicroMega Mount Plate for mounting the camera on a tripod head, shoulder rig, or car, using 1/4”-20 or 3/8”-16 screws. The MicroMega is CNC-machined from aluminum and comes with LockCircle's custom Titanium Grade 5 screws. The spring-loaded, indexable knobs are also custom CNC-machined from Titanium Grade 5, with a carbon steel spring for reliability. - MicroMega Mounting Baseplate The LOCKCIRCLE Mounting Baseplate is designed for use with the MicroMega modular baseplate system. It is CNC-machined from aluminum and features one 3/8"-16 and four 1/4"-20 mounting thread holes.
- Micromega Slider Kit The LOCKCIRCLE Micromega Slider Kit includes the MM-TS Slider Plate and MM-MMP Mount Plate.
- BasePlate MicroMega Top Plate
- BasePlate Rod Mount 15mm Titanium Knobs
- BasePlate MicroMega Riser 55 (2-Pack)
In the Box Bundle Items MicroMega Mounting Baseplate Micromega Slider Kit - MicroMega Top Slider Camera Plate
BasePlate MicroMega Top Plate BasePlate Rod Mount 15mm Titanium Knobs 2 x BasePlate MicroMega Riser 55 (2-Pack)
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the LockCircle BasePlate MicroMega Kit 55 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MicroMega Mounting Baseplate
| Material | CNC-machined from aircraft-grade aluminum | | Threaded Holes | 4 x 1/4"-20
1 x 3/8"-16 | | Dimensions | 2.8 x 1.8 x 0.4" (7.2 x 4.6 x 1.0 cm) | | Weight | 1.7 oz (48 g) | - Micromega Slider Kit
| Dimensions | 3 x 1.85 x 0.7" (7.6 x 4.7 x 1.8 cm) | | Weight | 3.7 oz (105 g) | - BasePlate MicroMega Riser 55 (2-Pack)
| | | Box Dimensions (LxWxH) | 5.0 x 3.3 x 1.9" | - BasePlate MicroMega Top Plate
- BasePlate Rod Mount 15mm Titanium Knobs
