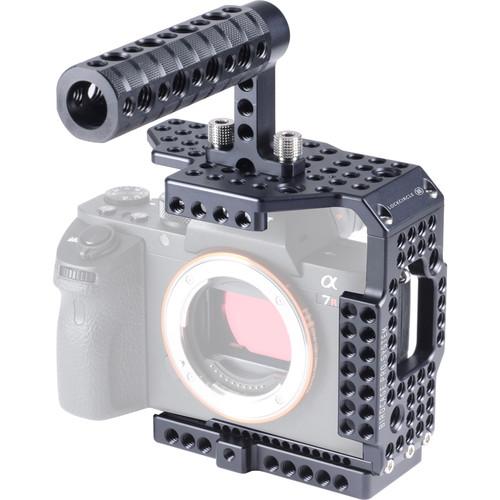

User Manual for LockCircle BirdCage a7 MK2 PRO Flex Bundle Click to enlarge the picture
Contents of the user manual for the LockCircle BirdCage a7 MK2 PRO Flex
- Product category: DSLR Video Supports & Rigs LockCircle
- Brand: LockCircle
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LockCircle DSLR Video Supports & Rigs
|
User manual for the LockCircle BirdCage a7 MK2 PRO Flex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LockCircle product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LockCircle user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LockCircle product will considerably shorten its lifespan!
|
Product description The BirdCage a7 MK2 PRO Flex Bundle from LockCircle is comprised of the BirdCage PRO a7 MK2 camera cage, a top grip handle, and the LockPort Flex kit with MicroPort. The BirdCage PRO comes with an asymmetric design and securely fits your Sony a7R II or a7S II cameras leaving the right-hand camera grip and controls open for rapid and comfortable use. It features numerous 1/4" and 3/8" mounting threads on the side, front, top, and bottom of the cage for accessory mounting. Additionally, the grip handle can support a 15mm rod and offers 1/4"-20 and 3/8"-16 accessory threads all throughout its aluminum construction. The top handle allows for low-mode shooting.The integrated LockPort Flex sets the HDMI port output in the best position to reach viewfinders and monitors with an improved cable layout on your rigs. This helps improve gimbal balancing by minimizing unwanted cable pulling, and eliminates drag or erratic camera movements in your shots. The LockPort Flex comes with 3 micro-to-full-size HDMI cables (4, 6, and 8") to offer variety of mounting options. The MicroPort further secures the micro HDMI/mini USB connectors with safety locking, titanium knobs. - BirdCage PRO a7 MK2 Kit with Twin Baseplates Take advantage of the UHD recording capabilities of the Sony a7R II or a7S II by outfitting the camera for video production use with the BirdCage PRO a7 MK2 Kit with Twin Baseplates from LockCircle. The cage provides a durable mounting frame for both the camera and accessories. Its 3/4 design offers accessory mounting holes on both the side and top of the camera, while leaving access to the camera grip open for easy control and handheld operation. To keep weight down and maintain a low profile, the cage includes an ultra-thin baseplate that is ideal for working with gimbals and drones. A T-riser baseplate is included for when you need to construct a larger rig, and attaches directly to the ultra-thin baseplate. The T-riser works in combination with optional accessories to support Metabones and P+S Technik IMS lens mount adapters.
- Key Features
-
- Camera cage for Mark II version a7 series cameras: a7 II, a7R II, a7S II
- 1/4"-20 and 3/8"-16 accessory mounting threads
- Design leaves grip side open for access to controls and battery compartment
- Ultra-thin baseplate for lightweight, low-profile mounting
- T-riser baseplate compatible with optional blocks to support Metabones and P+S Technik lens mount adapters
- Optional top handle, shoe mount, focal plane pin, cable lock, and HDMI adapter available
- LockPort FLEX Micro to Full-Size HDMI Cable Kit for BirdCage PRO (4, 6, 8")
- Top Grip Handle for BirdCage PRO
In the Box Bundle Items BirdCage PRO a7 MK2 Kit with Twin Baseplates - Limited Lifetime Warranty
LockPort FLEX Micro to Full-Size HDMI Cable Kit for BirdCage PRO (4, 6, 8") Top Grip Handle for BirdCage PRO Table of Contents
|
Upload User Manual
Have you got an user manual for the LockCircle BirdCage a7 MK2 PRO Flex Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BirdCage PRO a7 MK2 Kit with Twin Baseplates
| Accessory Mounting Threads | 1/4"-20 and 3/8"-16 | | Tripod Mounting Threads | 1/4"-20 and 3/8"-16 (on t-riser baseplate) | | Optical Center Height | With ultra-thin baseplate: 1.635" (41.52 mm)
With t-riser baseplate: 1.987" (50.49 mm) | | Dimensions | Cage (with ultra-thin baseplate): 1.036" (102.53 mm)
Cage (with t-tiser baseplate): 4.39" (111.5 mm) | | Weight | Cage: 4.5 oz (128 g) | | | | Box Dimensions (LxWxH) | 8.2 x 4.6 x 4.2" | - LockPort FLEX Micro to Full-Size HDMI Cable Kit for BirdCage PRO (4, 6, 8")
| | | Cable Type | Cable kit - 4K support | | Plated Connector | Gold | | Features | 4K format support, locking connector | | | | Connector | 19 pin HDMI Type A - female | | Connector (Second End) | 19 pin micro HDMI Type D - male | | | | Included Qty x Type | HDMI cable - 19 pin HDMI Type A (female) to 19 pin micro HDMI Type D (male), 3.9 in
HDMI cable - 19 pin HDMI Type A (female) to 19 pin micro HDMI Type D (male), 5.9 in
HDMI cable - 19 pin HDMI Type A (female) to 19 pin micro HDMI Type D (male), 7.9 in | | | | Box Dimensions (LxWxH) | 4.7 x 2.4 x 1.2" | - Top Grip Handle for BirdCage PRO
| | | Accessory Type | Handle grip | | | | Box Dimensions (LxWxH) | 4.9 x 3.3 x 1.8" |
