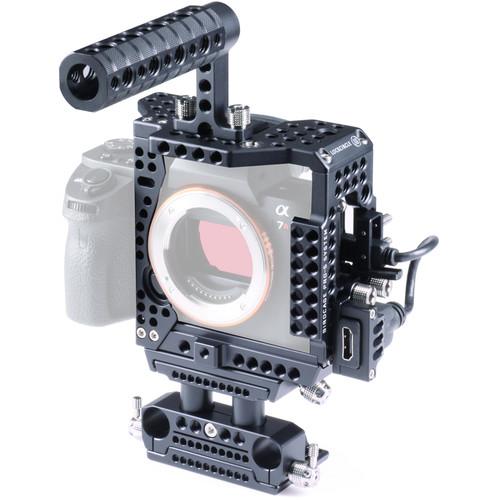

Product description The black BirdCage PRO-S a7 MK2 MicroMega Bundle LockCircle is designed for use with the Sony a7R II and a7S II cameras. It includes a form-fitted camera cage, top grip handle, MicroMega Plus Kit 35, LockPort Flex kit with MicroPort, Topeak LumiTool 7, and Stubby Tool. The cage is specifically designed for use with the Sony sound capture accessories using a multi-interface hot shoe compatible system. Its asymmetric design keeps the right-hand camera grip and controls open for easy operation and handling. The cage features numerous 1/4" and 3/8" mounting threads for accessory mounting. The top grip handle also features 1/4"-20 and 3/8"-16 accessory threads and can support a 15mm rod through its aluminum construction. The handle allows for low-mode shooting.The MicroMega baseplate Kit 35 attaches to the T-riser plate allowing you to mount this BirdCage onto a 15mm rod system. It is comprised of a mounting baseplate, top plate with safety unlocking system, camera sliding top plate, 15mm rod mount with titanium knobs, and two 35 riser rods. The integrated LockPort Flex sets the HDMI port output in the best position to reach viewfinders and monitors with an improved cable layout on your rigs. The LockPort Flex comes with 3 micro-to-full-size HDMI cables (4, 6, and 8") to offer variety of mounting options. The MicroPort further secures the micro HDMI/mini USB connectors with safety locking, titanium knobs.The included Topeak LumiTool 7 is an ultra-light, full metal 7-function compact wrench tool with one detachable super bright LED light cartridge for working in the dark. In addition, the straight blade stubby T-handle screwdriver allows you to tighten and loosen the camera tie-down screw. Its ergonomic grip with finger grooves allows for comfortable use, and the fat blade offers a secure grip. - BirdCage PRO-S Kit for Sony a7 II Series (Black) The black BirdCage PRO-S from LockCircle is a form-fitting, professional cage for the Sony a7 II, a7R II, and a7S II cameras. It leaves the grip-side of the camera accessible for unencumbered operation and handling. Similar in nature to the BirdCage PRO model, the PRO-S (with the "S" standing for "sound") doesn't block the multi-interface shoe, allowing users to attach compatible external microphones and audio adapters. For accessory mounting, you'll find numerous threaded holes along the top, bottom, side, and front of the cage. The riser baseplate features a receiver for attaching an optional Meta Block or IMS block to support select Metabones and P+S Technik Positive-Locking System lens mount adapters.
- Features
-
- Camera cage for a7 II series cameras: a7 II, a7R II, a7S II
- Design leaves grip side open for access to controls and battery compartment
- CNC Machined from billet aluminum
- 1/4"-20 and 3/8"-16 accessory mounting threads
- Riser baseplate compatible with optional Meta Block and IMS Block to support Metabones and P+S Technik Positive-Lock lens mount adapters
- Optional top handle, shoe mount, focal plane pin, cable lock, and LockPort Flex micro-HDMI to HDMI adapter available
- BasePlate MicroMega Plus Kit 35 The BasePlate MicroMega Plus Kit 35 from LockCircle includes the MicroMega Mounting Base Plate, MicroMega Slider Kit, MicroMega Top Plate, 15mm Rod Mount with Titanium Knobs, and four MicroMega Risers 35.
The MicroMega is a height/length-adjustable, 15mm modular baseplate system supporting a broad range of camera sizes. With the MicroMega concept, your baseplate can follow a wide range of set-ups from a small, compact action camera to a bigger production camera. Using MicroMega, the standard 15mm rod distance (85mm from the lens optical center) can be adjusted precisely.
The Top Slider camera plate can be used in conjunction with the MicroMega Mount Plate for mounting the camera on a tripod head, shoulder rig, or car, using 1/4”-20 or 3/8”-16 screws. The MicroMega is CNC-machined from aluminum and comes with LockCircle's custom Titanium Grade 5 screws. The spring-loaded, indexable knobs are also custom CNC-machined from Titanium Grade 5, with a carbon steel spring for reliability. - Top Grip Handle for BirdCage PRO
- LockPort FLEX Micro to Full-Size HDMI Cable Kit for BirdCage PRO (4, 6, 8")
In the Box Bundle Items BirdCage PRO-S Kit for Sony a7 II Series (Black) uefxaeafdaxrzfsffwxfdqyczfsteere - Limited Lifetime Warranty
Top Grip Handle for BirdCage PRO LockPort FLEX Micro to Full-Size HDMI Cable Kit for BirdCage PRO (4, 6, 8") BasePlate MicroMega Plus Kit 35 - MicroMega Mounting Baseplate
- BasePlate MicroMega Top Plate
- BasePlate Rod Mount 15mm Titanium Knobs
4 x - BasePlate MicroMega Riser 35 (2-Pack)
- Limited Lifetime Warranty
Also Includes - Topeak LumiTool 7
- Stubby Tool
Table of Contents
|
Upload User Manual
Have you got an user manual for the LockCircle BirdCage PRO-S a7 MK2 MicroMega Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BirdCage PRO-S Kit for Sony a7 II Series (Black)
| Material of Construction | CNC-machined billet aluminum | | Accessory Mounting Threads | 1/4"-20 and 3/8"-16 | | Tripod Mounting Threads | 1 x 1/4"-20
1 x 3/8"-16 | | Optical Center Height | 1.99" (50.5 mm) | | Height | 4.3" (10.8 cm) | | Weight | 7 oz (200 g) | | | | Box Dimensions (LxWxH) | 8.2 x 4.6 x 4.2" | - Top Grip Handle for BirdCage PRO
| | | Accessory Type | Handle grip | | | | Box Dimensions (LxWxH) | 4.9 x 3.3 x 1.8" | - LockPort FLEX Micro to Full-Size HDMI Cable Kit for BirdCage PRO (4, 6, 8")
| | | Cable Type | Cable kit - 4K support | | Plated Connector | Gold | | Features | 4K format support, locking connector | | | | Connector | 19 pin HDMI Type A - female | | Connector (Second End) | 19 pin micro HDMI Type D - male | | | | Included Qty x Type | HDMI cable - 19 pin HDMI Type A (female) to 19 pin micro HDMI Type D (male), 3.9 in
HDMI cable - 19 pin HDMI Type A (female) to 19 pin micro HDMI Type D (male), 5.9 in
HDMI cable - 19 pin HDMI Type A (female) to 19 pin micro HDMI Type D (male), 7.9 in | | | | Box Dimensions (LxWxH) | 4.7 x 2.4 x 1.2" | - BasePlate MicroMega Plus Kit 35
