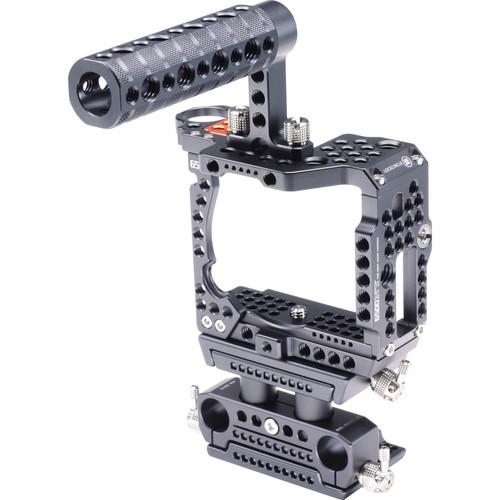

User Manual for LockCircle Cage 6500NY Micromega Bundle Click to enlarge the picture
Contents of the user manual for the LockCircle Cage 6500NY Micromega Bundle
- Product category: DSLR Video Supports & Rigs LockCircle
- Brand: LockCircle
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LockCircle DSLR Video Supports & Rigs
|
User manual for the LockCircle Cage 6500NY Micromega Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LockCircle product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LockCircle user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LockCircle product will considerably shorten its lifespan!
|
Product description Protect your Sony a6500 and a6300 4K cameras and expand their video capabilities with the 6500NY Cage Mega Bundle from LockCircle. This bundle includes the 6500NY camera cage, a top grip handle, the MicroMega Kit 45, the LockPort Flex kit with MicroPort, and a Cinnabar 9-thread brick. The cage's asymmetrical design leaves the camera's right-hand grip and controls open for rapid and comfortable use. Numerous threaded holes along the top, bottom, side, and front of the cage allow for accessory mounting.Additionally, the top grip handle can support a 15mm rod and offers 1/4"-20 and 3/8"-16 accessory threads all throughout its aluminum construction. The MicroMega Kit 45 allows you to mount the 6500NY Cage on a standard 15mm rod system. Moreover, the Cinnabar brick provides nine additional 1/4"-20 threads when the camera's original flash is not used.The integrated LockPort Flex sets the HDMI port output in the best position to reach viewfinders and monitors with an improved cable layout on your rigs. This helps improve gimbal balancing by minimizing unwanted cable pulling, and eliminates drag or erratic camera movements in your shots. The LockPort Flex comes with three micro-to-full-size HDMI cables (4, 6, and 8") to offer a variety of mounting options. The MicroPort further secures the camera port USB/HDMI connectors with safety locking, titanium knobs. - 6500NY Cage Kit for Sony a6300 & a6500 Cameras The 6500NY Cage Kit from LockCircle is designed to securely fit the Sony a6500 and a6300 4K cameras. The asymmetrical design keeps the right-hand grip and controls open for rapid and comfortable use. The camera's pop-out flash can be easily accessed without limitations. The camera baseplate features a receiver for attaching an optional Meta-Block mount for Metabones, and IMS-Block to support IMS-mounts for monolithic locking, designed to reach follow focus work without annoying mechanical plays of the bayonet. The aluminum cage sports several 1/4"-20 and 3/8"-16 threads for attaching a variety of accessories with ease.
This lightweight camera cage is suitable for camera cars, drones, gimbals, or any heavy-duty mounting. The camera can be secured using the included titanium 1/4"-20 screw. The cage features several threads to mount the AC tape measurement hook, and offers vertical camera mounting option. The original camera (pop-out) flash works with the 6500NY without limitations. Additionally, the cage allows you to integrate the optional MicroPort micro-HDMI/USB connectors, and the LockPort Flex micro to full-sized HDMI output for secured connection when shooting in rough production environments. Key Features - Compatible with Sony a6500 and a6300 cameras
- Right-hand camera grabbing/control with original Sony ergonomics
- Can be used with the BirdCage top and BoomBooster grip handles (available separately)
- CNC Machined from billet aluminum
- Includes a 1/4"-20 titanium screw
- Original camera flash compatible
- Optional nine-brick threaded module for mounting expansion
- Compatible with the Sony XLR-K2M/K1M adapter kit with microphone
- Can be used with the MicroMega ultra compact modular baseplates for expansion (available separately)
- Focal plane thread for AC measurement hook
- Vertical camera mounting is available
- BasePlate MicroMega Kit 45 The BasePlate MicroMega Kit 45 from LockCircle includes the MicroMega Mounting Base Plate, MicroMega Slider Kit, MicroMega Top Plate, 15mm Rod Mount with Titanium Knobs, and two MicroMega Risers 45.
The MicroMega is a height/length-adjustable, 15mm modular baseplate system supporting a broad range of camera sizes. With the MicroMega concept, your baseplate can follow a wide range of set-ups from a small, compact action camera to a bigger production camera. Using MicroMega, the standard 15mm rod distance (85mm from the lens optical center) can be adjusted precisely.
The Top Slider camera plate can be used in conjunction with the MicroMega Mount Plate for mounting the camera on a tripod head, shoulder rig, or car, using 1/4”-20 or 3/8”-16 screws. The MicroMega is CNC-machined from aluminum and comes with LockCircle's custom Titanium Grade 5 screws. The spring-loaded, indexable knobs are also custom CNC-machined from Titanium Grade 5, with a carbon steel spring for reliability. - 9-Thread Brick for 6300NY Cage (Cinnabar) Use this 9-Thread Brick from LockCircle to add nine 1/4"-20–threaded mounting holes to the 6300NY Cage. This CNC Machined, billet aluminum block mounts in place of the Sony Alpha a6300 camera's original flash.
- Top Grip Handle for BirdCage PRO
- LockPort Flex Kit for Sony a6300 with Three Micro to Full HDMI Cables
In the Box Bundle Items 6500NY Cage Kit for Sony a6300 & a6500 Cameras zafcqubu - Titanium 1/4"-20 Camera Screw
Top Grip Handle for BirdCage PRO zafcqubu BasePlate MicroMega Kit 45 - MicroMega Mounting Baseplate
- BasePlate MicroMega Top Plate
- BasePlate Rod Mount 15mm Titanium Knobs
2 x - BasePlate MicroMega Riser 45 (2-Pack)
- Limited Lifetime Warranty
LockPort Flex Kit for Sony a6300 with Three Micro to Full HDMI Cables 9-Thread Brick for 6300NY Cage (Cinnabar) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the LockCircle Cage 6500NY Micromega Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 6500NY Cage Kit for Sony a6300 & a6500 Cameras
| Material of Construction | CNC Machined from billet aluminum | | Mounting Threads | 105 x 1/4"-20
4 x 3/8"-16 | | Dimensions | 4.3 x 2.1 x 3.4" (11.0 x 5.4 x 8.6 cm) | | Weight | 5.1 oz (146 g) | | | | Box Dimensions (LxWxH) | 5.0 x 4.5 x 3.4" | - Top Grip Handle for BirdCage PRO
| | | Accessory Type | Handle grip | | | | Box Dimensions (LxWxH) | 4.9 x 3.3 x 1.8" | - BasePlate MicroMega Kit 45
- LockPort Flex Kit for Sony a6300 with Three Micro to Full HDMI Cables
| | | Box Dimensions (LxWxH) | 5.0 x 3.4 x 1.8" | - 9-Thread Brick for 6300NY Cage (Cinnabar)
| Material of Construction | Billet aluminum | | | | Box Dimensions (LxWxH) | 2.4 x 2.0 x 0.9" |
