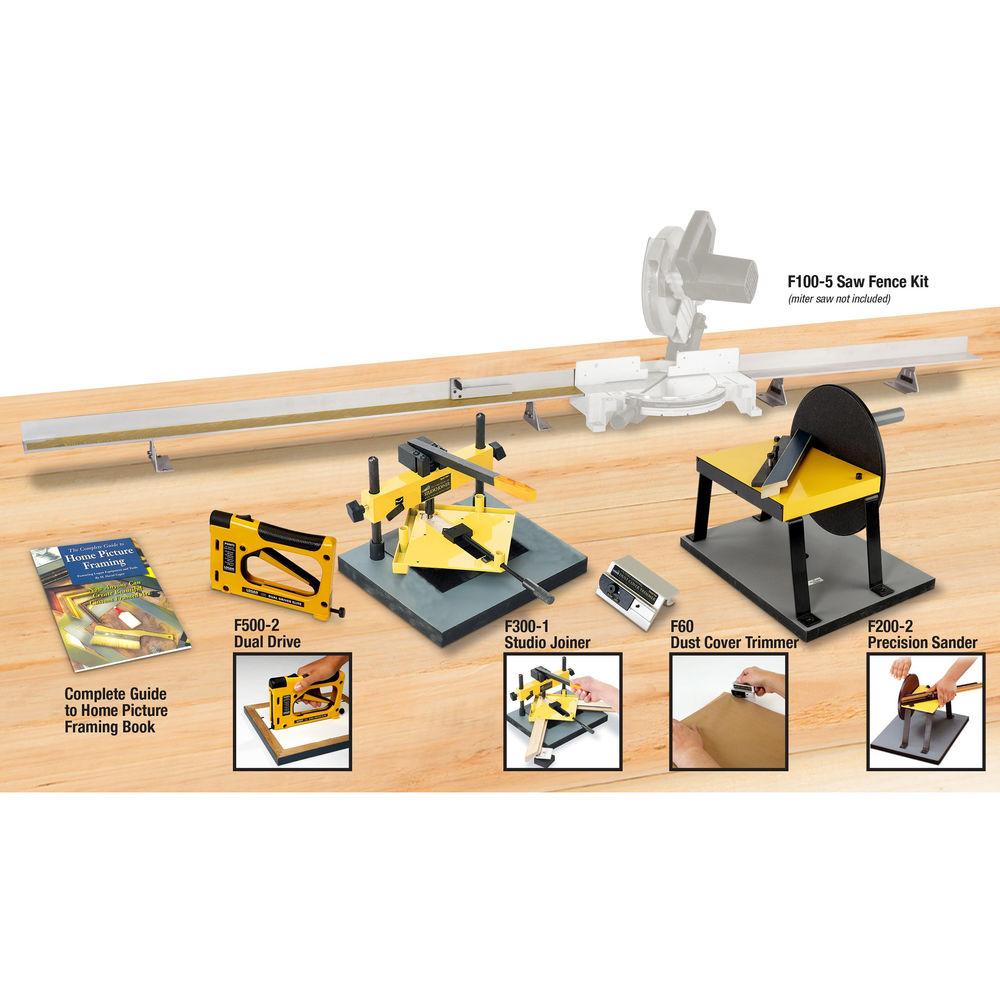

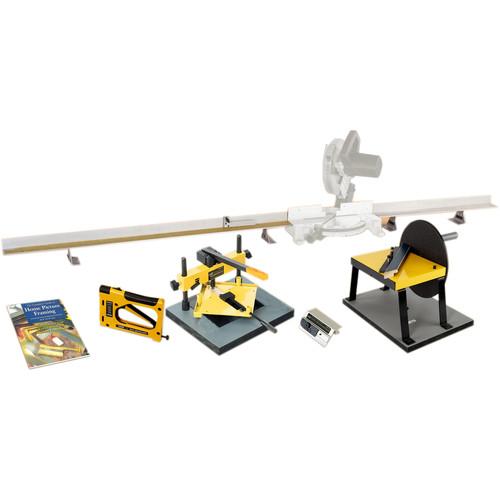

User Manual for Logan Graphics Frame Shop in a Box

• Product category: Framing Accessories Logan Graphics
• Brand: Logan Graphics
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Logan Graphics Framing Accessories

Product description

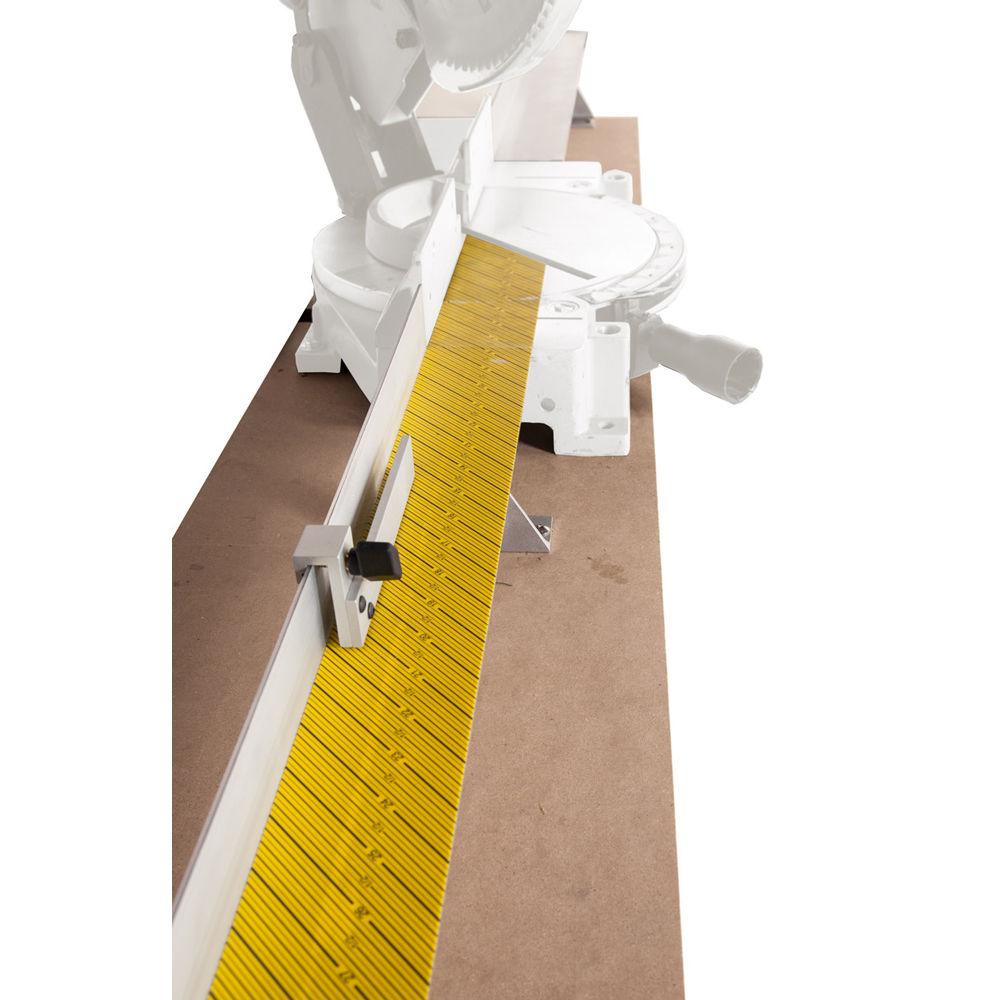

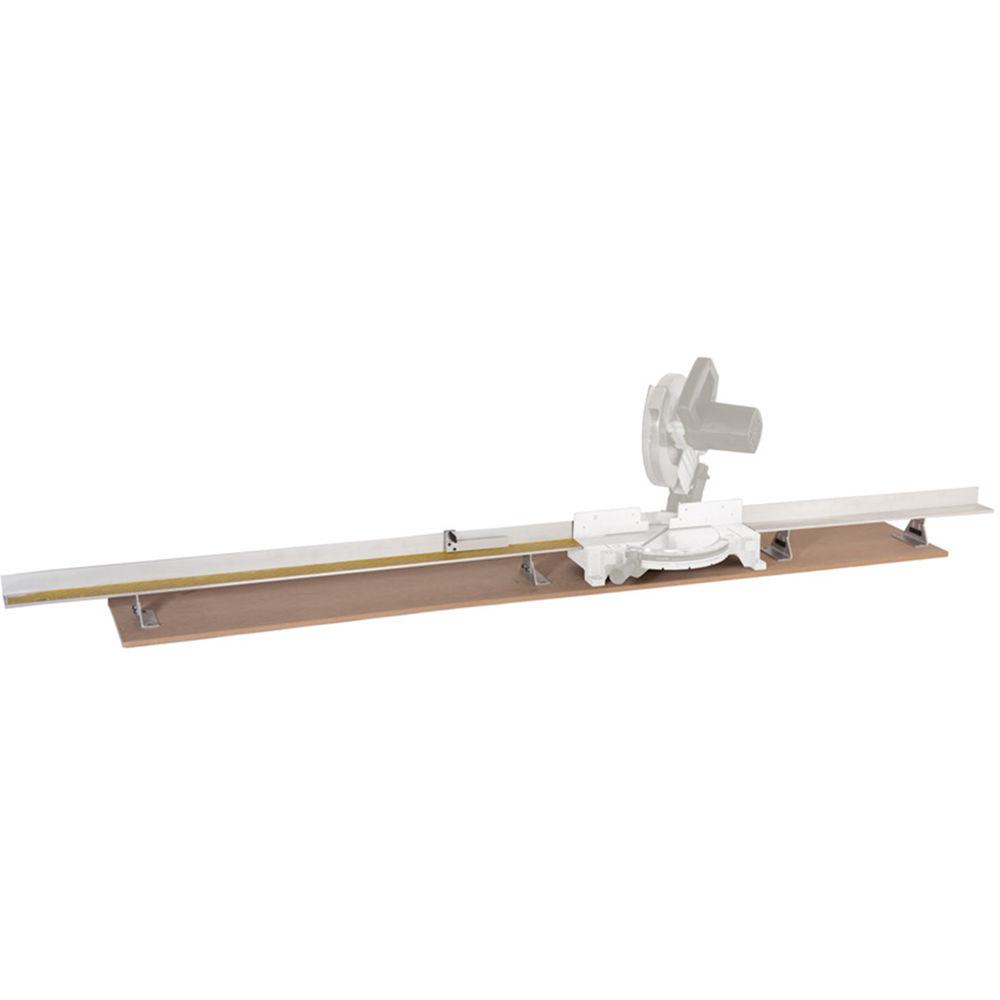

• F100-5 Saw Fence Adapter Kit Use your power miter saw to accurately cut moldings for picture frames with this F100-5 Saw Fence Adapter Kit from Logan Graphics. The kit converts most 7 1/4" to 10" miter saws into molding saws with the help of a 53" left side fence and a 27" right side fence. Also included is a 60" scale for the left side to help with accurate cuts. The fence can be mounted to a work table or onto a separate base board for stability. UPC: 008957913404

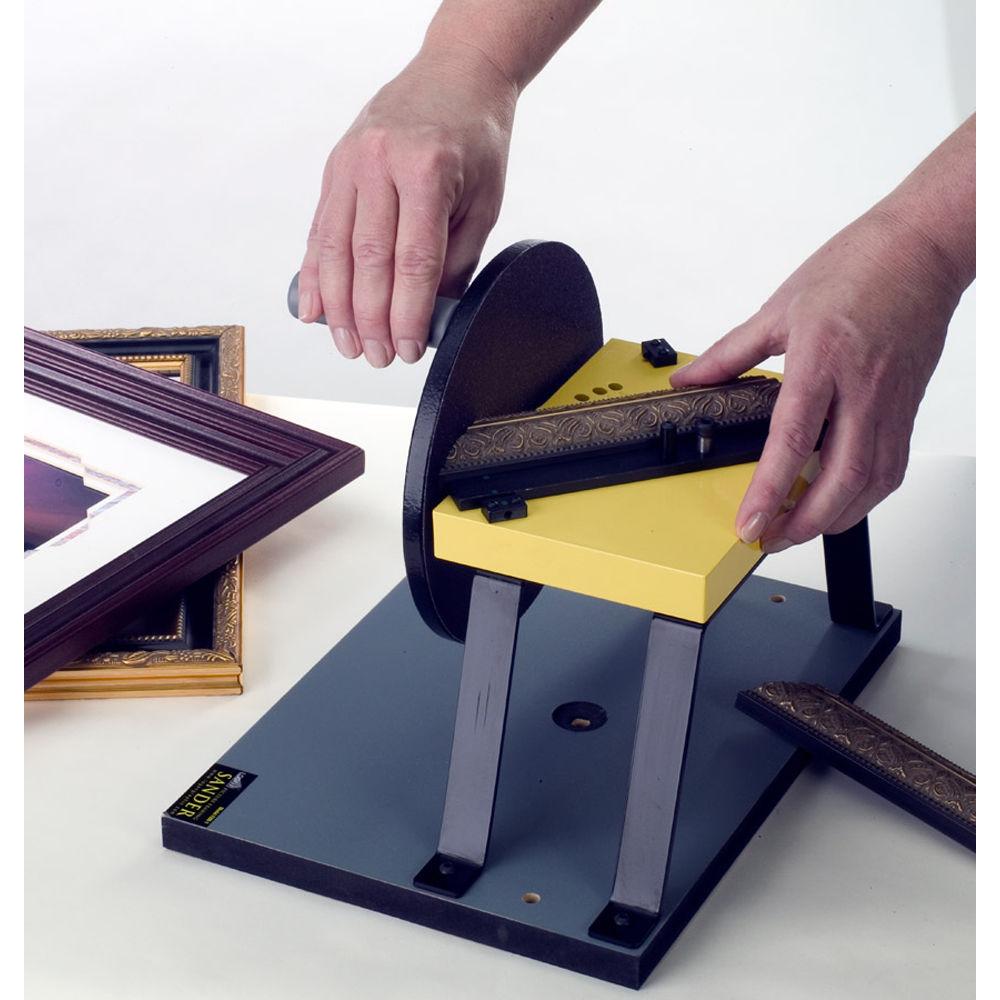

• F200-2 Precision Sander Elite Framing Tool (10" Wheel) Perfect the cuts of your moldings with this Precision Sander Elite Framing Tool from Logan Graphics. The 10" sanding wheel can handle most molding sizes and is a great way to get perfect 45° angle edges for seamless frame corners. An alignment bar and micro-adjuster will help you line up your molding perfectly. UPC: 008957912223

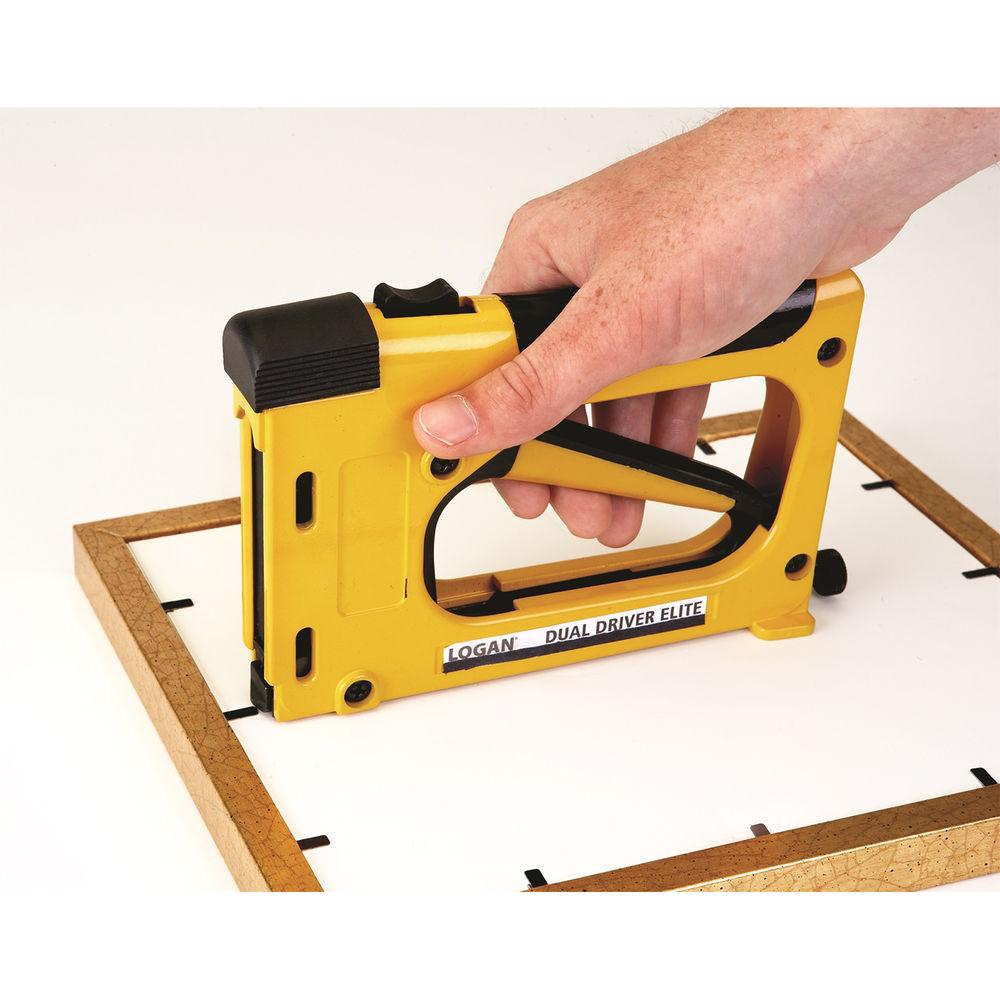

• Dual Drive Elite Point Driver This Dual Drive Elite Point Driver from Logan Graphics is a picture frame point-driving tool. It works with both rigid and flex point inserts, and quickly drives them into the rabbet of wood frames, properly securing glass, artwork, and backing material into the frame.

  An adjustment screw allows you to adjust the tension based on the hardness of the wood, and easy-pull action makes the point driver simple to use.
  • Compatible with the following points: F53, F54, F55, and F56.
  UPC: 008957912421
• F60 Dust Cover Trimmer The F60 Dust Cover Trimmer from Logan Graphics is used by professional framers, photographers, and artists to cut excess Kraft paper off the back of a frame. The Kraft paper, or "Dust Cover," is applied to the back of the frame to keep the dust out and the paper will usually overflow over the sides of the frame. Two pins located on the side of the trimmer will determine the blade placement for right- or left-handed use. To use, start at the edge of a corner, hold on a slight upward angle, and run the trimmer along the edge to trim. As you are trimming the paper off, it will cut an edge of 3/16" from the outside edge of the frame. Once the trimmer is no longer in use, the safety cover slides over to guard the blade. UPC: 008957912971

• 53" Left Fence

• 27" Right Fence

• Stop

• Extension Stop

• Scale Setting Gauge

• Allen Wrench

• Marking Label

• 8 x Screw

• Scale part A

• Scale part B

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 3 x #270 Blades

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• F100-5 Saw Fence Adapter Kit

  Length

  Right Fence: 27" / 68.6 cmLeft Fence: 53" / 134.6 cmScale: 60" / 152.4 cm

  Box Dimensions (LxWxH)	54.0 x 5.0 x 4.75"

• F200-2 Precision Sander Elite Framing Tool (10" Wheel)

  Box Dimensions (LxWxH)	15.75 x 10.5 x 9.25"

• Dual Drive Elite Point Driver

  Capacity	Approximately 200 points
  Dimensions	7.75 x 6.50 x 1.75" (19.7 x 16.5 x 4.4 cm)
  Weight	1.7 lb (771 g)

  Box Dimensions (LxWxH)	7.95 x 6.5 x 1.75"

• F60 Dust Cover Trimmer

  Material of Construction

  Aluminum

  Box Dimensions (LxWxH)	6.7 x 4.85 x 1.3"
