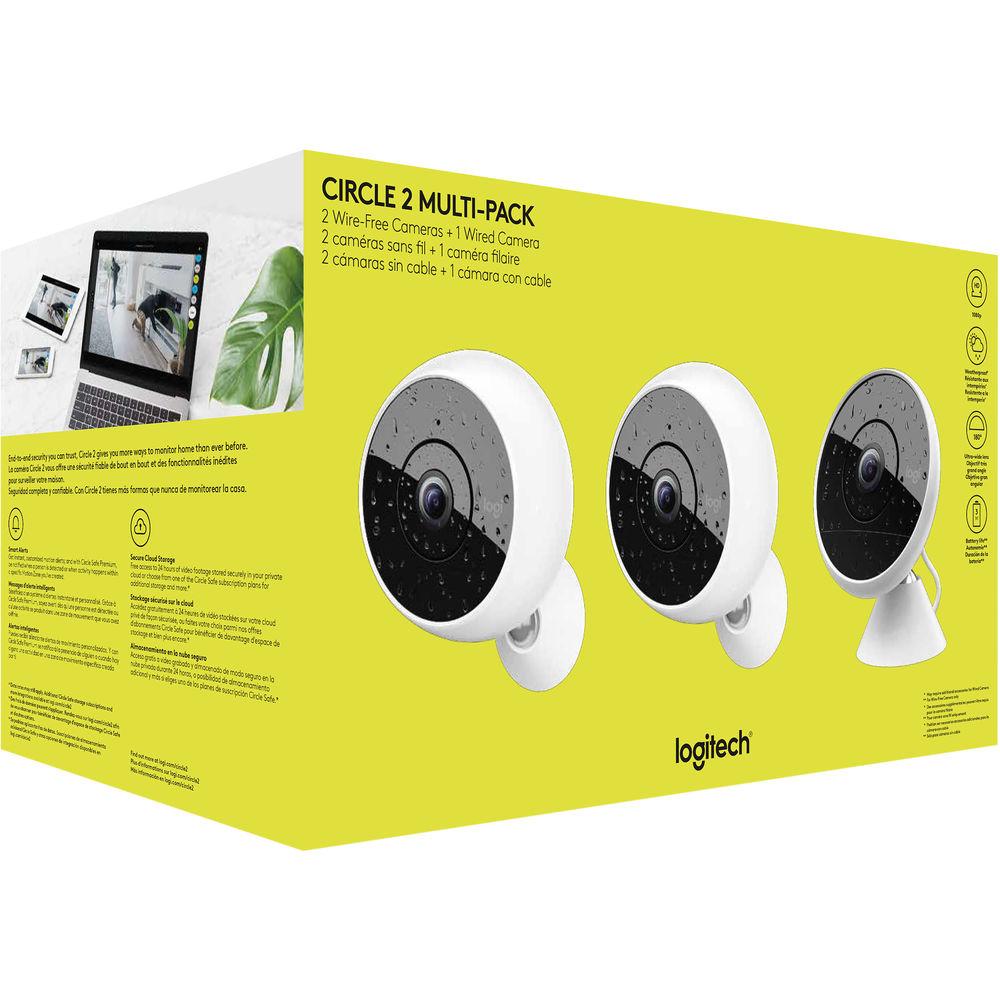

User Manual for Logitech Circle 2 1 Wired 2MP & 2 Wire-Free 2MP Cameras Multi-Pack Click to enlarge the picture
Contents of the user manual for the Logitech Circle 2 1 Wired 2MP
- Product category: Wireless Cameras Logitech
- Brand: Logitech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Logitech Wireless Cameras
 |
User manual for the Logitech Circle 2 1 Wired 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Logitech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Logitech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Logitech product will considerably shorten its lifespan!
|

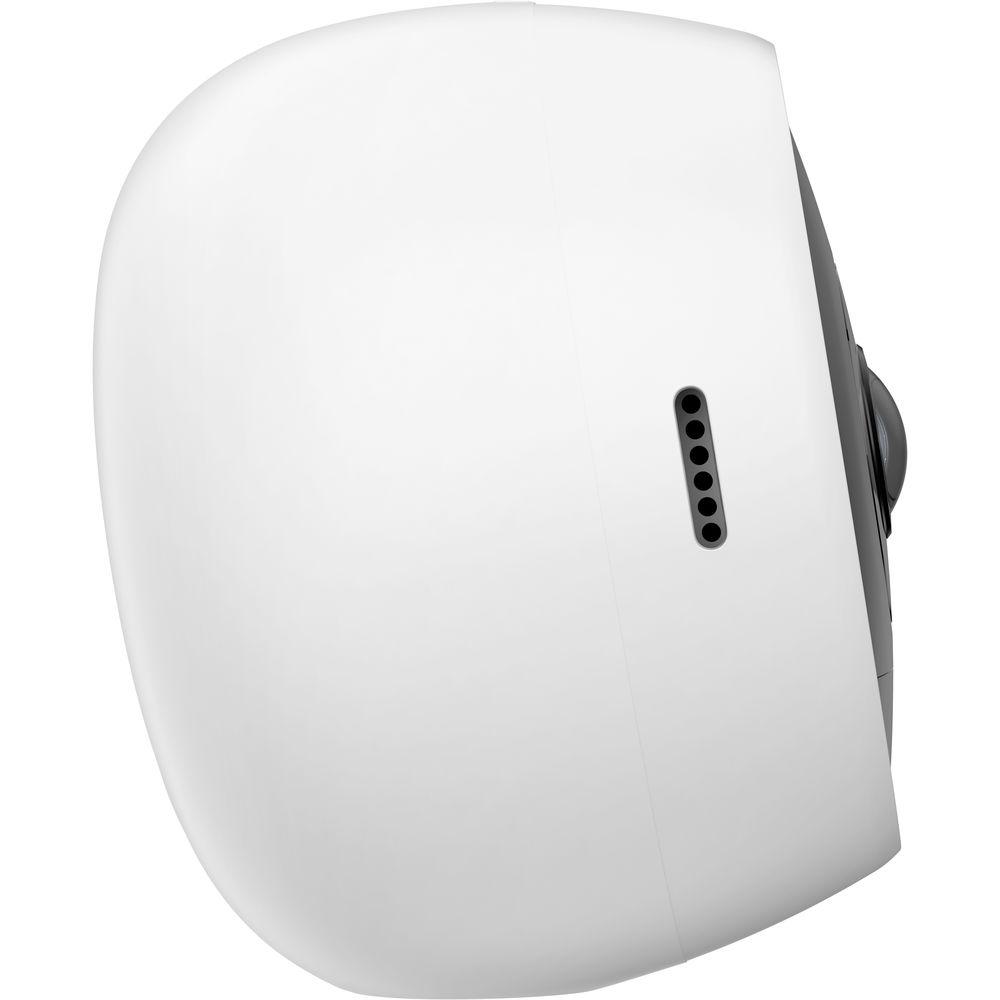

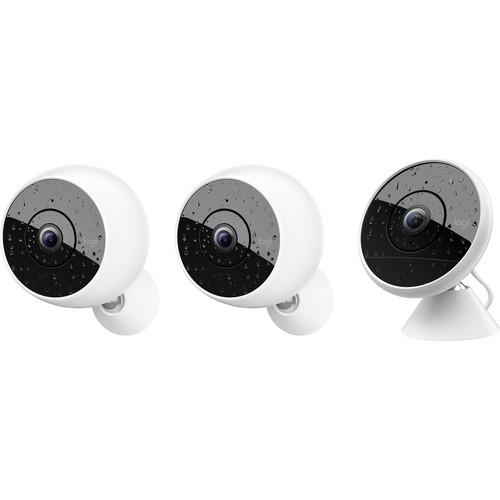

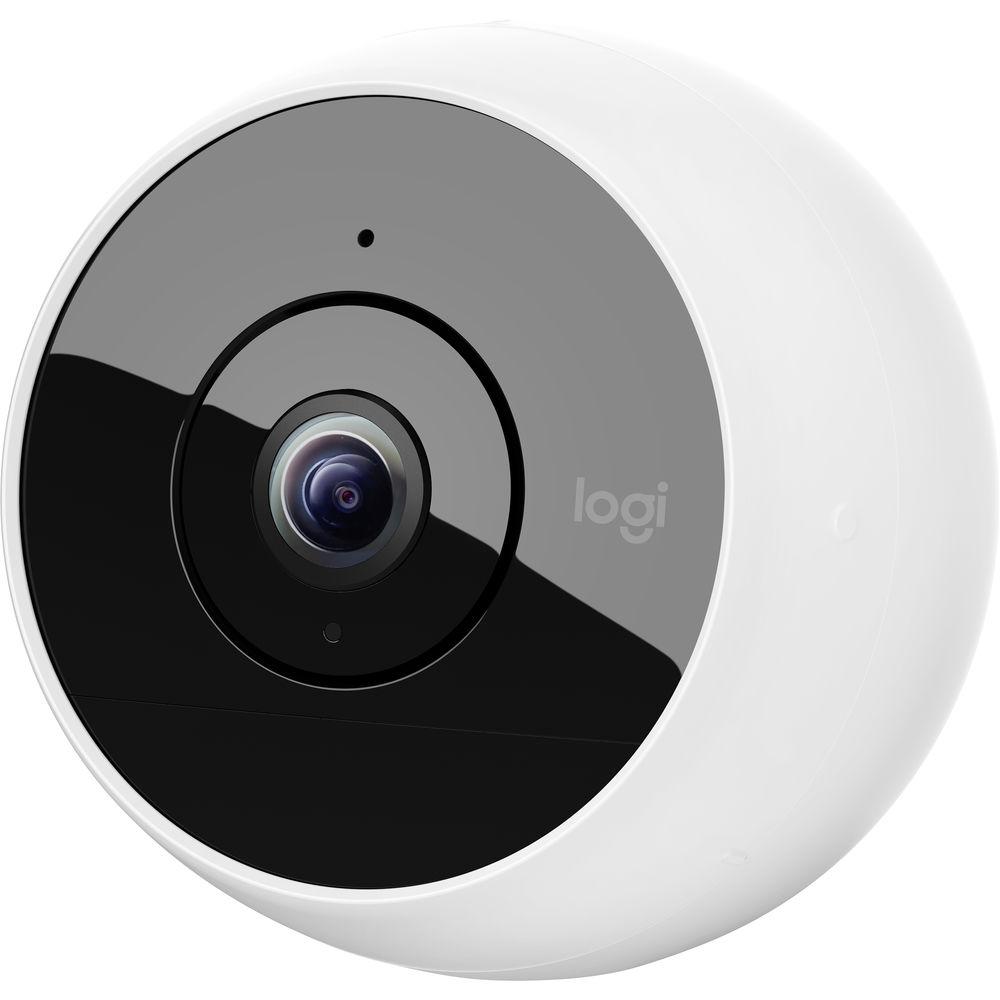

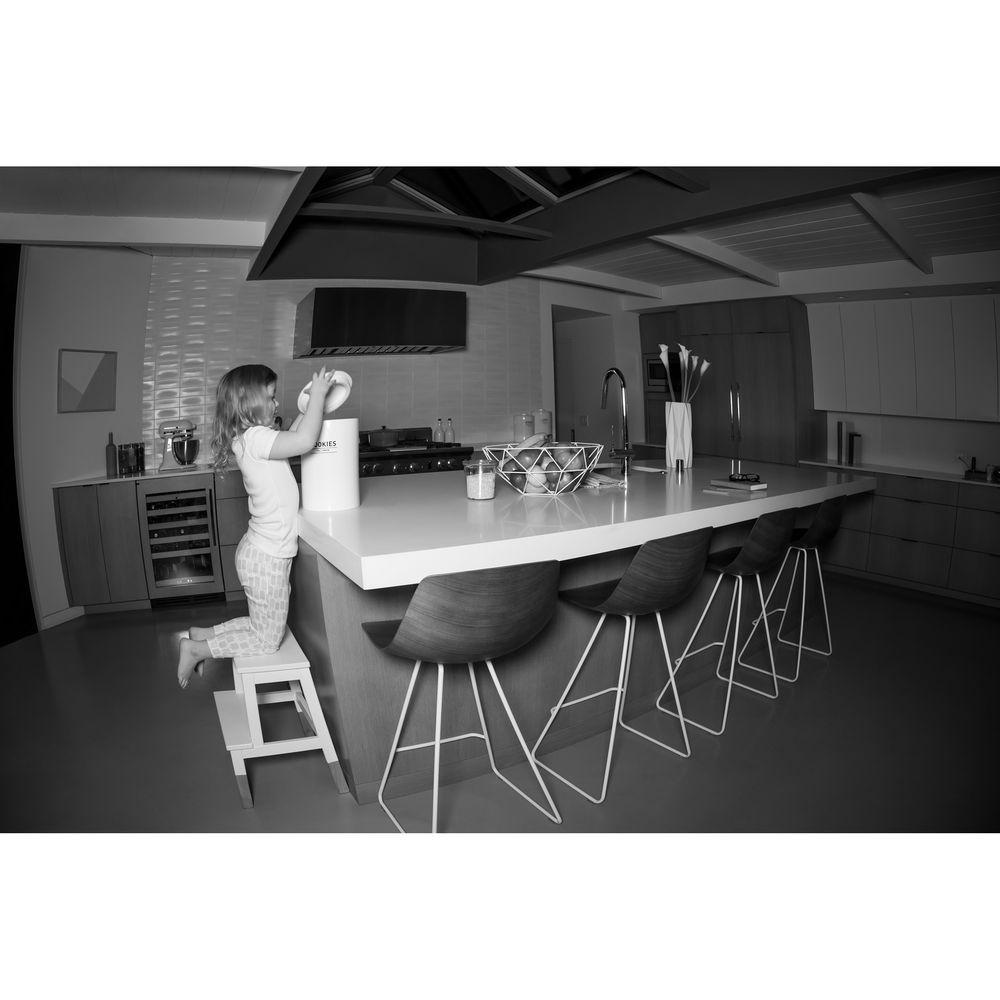

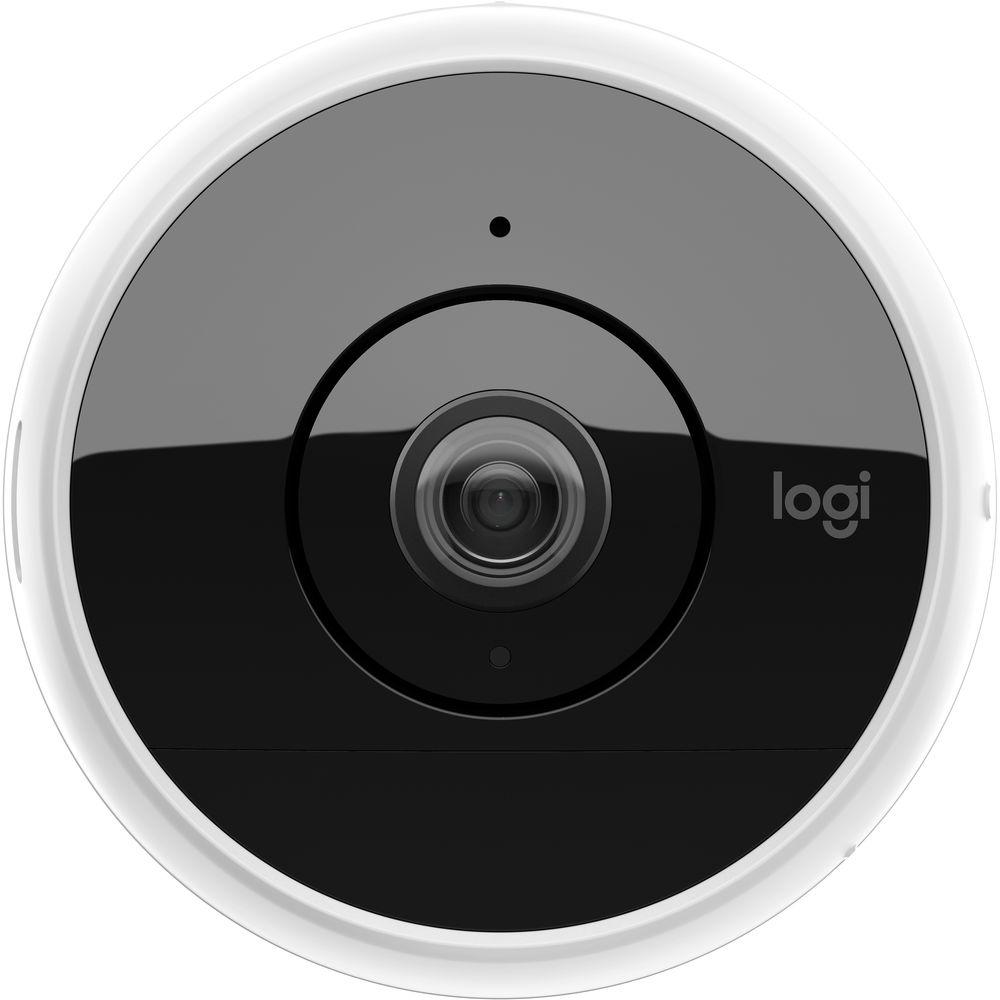

Product description The Circle 2 1 Wired 2MP & 2 Wire-Free 2MP Cameras Multi-Pack from Logitech includes two wire-free and one wired Circle 2 cameras. The cameras capture 1920 x 1080 resolution video at 30 fps. The wired and dual-band Wi-Fi cameras have a night vision range up to 15', and their glass lenses deliver a diagonal field of view up to 180°. Additionally, the cameras can rotate 360°. Two-way audio is possible thanks to the cameras being equipped with a built-in microphone and speaker. Alexa, Google Assistant, and HomeKit are supported for smart home integration. Logitech POP (available separately) enables push-button control. A rechargeable li-ion battery powers the wire-free Circle 2 cameras, while the wired Circle 2 comes with a swivel mount tethered to a 10' cable. The Logi Circle app enables remote viewing and customization of alert frequency or sensitivity from iOS and Android devices, or a desktop. The cameras are IP65-rated for water resistance.
24 hours of secure cloud storage comes standard with the Circle 2. Optional subscription plans are available for more storage. The Circle Safe Basic plan offers 14 days of storage and Circle Safe Premium offers 31 days of storage. - Compatible with Logitech POP (available separately) for push-button control
- Advanced event filtering allows you to identify and record relevant footage you want to view
- Smart Location feature enables you to get alerts when you're away from home, and not when you're there
- Optional Circle Safe premium subscription plan alerts you when a person was detected and tells you where

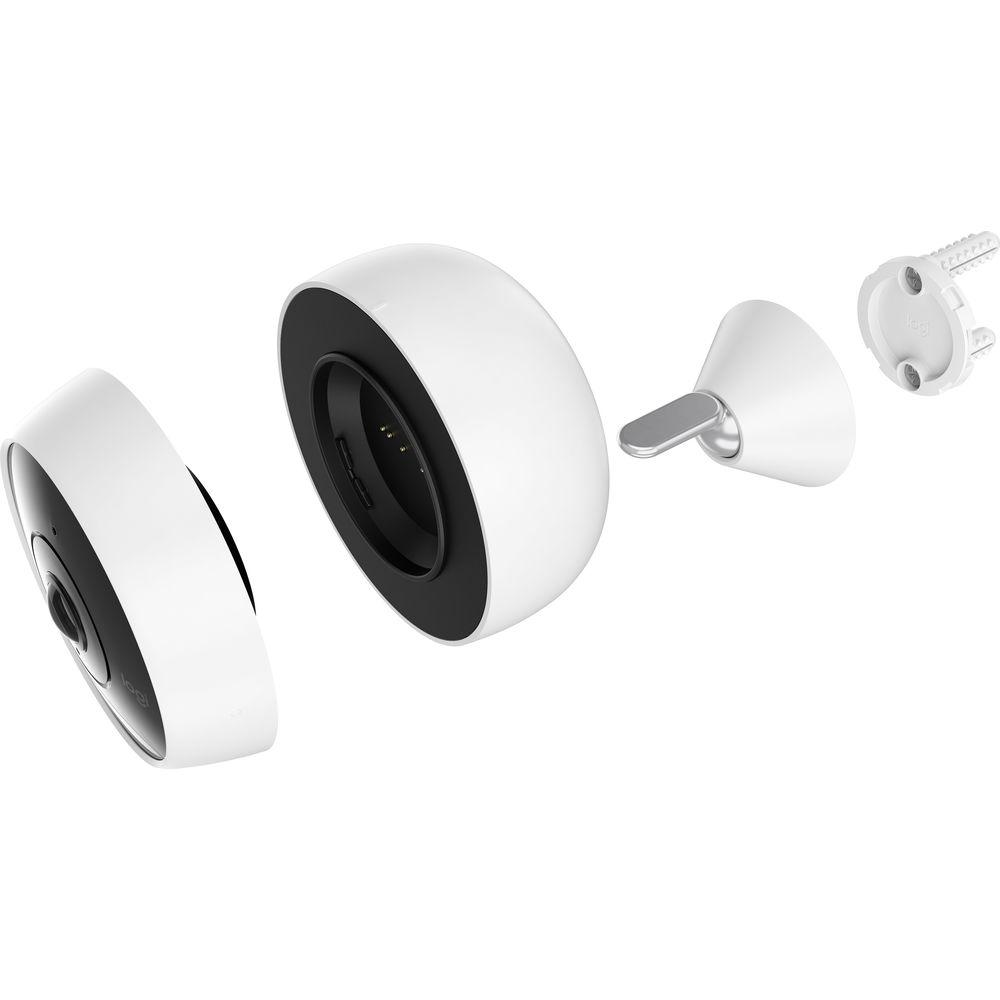

- Quick release enables easy battery swapping
- Adjustable motion sensitivity
- Multiple cameras supported by the app or web interfaces
- Supported browsers include Chrome, Safari, Firefox, and Edge
- Instant data encryption with secure web transfer (SSL)

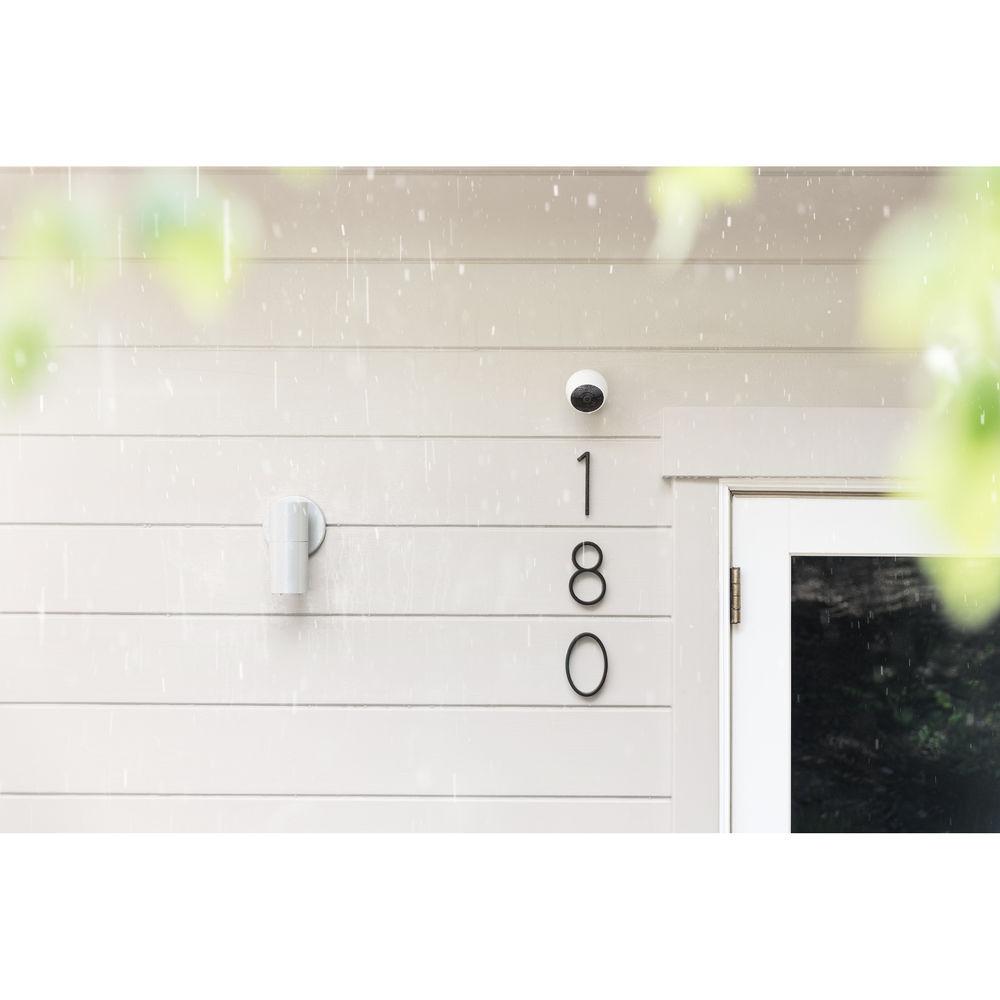

- IP65-rated for water resistance
UPC: 097855136442 In the Box Logitech Circle 2 1 Wired 2MP & 2 Wire-Free 2MP Cameras Multi-Pack 2 x Circle 2 2MP Wire-Free Network Camera with Night Vision wzubbuesrwrbwevwqut Swivel Mount with Tethered 10' / 3m Cable USB Power Adapter Wall Bracket 4 x Screws 4 x Anchors 2 x Cable Clips Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech Circle 2 1 Wired 2MP & 2 Wire-Free 2MP Cameras Multi-Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLogitech Circle 2 Specs | Resolution | Up to 1920 x 1080 at 30 fps | | Video Compression | H.264 | | Diagonal Field of View (FOV) | Multiple FOV options up to 180°, with in-app recommendations depending on mount attached | | Lens Type | Glass | | Digital Zoom | Yes | | Night Vision Range | Up to 15' / 4.6 m | | Pan/Tilt | Adjustable | | Camera Rotation | 360° | | Built-In Microphone | Yes | | Microphone Type | Digital MEMS | | Built-in Speaker | Yes | | Speaker Type | Built-in mono speaker for communication/alerts | | Security Protocol | Instant data encryption with secure web transfer (SSL) | | Wi-Fi Connectivity | 802.11a/b/g/n
Frequency Bands: 2.4 and 5 GHz | | Supported Mobile Devices | iOS 8.1 or newer with iPhone 4s or newer, iPad mini or newer, iPad 3 or newer, iPod touch 5th generation or newer
Android 4.4 or newer with Bluetooth Low Energy technology | | Supported Web Browsers | Latest desktop versions of Chrome, Safari, Firefox, and Edge | | Mobile App | Logi Circle for iOS and Android | | Voice Control | Alexa, Google Assistant, HomeKit | | Cloud Service | Yes | | Battery Type | Rechargeable li-ion battery | | Battery Capacity | 6400 mAh | | IP Rating | IP65 | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (H x W x D) | Wire-Free: 3.8 x 3.2 x 3.7" / 96.52 x 81.3 x 94 mm
Wired: 3.4 x 2.8 x 2.6" / 85.5 x 71 x 66.7 mm | | Weight | Wire-Free: 12 oz / 0.34 kg
Wired: 7.3 oz / 0.2 kg | | | | Package Weight | 3.99 lb | | Box Dimensions (LxWxH) | 11.55 x 6.25 x 6.25" |
