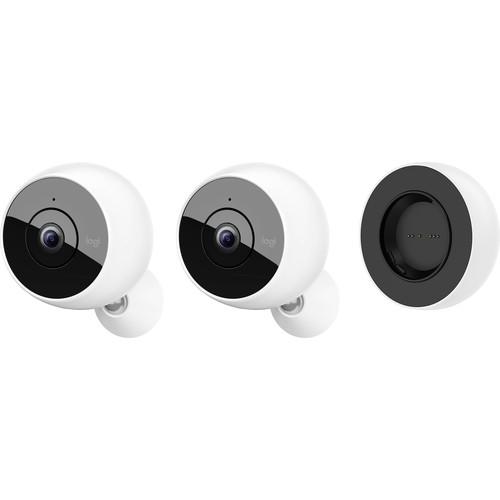

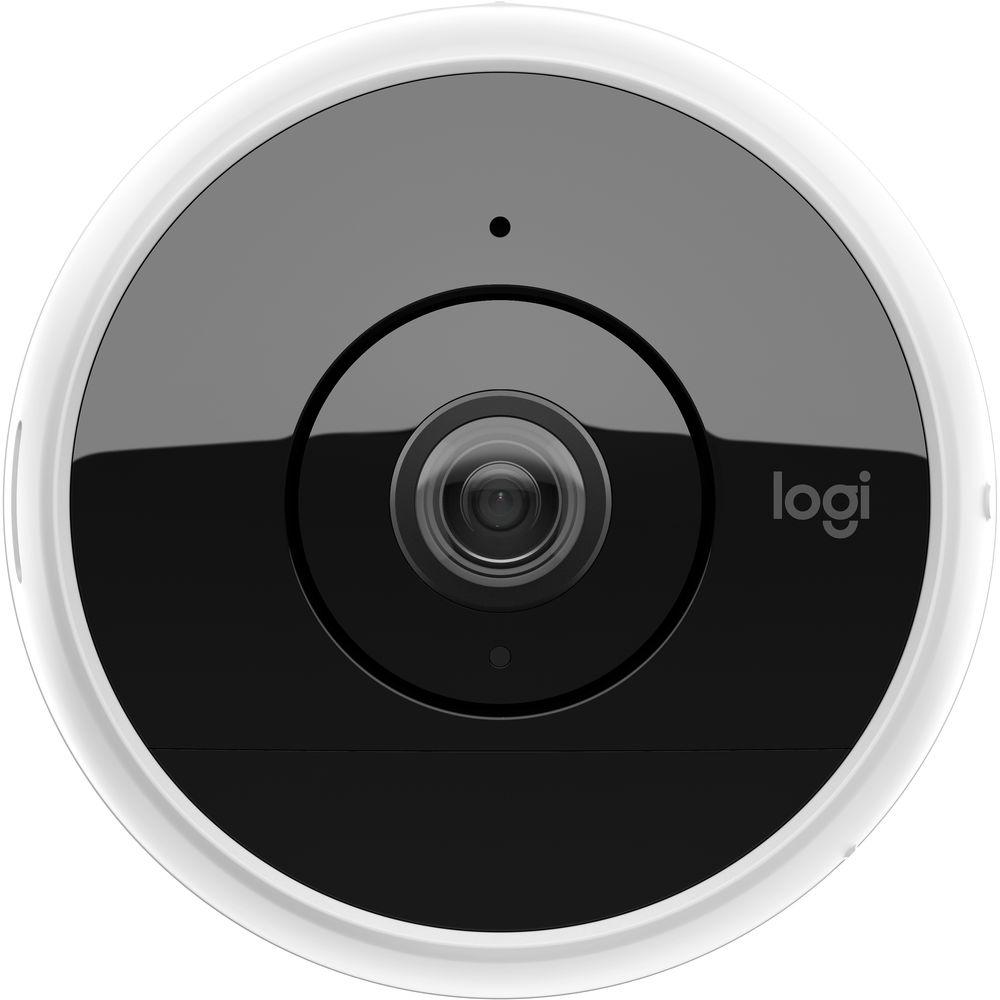

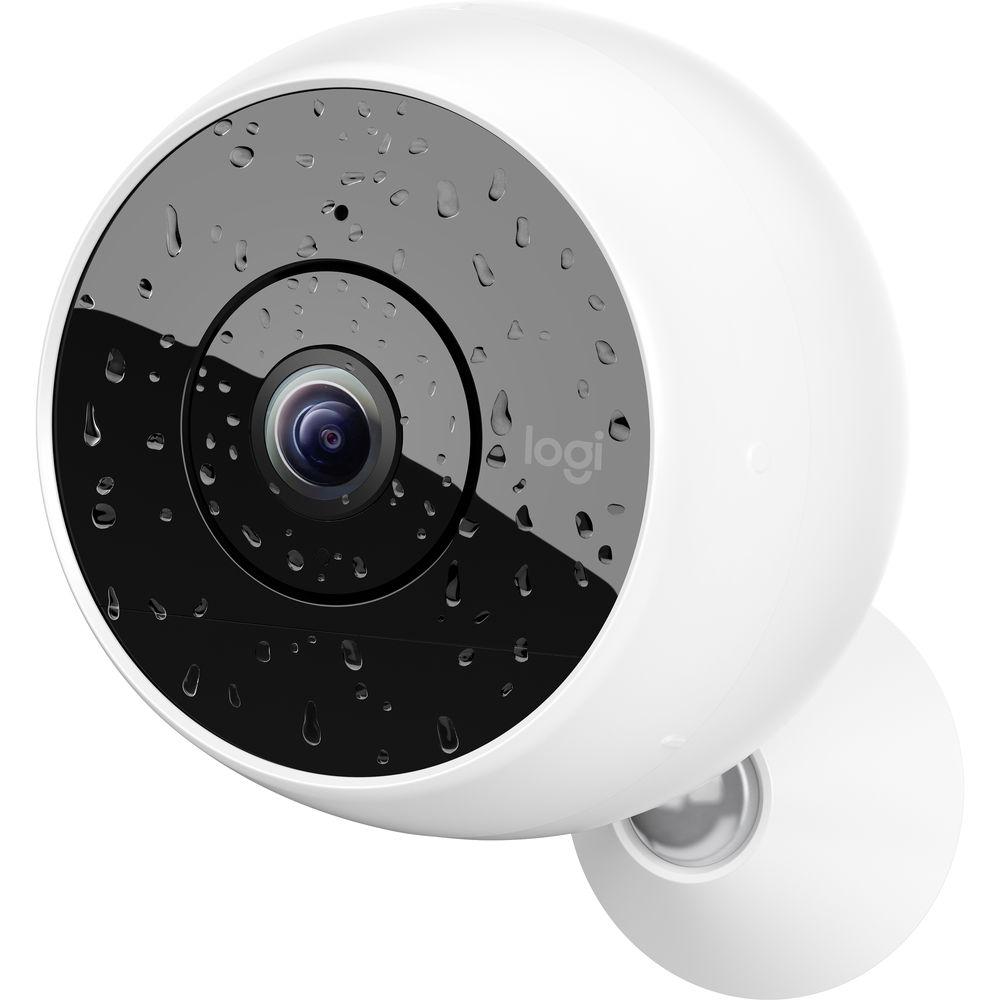

Product description The Circle 2 2MP 2 Wire-Free Network Cameras Combo Pack with Additional Battery from Logitech includes two wire-free Circle 2 cameras and an additional rechargeable battery. The cameras capture 1080p resolution video at 30 fps. They feature up to 15' of night vision, a 180° diagonal field of view, 360° camera rotation, dual-band Wi-Fi connectivity, voice control via Alexa and Google Assistant, and an IP65-rated enclosure for water resistance.

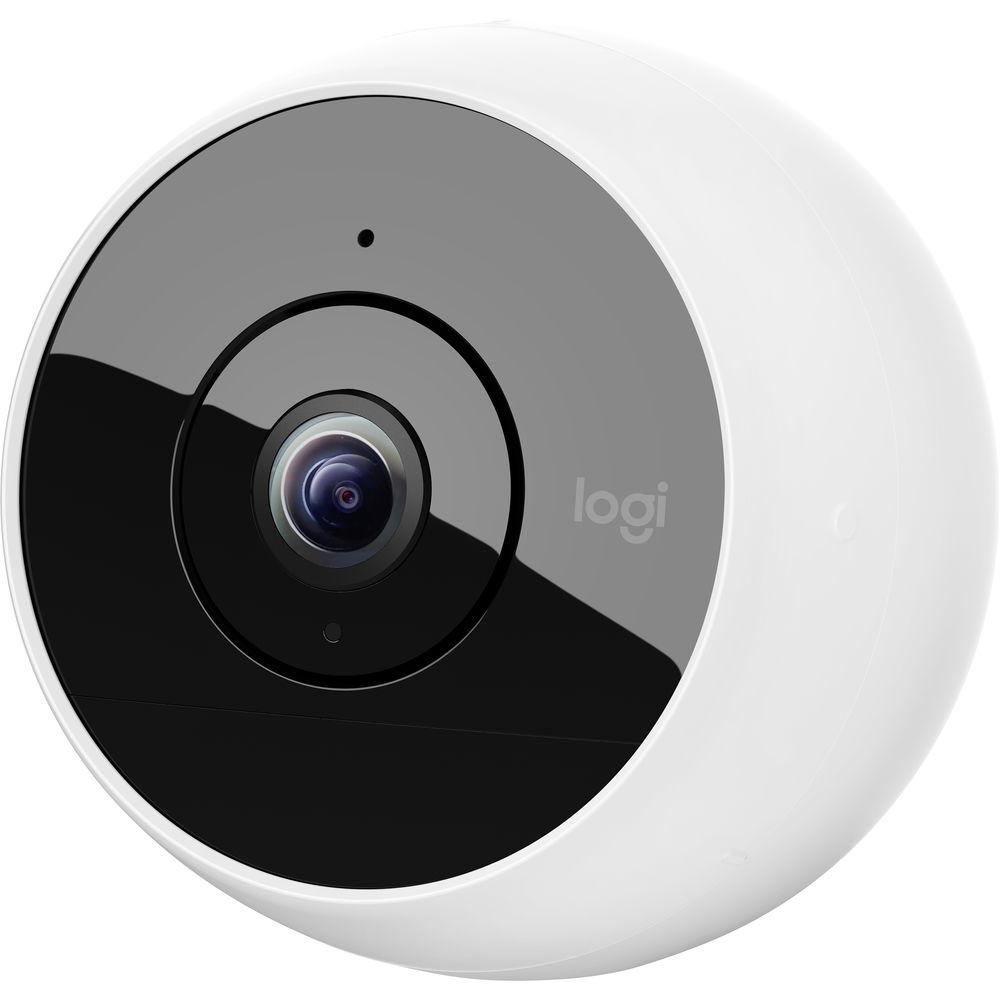

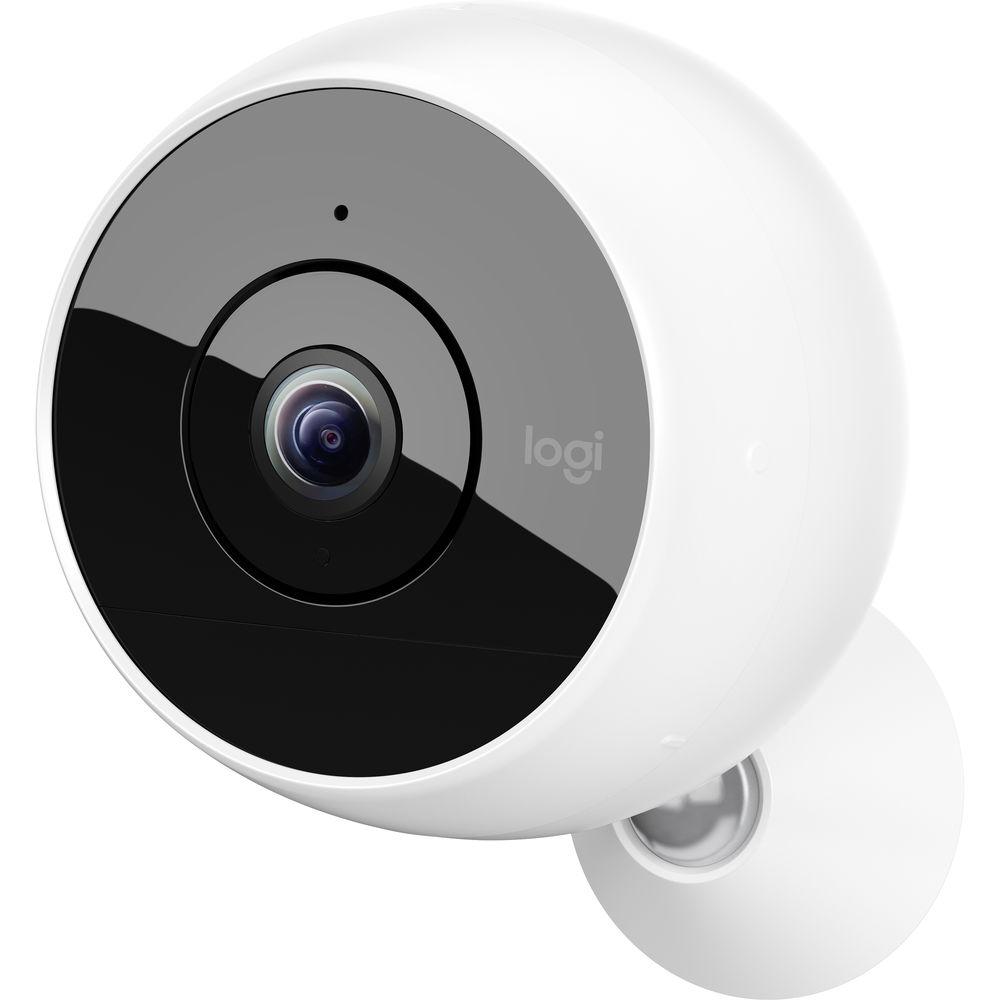

Each camera comes with a rechargeable battery. The additional bundled battery brings the total battery count to 3, which minimizes downtime between charging batteries. - Circle 2 2MP Wire-Free Network Camera with Night Vision The Circle 2 2MP Wire-Free Network Camera with Night Vision from Logitech captures 1920 x 1080 resolution video at 30 fps. This dual-band Wi-Fi camera has a night vision range up to 15', and its glass lens delivers a diagonal field of view up to 180°. Additionally, this camera can rotate 360°. Two-way audio is possible thanks to a built-in microphone and speaker. Alexa and Google Assistant are supported for smart home integration. HomeKit support becomes available on this device when wired. Logitech POP (available separately) enables push-button control. A rechargeable li-ion battery powers the wire-free Circle 2 for as long as several months. The Logi Circle app enables remote viewing and customization of alert frequency or sensitivity from iOS and Android devices, or a desktop. This camera is IP65-rated for water resistance.
24 hours of secure cloud storage comes standard with the Circle 2. Optional subscription plans are available for more storage. The Circle Safe Basic plan offers 14 days of storage and Circle Safe Premium offers 31 days of storage. - Compatible with Logitech POP (available separately) for push-button control
- Advanced event filtering allows you to identify and record relevant footage you want to view
- Smart Location feature enables you to get alerts when you're away from home, and not when you're there
- Optional Circle Safe premium subscription plan alerts you when a person was detected and tells you where

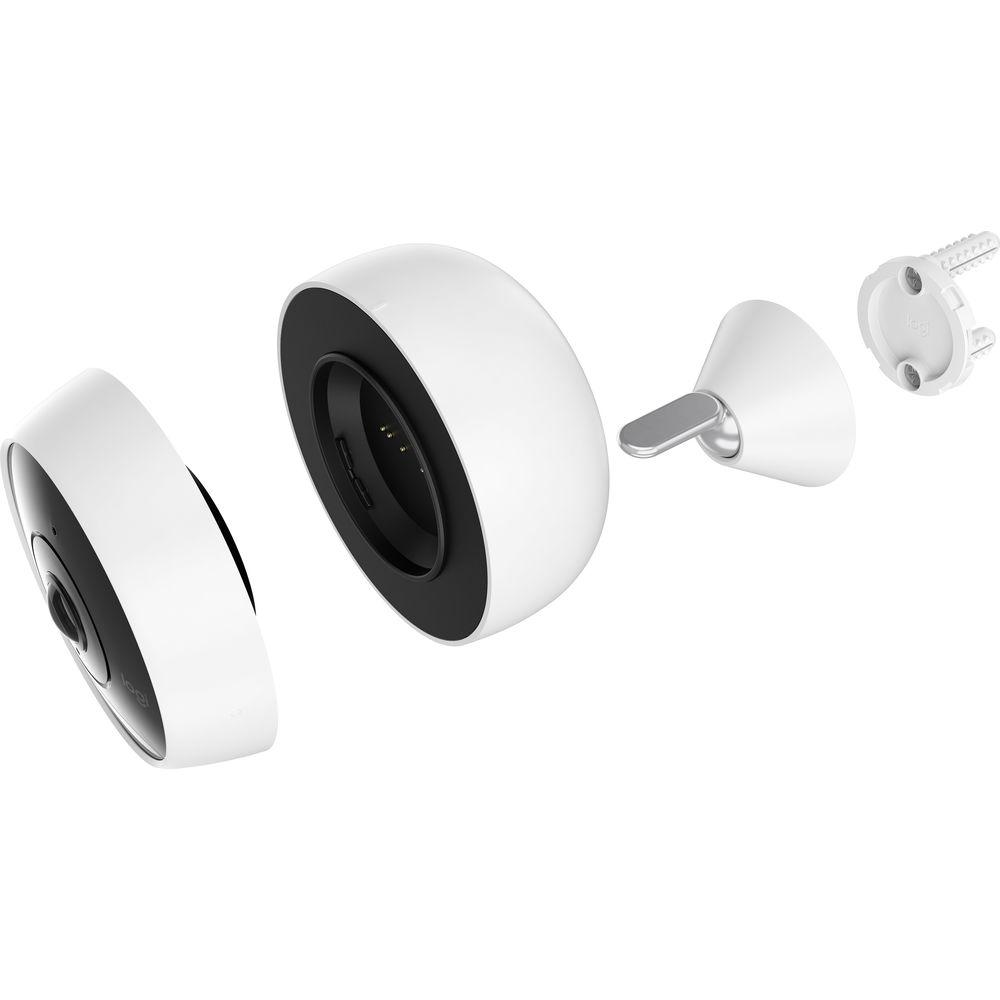

- Quick release enables easy battery swapping
- Adjustable motion sensitivity
- Multiple cameras supported by the app or web interfaces
- Supported browsers include Chrome, Safari, Firefox, and Edge
- Instant data encryption with secure web transfer (SSL)
- Includes rechargeable li-ion battery, swivel base with quick release plate, 2' USB charging cable with USB power adapter, wall bracket, 2 screws, and 2 wall anchors
- IP65-rated for water resistance

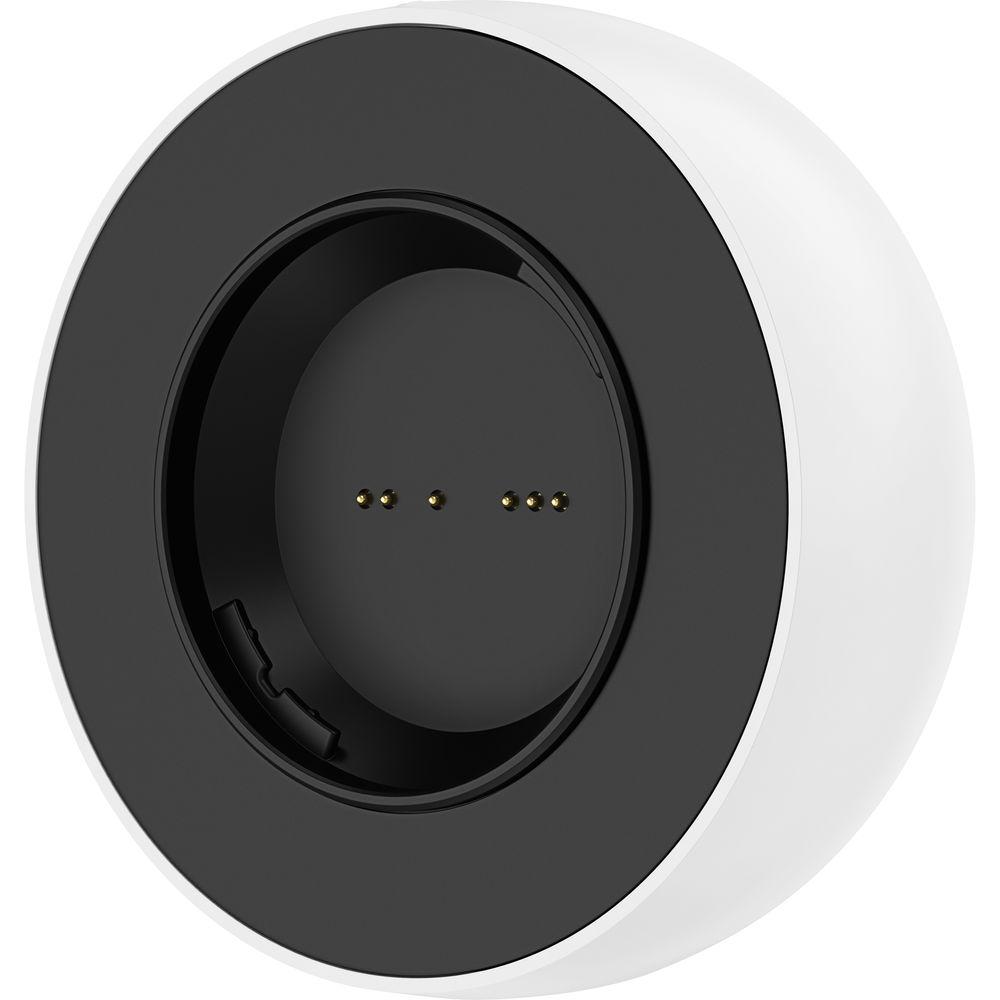

UPC: 097855131904 - Rechargeable Battery for Circle 2 Camera The Rechargeable Battery for Circle 2 Camera from Logitech is a 6400 mAh li-ion back up battery for the Circle 2 Cameras. Depending on usage, a single charge can last between a few days and up to 3 months. Replace the battery on your Circle 2 Wire-Free, or make your Circle 2 Wired version battery powered.
- Rechargeable 6400 mAh li-ion battery
- Depending on usage, battery life can last anywhere from a few days to up to 3 months
UPC: 097855133311 In the Box Bundle Items 2 x Circle 2 2MP Wire-Free Network Camera with Night Vision tvbqadafdr - Swivel Base with Quick Release Plate
- 2' / 0.61m USB Charging Cable with USB Power Adapter
Rechargeable Battery for Circle 2 Camera tvbqadafdr Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech Circle 2 2MP 2 Wire-Free Network Cameras Combo Pack with Additional Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Circle 2 2MP Wire-Free Network Camera with Night Vision
| Resolution | Up to 1920 x 1080 at 30 fps | | Video Compression | H.264 | | Diagonal Field of View (FOV) | Multiple FOV options up to 180°, with in-app recommendations depending on mount attached | | Lens Type | Glass | | Digital Zoom | Yes | | Night Vision Range | Up to 15' / 4.6 m | | Pan/Tilt | Adjustable | | Camera Rotation | 360° | | Built-In Microphone | Yes | | Microphone Type | Digital MEMS | | Built-in Speaker | Yes | | Speaker Type | Built-in mono speaker for communication/alerts | | Security Protocol | Instant data encryption with secure web transfer (SSL) | | Wi-Fi Connectivity | 802.11a/b/g/n
Frequency Bands: 2.4 and 5 GHz | | Supported Mobile Devices | iOS 8.1 or newer with iPhone 4s or newer, iPad mini or newer, iPad 3 or newer, iPod touch 5th generation or newer
Android 4.4 or newer with Bluetooth Low Energy technology | | Supported Web Browsers | Latest desktop versions of Chrome, Safari, Firefox, and Edge | | Mobile App | Logi Circle for iOS and Android | | Voice Control | Alexa, Google Assistant, HomeKit | | Cloud Service | Yes | | Battery Type | Rechargeable Li-ion battery | | Battery Capacity | 6400 mAh | | IP Rating | IP65 | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (H x W x D) | With Rechargeable Battery: 3.8 x 3.2 x 3.7" / 96.52 x 81.3 x 94 mm | | Weight | With Rechargeable Battery: 12 oz / 0.34 kg | | | | Box Dimensions (LxWxH) | 6.4 x 6.15 x 3.8" | - Rechargeable Battery for Circle 2 Camera
| Compatibility | Circle 2 Camera | | Battery Type | Rechargeable 6400 mAh li-ion | | Battery Life | Up to 3 months (depending on usage) | | Dimensions (H x W x D) | 3.2 x 3.2 x 1.7" / 81.3 x 81.3 x 43.2 mm | | Weight | 9 oz / 255.15 g | | | | Box Dimensions (LxWxH) | 6.3 x 6.1 x 2.3" |
