Logitech G610 Orion Backlit Mechanical Keyboard

Search your instruction manual in PDF to download

User Manual for Logitech G610 Orion Backlit Mechanical Keyboard

Click to enlarge the picture
Logitech G610 Orion Backlit Mechanical Keyboard Contents of the user manual for the Logitech G610 Orion Backlit Mechanical Keyboard
  • Product category: Keyboards Logitech
  • Brand: Logitech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Logitech Keyboards

Logitech G610 Orion Backlit Mechanical Keyboard Logitech G610 Orion Backlit Mechanical Keyboard Logitech G610 Orion Backlit Mechanical Keyboard
User manual for the Logitech G610 Orion Backlit Mechanical Keyboard contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Logitech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Logitech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Logitech product will considerably shorten its lifespan!



Product description

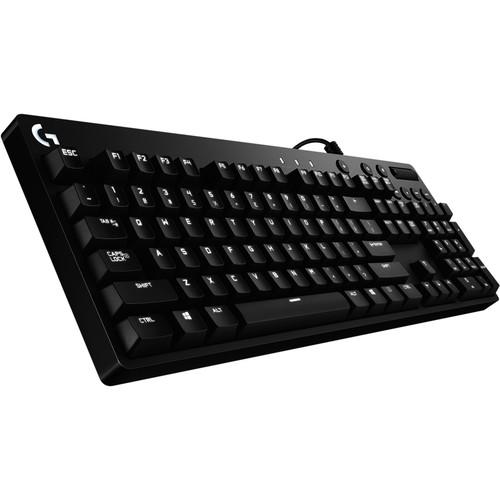

The Logitech G610 Orion Backlit Mechanical Keyboard provides you with the aesthetics and performance for gaming. It's built with Cherry MX Brown Switches, which make minimal noise but have a tactile bump for feedback when pressed. For your convenience, it has built-in media control keys as well as a roller for quick and easy access to play, pause, volume adjustment, and more. To unlock the full capabilities and features of this keyboard including white LED backlight options, macro functionality, Game Mode, and more, be sure to download Logitech's gaming software.

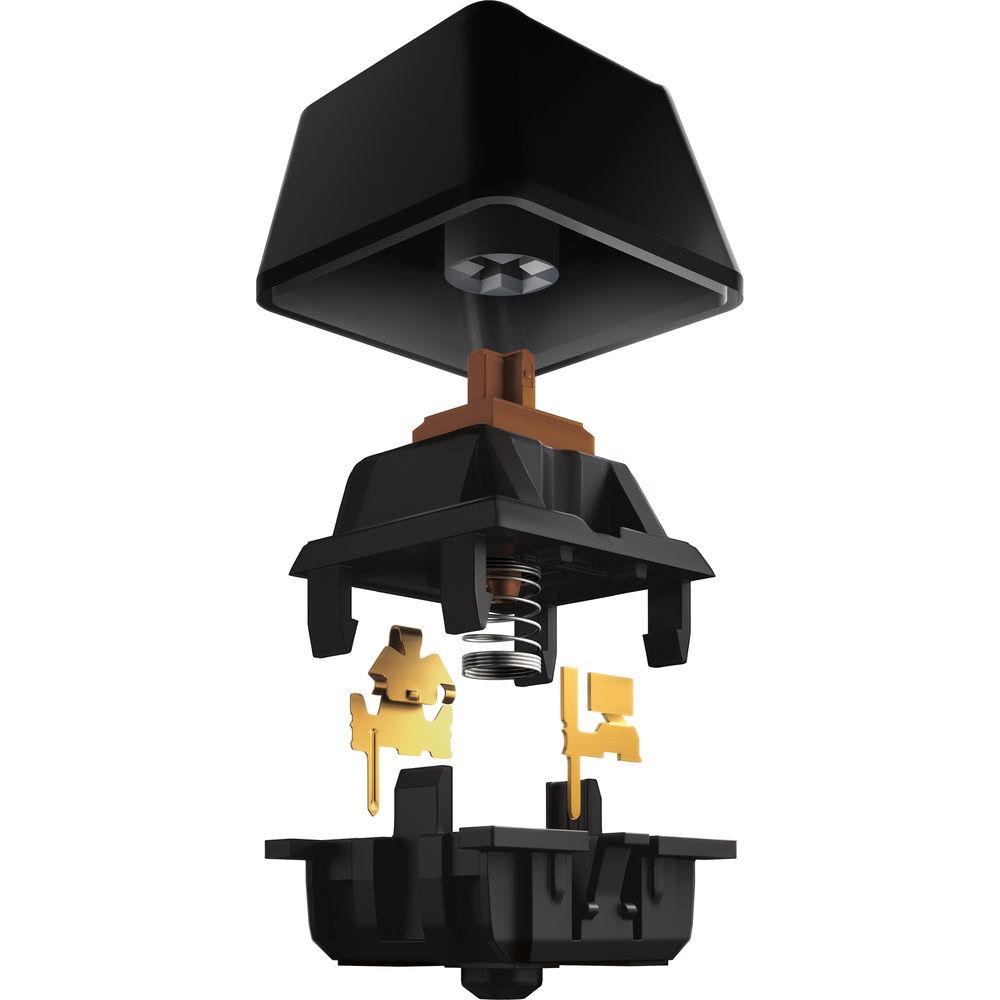

    Cherry MX Brown
  • Mechanical keyboards utilize a different type of key switch technology for a more durable and unique typing experience. The Cherry MX Brown switch has an actuation force of 45 g and offers a small tactile bump when pressed, letting you know that the key has registered. This can be useful for typing or preparing for a movement while gaming. Unlike Cherry MX Blue switches, these do not have an audible "click" mechanism, allowing for a quieter operation. Noise generated from this keyboard will be from the key either springing back into place or "bottoming out" – making contact with the back plate after a particularly hard press.
    Customizable Lighting
  • Choose your level of customization by selecting and personalizing each individual key light with the Logitech Gaming Software. Keep track of multiple commands by customizing the light-up keys. The Logitech Gaming software can also synchronize light patterns with other Logitech G devices.
    Media Control at Your Fingertips
  • Stay in your game while you control your background track. The G610 keyboard features dedicated media controls that can be used to play, pause, and mute music and videos instantly. Skip to the next song with the touch of a button, or use the roller to adjust the volume.
    Logitech Gaming Software
  • Gain full control of the G610 with Logitech Gaming Software. Assign custom button macros on F1 through F12 to customize your favorite game. You also get full control of per-key backlighting and can customize which keys are turned off when you turn on game mode. (By default, Game Mode disables the Windows key.)
    26-Key Rollover
  • Execute every complex move at the right time with multi-key input. With 26-key rollover, you can press a number of keys plus modifier keys (Control, Alt, Shift) in any order and still get exactly what you intended.

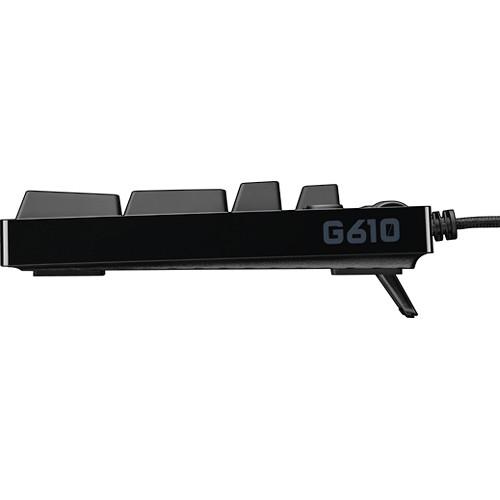

    Three-Position Height Adjustment
  • Three step angle adjustments (0, 4, or 8 degrees) allows you to set your keyboard at an angle that feels just right for you and your style. Rubber feet keep your keyboard stable during intense gaming action.
UPC: 097855119667 In the Box Logitech G610 Orion Backlit Mechanical Keyboard
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Logitech G610 Orion Backlit Mechanical Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Logitech G610 Orion Brown Specs

    Switch Type Mechanical
    Mechanical Switch Type Cherry MX Brown
    Key Rollover 26-Key
    Actuation Force 45 g
    Travel Distance 0.16" / 4 mm
    Dedicated Multimedia Keys Yes
    Dedicated Macro Keys None
    Connection Type Wired
    System Connection USB Type-A
    USB Ports None
    Audio None
    Full-Functionality OS Support Windows
    Backlight Yes
    LED Colors White
    Built-In Control Device None
    Wrist Rest None
    Cable Length 6' / 1.83 m
    Cable Type Braided
    Dimensions (L x W x H) 1.4 x 17.5 x 6.0" / 3.6 x 44.5 x 15.2 cm
    Weight 2.8 lb / 1.3 kg
    Package Weight 3.595 lb
    Box Dimensions (LxWxH) 18.4 x 7.8 x 2.0"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 17 owners. Add your rating and experience with the product.
