User Manual for Logitech G920 Driving Force Racing Wheel Click to enlarge the picture
Contents of the user manual for the Logitech G920 Driving Force Racing Wheel
- Product category: Gaming Controllers Logitech
- Brand: Logitech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Logitech Gaming Controllers
 |
User manual for the Logitech G920 Driving Force Racing Wheel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Logitech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Logitech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Logitech product will considerably shorten its lifespan!
|

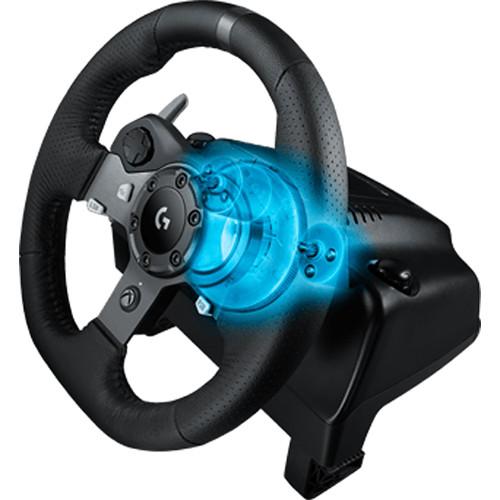

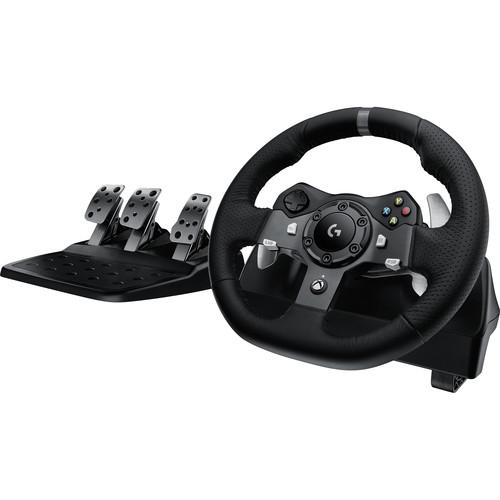

Product description Get an immersive racing experience with the Logitech G920 Driving Force Racing Wheel. The G920 features a 10.24" racing wheel covered with hand-stitched leather. The wheel rotates up to 900° and features dual-motor force feedback for a realistic driving experience. In addition to the wheel, the G920 also comes with a 3-pedal set. The throttle, brake, and clutch pedals allows you to accelerate, brake, and change gears with the feel of an actual car. The nonlinear brake pedal mimics a pressure-sensitive brake system for a more responsive, accurate braking feel. There are also rubber feet for hard surfaces and a patented retractable grip system for carpets. Compatible with Microsoft Xbox One and Windows PCs, the G920 has a directional pad and Xbox One buttons. - Dual-Motor Force Feedback
- Powerful dual-motor force feedback provides a realistic driving experience by simulating force effects.
- Quality Construction
- Built to handle the stress of fast-paced racing games, the G920 has solid steel ball bearings in the wheel shaft as well as stainless steel paddle shifters and pedals. The race wheel is covered in hand-stitched leather for a comfortable driving experience.

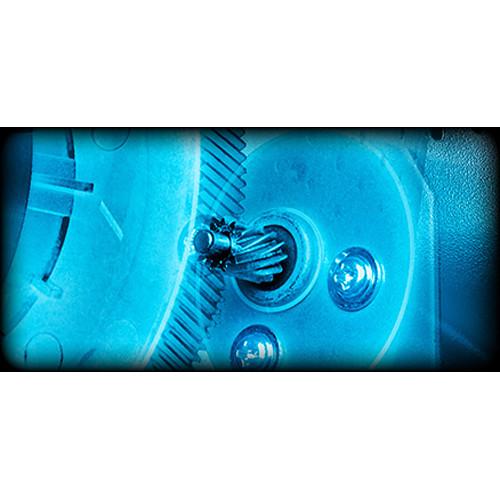

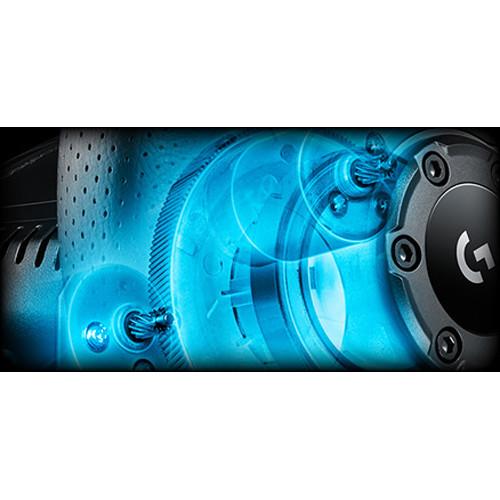

- Helical Gearing with Anti-Backlash
- Helical gears are modeled after gears used in automotive transmissions to reduce unwanted noise and vibration. Anti-backlash keeps the wheel and pedals tight for maximum control. The G920 also has a reliable hall-effect steering sensor, which uses magnetic fields to sense the position of the wheel.

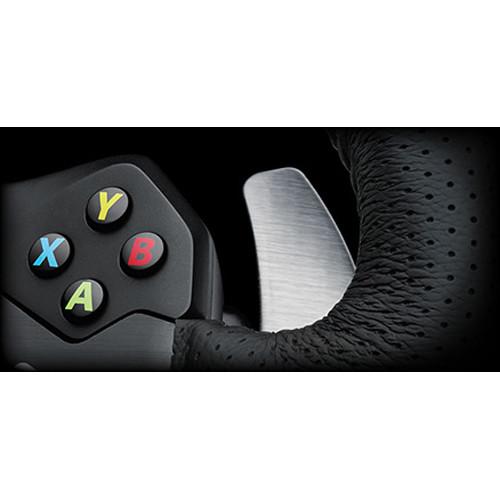

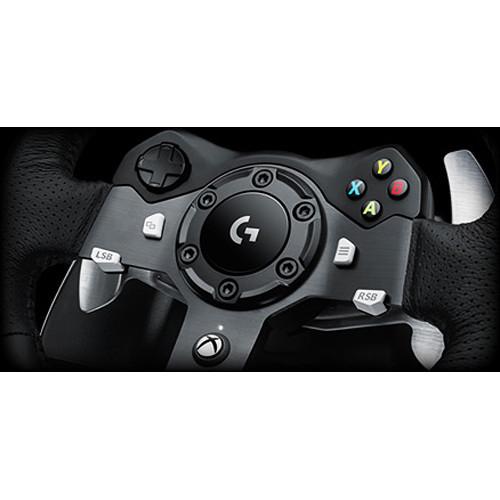

- Easy Access to Game Controls
- The D-pad, buttons, and paddle shifters are all within reach on the G920.

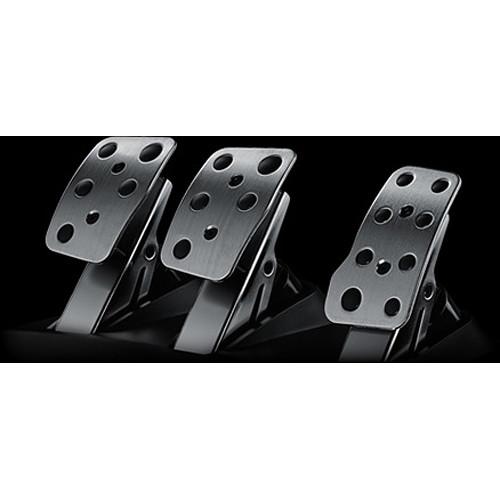

- Responsive Floor 3-Pedal Set
- Included with the G920 is a 3-pedal set, complete with the throttle, brake, and clutch. The nonlinear brake pedal mimics the performance of a pressure-sensitive brake system for a more responsive, accurate braking feel. For even more control, you can move the pedals to make heel-toe maneuvers easier to perform. The 3-pedal set has rubber feet for hard surfaces and a patented retractable carpet grip system so it stays in place.
- Mounts Securely
- The G920 mounts securely to your table or racing rig via the built-in clamps or screw mounting points.

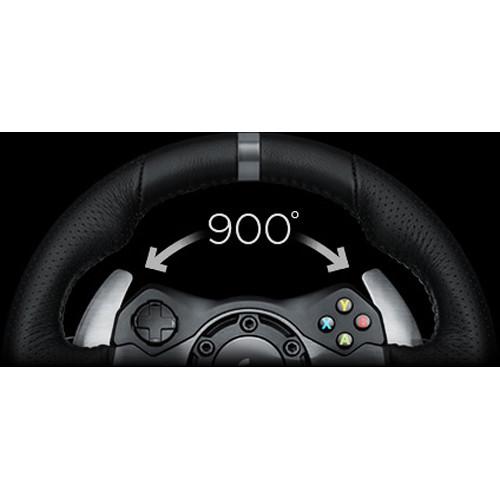

- 900° Steering
- The G920 has a 900° lock-to-lock rotation, which means you can turn the wheel two and a half times.

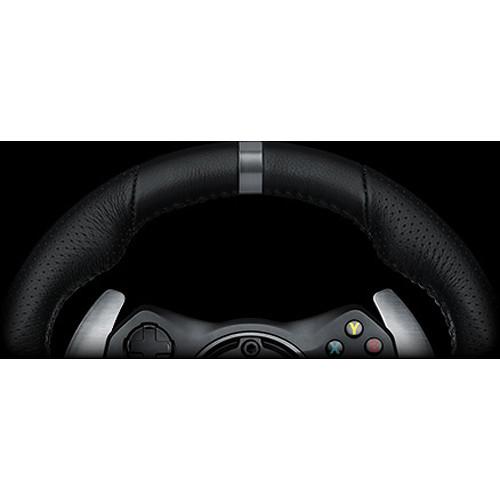

- Steering Wheel Stripe
- The visible steering wheel stripe gives you a visual cue of where the wheel is pointing.
In the Box Logitech G920 Driving Force Racing Wheel 3-Pedal Set Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech G920 Driving Force Racing Wheel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLogitech G920 Specs | Compatibility | Platform Microsoft Xbox One PC running Windows 8.1/8/7
Logitech Optional Accessories Logitech Driving Force Shifter | | Wheel Diameter | 10.24" / 260 mm | | Rotation Range | Up to 900° | | Materials | Wheel Spokes: Anodized aluminum Wheel Cover: Hand-stitched leather Steering Shaft: Steel Shifter Paddles: Brushed stainless steel Mounting Clamps: Glass-filled nylon Pedal Frames & Arms: Cold-rolled steel Pedal Faces: Brushed stainless steel Pedal Piston Sleeves: Polyoxymethylene thermoplastic (POM) | | Lights | None | | System Requirements | Powered USB 2.0 port 150 MB of hard drive space Internet connection Games that support Logitech Force Feedback (please visit Logitech's website for a full list of games) | | Dimensions (W x H x D) | Wheel
10.24 x 10.63 x 10.94" / 260 x 270 x 278 mm
Pedals
16.87 x 6.57 x 12.24"/ 428.5 x 167 x 311 mm | | Weight | Wheel (Without Cables)
4.96 lb / 2.25 kg
Pedals (Without Cables)
6.83 lb / 3.1 kg | | | | Package Weight | 17.3 lb | | Box Dimensions (LxWxH) | 17.3 x 13.2 x 12.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Logitech G920 Driving Force Racing Wheel
| Subject: Query | | Date: 06.12.2021 14:33:27 | Name: Avril Huston | Hi Regarding the logitech g920 wheel what size of mounting screws would I need to securely mount this to a stand
Regards
Avril
| | Post reply |
| Subject: G920 | | Date: 03.01.2021 03:45:23 | Name: Alex LaBranche | | I can’t get this stupid steering wheel to not be so sensitive. I turn the wheel 1 degree and the car just completely spins off the road. How do I fix. Using xbox1 | | Post reply |
