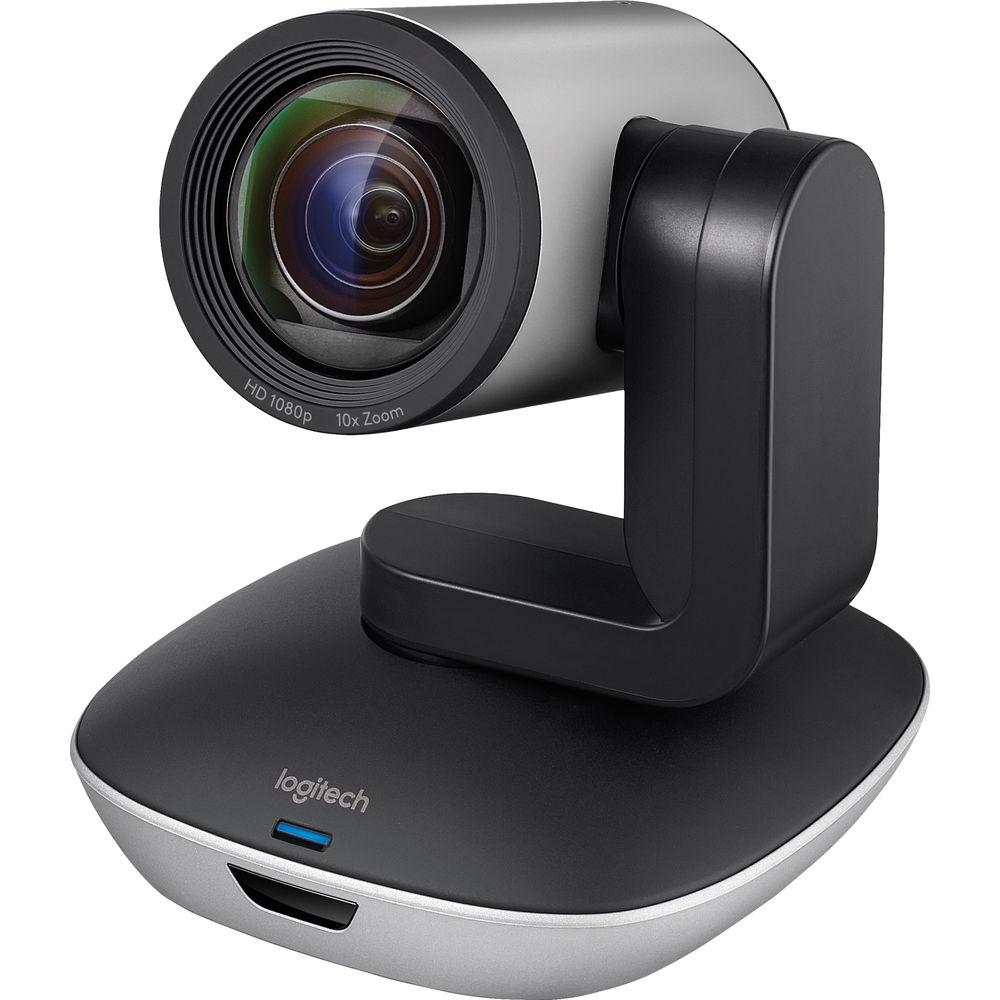

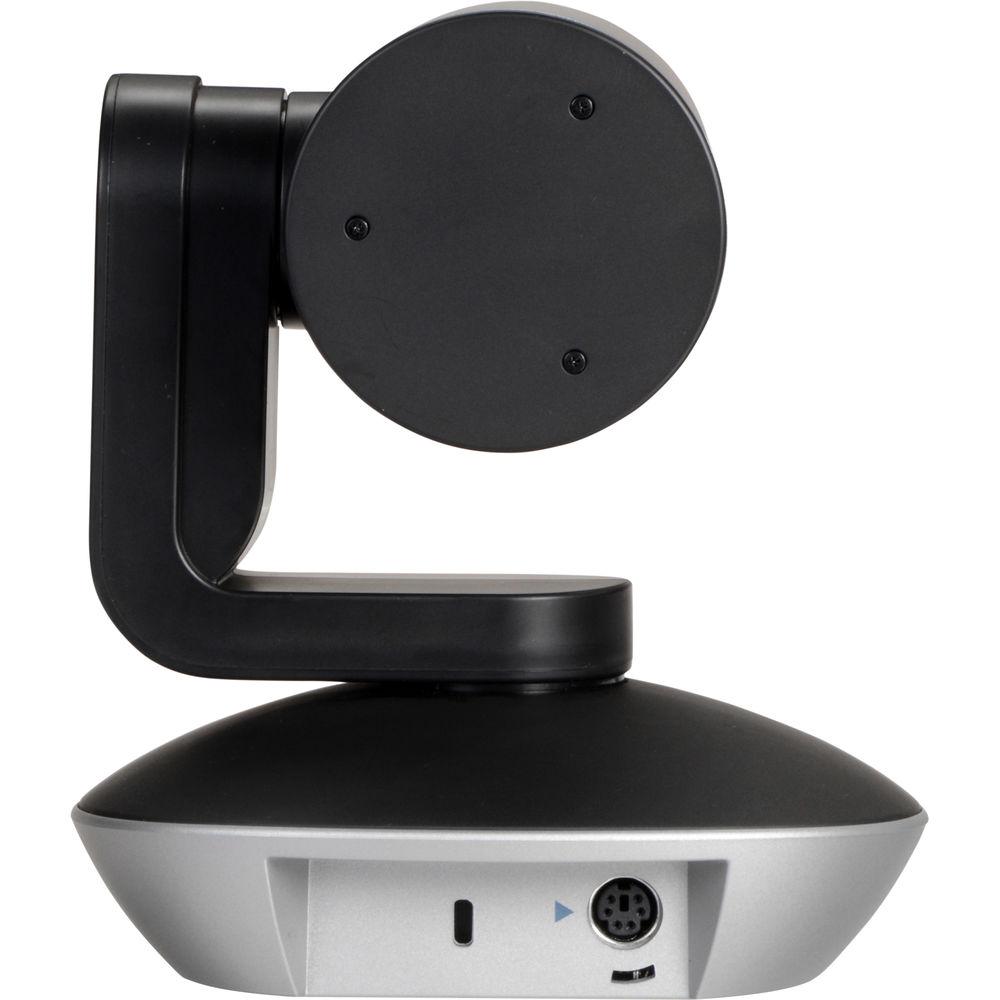

Product description Include the entire boardroom in your video conference calls with the Logitech GROUP Videoconferencing System. The system combines a speakerphone unit, a camera, a remote control, and a hub for connecting all the components with your computer via USB 2.0. The camera included with this kit features sharp full-HD image resolution and a 90° field-of-view to show the collaboration space. The duplex speakerphone unit houses a microphone sensitive enough to pick up voices from the corners of the room, and separately available expansion microphones can be added for larger room coverage. A wireless remote is included so you can control the videoconferencing hardware from across the room. GROUP is compatible with various telecommunication platforms including WebEx, Lync, Skype for Business, BlueJeans, Zoom, and Jabber. - Camera Features
-
- Smooth motorized pan, tilt and zoom, controlled from remote or console
- 260° pan, 130° tilt
- 10x lossless HD zoom
- 90° Field of View
- Autofocus
- 5 camera presets
- Far-end control (PTZ) of ConferenceCam products
- Kensington security slot
- LED to confirm video streaming
- Standard tripod thread

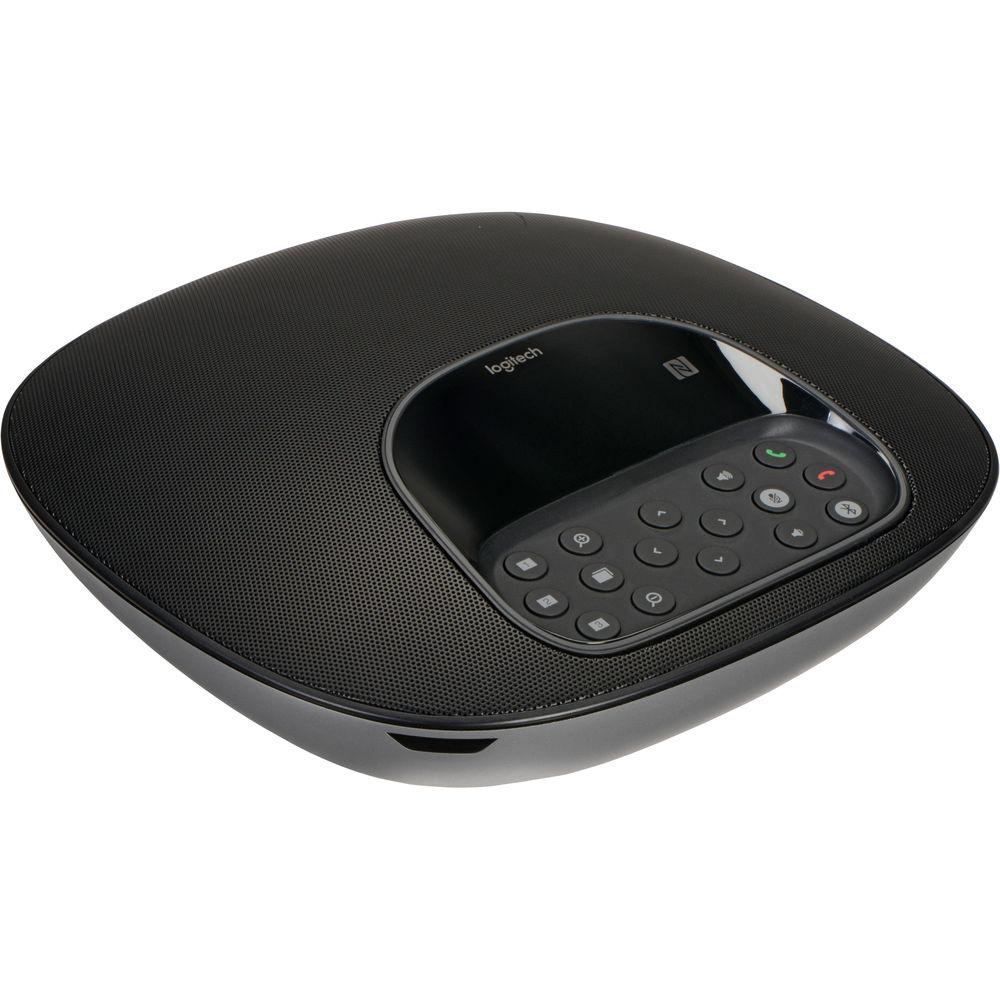

- Speakerphone Features
-
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Bluetooth and NFC wireless technology

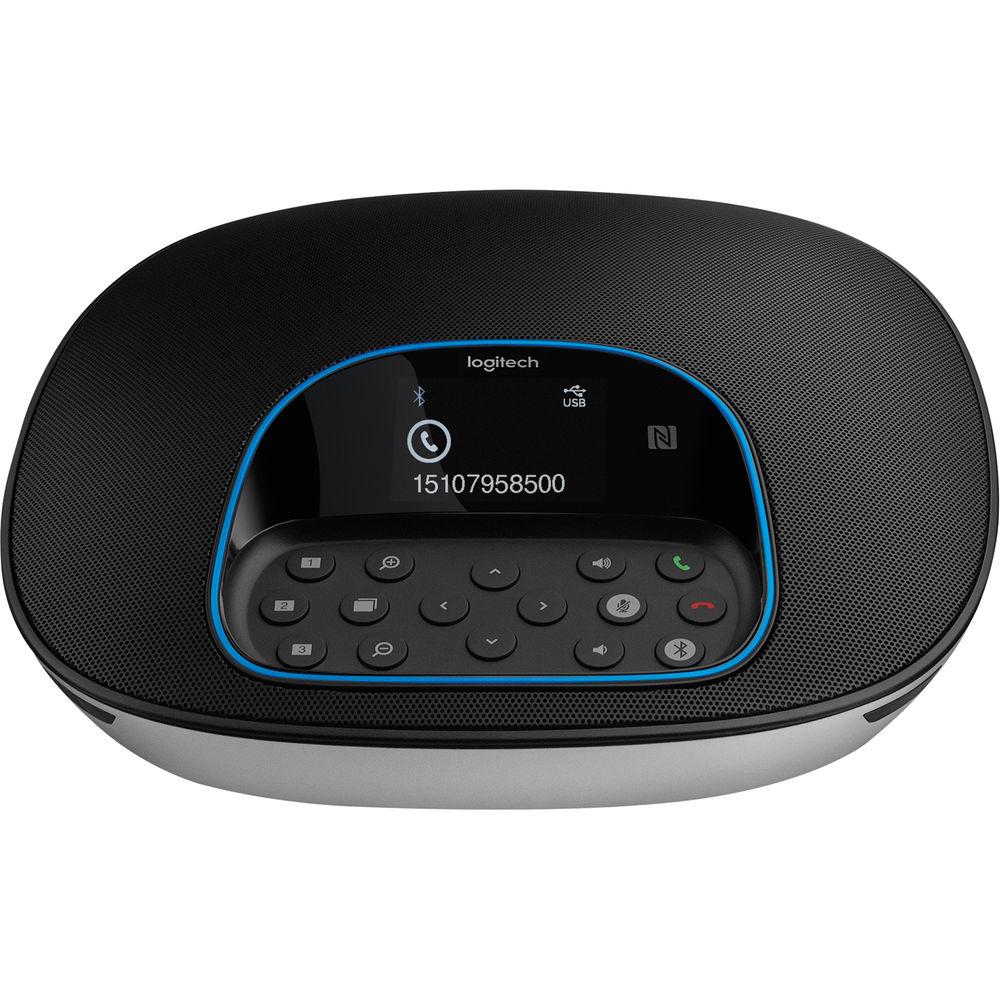

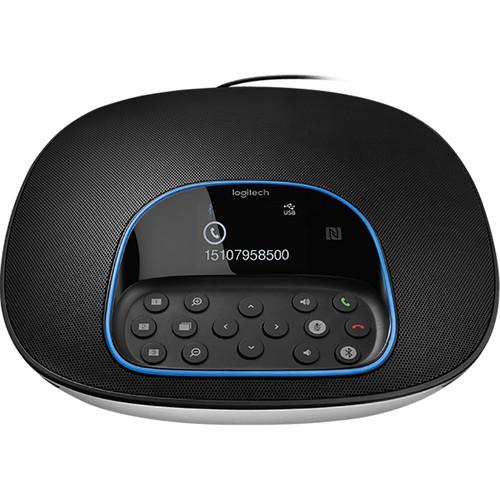

- LCD for caller ID, call duration and other functional response
- LEDs for speakerphone streaming, mute, hold, and Bluetooth wireless paring
- Touch controls for call answer/end, volume and mute, Bluetooth - plus camera PTZ, "home" preset and far-end control
- Hub Features
-
- Central mountable hub for connection of all components
- Included adhesive solution for under-table mounting
- Two cables for connection between hub and camera/speakerphone
- General Features
-

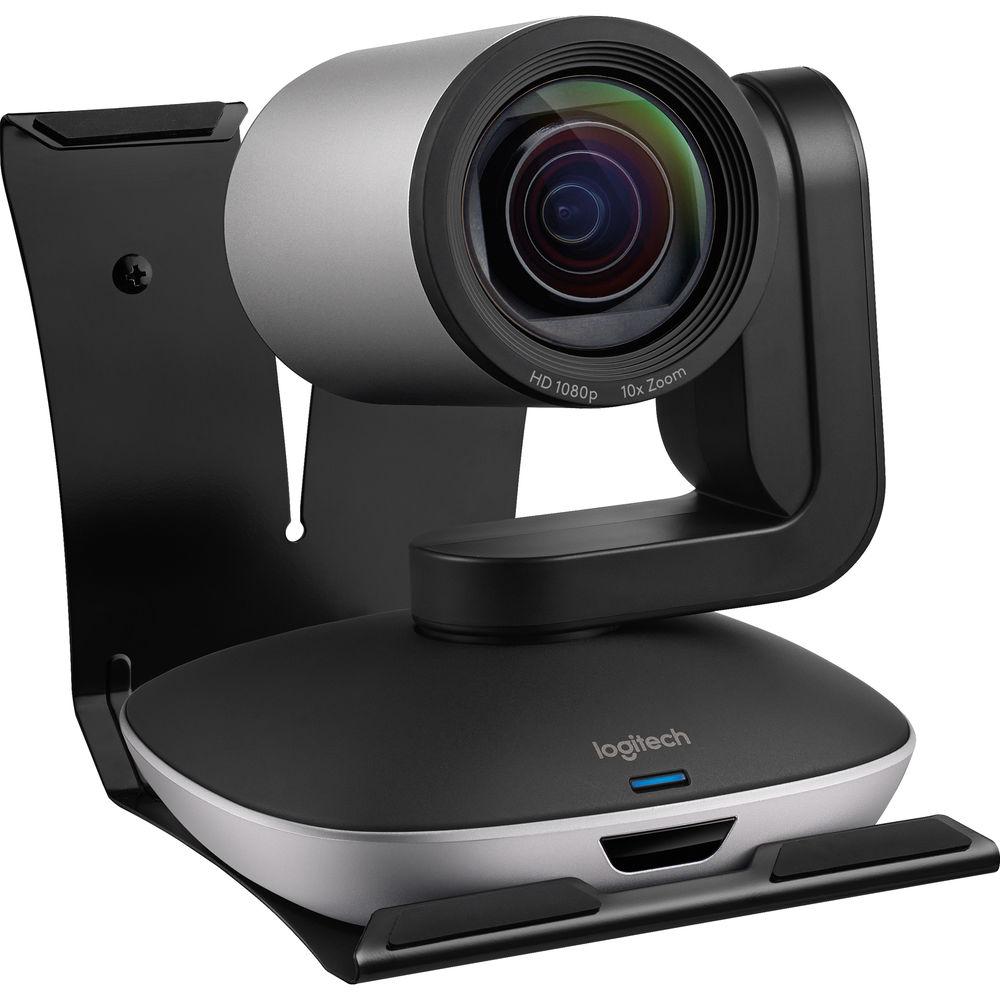

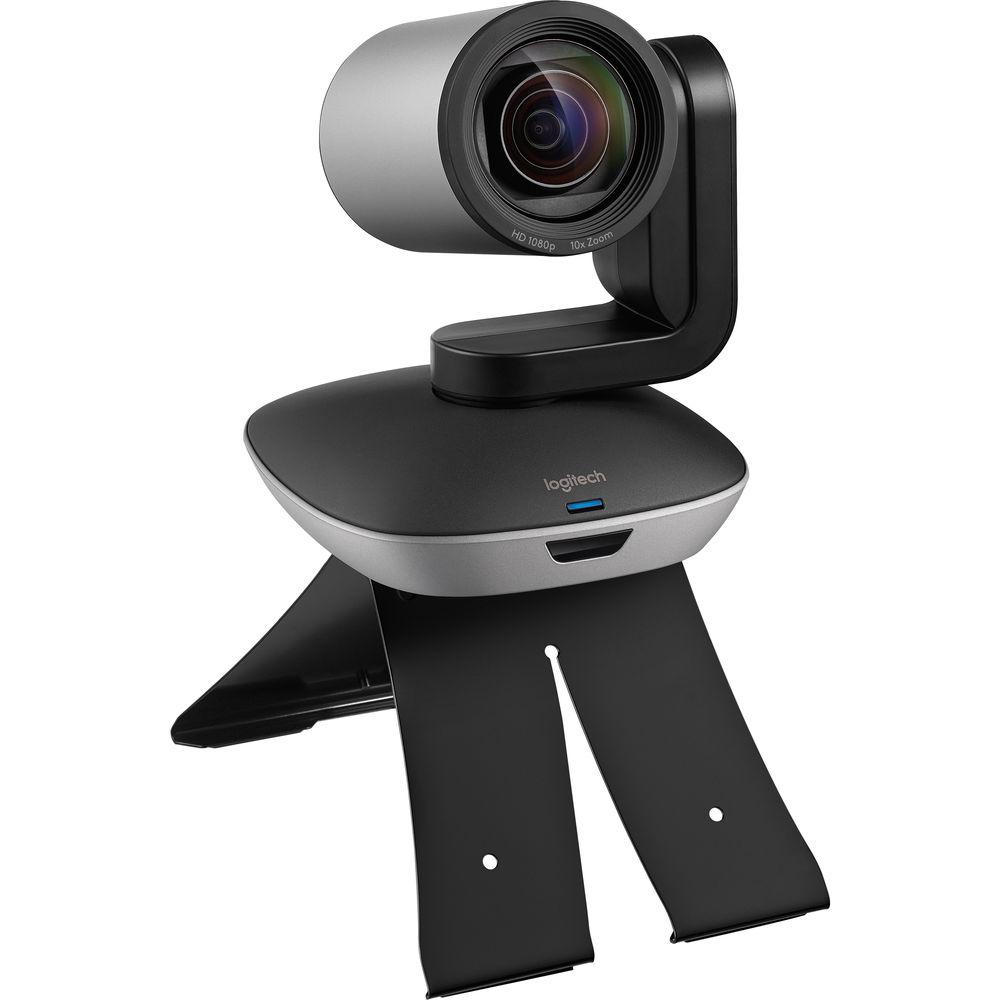

- Dual purpose mount for wall placement or for elevating the camera on a table
- UVC-compliant video and audio for broad application compatibility
- Optimized for Microsoft Lync, Certified for Skype for Business, Cisco Jabber and WebEx compatible. Enhanced integration with Logitech Collaboration Program (LCP) members.
- Downloadable diagnostic tool
- Field upgradeable firmware tool
- Downloadable app plug-ins for advanced feature support
UPC: 097855118462 In the Box Logitech GROUP Videoconferencing System Camera Speakerphone Remote Control Speakerphone Cable Camera Cable Computer Cable Cable Ties Touch Fastener for Securing Hub Powered Hub Power Adapter with International Plugs Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech GROUP Videoconferencing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLogitech PTZ PRO 2 Specs | | | Pan & Tilt | Pan: 230°
Tilt: 130° | | Field of View | 90° | | Resolution | 1080p30 | | Codec | H.264 UVC 1.5 with Scalable Video Coding (SVC) | | Tripod Mounting Thread | 1/4"-20 | | | | Microphones | Array: 4 x omnidirectional
Frequency Response: 100 Hz - 11 kHz
Sensitivity: -28 dB ±3 dB
Distortion: <1% @ 1 kHz at 106 dB | | Speakers | Frequency Response: 120 - 14 kHz
Sensitivity: 83 dBSPL ±3 dB at 1 W / 1 m
Max Output: 91 dBSPL
Distortion: <5% from 200 Hz | | | | Remote Control Distance | Up to 28' / 8.5 m | | Connectivity | Computer: USB 2.0 | | Dimensions | Camera: 5.1 x 7 x 5.4" / 130 x 170 x 138 mm
Speakerphone: 9.5 x 2.5 x 9.5" / 240 x 65 x 240 mm
Hub: 3.75 x 1.3 x 2.9" / 94 x 34 x 74 mm
Remote: 2 x 5 x 0.5" / 50 x 120 x 12 mm | | Weight | Camera: 21 oz / 585 g Speakerphone: 43 oz / 1223 g Hub: 3 oz / 83 g Remote: 2 oz / 51 g | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 19.3 x 12.4 x 5.9" |
