Logitech MeetUp 4K ConferenceCam Expansion Mic

User Manual for Logitech MeetUp 4K ConferenceCam Expansion Mic Bundle

• Product category: Video Conferencing Cameras Logitech
• Brand: Logitech
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Logitech Video Conferencing Cameras

Product description

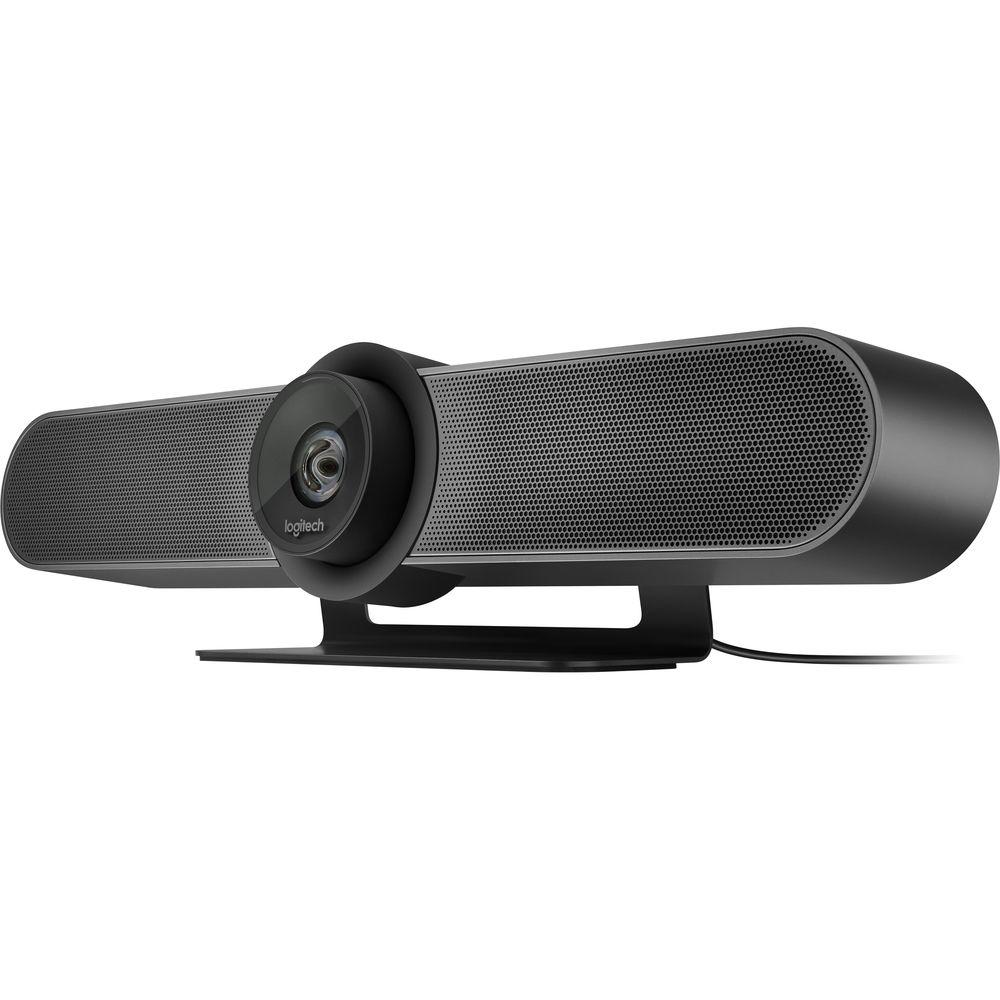

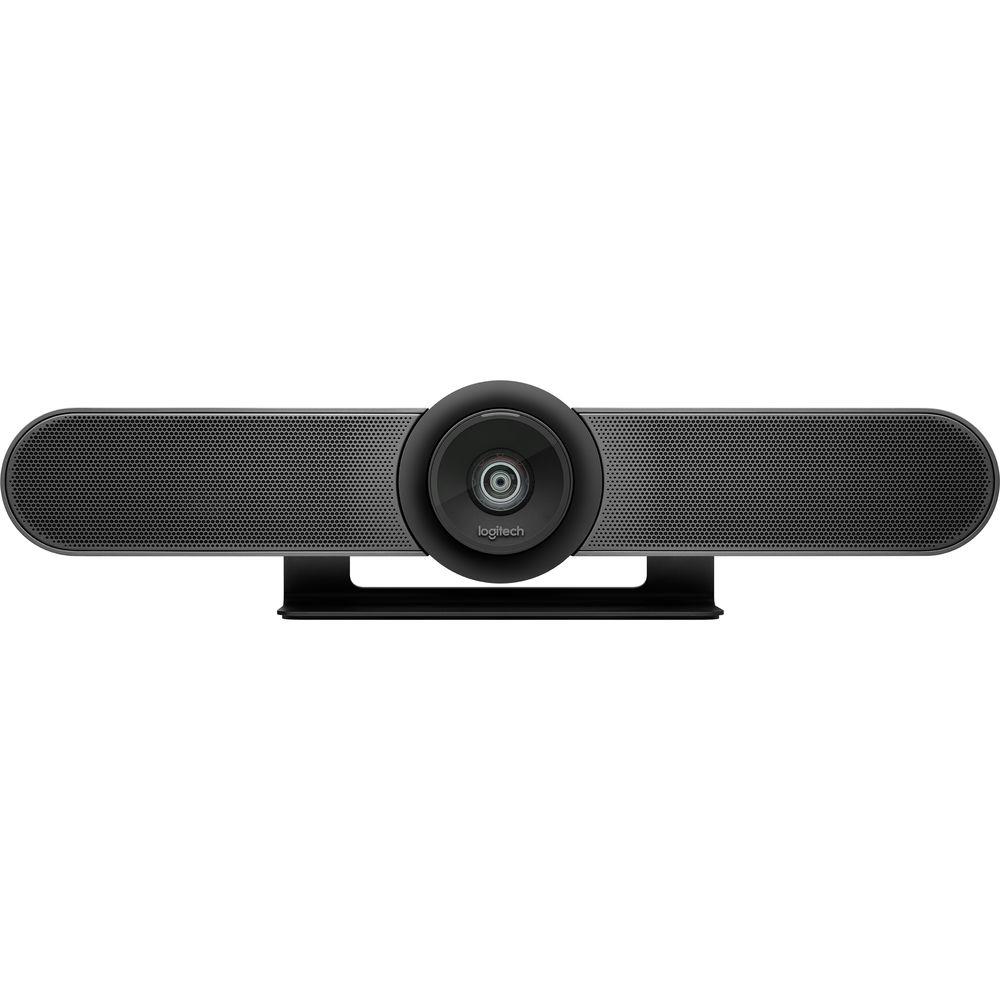

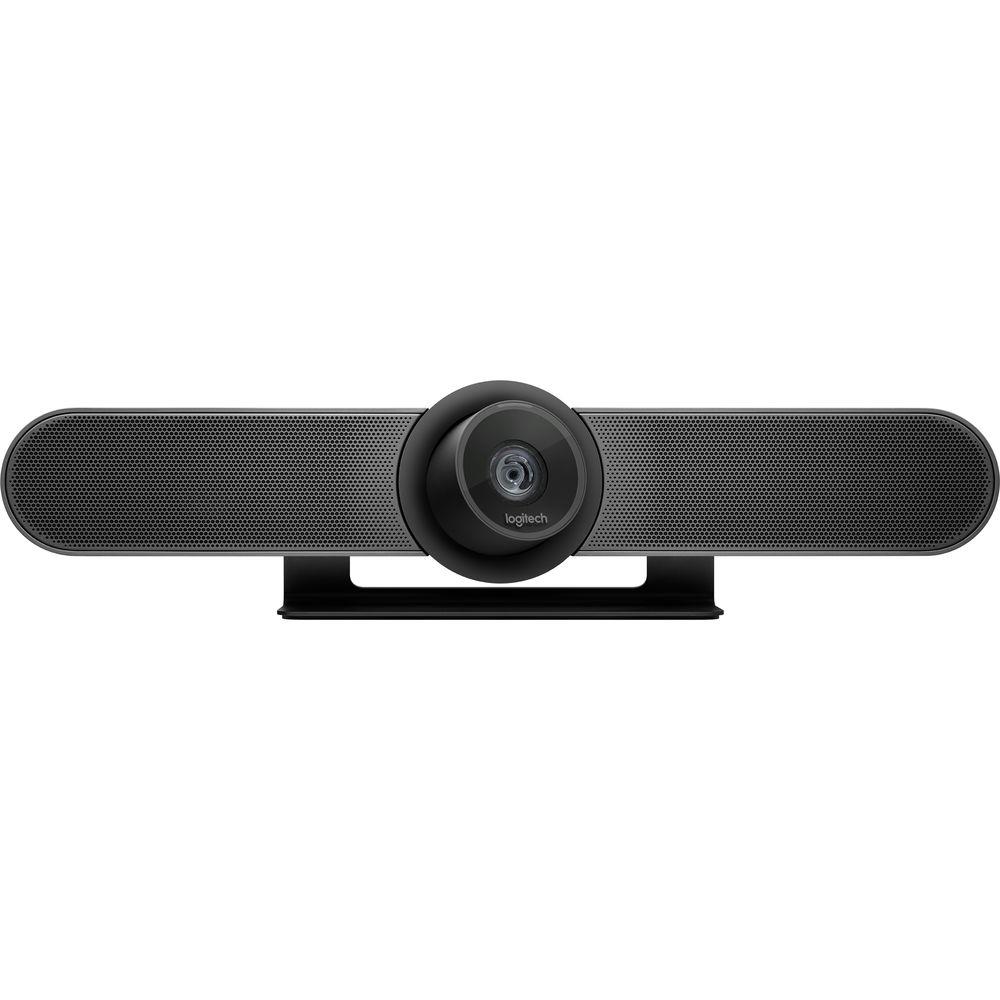

• MeetUp All-In-One 4K ConferenceCam with 120° FOV Lens Add the MeetUp All-In-One 4K ConferenceCam from Logitech to your small conference room to capture audio and video of everyone in the room. The compact design keeps wiring to a minimum and can be easily mounted on a table or on the wall.

  The camera features a 120° lens with a 5x zoom which captures a wide field of view, keeping all subjects in focus without a fisheye effect. The camera captures up to 1080p video over USB 2.0, and up to 4K UHD video with a separately available USB 3.0/3.1 Gen 1 cable at 30 fps. Its pan, tilt, zoom, volume, mute, and answer/hang-up functions can be controlled by the included RF remote control or by the ConferenceCam Soft Remote app for Android and iOS over Bluetooth. You can also connect your smartphone via Bluetooth to use the MeetUp speaker for rich, clear sound.

  The ConferenceCam's audio features include three built-in microphones that have a range of 8'. If you have a larger room to cover, an optional Expansion Mic for MeetUp can be added to extend your audio capture range to 14'. Microphone features include a low-distortion algorithm, background noise reduction, and echo cancellation. The built-in speaker provides clear audio and peak-limiting to prevent clipping.

  The MeetUp connects to a macOS or Windows computer via plug-and-play USB, and supports numerous conferencing applications such as Skype for Business, Microsoft Cortana, Cisco Jabber, and WebEx. It also integrates with Logitech Collaboration Program (LCP) members which include BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom.

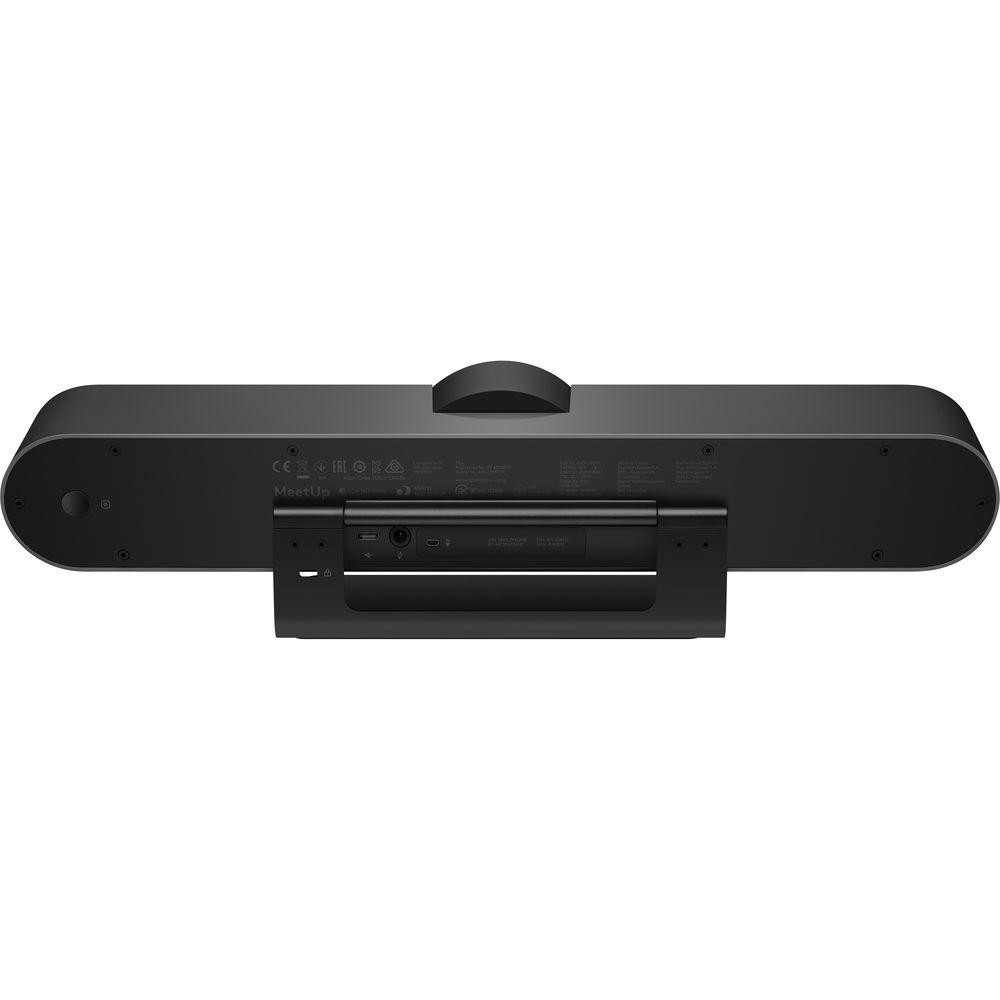

  You can mount your MeetUp on a table or wall with the included wall mount, or an optional TV mount can be purchased to mount above or below a wall-mounted flat-panel TV with standard VESA mounts. A built-in Kensington security slot allows you to lock down your MeetUp when not in use. The unit also comes with a 16' USB cable and power adapter.
  Camera Optics
  • MeetUp features camera optics that capture a wide field of view without distorting faces and furniture with a fisheye effect. Faces look natural, whiteboard writing remains legible, and straight lines stay straight.
  5x Zoom Lens
  • Zoom in on whiteboards and objects so remote participants can see what you see. Thanks to its advanced 4K image sensor, video remains sharp and clear, even when you zoom in on the details.
  Camera Operation
  • The camera features three presets and motorized pan/tilt operation.
  Built-In Microphone, Optional Expansion Mic
  • MeetUp's built-in beamforming mics are optimized for up to 8'. To extend that range up to 14', add an optional Expansion Mic. Whether people are seated at a table, sitting against the wall, or walking around the room, the Expansion Mic for MeetUp means everyone will be heard.
  Bluetooth Speakerphone
  • If you're already connected on your smartphone or dialing into an audio conference, pair MeetUp with your smartphone or tablet to enjoy outstanding audio clarity, volume, and range that handheld devices can't match.
  RF Remote Control
  • With a multi-directional remote control, you can easily operate camera controls, adjust volume, and mute/unmute from anywhere in the room. Featuring a low-profile design, durable materials, and a non-slip base, the MeetUp Remote Control feels as good on the tabletop as it does in your hand.
  Smartphone Remote Control
  • The ConferenceCam Soft Remote app for Android and iOS (available on Google Play and iTunes) replicates every function of the physical MeetUp remote on your smartphone or tablet.
  Wall Mount or Optional TV Mount

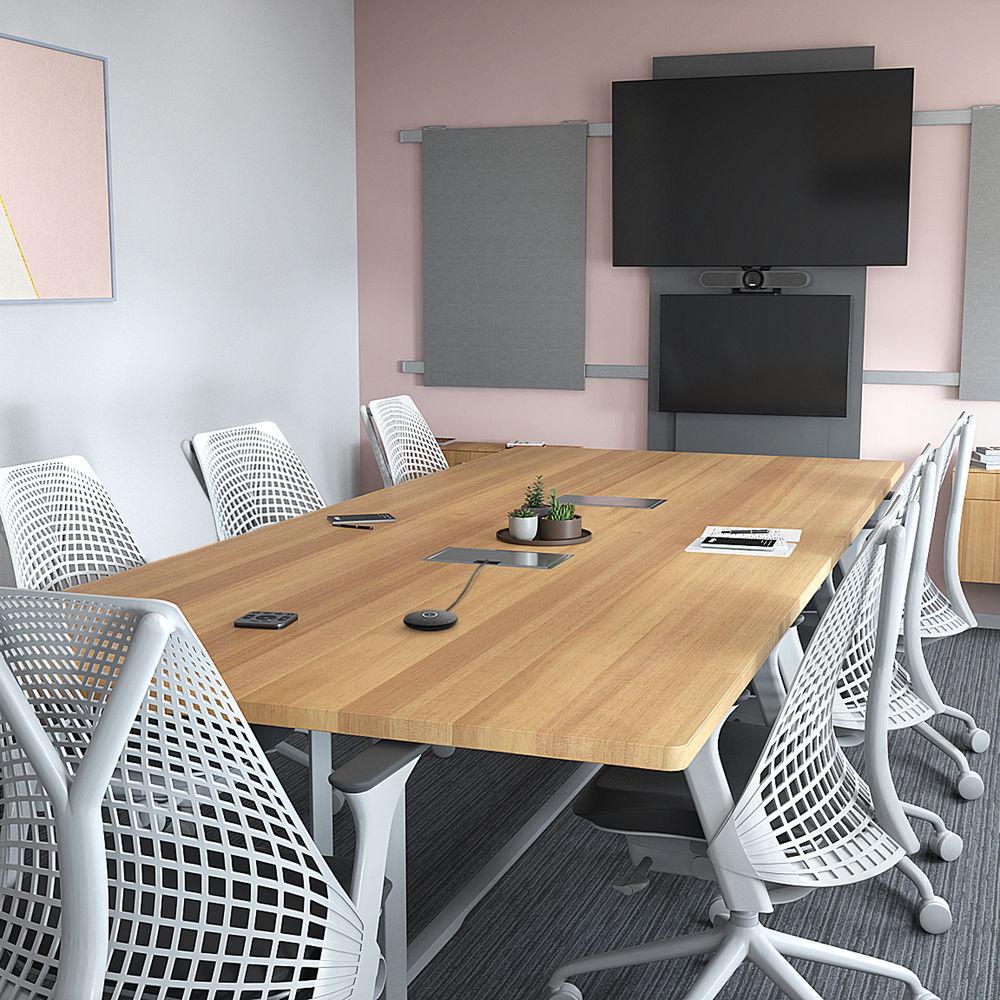

  • The MeetUp includes a mounting kit with the hardware you need to mount the unit on a wall or mount onto a table. The optional Logitech TV Mount for MeetUp lets you mount the MeetUp ConferenceCam either above or below a flat-panel monitor, and attaches to the industry-standard VESA mounting points available on most TVs and monitors.
  Kensington Security Slot
  • Secure the MeetUp when not in the conference room with a Kensington-compatible security slot.
  Software Compatibility
  • MeetUp works with most any video conferencing application or meetings service.
    Skype for Business certified.
    Microsoft Cortana certified.
    Cisco Jabber and WebEx compatible.
    Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom.
  System Requirements
  • Windows 7, Windows 8.1, or Windows 10.
    macOS 10.10 or higher.
    Chrome OS Version 29.0.1547.70 and higher.
    USB 2.0 port (USB 3.0/3.1 Gen 1 required for 4K video).
  UPC: 097855130037

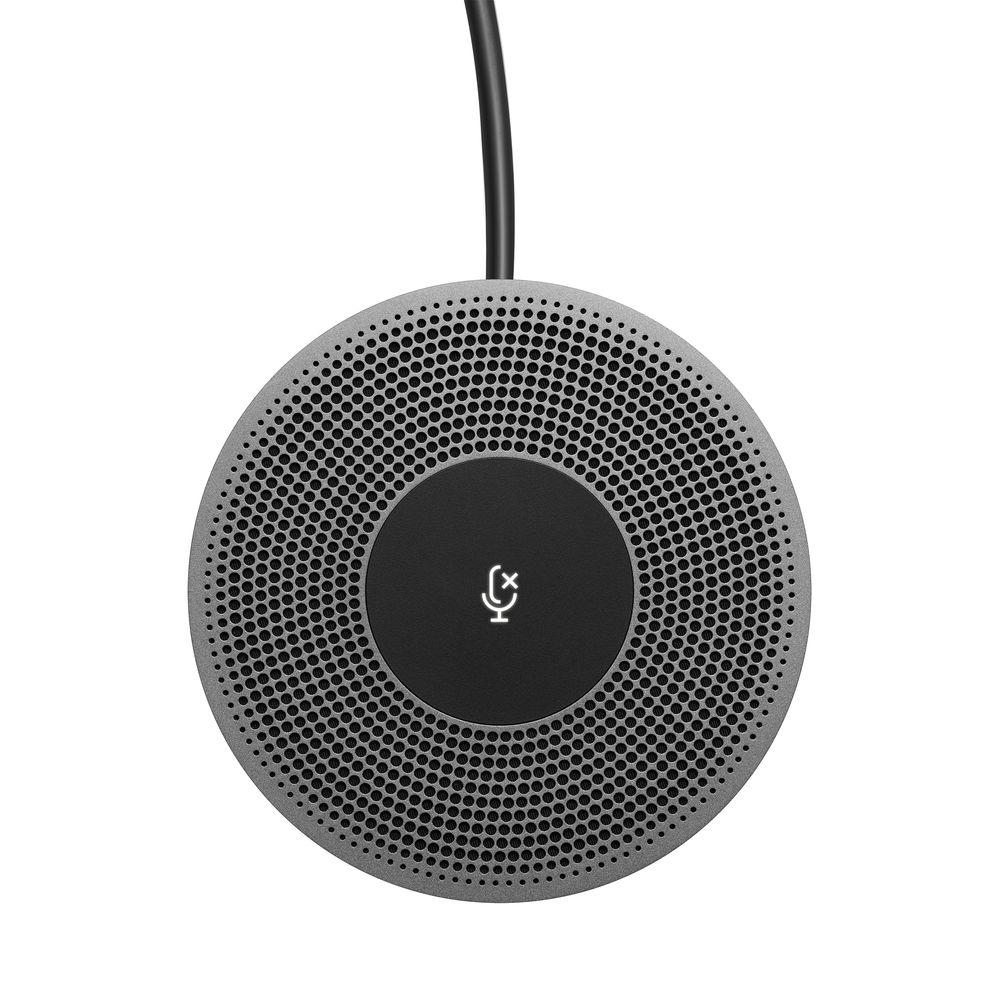

• Expansion Mic for MeetUp ConferenceCam The Logitech Expansion Mic for MeetUp ConferenceCam is an add-on microphone for larger huddle rooms where the 8' range of the ConferenceCam's built-in mic is insufficient. The expansion mic works from up to 14' away, almost double, allowing more participants to be clearly heard. It connects plug-and-play to the ConferenceCam via an integrated 20' cable. The mic also features a mute button that lets those at the far end of the conference table mute the entire speakerphone system.
  Other Features
  • • Microphone Type: Mono, wideband, noise canceling
    • LED Indicator: Confirms video streaming, microphone mute, on-hold, and Bluetooth pairing status
  UPC: 097855131171

• Remote Control

• USB Cable (16')

• Power Adapter

• Wall Mount with Hardware

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MeetUp All-In-One 4K ConferenceCam with 120° FOV Lens

  Field of View	120°
  Built-in Speakerphone	3 x built-in microphones 1 x optional microphone-ready expansion
  Supported Resolutions	Video calling with supported clients: 4K30: 3840 x 2160 1080p30: 1920 x 1080 720p30: 1280 x 720
  Remote Control	RF Remote: Camera control, volume, mute/unmute Bluetooth: Smartphone control and speaker usage
  Ports	USB 2.0 (separately available USB 3.0/3.1 Gen 1 required for 4K video)
  Built-In Microphone	Pickup Range: 8' / 2.4 m Sensitivity: -28 dB Frequency Response: 90 Hz to 16 kHz Sample Rate: 32 kHz Features: Acoustic echo cancellation (AEC), voice activity detector (VAD), background noise suppression
  Built-In Speaker	Adjustable Volume: 95 dB SPL at 0.5 m peak Speaker Sensitivity: 86.5 +/-3 dB SPL at 0.5 m Distortion: 200 to 300 Hz <3%, 3000 Hz to 10 kHz <1% Features: Rare-earth magnet, acoustically suspended speaker enclosure, peak-limiting to prevent distortion
  Dimensions	Camera: 4.1 x 15.8 x 3.4" / 104 x 400 x 85 mm Remote: 3.3 x 3.3 x 0.4" / 83 x 83 x 10 mm
  Weight	2.3 lb / 1 kg

  Box Dimensions (LxWxH)	19.0 x 8.0 x 5.5"

• Expansion Mic for MeetUp ConferenceCam

  Pickup Range	14' / 4.2 m
  Cable Length	20' / 6 m
  Dimensions	0.5 x 3.4 x 3.4" / 1.3 x 8.6 x 8.6 cm
  Weight	10.6 oz / 0.3 kg

  Box Dimensions (LxWxH)	7.5 x 6.8 x 1.6"
