User Manual for Logitech Meetup NUC KT3 Video Conferencing Kit Click to enlarge the picture
Contents of the user manual for the Logitech Meetup NUC KT3 Video Conferencing
- Product category: WebCams & Accessories Logitech
- Brand: Logitech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Logitech WebCams & Accessories
 |
User manual for the Logitech Meetup NUC KT3 Video Conferencing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Logitech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Logitech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Logitech product will considerably shorten its lifespan!
|

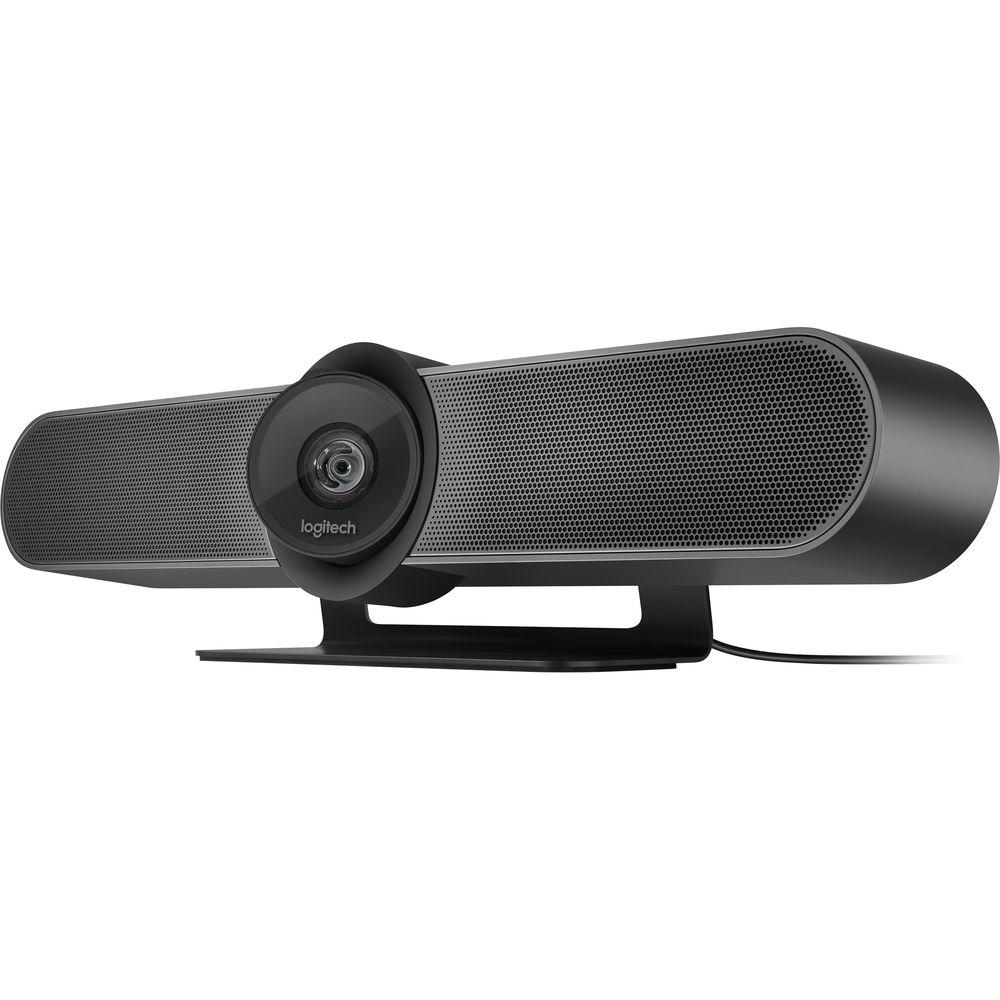

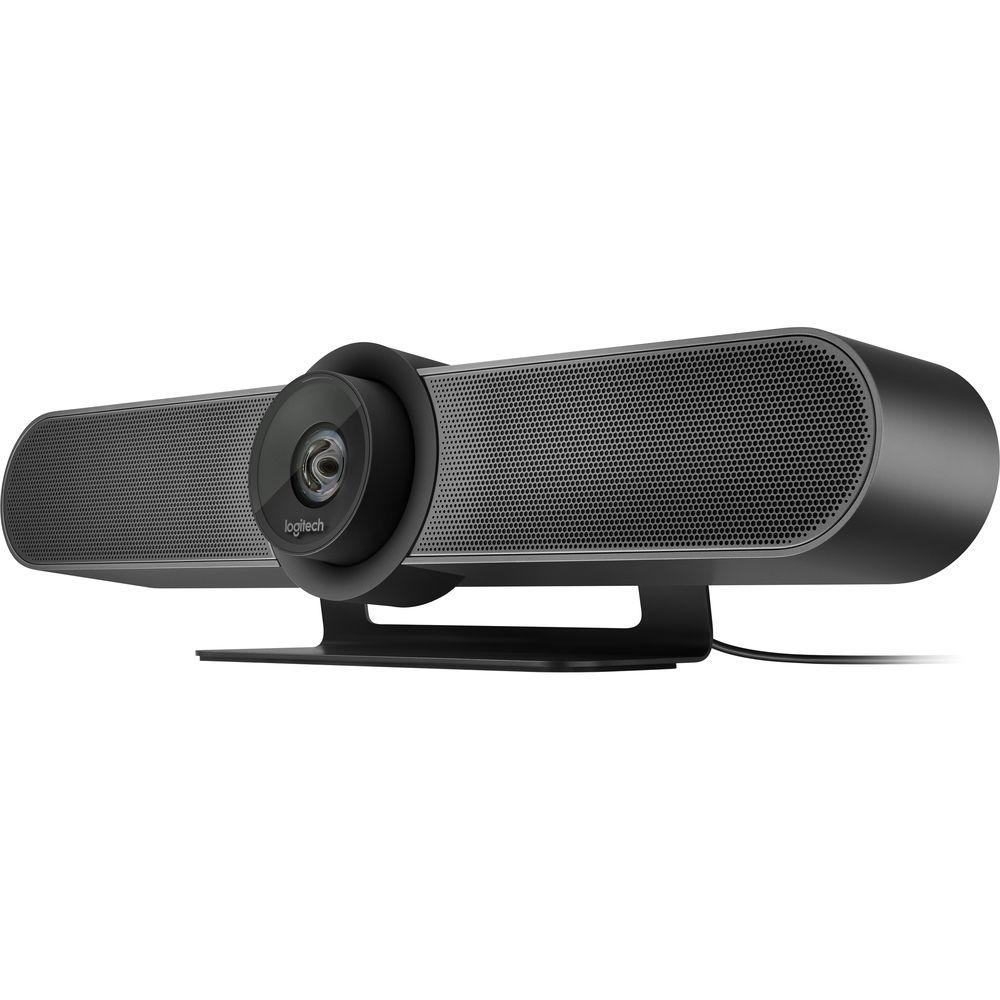

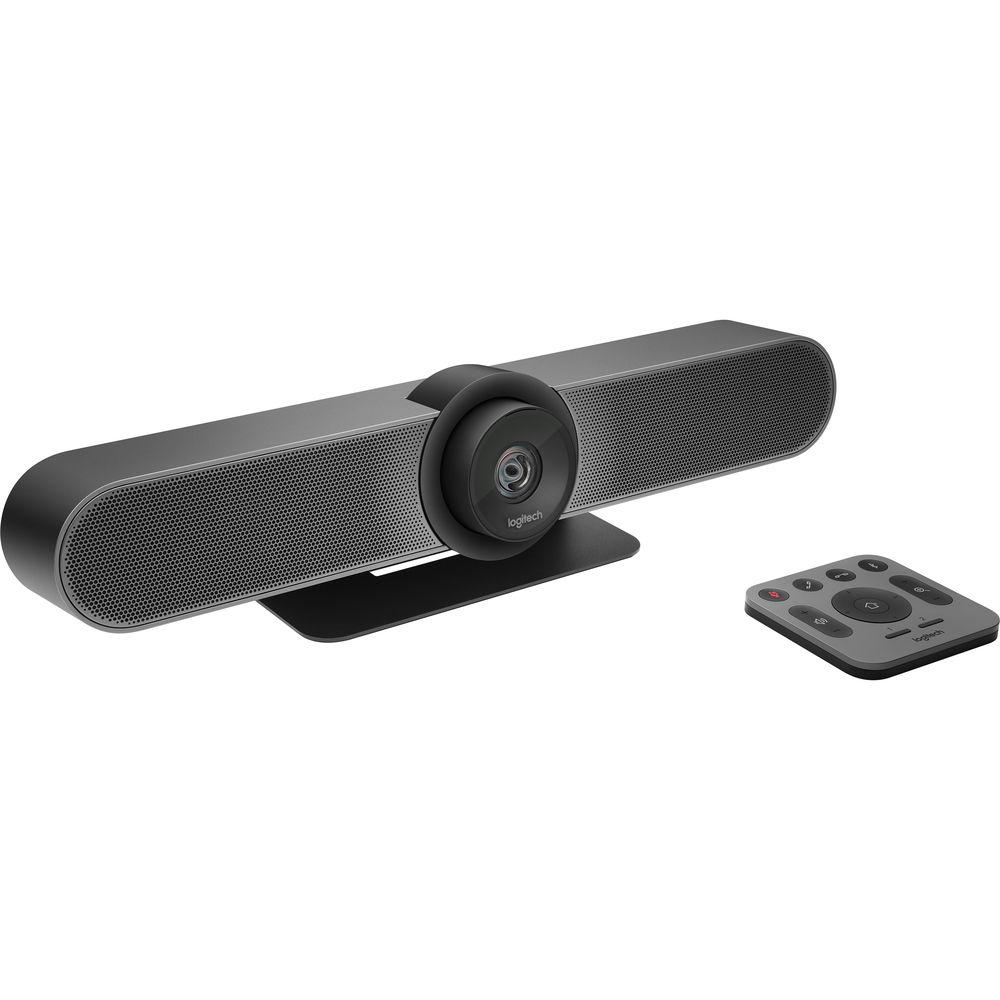

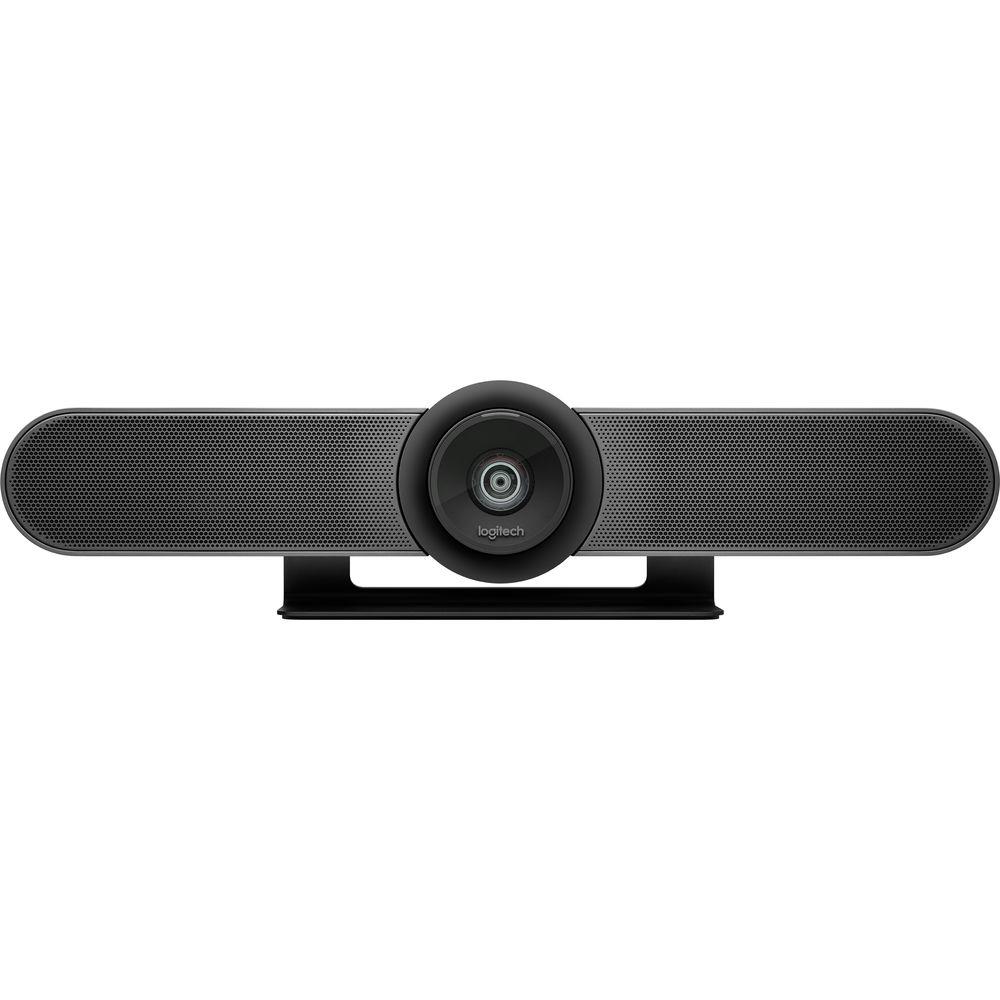

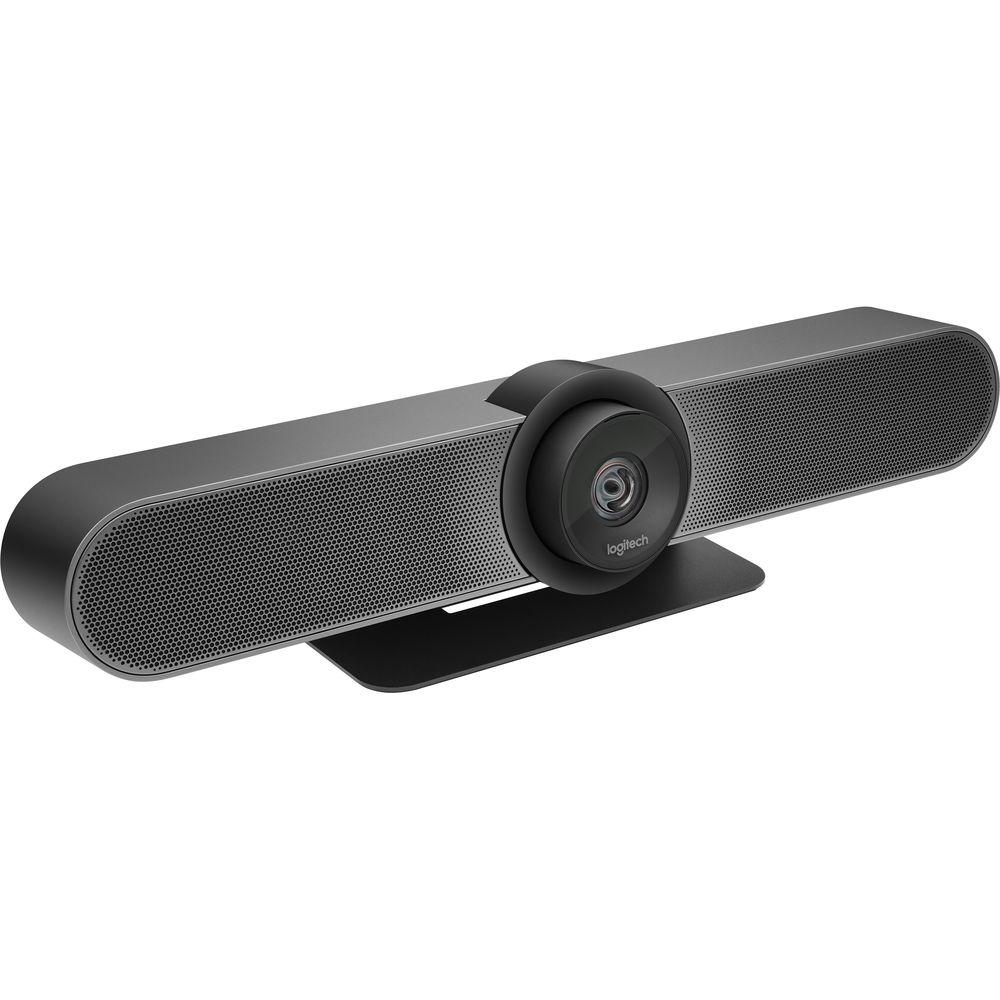

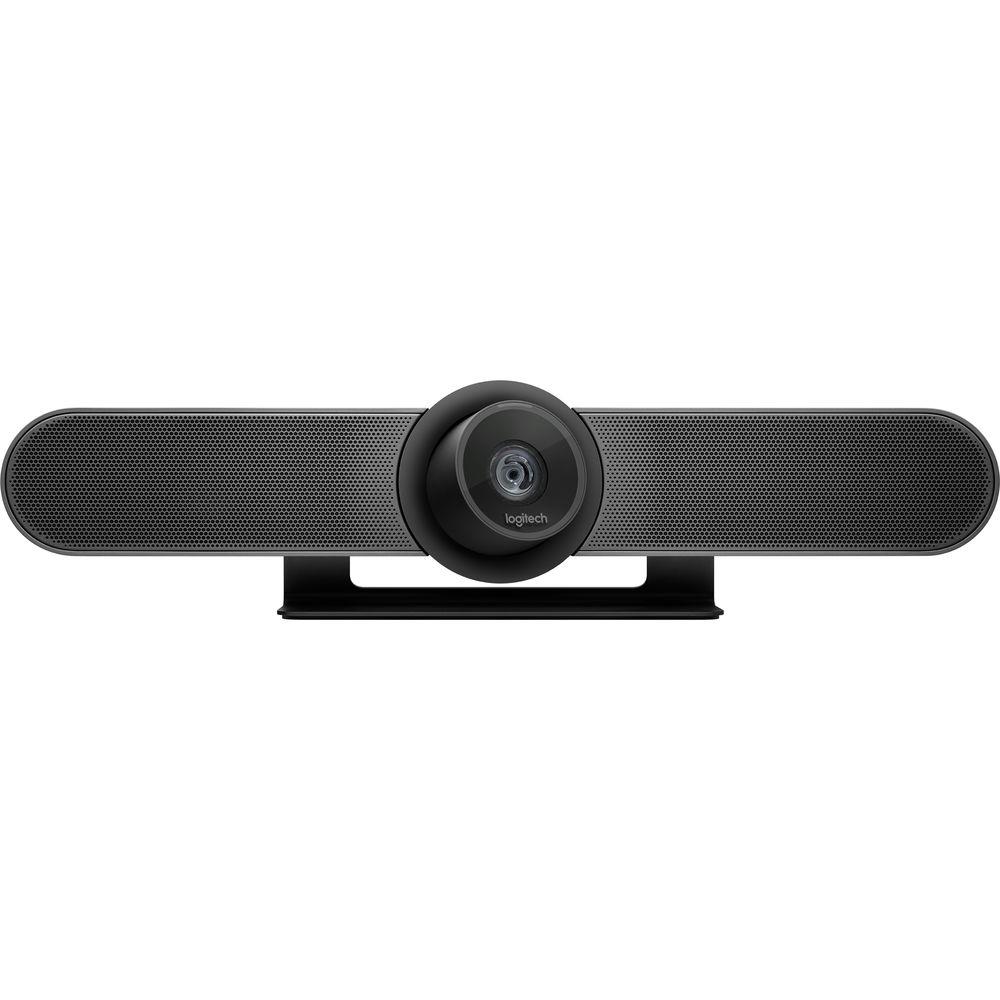

Product description This Meetup NUC KT3 Video Conferencing Kit from Logitech includes an Intel NUC5I5MYHE Mini PC NUC, a Logitech ConferenceCam webcam, a Mini DisplayPort to HDMI adapter, a Logitech K400 wireless touch keyboard, and a license key to activate the preinstalled software. With this bundle, you'll have everything you need to start video conferences in your office or in the meeting room. Logitech Meetup ConferenceCam -
- 4K UHD 4096 x 2160 optics
- Super wide 120° FOV
- 3 microphones and custom-tuned speaker
- All-in-one design

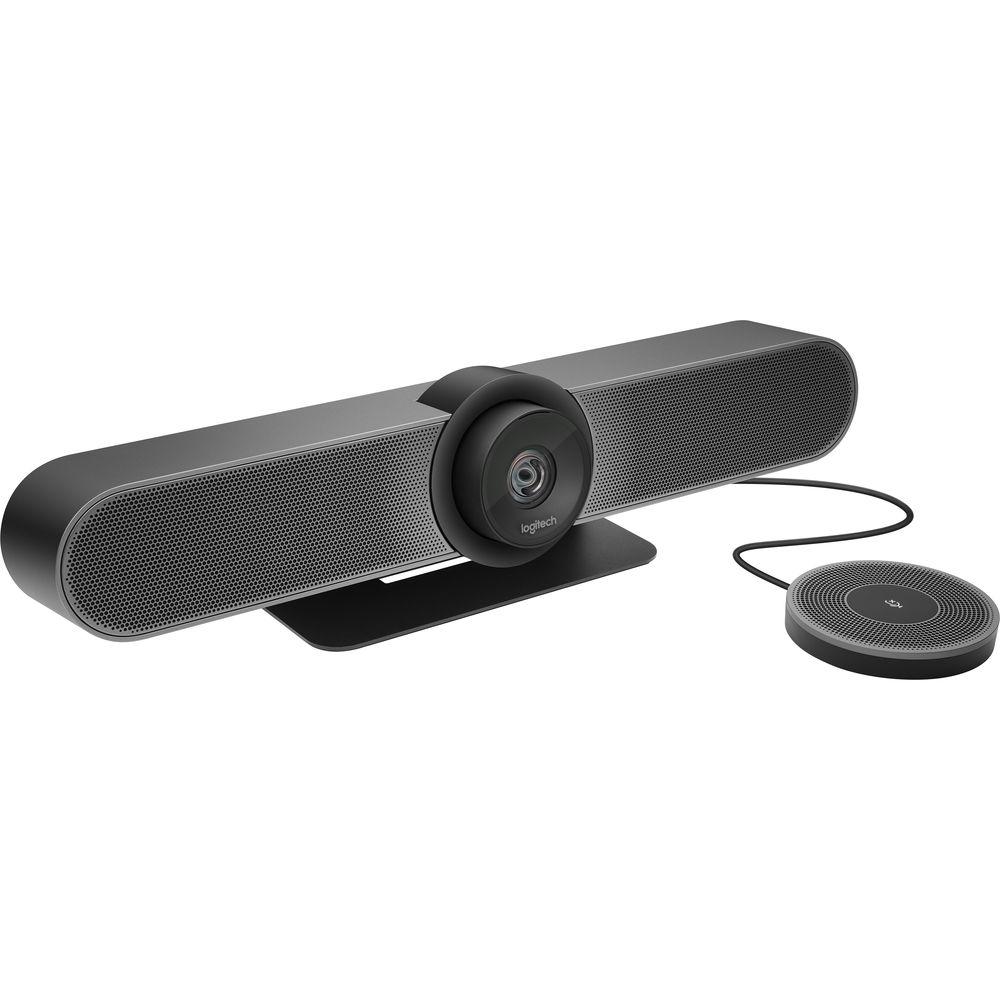

- Expansion microphone-ready
- Motorized pan/tilt
- Bluetooth wireless technology
Logitech Wireless Touch Keyboard K400 - Long-Range Wireless Keyboard
- Control your entertainment wirelessly from a generous distance. An advanced 2.4GHz wireless connection virtually eliminates delays, dropouts, and interference.
- Built-in Touchpad
- A large 3.5" built-in touchpad makes vertical scrolling intuitive and multi-touch navigation lets you point and scroll easily when you're on the web.
- USB Receiver
- The tiny USB receiver stays plugged into your computer and out of the way. You can even add a compatible wireless mouse, keyboard or number pad without the hassle of multiple receivers.
- Low-Profile Keys
- Sleek, low-profile keys allow for comfortable and quiet typing.
- Media Hot Keys
- Mute, volume up, volume down, and a home button help you do your favorite things instantly.
- Easy-to-Read Keys
- Bold, bright white characters make the keys easier to read in any lighting environment.
- Data Encryption
- 128-bit AES encryption helps protect your information by encrypting data transferred between the keyboard and receiver.
- Long Battery Life
- Enjoy up to a whole year of productivity before swapping batteries. An on/off switch helps save power when you're not using the keyboard.
- Plug-and-Play Ready
- Just plug the wireless receiver into a USB port on your computer; no software driver installations are needed to get started.
- Vertical Storage
- Keyboard stands vertically for easy storage if your room is on the small side.
UPC: 715663070498 In the Box Logitech Meetup NUC KT3 Video Conferencing Kit NUC5I5MYHE Mini PC NUC Kit License Key to Activate Software Logitech ConferenceCam MeetUp Video Conferencing Camera C2G Mini DisplayPort to HDMI Adapter (8") Logitech K400 Wireless Touch Keyboard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech Meetup NUC KT3 Video Conferencing Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLogitech 960001101NUCBUN Specs | | | Processor | 2.3 GHz Intel Core i5-5300U vPro Dual-Core
2.9 GHz Max Boost Speed
3 MB L3 Cache | | Memory | 2 x 1600 MHz 204-Pin SO-DIMM DDR3 slots | | Graphics | Integrated Intel HD Graphics 5500 | | Drives | 1 x 2.5" (Internal) | | Ports | 4 x USB 3.0 Type-A
2 x Mini DisplayPort
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
1 x 10/100/1000 Mbps Gigabit Ethernet (RJ45) | | Power Supply | 65 W | | Dimensions (W x H x D) | 4.5 x 4.4 x 1.9" (114.3 x 111.8 x 48.3 mm) | | | | Resolutions | 4K Ultra HD video calling (up to 3840 x 2160 pixels at 30 fps)
1080p Full HD video calling (up to 1920 x 1080 pixels at 30 fps)
720p HD video calling (up to 1280 x 720 pixels at 30 fps) | | FOV | 120° | | Bluetooth | Yes | | | | Quantity | 3 | | Sensitivity | -27 dB | | Frequency Response | 90 Hz to 16 kHz | | | | Volume | 95 dB SPL at 0.5 m peak | | Sensitivity | 86.5 ±3 dB SPL 0.5 m | | Distortion | 200 to 300 Hz <3%, 3000 Hz to 10 kHz <1% | | | | Interface | Wireless 2.4 GHz | | Range | Up to 33' (10 m) | | Enhanced Function Keys | Mute, volume up, volume down, home button | | Power | Battery powered | | | | System Requirements | Windows 7 / 8.1/ 10
macOS 10.10 or higher
Google Chromebook Version 29.0.1547.70, Platform 4319.79.0 with:
2.4 GHz Intel Core 2 Duo processor
2 GB RAM or more
USB 2.0 port (USB 3.0 required for 4K video) | | Dimensions (H x W x D) | 4.1 x 15.75 x 3.35" (104 x 400 x 85 mm)
Remote: 0.375 x 3.25 x 3.25" (10 x 83 x 83 mm) | | Weight | 2.3 lb (1.04 kg) | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 20.0 x 16.3 x 7.9" |
