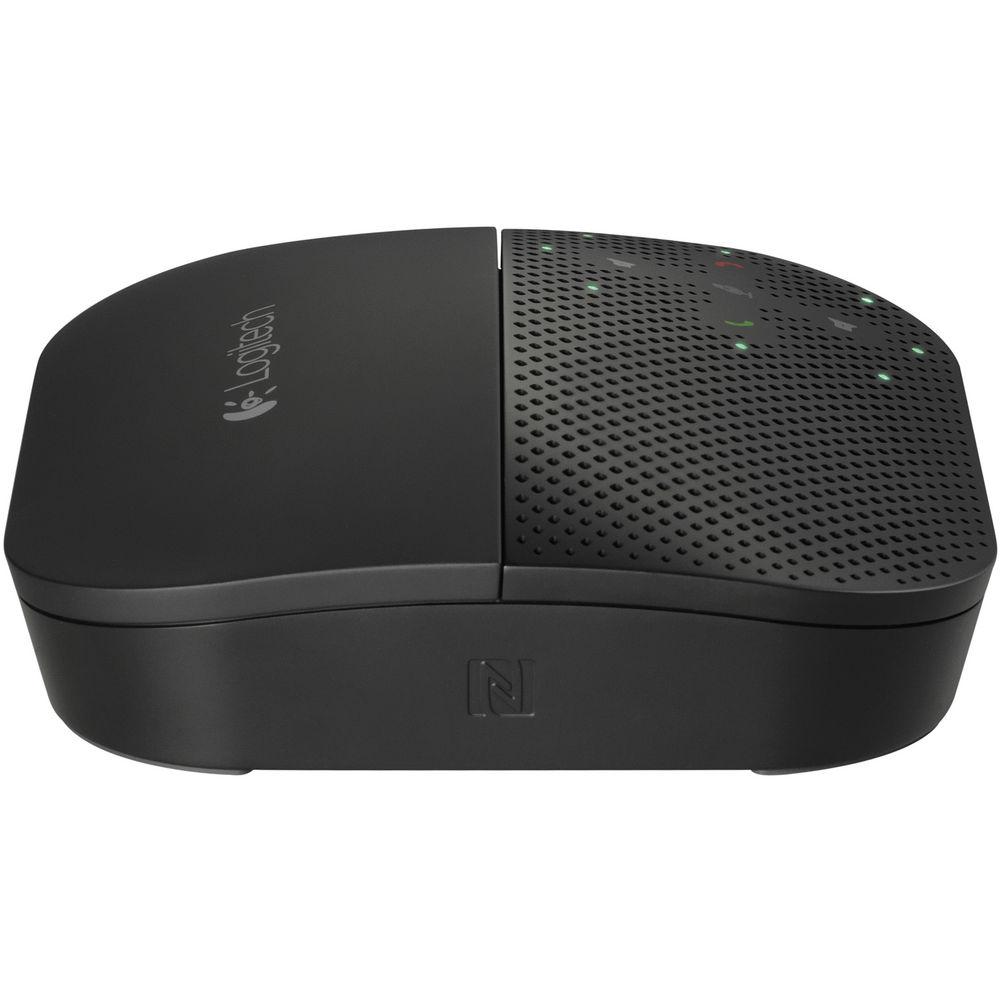

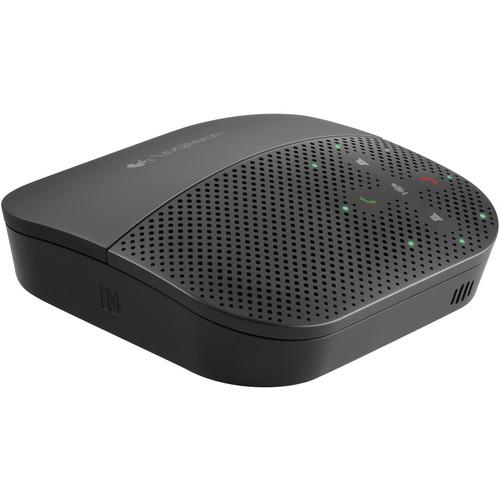

User Manual for Logitech Mobile Speakerphone P710e Click to enlarge the picture
Contents of the user manual for the Logitech Mobile Speakerphone P710e
- Product category: Telephones Logitech
- Brand: Logitech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Logitech Telephones
 |
User manual for the Logitech Mobile Speakerphone P710e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Logitech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Logitech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Logitech product will considerably shorten its lifespan!
|
Product description The Logitech Mobile Speakerphone P710e connects to a mobile phone or tablet via USB or Bluetooth wireless, and supports NFC touch-to-pair technology. It also has an integrated stand that holds your device for second-screen versatility. Digital Signal Processing (DSP) Advanced DSP technology enables precise tuning for both the mic and speaker so conversations are more life-like. True wideband audio, lets you enjoy a life-like communication experience. The speakerphone also features acoustic echo cancellation and a noise-cancelling microphone for premium sound even in noisy environments.
Additional conveniences include touch controls, separate answer/end call buttons, visual indication for incoming calls, and a headphone jack for privacy. The built-in battery charges via USB or an AC adapter (not included), and it provides up to 15 hours of talk time between charges. The included zippered neoprene carrying case allows for easy storage and portability. - Connect via USB or Bluetooth
- USB plug-and-play connectivity easily connects to PCs or Macs, or pair up to eight Bluetooth devices wirelessly
- NFC Technology
- Easily pair and un-pair NFC-enabled mobile devices to the P710e by simply touching them together

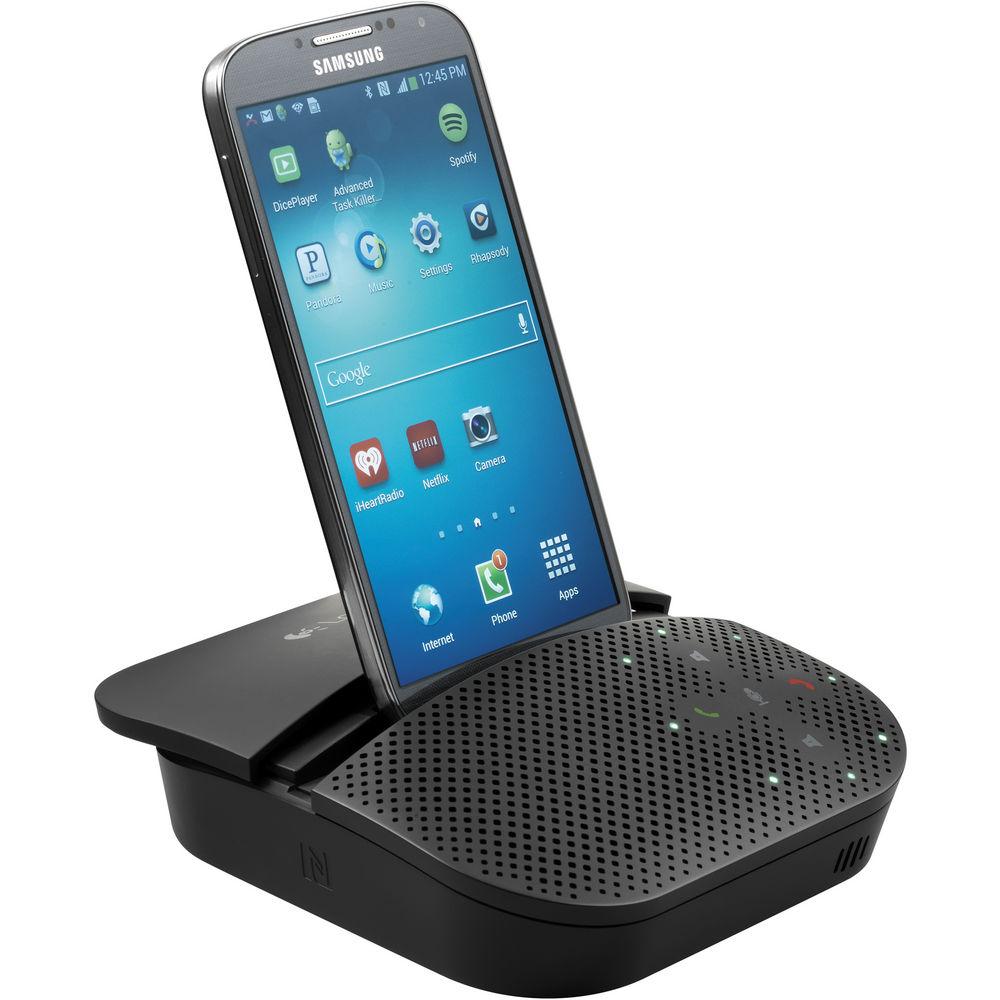

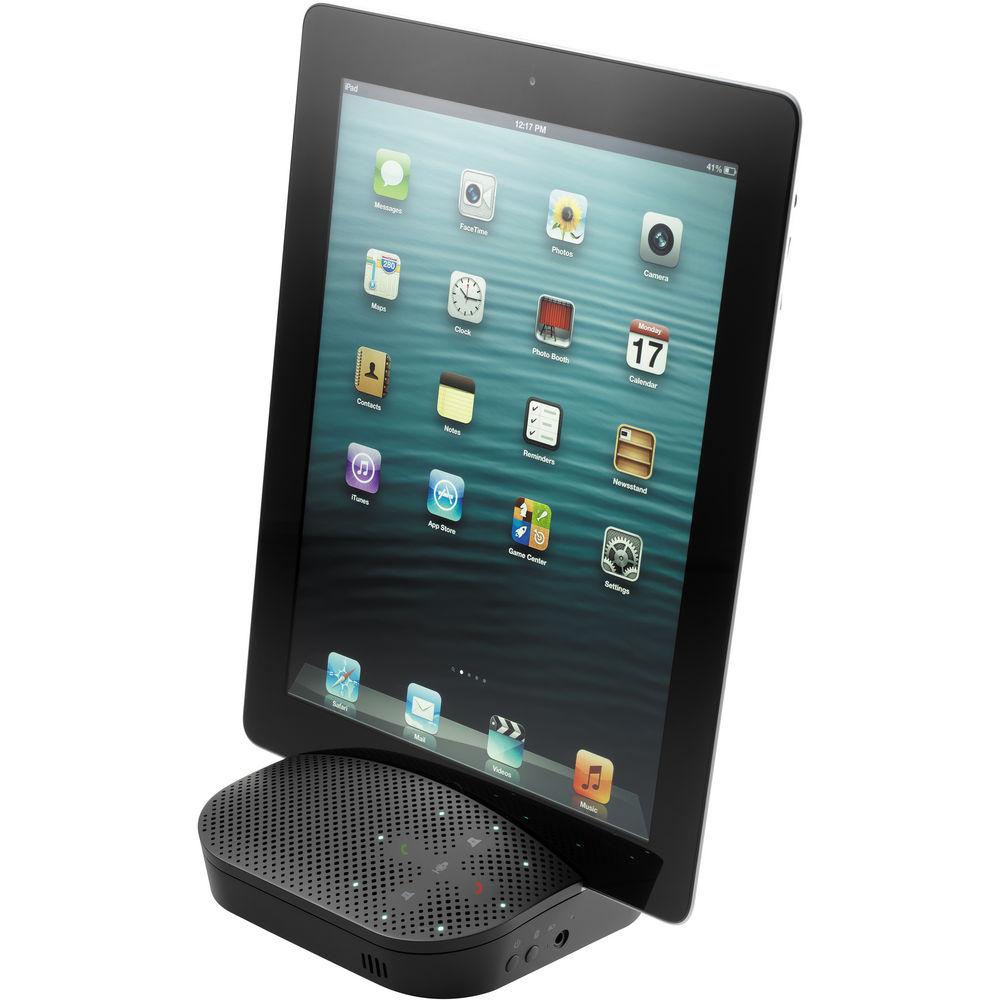

- Integrated Stand
- An integrated stand positions a mobile phone or tablet at just the right angle for shake-free video calls and hands-free access to the mobile screen
- Digital Signal Processing (DSP)
- Advanced DSP technology enables precise tuning for both the mic and speaker so conversations are more life-like
- Wideband Audio
- Hear and be heard in true wideband audio, so those on both sides of the call can enjoy a life-like communication experience
- Acoustic Echo Cancelation and Noise-Cancelling Microphone
- Optimized so that you can hear and be heard even in noisy workspaces
- UC Platform Compatibility
- Optimized for Microsoft Lync, Cisco compatible and Skype certified to ensure premium audio quality and an integrated experience with most business-grade UC platforms

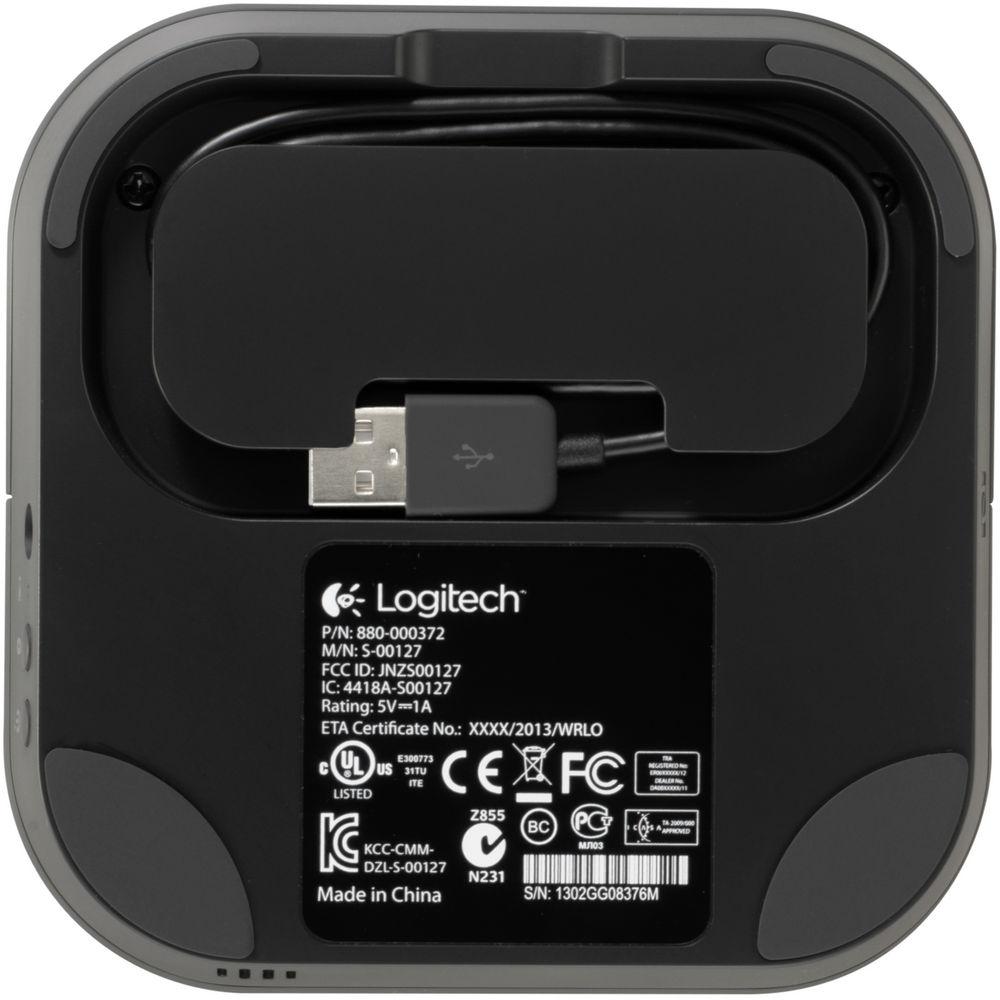

- USB Cable Management
- The USB cable is hard-wired into the speakerphone so it's never lost and neatly coils away beneath the unit when the cable isn't in use
- Dynamic Equalizer
- Automatically switches between voice and music modes, delivering the best sound quality and EQ for what the user is listening to

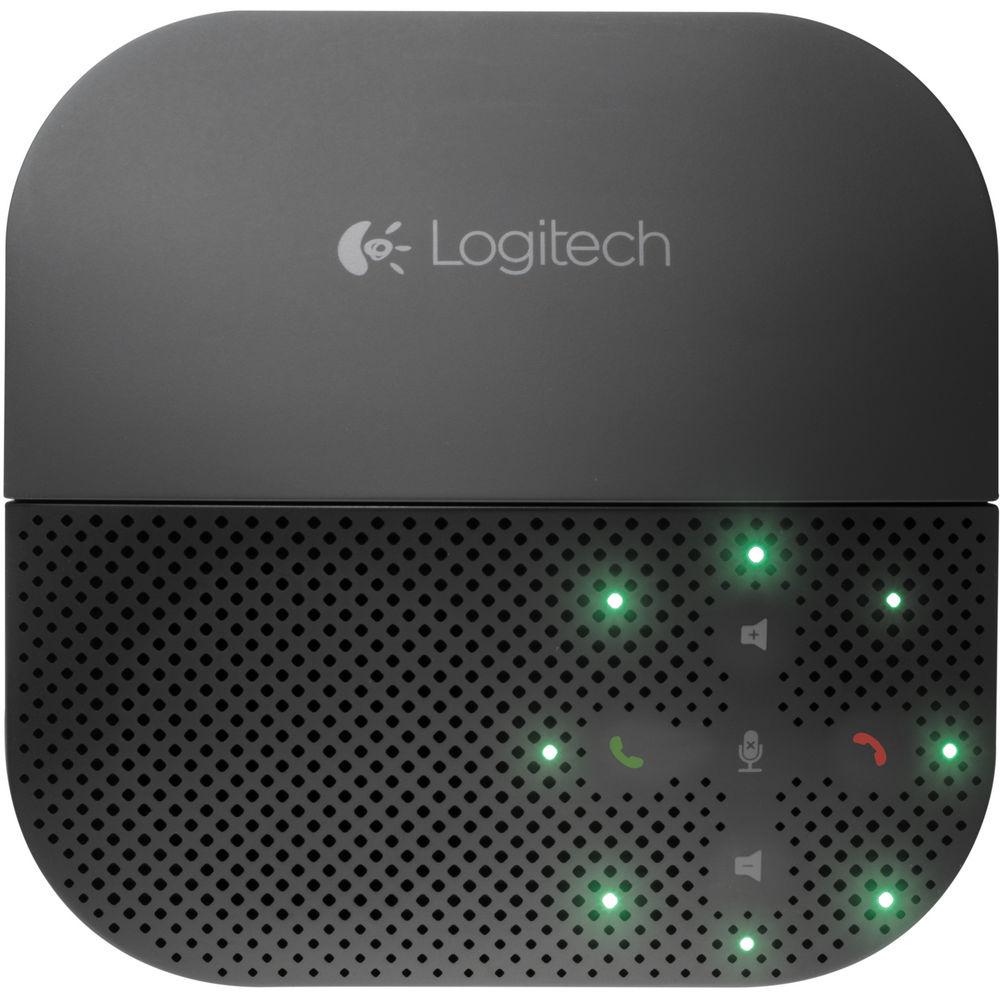

- Touch Controls
- Provide excellent response without transmitting audible noise through the audio path
- Call Answer/Call End Buttons
- Separate "call answer" and "call end" buttons increases call control and provides greater flexibility when handling multiple calls
- Visual Indicator for Incoming Calls
- Visual incoming call indicator onboard LEDs flash to provide a visual alert when a call is coming in
- Headphone Jack
- Plug a pair of headphones into the speakerphone whenever you want to listen privately without disturbing others
- Built-In Battery
- The built-in battery charges via USB or an AC adapter (not included), so you can connect it to a computer or wall socket for flexibility. The battery lasts for up to 15 hours of talk time between charges
- Travel Case
- Carry and protect your speakerphone using the included zippered neoprene carrying case
UPC: 097855101143 In the Box Logitech Mobile Speakerphone P710e Travel Case Phone Spacer 2-Year Limited Hardware Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech Mobile Speakerphone P710e in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLogitech P710e Specs | | | Frequency Response | 140 Hz to 16 kHz | | Volume | Adjustable to 85 dBA at 0.5 meter | | | | Type | Omni-directional microphone, 360-degree coverage | | Frequency Response | 50 Hz to 8 kHz | | | | Connector Type | 1 x 1/8" (3.5 mm) jack | | Frequency Response | 20 Hz to 20 kHz | | Enhancements | Acoustic echo canceller
Noise reduction
Automatic gain control | | | | System Requirements | Windows Vista
Windows 7 or Windows 8 (32-bit or 64-bit)
Mac OS X 10.6 or later
Linux
Bluetooth mobile device
Available USB port
AC power | | | | Certifications | Optimized for Microsoft Lync, Cisco compatible, Skype certified | | Dimensions (WxHxD) | 4.75 x 4.75 x 1.5" (120 x 120 x 40 mm) | | Weight | 9.7 oz (275 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.5 x 6.0 x 2.5" |
