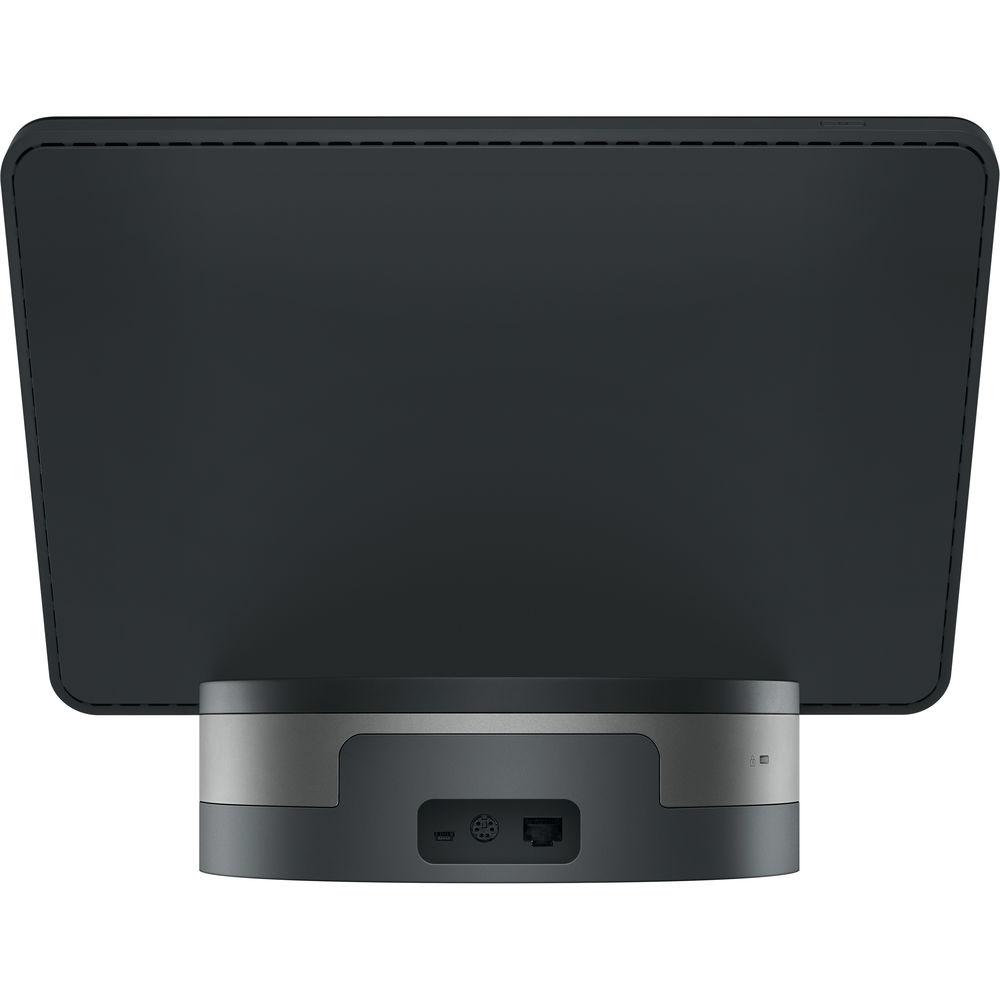

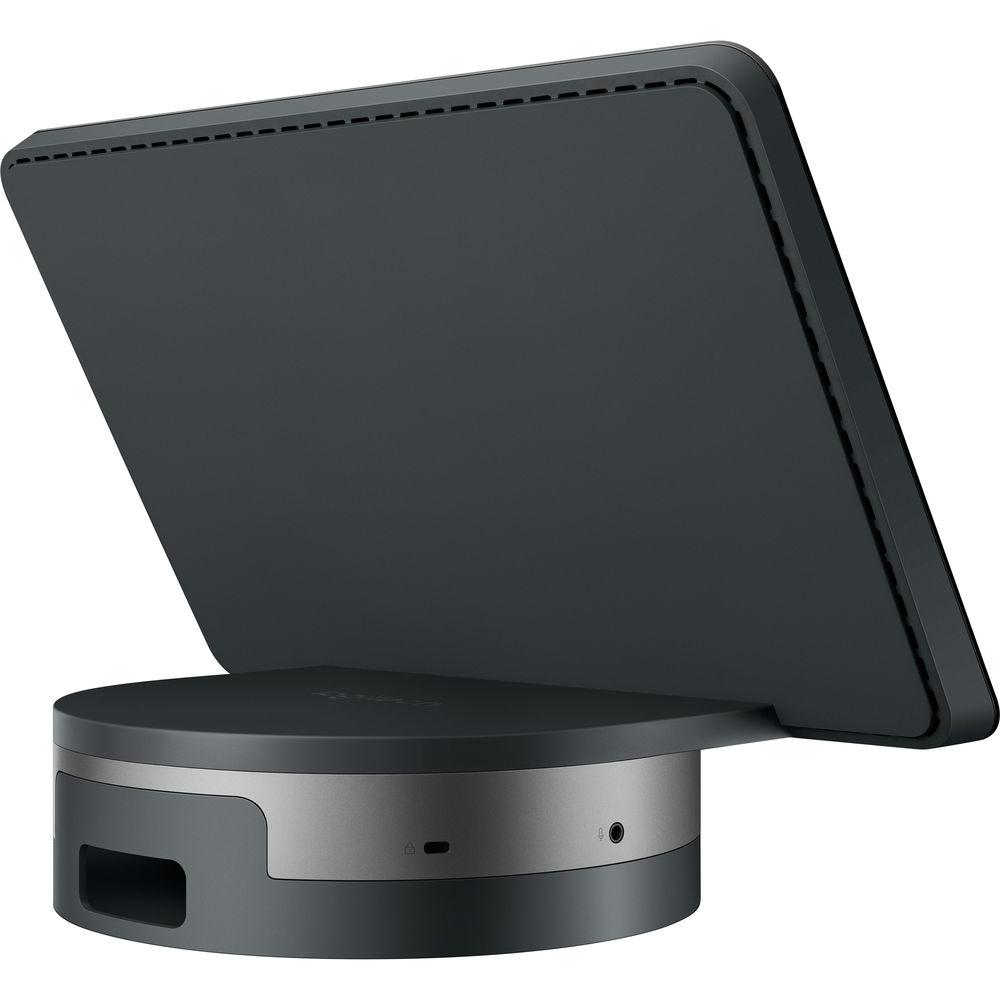

User Manual for Logitech SmartDock Flex Expansion Kit Click to enlarge the picture
Contents of the user manual for the Logitech SmartDock Flex Expansion Kit
- Product category: Docking Stations & Port Replicators Logitech
- Brand: Logitech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Logitech Docking Stations & Port Replicators
 |
User manual for the Logitech SmartDock Flex Expansion Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Logitech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Logitech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Logitech product will considerably shorten its lifespan!
|
Product description Add connectivity to your Skype for Business conferences with the SmartDock Flex Expansion Kit from Logitech. The dock provides a Skype for Business interface and works as a conference control device, and it can connect to existing compatible conference equipment such as Logitech ConferenceCams. Furthermore, the dock provides Gigabit Ethernet, audio, power, USB 2.0, and HDMI ports for connecting your conference equipment, and an Extender Box that provides additional connectivity for wired peripherals. The dock also allows you to leave a Surface Pro docked and protected.

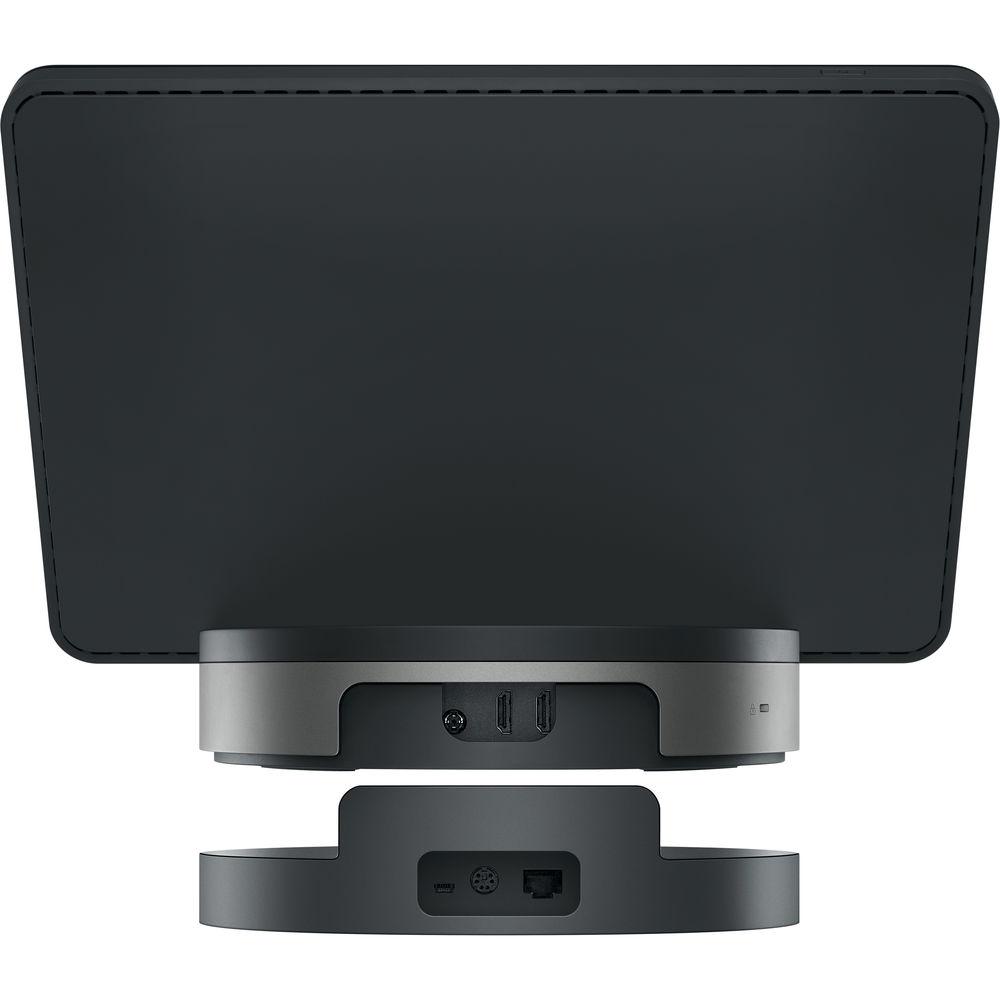

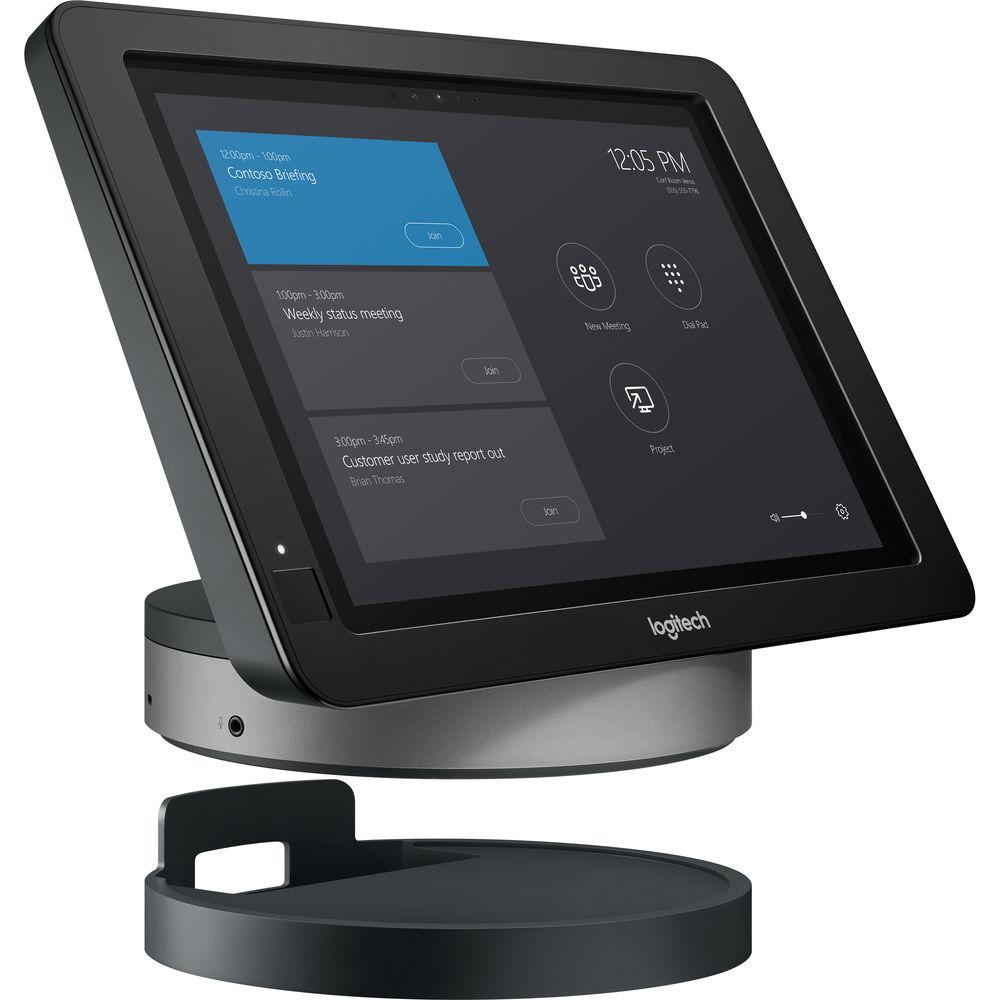

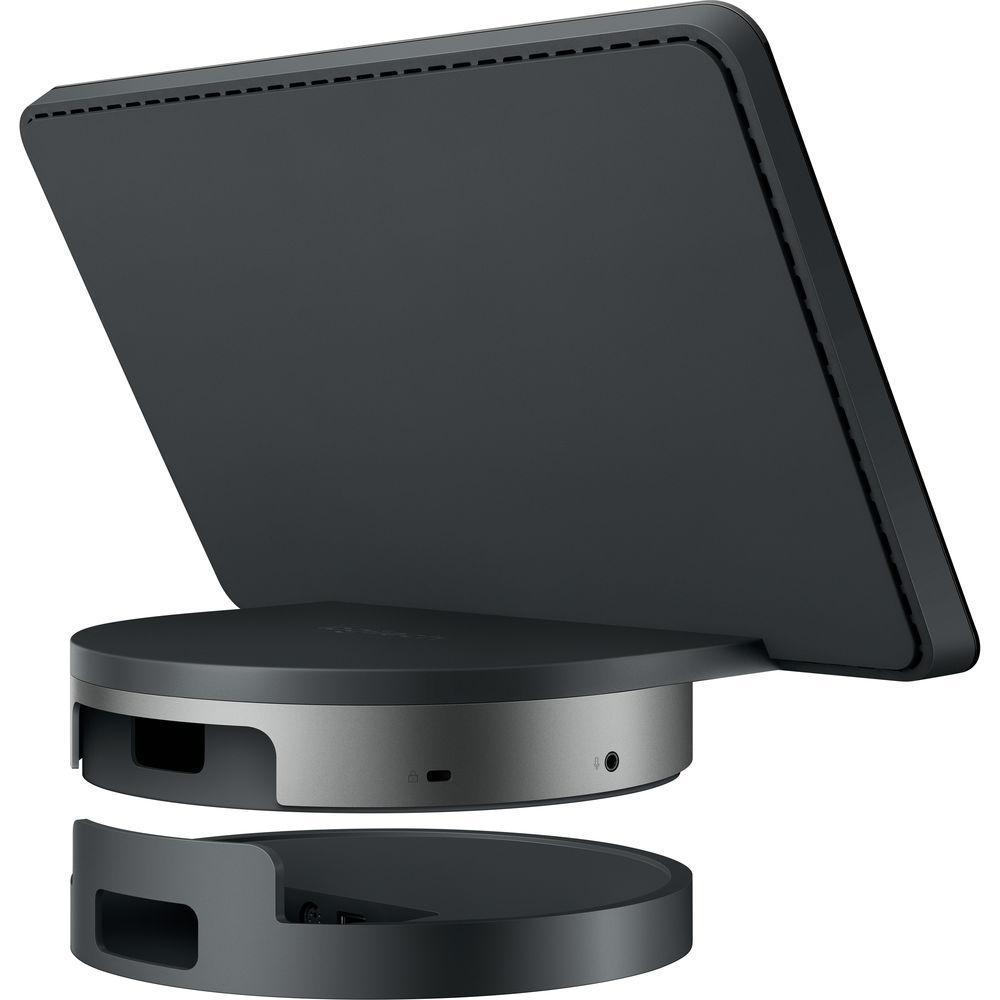

For meetings outside the Microsoft ecosystem, the SmartDock Flex provides AV passthrough access to the room's camera, speakerphone, and display. Moreover, you can streamline and consolidate cabling for a clean, clutter-free installation. This dock also provides an integrated GROUP hub for direct camera and speakerphone connections. The SmartDock Flex expansion kit includes a base that mounts beneath the dock and an extender box that fits behind a display at the front of the room.
Rather than needing to run multiple cables across the room, installers can connect the SmartDock Flex base and extender box with a CAT6 cable up to 50' for expanded room layouts. You can also use the equipment in your Skype rooms with Cisco WebEx, Zoom, BlueJeans, and most other webinar services. Together with the SmartDock, the Logitech SmartDock Flex ensures maximum versatility for Skype Room Systems. - Cable Consolidation
- The Logitech SmartDock Flex Expansion Kit is designed to make it easy to manage cabling between the conference table and the front of the room, and eliminates the need to purchase and install individual USB and HDMI extenders.
- Extended Room Layouts
- You can position the SmartDock Flex within easy reach of meeting participants, even if that's across the room from your wall-mounted displays. SmartDock Flex sends data, audio, video, and power through up to 50' with a CAT6 cable, which you can easily route under tables, through walls, above ceilings, and through standard raceways and conduits.
- AV Passthrough
- To maximize the versatility of Skype Room Systems, the SmartDock Flex adds passthrough access for both local projection and participation in external meetings. To project slides and documents to the room's display, connect a laptop via HDMI. Or transfer files via USB.
- Cable Retention and Strain Relief
- Designed with retention and strain-relieving mechanisms for securing AV cables within the SmartDock Flex base. With a CAT6 cable that clicks into place at both ends, users can reposition SmartDock Flex without impacting power, USB, and HDMI connections.
- Hub for Logitech GROUP
- With an integrated hub for the Logitech GROUP ConferenceCam, installers can reduce crosstable cabling by connecting the speakerphone to the SmartDock Flex base and the camera to the SmartDock Flex extender box.
- Compatibility
-
- System Requirements: Logitech SmartDock with Microsoft Surface Pro
- Microsoft: Skype Room System Software
- Other Vendors: Cisco WebEx, Zoom, BlueJeans, and most meeting or webinar services.
- The SmartDock Flex makes the room's camera, speakerphone, and display accessible to a user's laptop via AV passthrough.
UPC: 097855138941 In the Box Logitech SmartDock Flex Expansion Kit SmartDock Flex Base SmartDock Flex Extender Box HDMI Passthrough Adaptor 16.4' CAT6 Cable Cable Ties and Securing Mounts Hook and Loop Pads Base Screws Screwdriver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech SmartDock Flex Expansion Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLogitech SmartDock Flex Specs | | | USB | 1 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 3 x HDMI | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x USB 2.0 Type-A Female | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 1920 x 1080 at 60 Hz | | Operating System Support | Windows | | UASP Support | No | | | | Cable Length | 16.4' / 5 m | | Lock Slot | No | | Dimensions | 1.8 x 8.1 x 5.6" / 45.72 x 205.74 x 142.24 mm | | | | Package Weight | 4.085 lb | | Box Dimensions (LxWxH) | 9.6 x 8.8 x 4.3" |
